Digital Vibration Meter Tester Analyzer AV 160B with Acceleration Velocity Displacement Tester USB Cable and Software
- Category: >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (62507179875):
Product Overview
Description
Digital Vibration Meter Tester Analyzer AV-160B with Acceleration Velocity Displacement Tester USB Cable and Software
Product Description:
The Vibration Tester can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously;
Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned.
Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Product Feature:
* Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance,
misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters:
| Transducer | Piezoelectric accelerometer |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil |
| Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s | |
| Acceleration : 0.1-400.0 m/s⊃2; equivalent peak / 0.3-1312 ft/s⊃2; / 0.0-40g | |
| Frequency Range | Displacement : 10Hz. ~ 1kHz. |
| Velocity :10Hz. ~1kHz. | |
| Acceleration: 10Hz. ~ 10kHz. | |
| Operating Conditions | Temperature : 0-50 ℃ |
| Humidity : below 95% RH | |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |

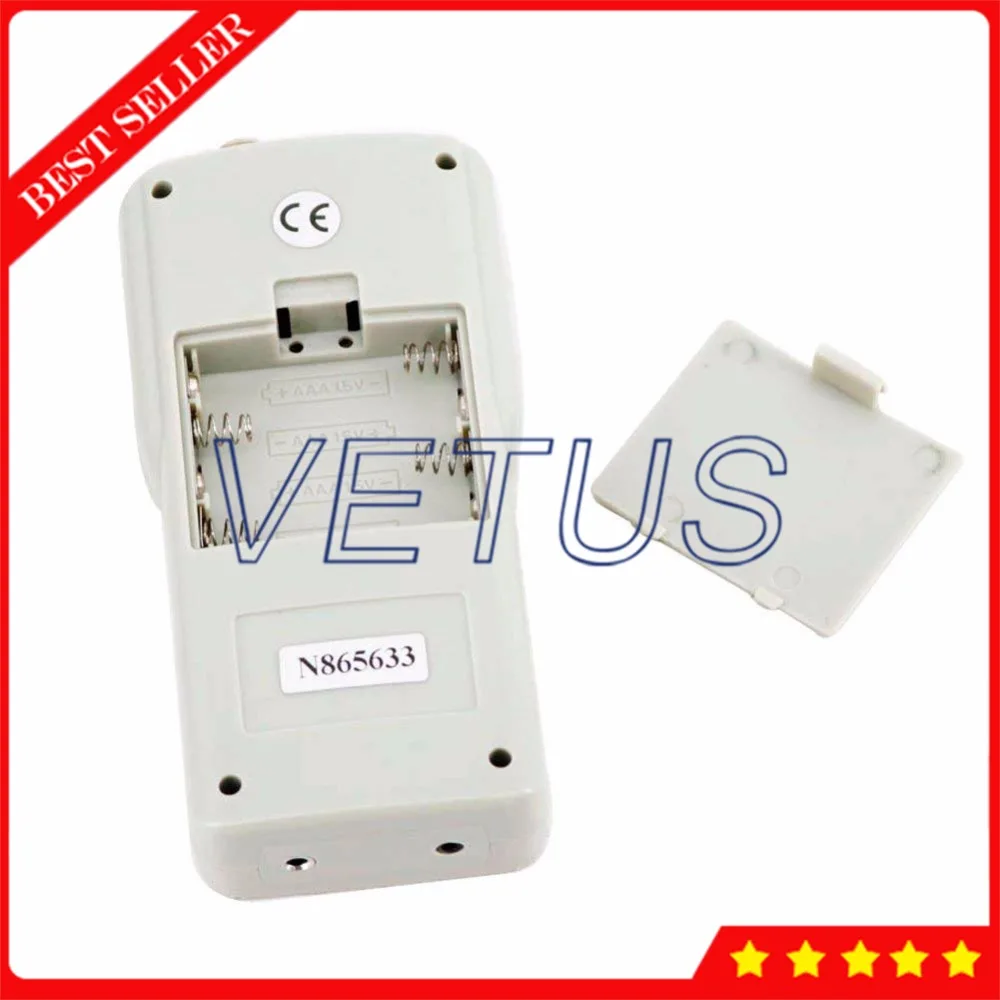

| Power Supply | 4x1.5vAAA (UM-4) Battery(battery not included) |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |

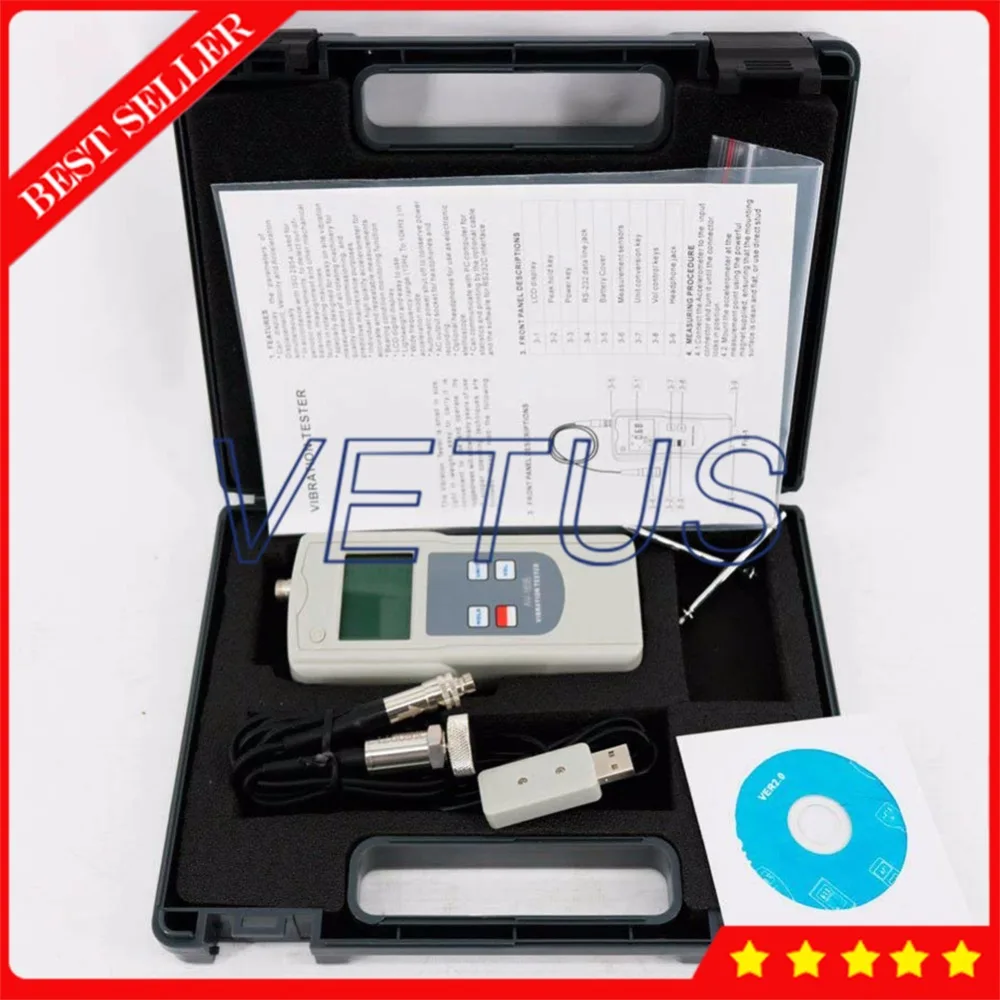

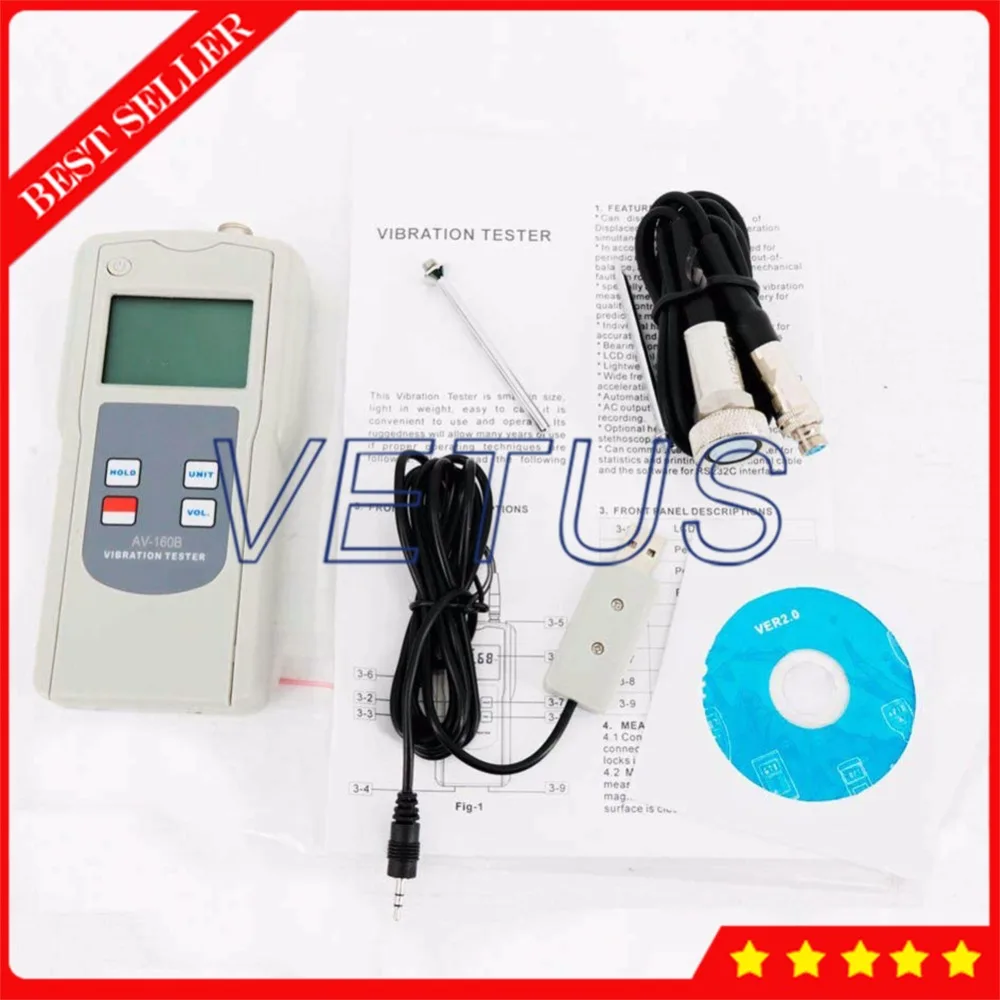

Product Accessories:
| Standard Accessories | Main Unit |
| Magnetic suction seat | |
| Probe (cone) / Probe (spherical) | |

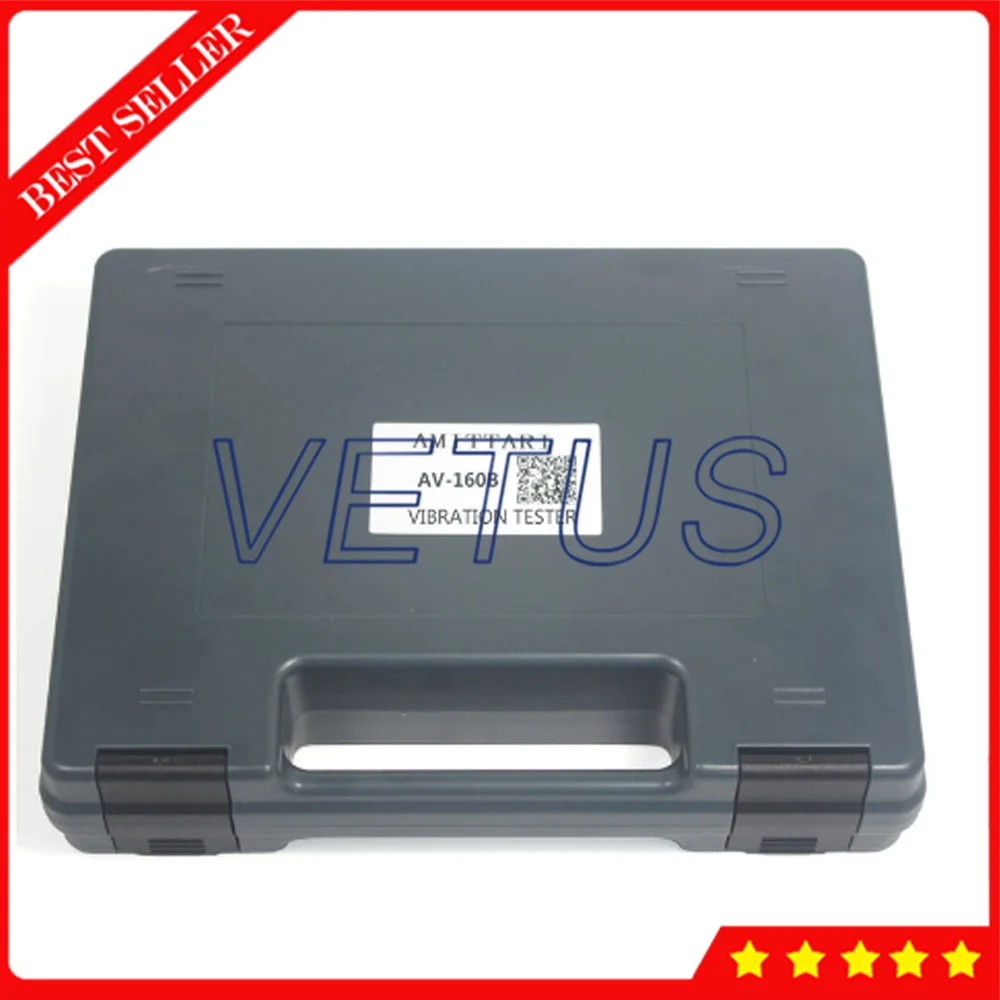

| Portable box | |
| Brochures | |
| Piezoelectric sensor | |
| Carrying Case | |
| Operation Manual,USB data output+software | |
| Optional Accessories | Headset |
| USB data output | |
| RS-232 data output | |
| Bluetooth™ data output |
Buying Guide:
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+Bluetooth data output
