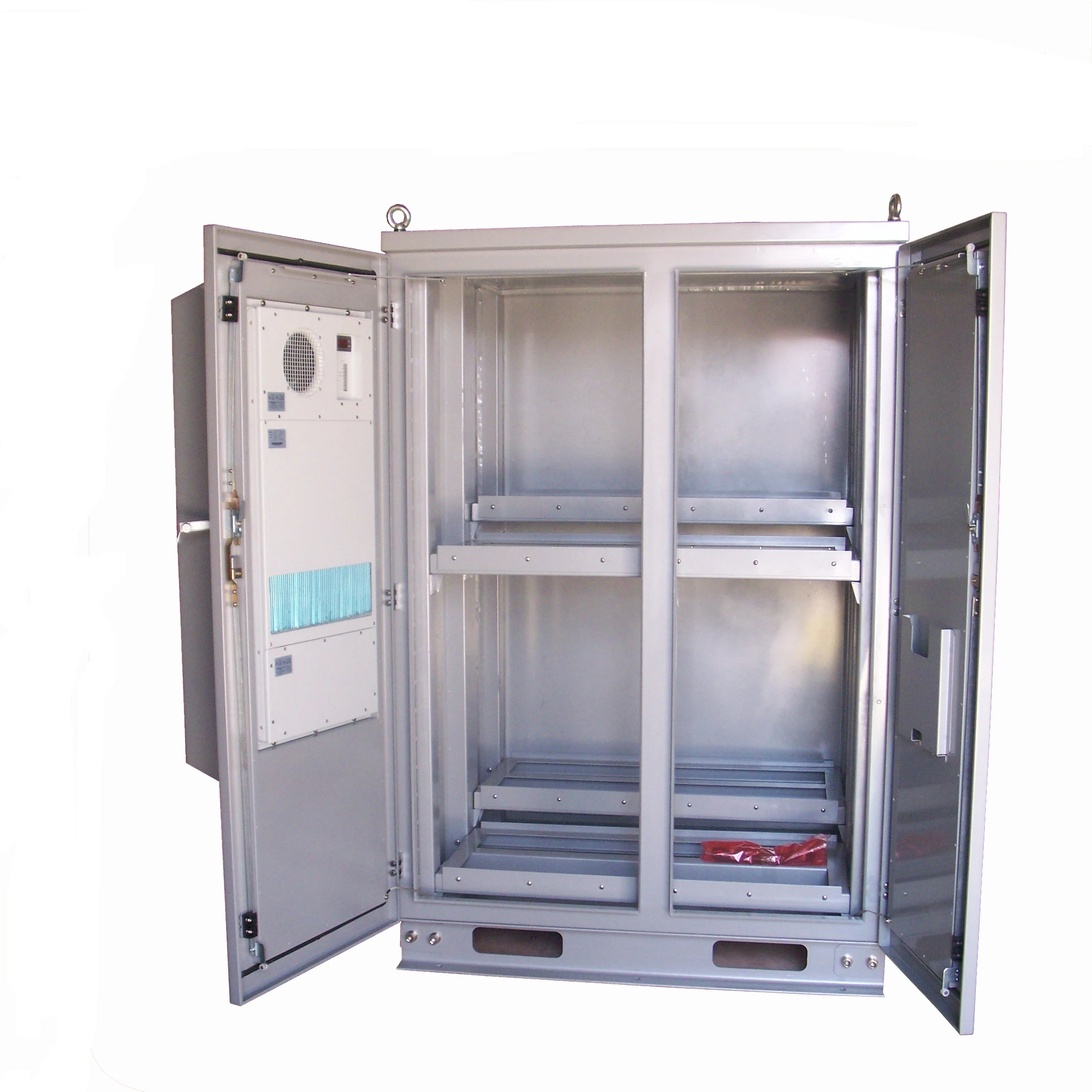

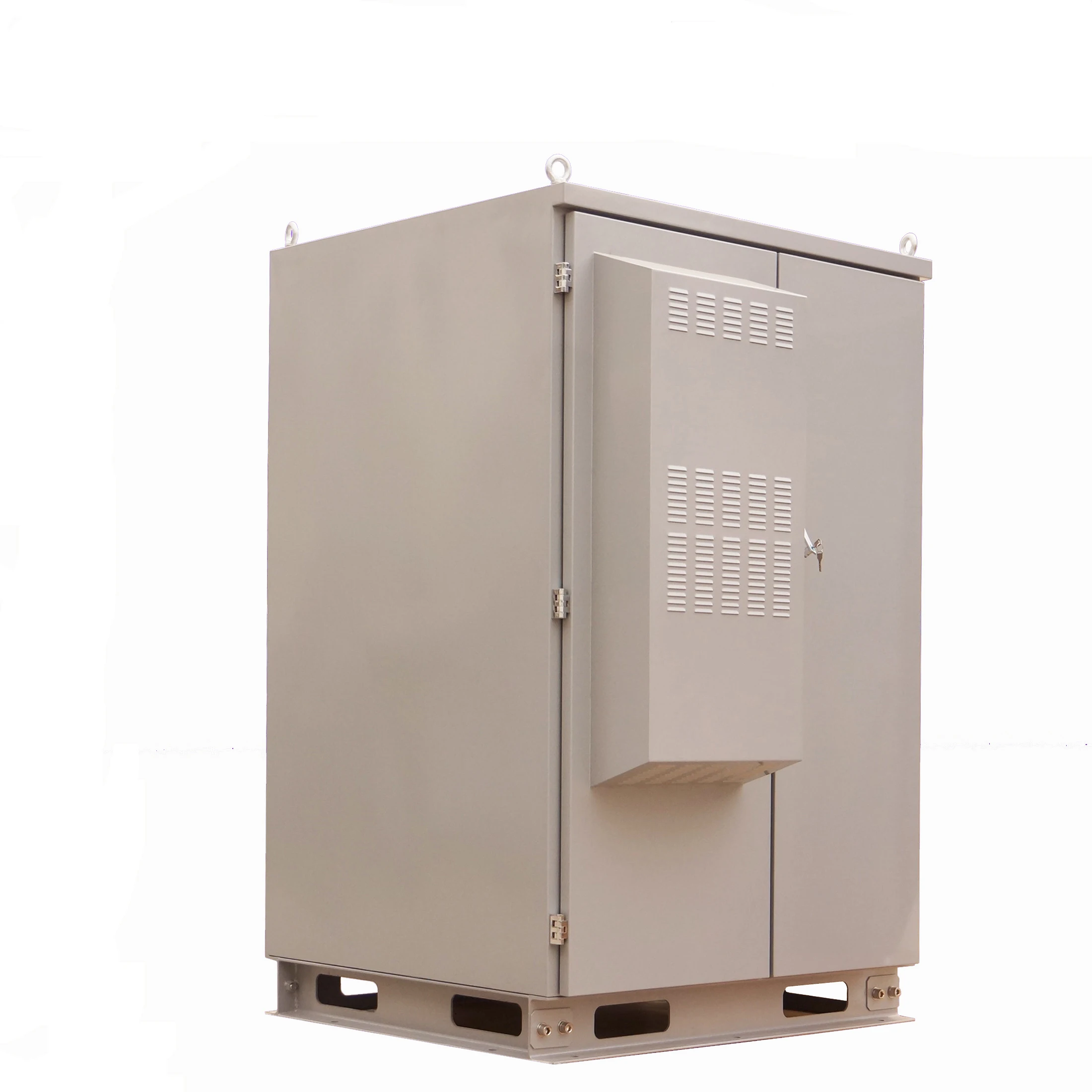

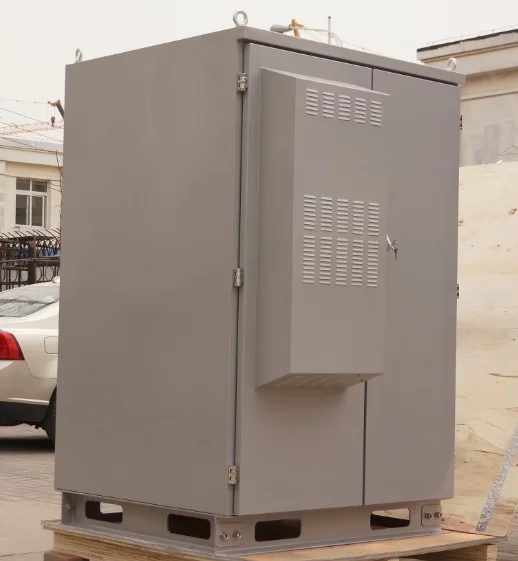

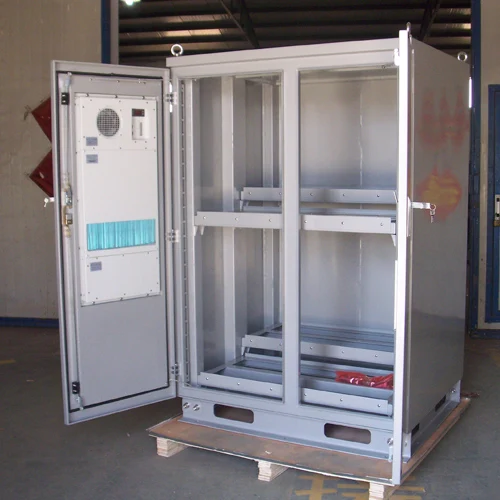

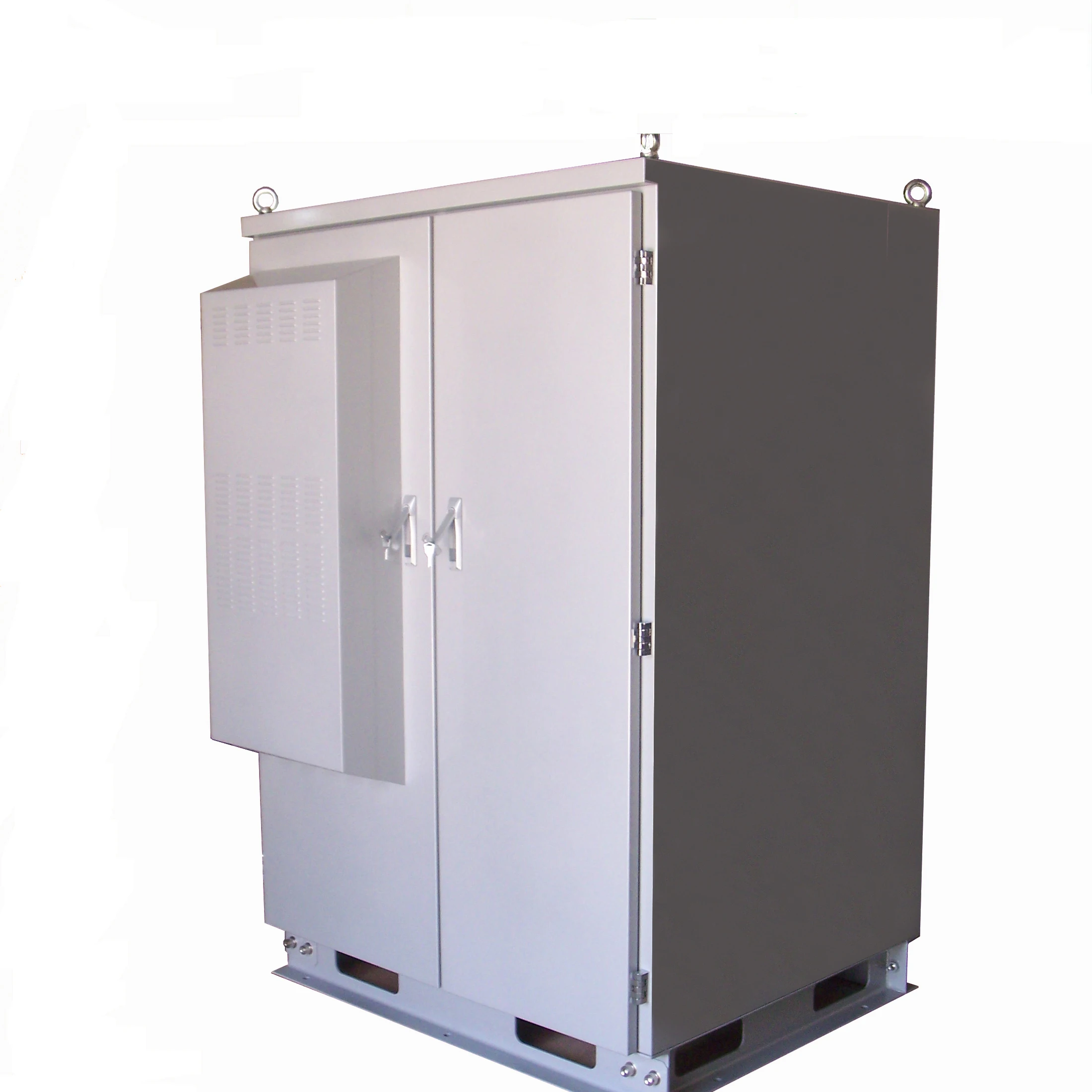

Outdoor battery cabinet 4 battery rack waterproof enclosure with heat exchanger SK 419

Product Overview

Description

China factory heat insulation battery cabinet enclosure SK-419  outdoor cabinet



Product introduction

The SK-419 cabinet is designed for supplying the good protection and constant internal temperature environment to the batteries. This product takes use of the energy efficient heat exchanger and thermal insulation structure, which supply the low cooling energy consumption and good thermal insulation protection capability. This can guarantee batteries to work in the best environment, and effectively extend the working life of batteries. It can get the better energy saving effect with the heat exchanger function.



Technical data

Cabinet	External dimenison	W1200*D1190*H1800mm
	Internal capacity	Battery rack (Optional: Customized as equipment rack)
	Cooling system	2 doors. One piece of the 80w/k heat exchanger installed on one of the door. (optional: air conditioning/ fan/ ventilation window without cooling)
	Panel structure	sanwitch panel
	Panel Material	Galvanizing plate (Optional: aluminum, stainless steel, SPCC).
	Color	RAL7035 grey or as as requirement
	Protection Level	IP55/IP65/IP66
	Standard	IEC297-2; DIN41491;part1
Environment	Operating temperature	-10°C ~ + 45 °C
	Storage temperature	-40°C ~+ 45 °C
	operating humilidity	-40°C ~ +45 °C
	Transporation temperature	5% ~95%
Others (optional)	lighting	48V LED light (based on request)
	sensors	Door, smoke, temeperature,water, humility (based on request)
	cable distribution unit	DDF, ODF
	Environment monitor	controller with integrated power. Signal input and alarm output. (Based on request)
Package	Wood case. If the cabinet with air conditioner. The case must be vertically standing loaded






Company information



Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.



It is a hightech company with technology R&D and service combination as well as information and industry. Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.



The company passed the ISO9001 International Quality System Certification in 2004 January.

We have acquired multiple software copyrights and invention patents.



Several product technologies are listed as National Key and New Product Project , Tianjin Science

and Technology Support Plan Project.



Package



Our advantages

1, industry and trade integration business.Factory direct sale.

2, 14 years experience.

3,Flexible payment,Fast and accurate quotes.

4.OEM/ODM acceptable,good service.



Certification



FAQ



1.Are you a manufacturer?

Yes.We have 13 years manufactural experience.

2.Can you ensure quality?

Yes.In the production of each link and before loading do a detailed inspection.

3.Can you keep timely delivery?

Yes.We use short producing time and fast shipping.
