Product Overview
Description
Top Selling filter heavy equipment casting filtration
Top Selling Filtration Box for Aluminum Liquid
USAGE
Top Selling filter heavy equipment casting filtration
• The most widely used high-efficiency filtration system
Equipment Introduction

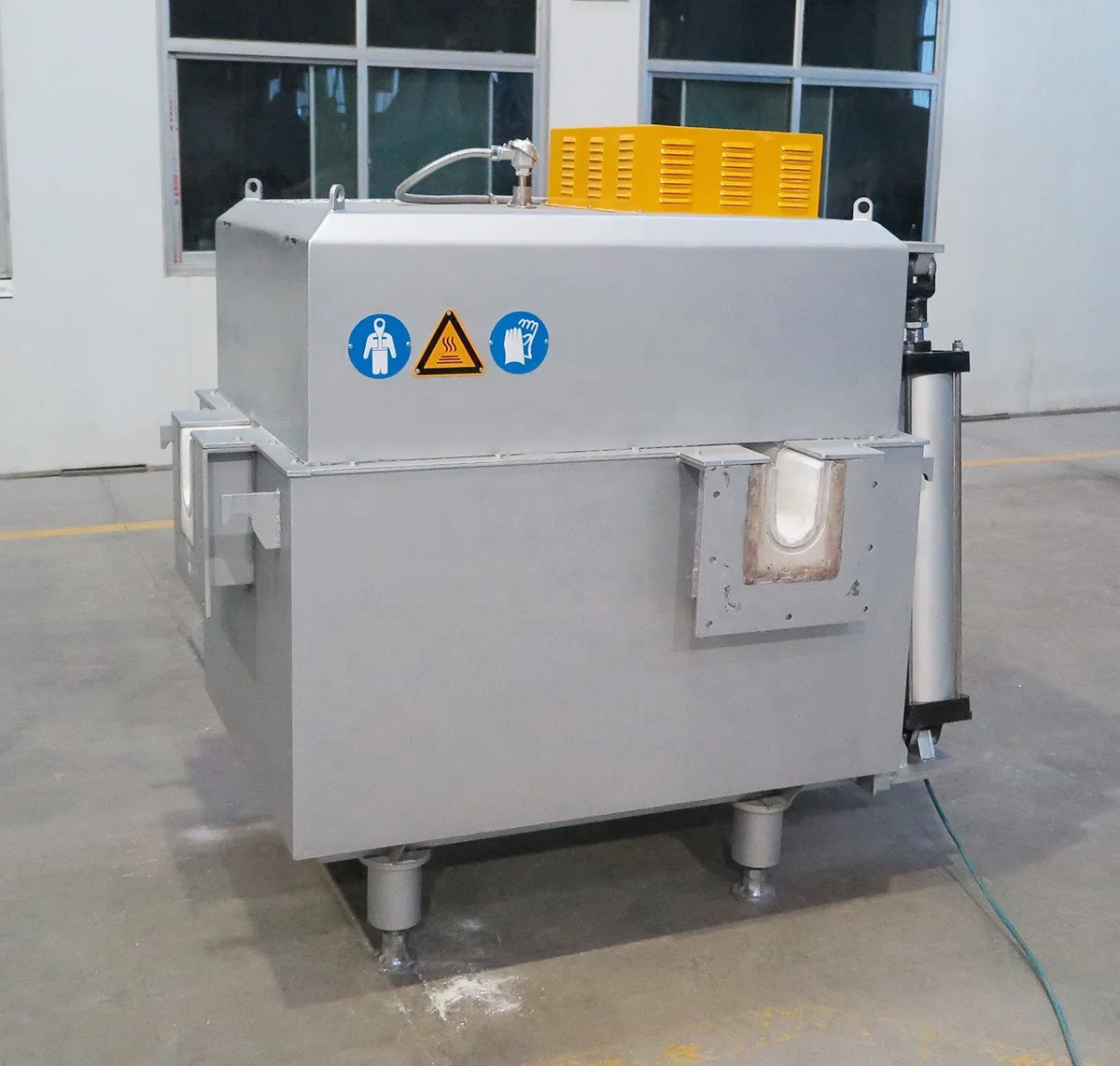

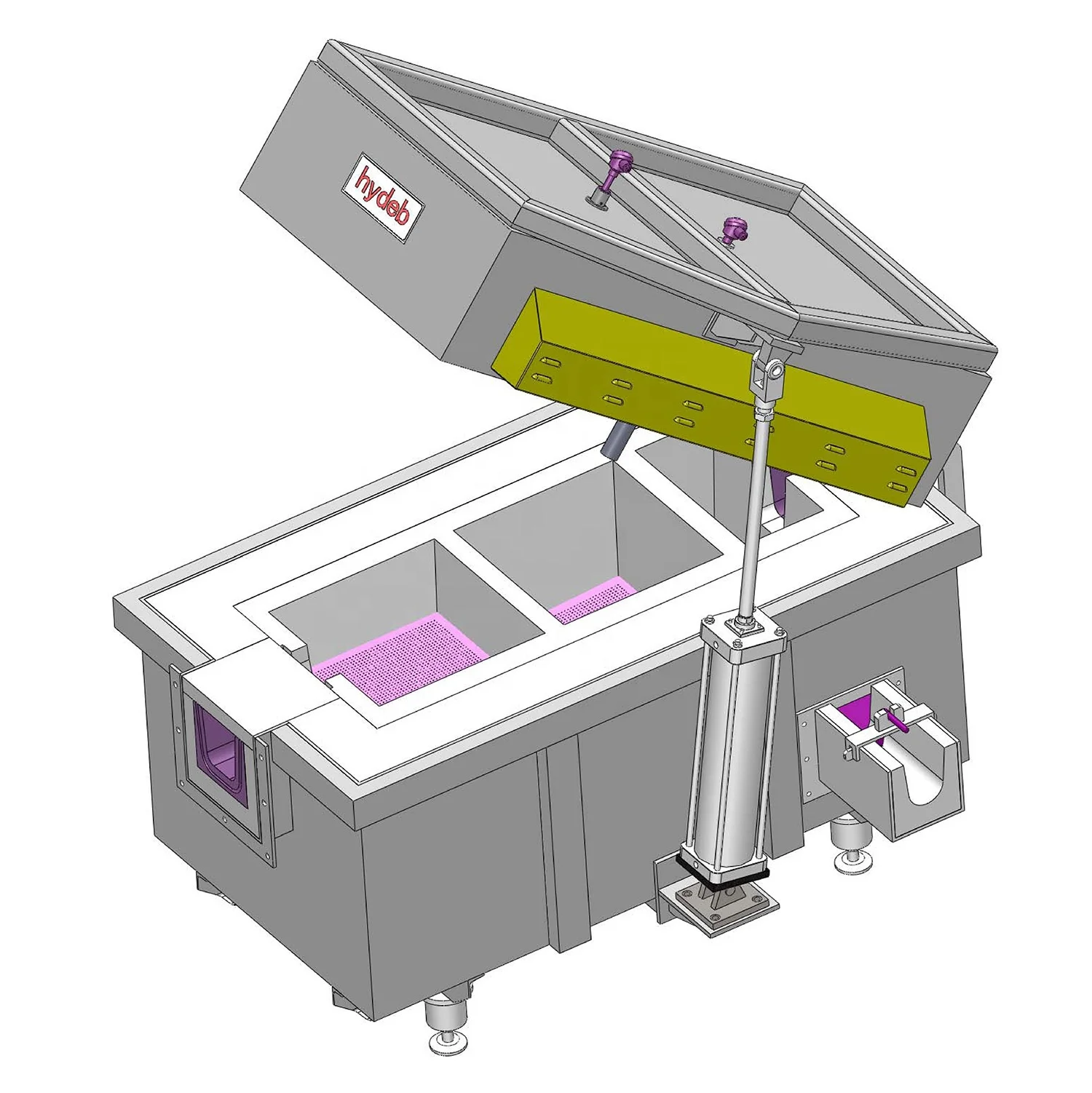

- The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in
the aluminum casting process to prevent the particulate impurities in molten
aluminum from entering the casting blank and affecting the quality of aluminum
products.
-According to the quality requirements of castings, the volume of molten
aluminum, the total volume of filtered aluminum, and the cleanliness of the
aluminum itself, the correct selection of the type of filter box and the
specifications of the foam filter plate help to achieve satisfactory filtration
results.
PRODUCTS IMAGES
• Significant filtration effects. It meets the production requirements of ordinary
products and even the stringent production requirements of aluminum alloy
can materials, aero-metals and other relevant materials. The filtration box can
effectively filter out bulk inclusions in the molten aluminum, adsorb small
inclusions in the molten aluminum, refine the crystalline structure of castings,
reduce the content of hydrogen in the molten aluminum and reduce the
content of harmful elements such as Na and K in the molten aluminum by
adsorption.

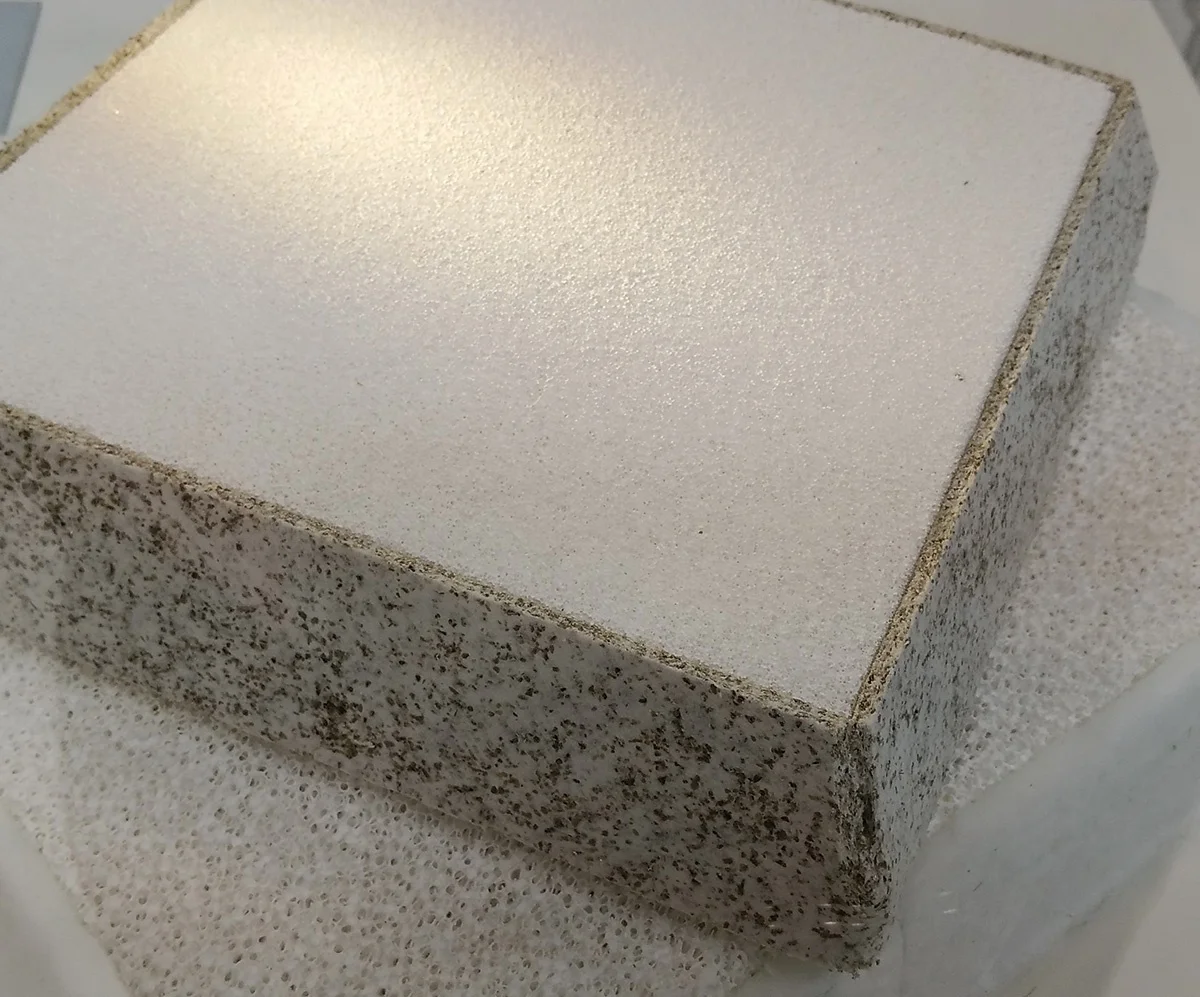

•The filtering method is simple. Standardized and serialized production of the
CFF filtration boards has been realized. According to the requirements of the
quality of aluminum liquid and flow rate, etc., matched with different hole
sizes (20-60ppi) and a combination of filter plates, then different filtering
effects can be achieved.
•Economical. The filtration board has high strength and resistance to abrasion
by molten aluminum, good thermal shock resistance and a long service life.
The heating cover ensures that one filtration board can be reused more than
6 times in the filtrate, thereby reducing the cost of consumables. The lining

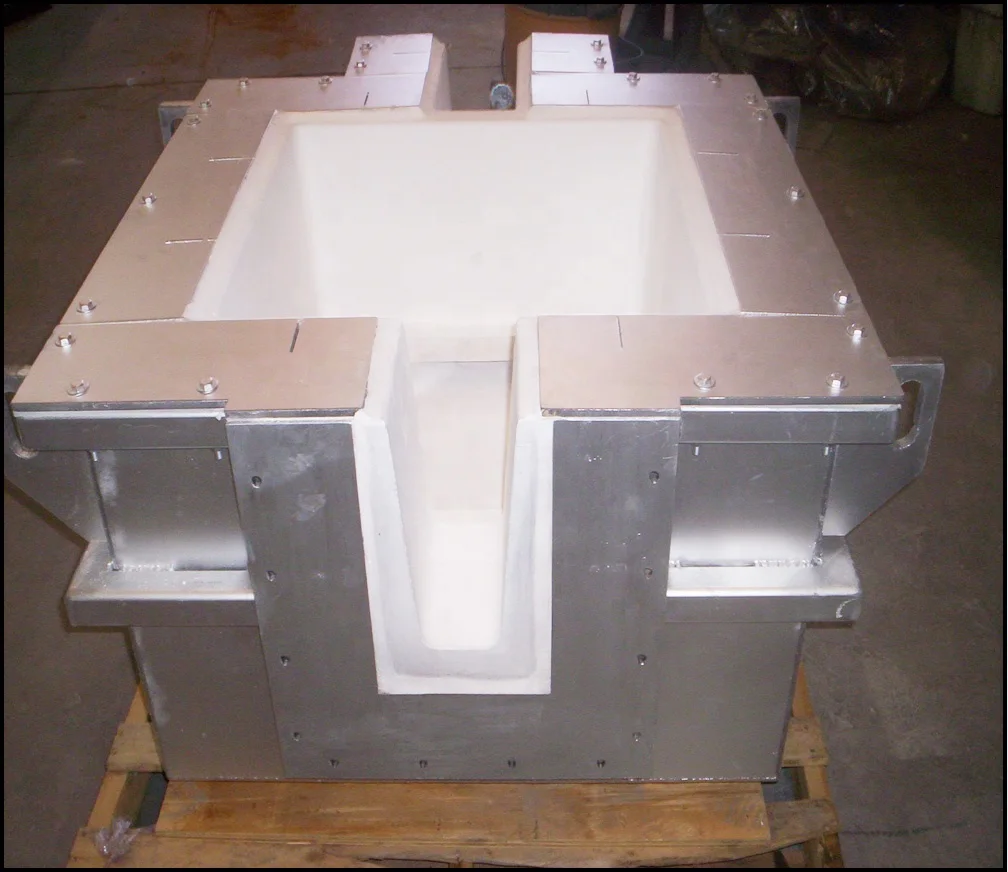

of the filtration box, similar to the degassing box, does not infiltration with
aluminum, has good temperature holding performance, cold and heat shock
resistance, and a long life.
•Easy installation and maintenance. Simple replacement of the liner of the
pre-burned shaped degassing box, which minimizing production downtime.
TECHNICAL PARAMETERS
- Maximum temperature of molten aluminum: 750°C
- Shell surface temperature: ≤70°C
-Lining life: ≥12 months
Common specifications of CFB filtration box
Filtration Box Type | Code | Filtration Board Size inch | Flow Range t/h | Remarks |
Single-stage filtration box | CFB1-12 | 12 | 2-5 |
A single filtration board is placed in the filtration box to filter out more than 85% of the inclusions with a particle size ≥8μm |
CFB1-15 | 15 | 4-10 | ||
CFB1-17 | 17 | 8-15 | ||
CFB1-20 | 20 | 12-20 | ||
CFB1-23 | 23 | 16-25 | ||
Horizontal two-stage filtration box | CFB2-12/12 | 12/12 | 2-5 | Two-stage filtration boards with different pore sizes from large to small are placed in the filtration box horizontally or vertically to filter out more than 95% of the inclusions with a particle size ≥8μm |
CFB2-15/15 | 15/15 | 4-10 | ||
CFB2-17/17 | 17/17 | 8-15 | ||
CFB2-20/20 | 20/20 | 12-20 | ||
CFB2-23/23 | 23/23 | 16-25 | ||
Vertical two-stage filtration box | CFB2-15/12 | 5/12 | 2-5 | |
CFB2-17/15 | 17/15 | 4-10 | ||
CFB2-20/17 | 20/17 | 8-15 | ||
CFB2-23/20 | 23/20 | 12-20 | ||
Two-channel filtration box | CFB-12/12 | 12/12 | 2-5×2 | Two channels in the filtration box for parallel arrangement of filtration boards of the same pore size. Used for continuous filtration of molten aluminum, one for use while the other as backup; used for filtration of large-flow or high-viscosity molten aluminum. Both channels meet the flow requirements together. |
CFB-15/15 | 15/15 | 4-10×2 | ||
CFB-17/17 | 17/17 | 8-15×2 | ||
CFB-20/20 | 20/20 | 12-20×2 | ||
CFB-23/23 | 23/23 | 16-25×2 |
Notes:Equipped with heating device as needed.
