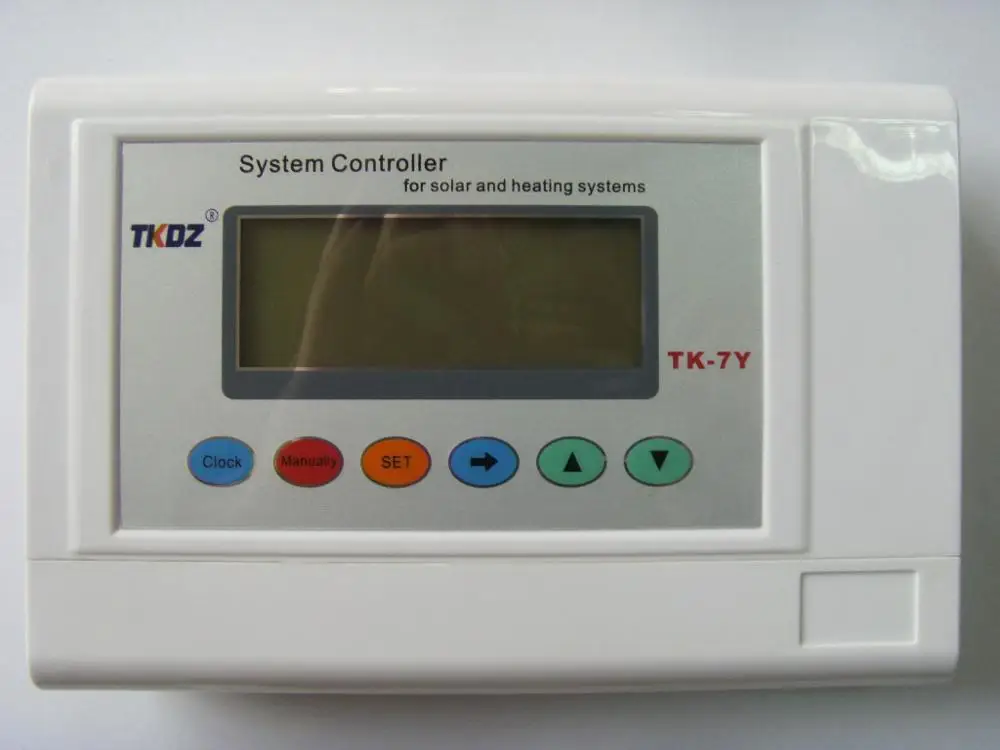

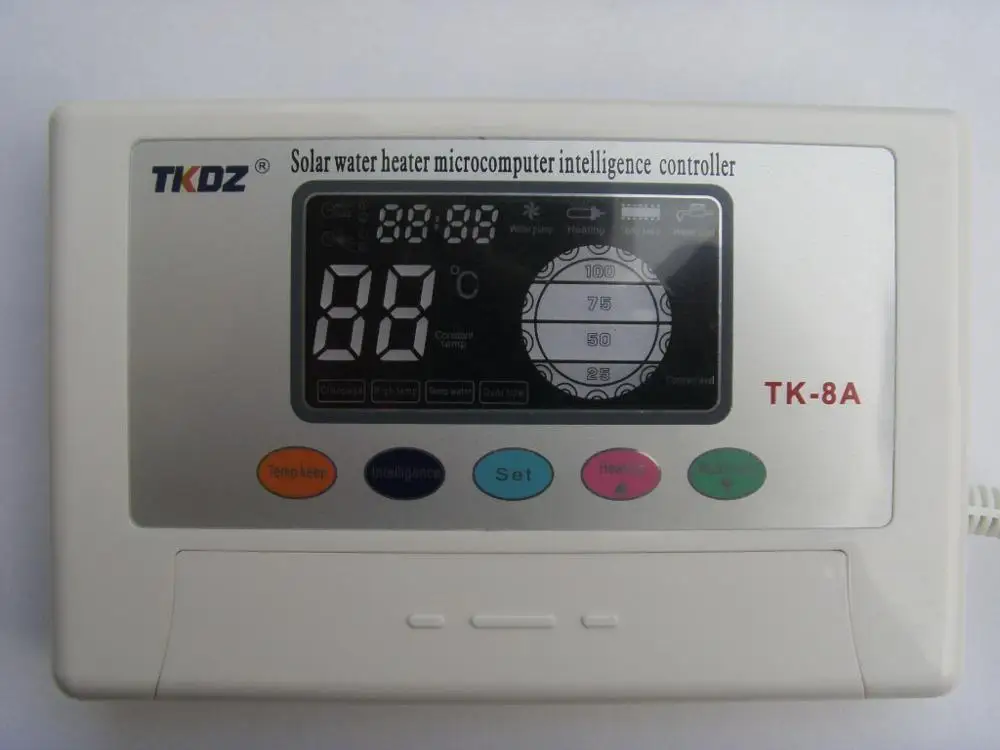

Solar water heater parts Solar Controller M 7 TK 8 TK 7 TK 5

Price:

Price in USD:Details

Quantity:

Product Description

Separated and pressure solar water heater.

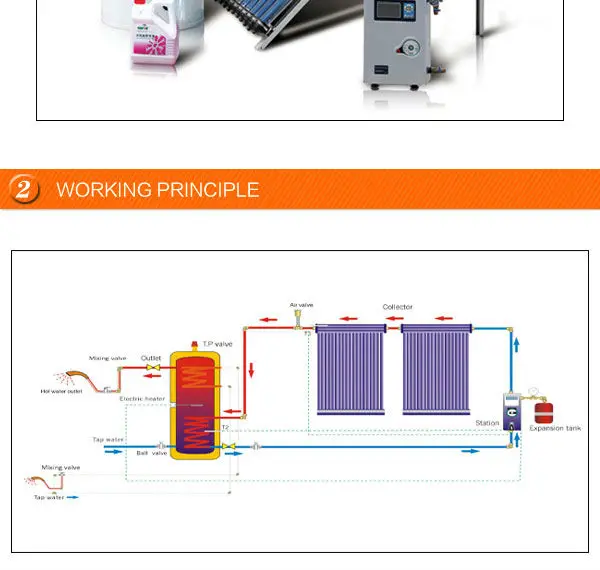

Principle:

Firstly, vacuum tubes absorb sunlight, and then transfer heat to manifold by supper-conduct

heat pipe which has heat transfer medium in it, and heat the water in manifold.

Secondly, it starts to get forced circulation between manifold and tank by circulating heat pump,

hotter water flow into tank and cold water flow into manifold( because water temperature between

manifold and tank is different, moreover, collector and tank is separated ,so we need circulating pump ).

In addition, there is copper coil in tank, which will start to exchange heat when water in tank gets heat

by circulation, so the water will be hotter and hotter by circulation and heat exchange. This circulation

continues because of different water temperature between tank and manifold.

At last, when water temperature difference between tank and manifold is lower than set temperature,

circulation will shut off.

Packaging & Shipping

A-sun Split and pressure solar water heater
Model	Tube Quantity	Pressure tank(L)	Volume(m3)
Model	Tube Quantity	Pressure tank(L)	Pressure tank(m3)	tube with heat pipe (m3)	Frame (m3)	Manifold (m3)	Solar station (m3)	Total (m3)
XKSP-10-100	58*1800-10	100L	0.35	0.11	0.04	0.025	0.05	0.58
XKSP-15-150	58*1800-15	150L	0.48	0.164	0.04	0.025	0.05	0.76
XKSP-20-200	58*1800-20	200L	0.58	0.223	0.04	0.032	0.05	0.93
XKSP-25-250	58*1800-25	250L	0.7	0.274	0.045	0.04	0.05	1.1
XKSP-30-300	58*1800-30	300L	0.82	0.328	0.048	0.047	0.05	1.3
XKSP-40-400	581800-202	400L	1	0.446	0.08	0.064	0.05	1.64
XKSP-50-500	581800-252	500L	1.2	0.557	0.09	0.08	0.05	1.98
XKSP-60-600	581800-302	600L	1.35	0.669	0.096	0.094	0.05	2.26
XKSP-70-700	581800-252 58*1800-20	700L	2.22	0.78	0.13	0.112	0.05	3.3
XKSP-80-800	581800-204	800L	2.42	0.892	0.16	0.128	0.05	3.65
XKSP-100-1000	581800-254	1000L	2.78	1.11	0.18	0.16	0.05	4.28
