Semi or Full Automatic SMT product line With Camera /LED puhui MT 602L Desktop Pick And Place Machine chip mounter
- Category: >>>
- Supplier: Shandong Puhui Electric Technology Co. Ltd.Shandong Ltd.
Share on (62507431914):
Product Overview
Description
Product Description
Product Application

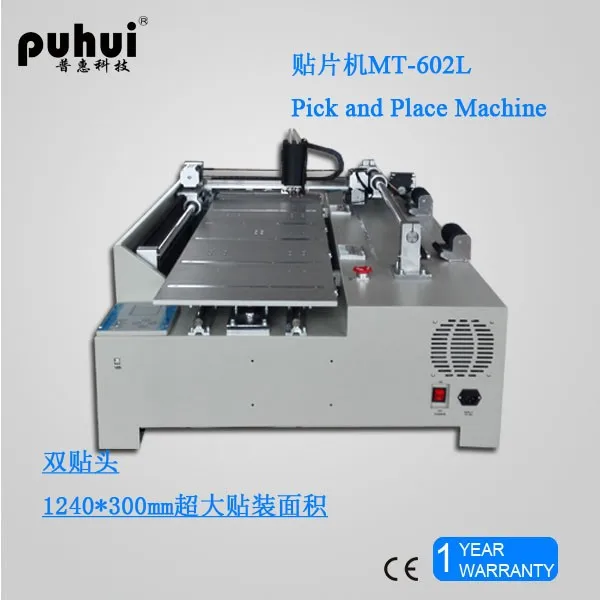

Puhui MT-602 & MT-602L is a new type of pick and place machine. It is widely used for the PCB and LED board in the size of 300*400mm. Adopt two mounting head, it is easy to operate with high precision and stable.

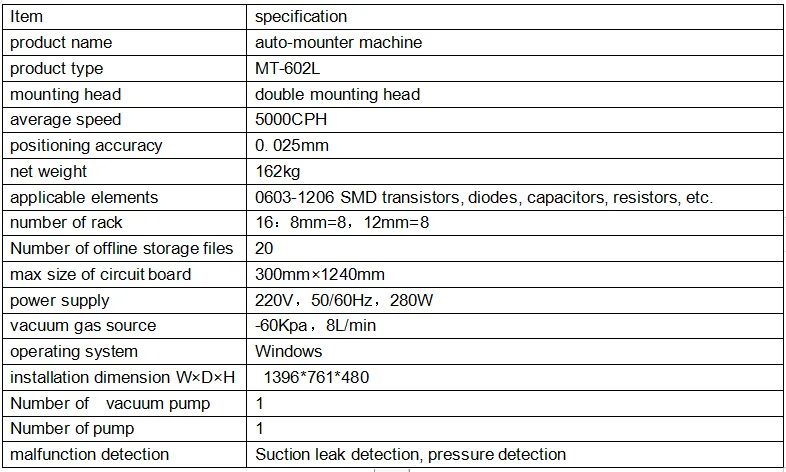

SPECIFICATIONS FOR CHIP MOUNTER MT-602L | ||||||
Pproduct Type | MT-602L | Mounting Head | double mounting head | |||
Average Speed | 5000CPH | Positioning Accuracy | 0.025mm | |||
Net Weight | 163kg | Applicable Elements | 0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc. | |||
Number of Rack | 16:8mm=8,12mm=8 | Number of offline storage files | 20 | |||
Max size of circuit board | 300mm×1240mm | Power Supply | 220V,50/60Hz,280W | |||
Vacuum gas source | -60Kpa,8L/min | Operating System | Windows | |||
Installation Dimension W×D×H | 1396*761*480 | Number of vacuum pump | 1 | |||
Number of pump | 1 | Malfunction detection | Suction leak detection, pressure detection | |||
SPECIFICATIONS FOR CHIP MOUNTER MT-602 | ||||||
Pproduct Type | MT-602 | Mounting Head | double mounting head | |||
Average Speed | 5000CPH | Positioning Accuracy | 0.025mm | |||
Net Weight | 151kg | Applicable Elements | 0603-1206 SMD transistors, diodes, capacitors, resistors, chips, etc. | |||
Number of Rack | 56:8mm=50,12mm=4,16mm=2 | Number of offline storage files | 20 | |||
Max size of circuit board | 300mm×400mm | Power Supply | 220V,50/60Hz,280W | |||
Vacuum gas source | -50Kpa,13L/min | Operating System | Windows | |||
Installation Dimension W×D×H | 1396*761*480 | Number of vacuum pump | 1 | |||
Number of pump | 1 | Number of vacuum pump | Suction leak detection, pressure detection | |||
Main Features
1.Independent of the placement structure
2.A variety of rack specifications
3.Any trapping placement function
4.Leak detection function
5.Easy to learn the placement of software
Detailed Images

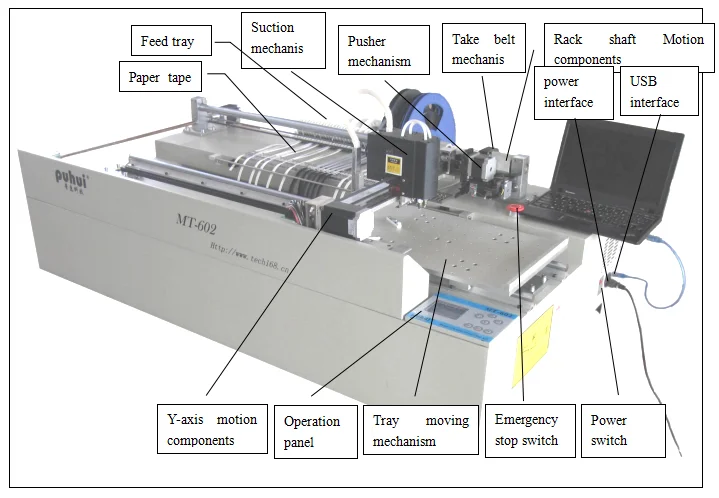

Machine Parts
Name: control panel
Brand:Puhui
Original:China
MT-602 can be used with offline or cimputer.
When offline, it can be saved 20 placement files.
Main Features

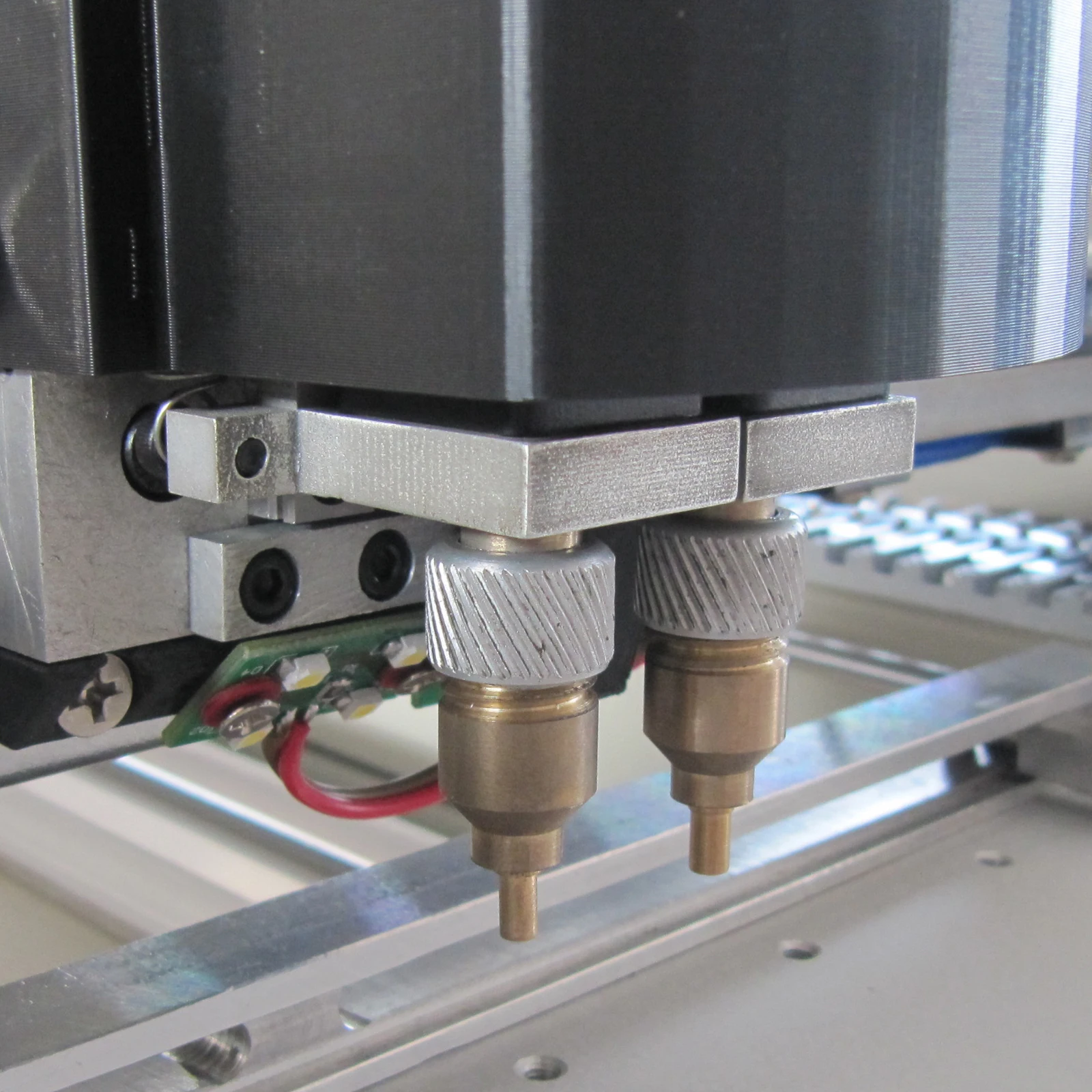

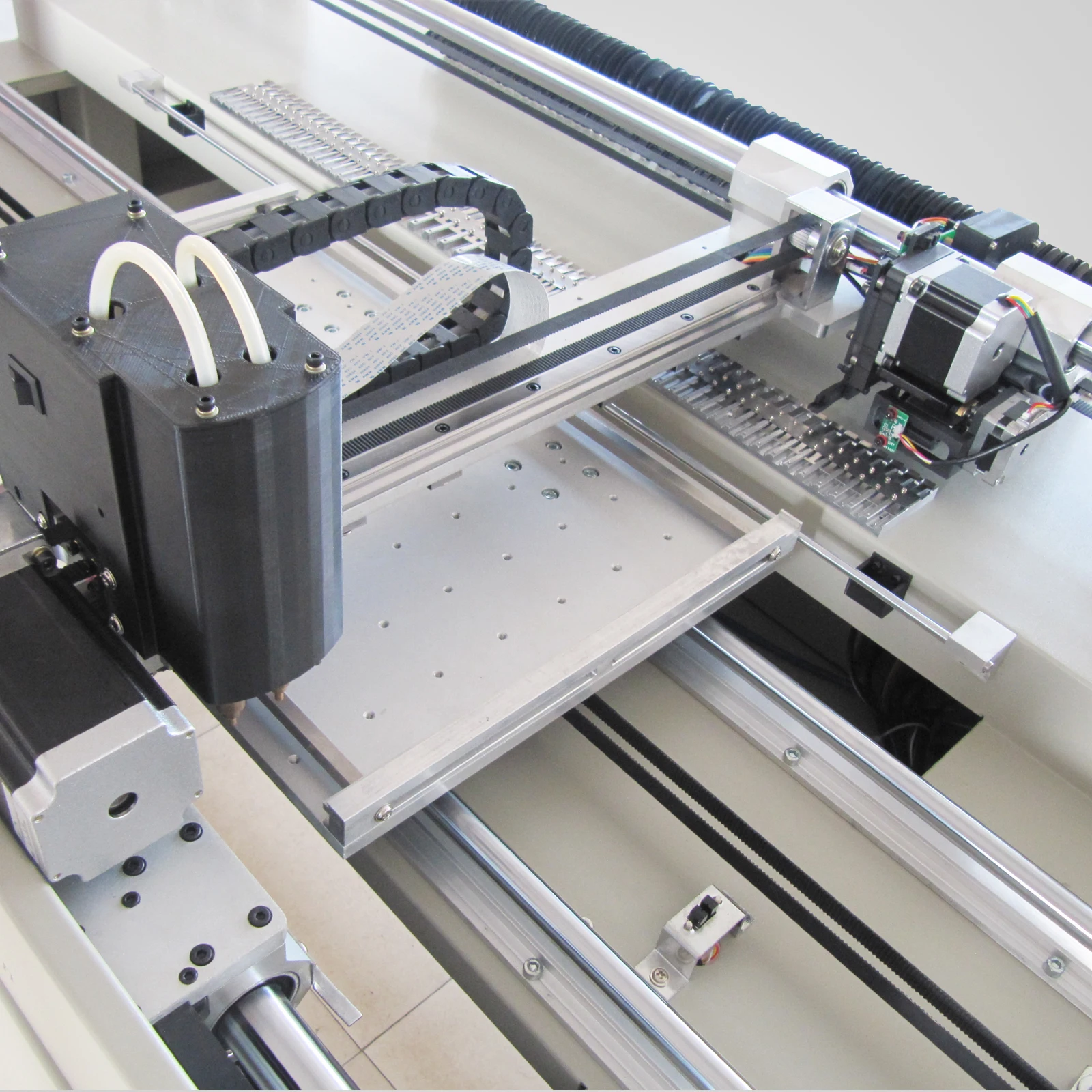

Name: pick and place structure
Brand: Puhui
Original: China
this structure has the function of automatic inspection when leaking the element. The nozzle can pick 8mm,12mm, 16mm.
Machine Parts
Name: Operating software
Brand: Puhui
Original: China
Operating software of MT-602L is easy to undersatnd,learn and operate.
Packing & Delivery
Packaging | ||
Size | MT-602:147 (L) * 90(W) * 72 (D) cm MT-602L:147 (L) * 90(W) * 72 (D) cm | |
Weight | MT-602:190KG MT-602L:190KG | |
Packaging Details | normal package is wooden box(Size: L*W*H), with support by steel inside. | |
Contact Us
We are the ONLY and ORIGINAL manufacturer – Taian Puhui
Please contact us for good price and more details
Mr. Jack (Overseas manager)
QQ: 1003249918
Wechat:18865488820
Cell:+86 18865488820
Skype: +86 18865488820
Company : Tai'an Puhui Electric Technology Co., Ltd
ADD : Wohushan South Road ,Dai yue District, Tai'an City, Shandong Province, China
Or send inquiry to us
Hope to cooperate with you, thank you
Our Company
TAI'AN PUHUI ELECTRIC TECHNOLOGY CO., LTD is founded in 2007, located in the center of Tai'an,
near the famous Mount TAI and QINGDAO Port, is very convenient to do the business with the customers all
over the world.
With the efforts of all our staffs and the support of our customers, we have become a professional manufacturer engaged in the electronic equipment design, production, sale and after-service.
Now our product series covers--
p&p machine,stencil printer, desktop infrared reflow oven, channel reflow oven for LED soldering ,BGA rework station,infrared Preheating plate, etc.,
We also provide complete solutions for BGA rework operation according to customer's demands.
We have a full set of modernized manufacture equipment and production lines, advanced testing machines, as well as a professional management team, ensuring the best efficiency and product quality.
Because of the lower price and high quality, we have agents and customers all over the world.
If you are interested in our products or have any doubts, please feel free to contact with us.
We are looking forward to establish a good relationship with you in the near future.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
