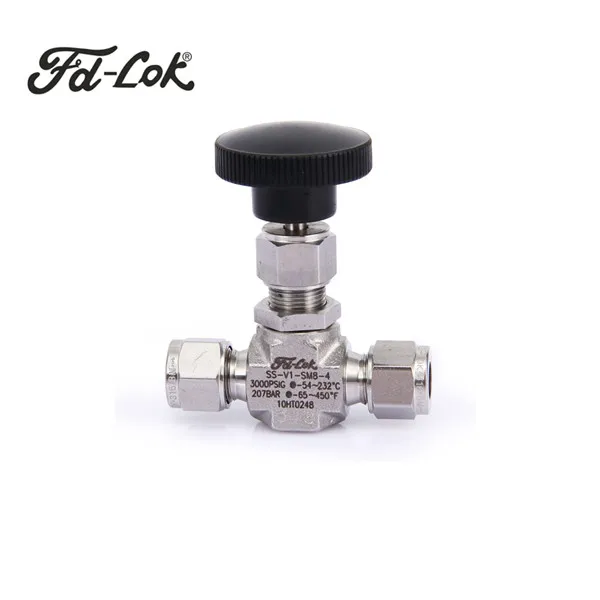

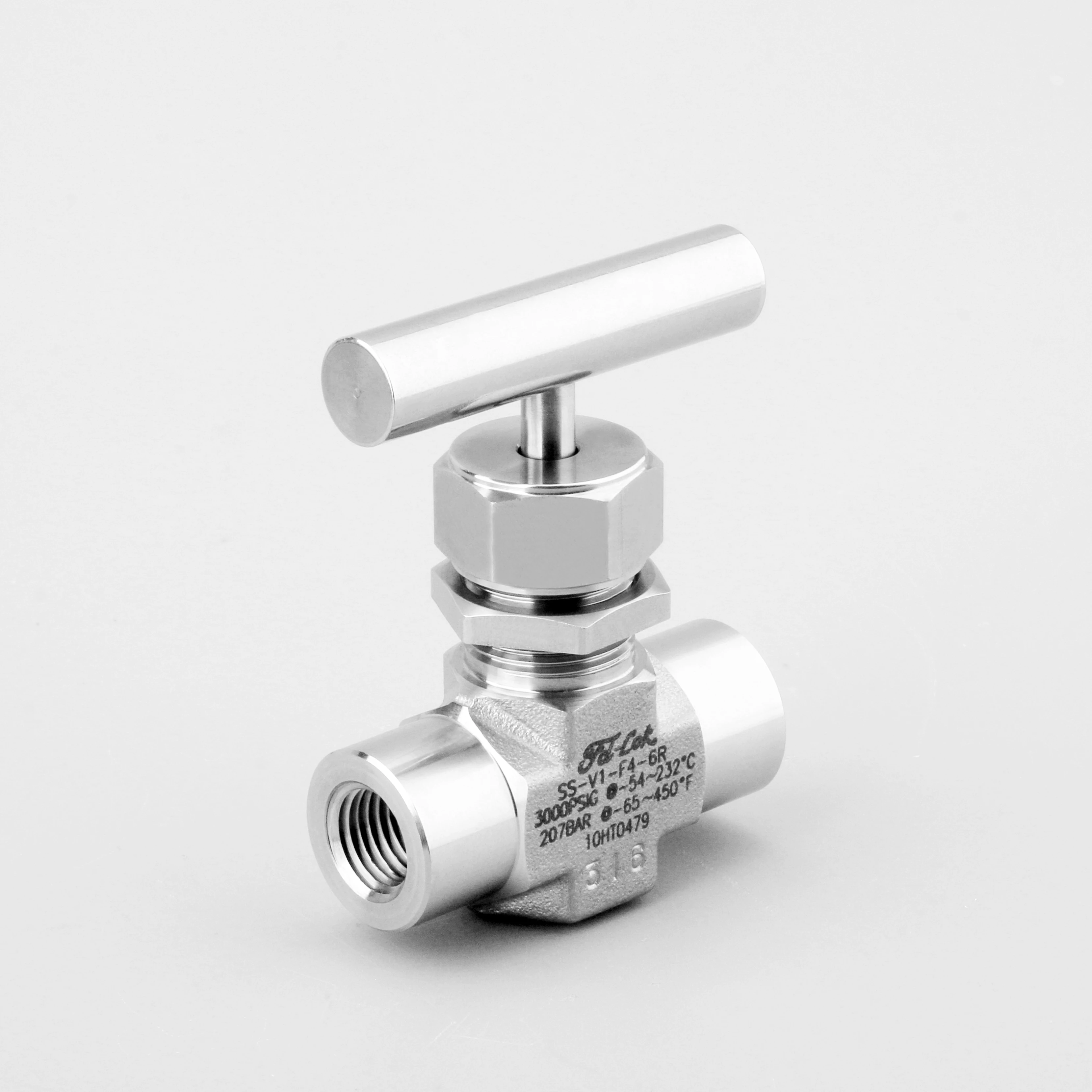

needle valve regulating stem Swagelok type needle valve integral bonnet needle valve SS 316
needle valve regulating stem Swagelok type needle valve integral bonnet needle valve SS 316
needle valve regulating stem Swagelok type needle valve integral bonnet needle valve SS 316

needle valve regulating stem Swagelok type needle valve integral bonnet needle valve SS 316

Share on (62507438811):


Price:

Quantity:


Product Overview

Description



Product Description


1. Working pressure:

   Stainless steel: up to 5000 psig (345 bar)

   Steel:up to 3000 psig (207 bar )

   Brass: up to 3000 psig (207 bar)

2. Working temperature:

    PTFE: -65°F to 450°F ( -54°C to 232°C )
    PEEK:-65°F to 600°F ( -54°C to 315°C )

3. Panel mountable

4. Packing nut permits stem packing adjustment

5.Live-loaded packing system

6.Compact design




Product Name
needle valve regulating stem Swagelok type integral bonnet needle valve SS 316
Material
Stainless steel,monel 400,alloy c276,duplex 2205,2507...
Working temperature
PTFE: -65°F to 450°F ( -54°C to 232°C )     PEEK:-65°F to 1200°F ( -54°C to 649°C )
Working pressure
 5000 psig (345 bar)
Standards
NPT,BSP,ISO,DIN Thread,double ferrule tube fitting
Stem Type
Blunt tip,regulating tip,soft tip,non-rotating stem tip
Certificates
ISO9001:2008, CE
Brand Name
FD-LOK






Our Company




Main Products


Needle valve & Ball valve

FD-LOK needle valves has 10 different types,needle valve have several tips can be choosed, such as Blunt Tip, Regulating Tip, Soft Tip and Non-rotating Tip.

Three way ball valves widely used in many solution systems. We also provide them in parts. We provide stainless steel ball valves not only in 316, but also special materials such as inconel, monel, hastelloy, incolloy, duplex and super duplex.


Tube fitting

Our tube fittings stainless steel, compression tube fitting and stainless steel tubing fittings, stainless steel tube fittings, are designed availablely in many connections and configurations. Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.



Block & Bleed valve

FD-LOK Double block and bleed valves is including DBB valve series, Single block and bleed valves and bleed valves series, DB series, SB series. Different materials can be choosed, such as Stainless steel, Duplex, Inconel, Monel.
