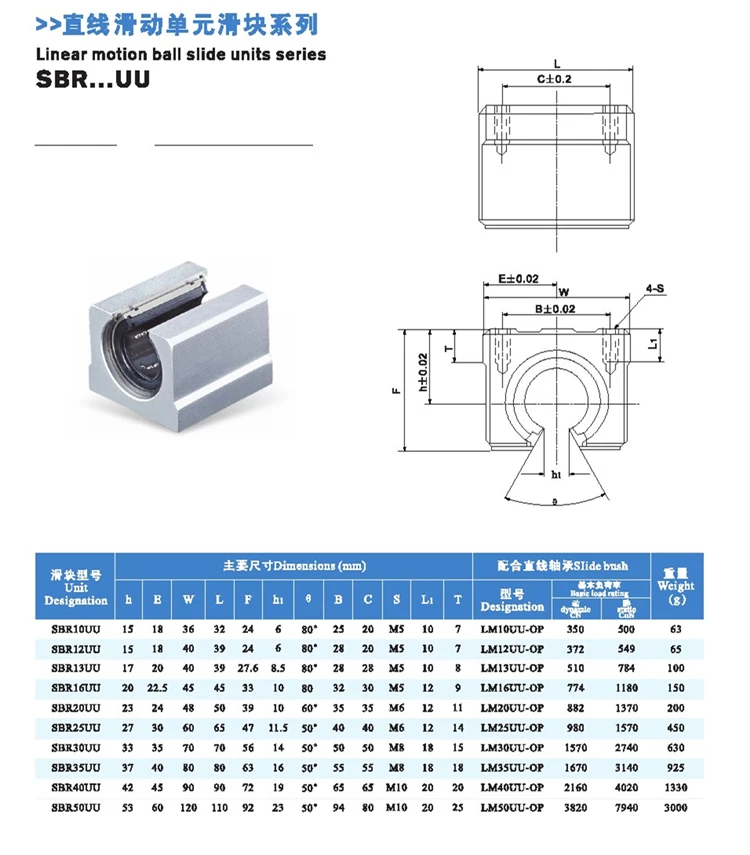

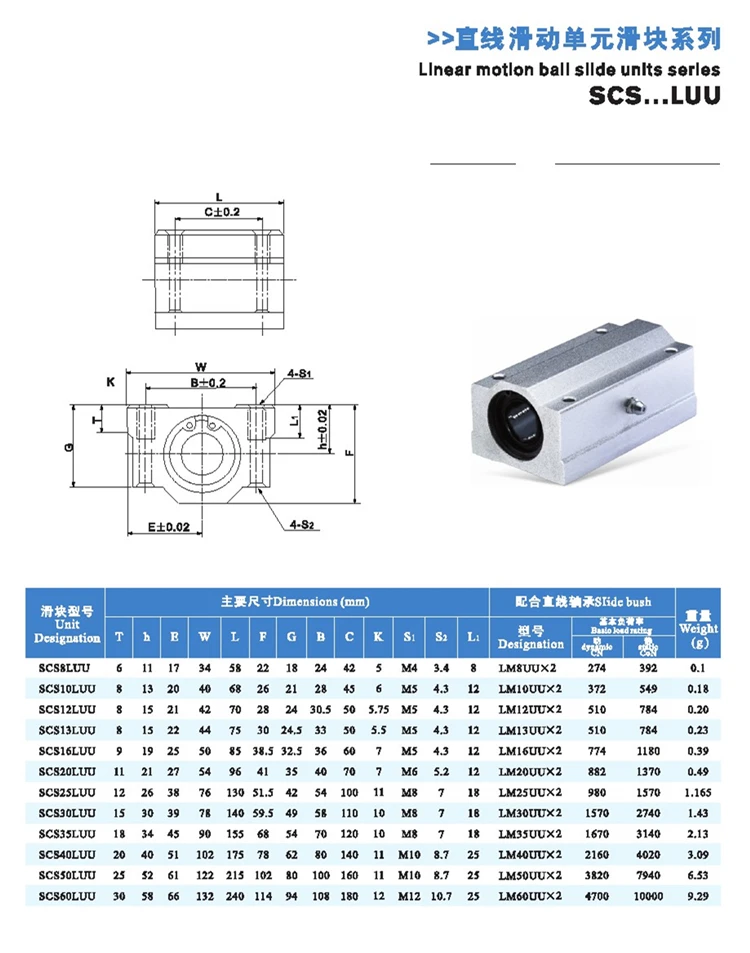

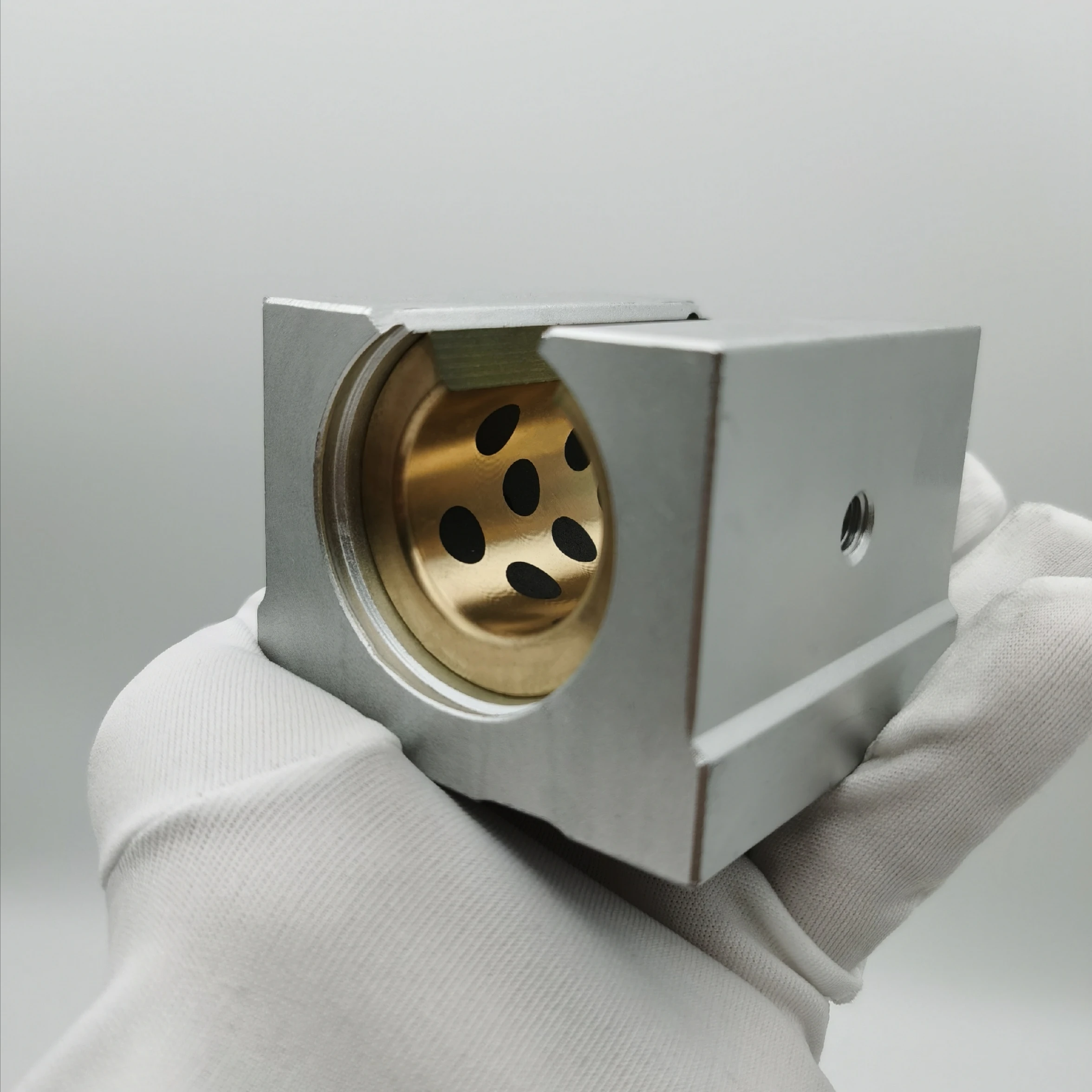

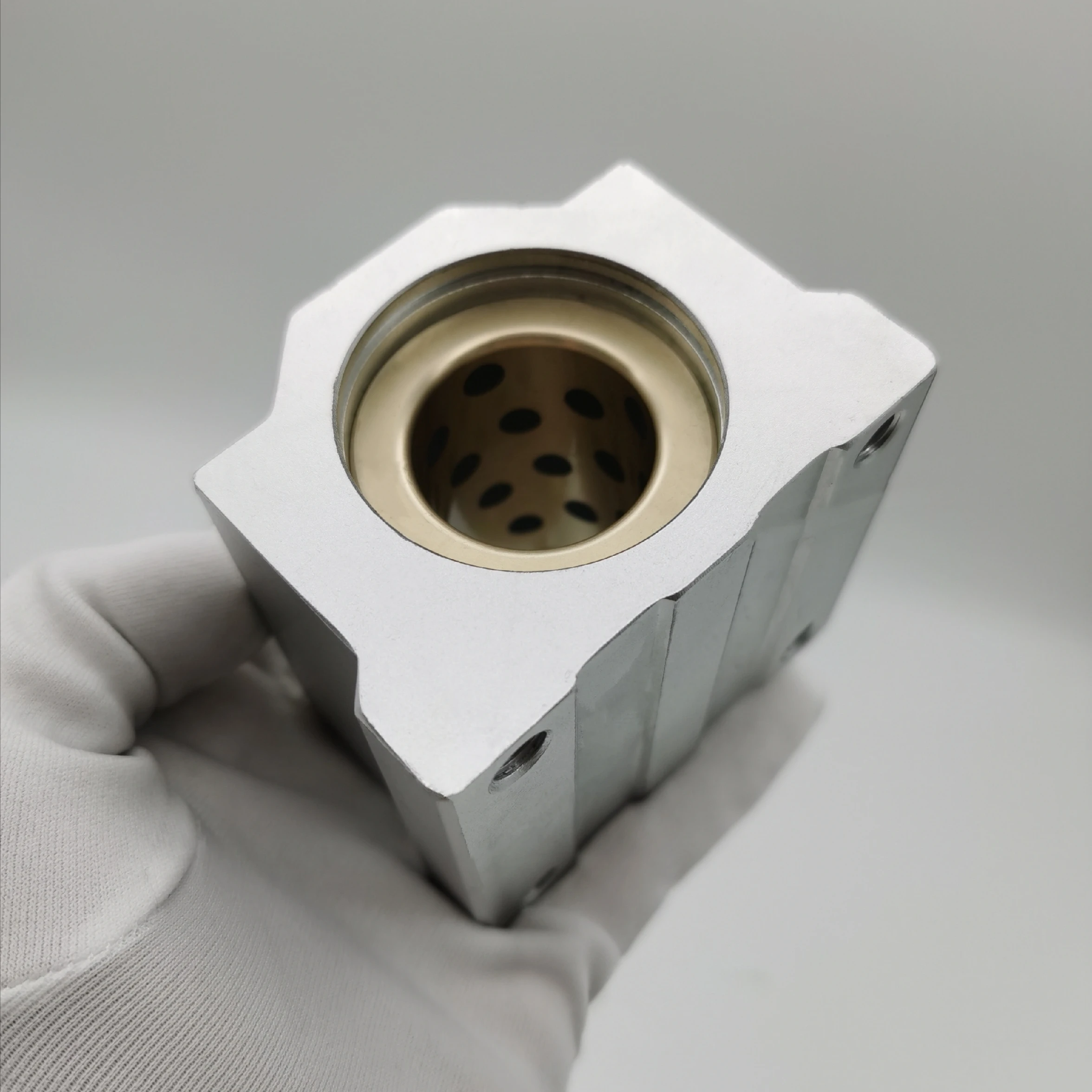

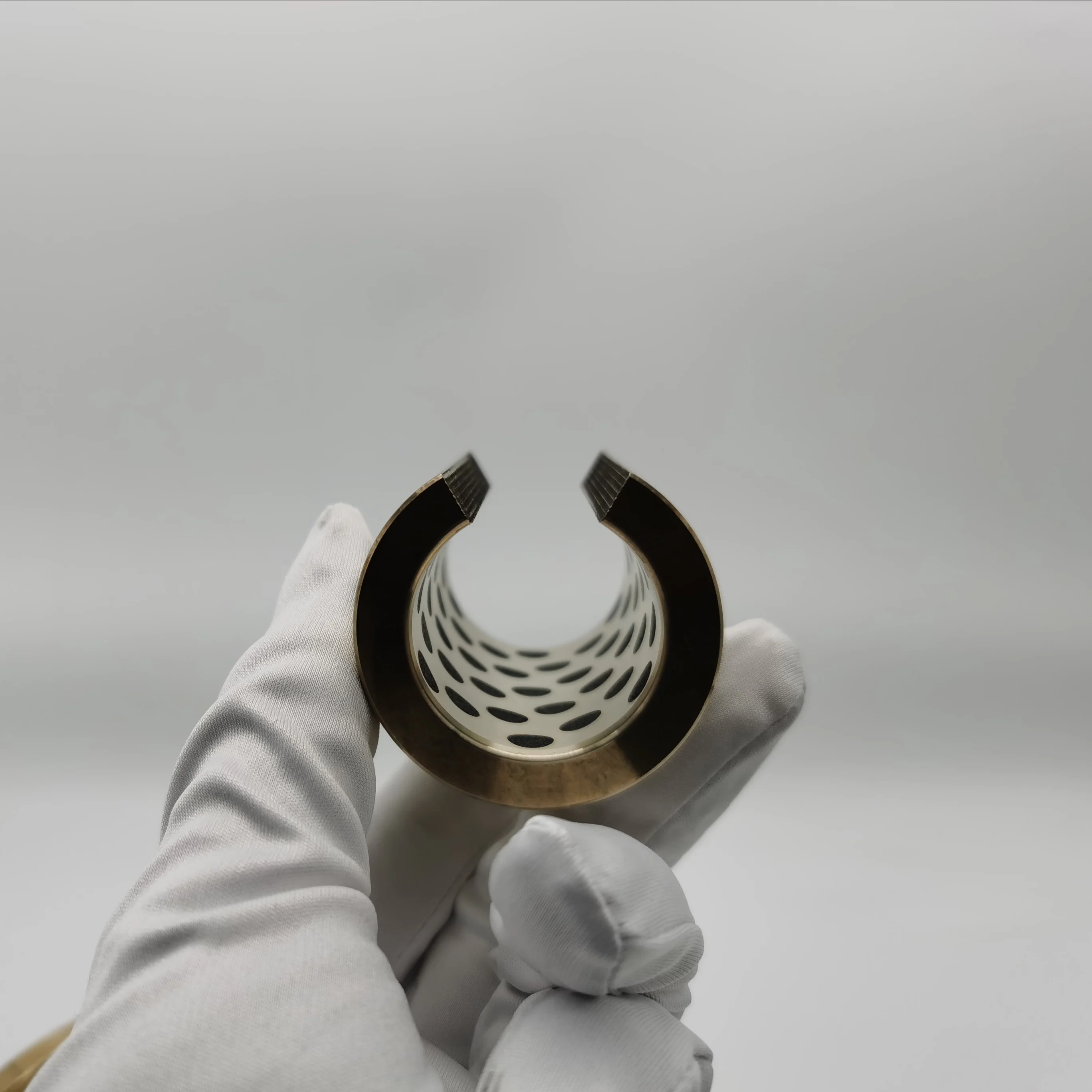

SANLONG SBR Self lubricating oil free linear sliding bearing aluminum seat graphite copper alloy bushing SCS6 60LUU bearing

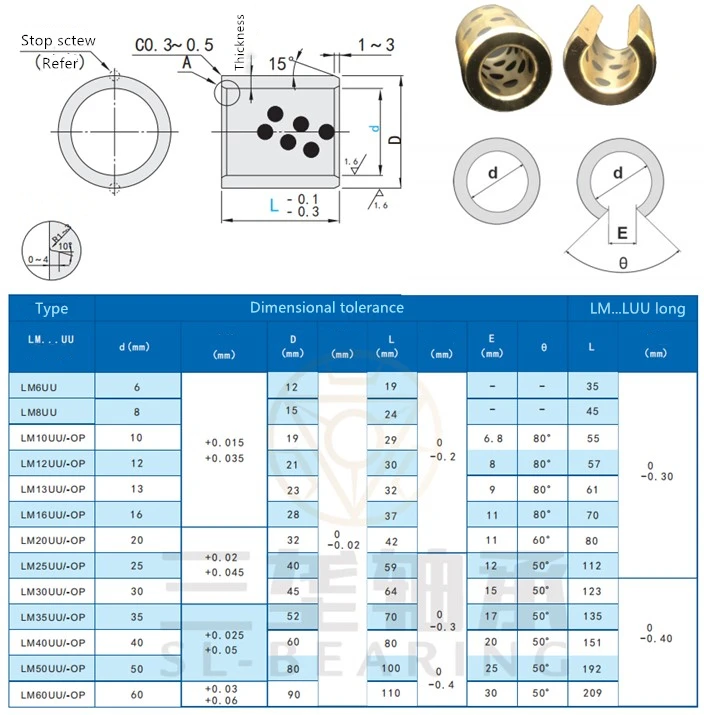

Structure

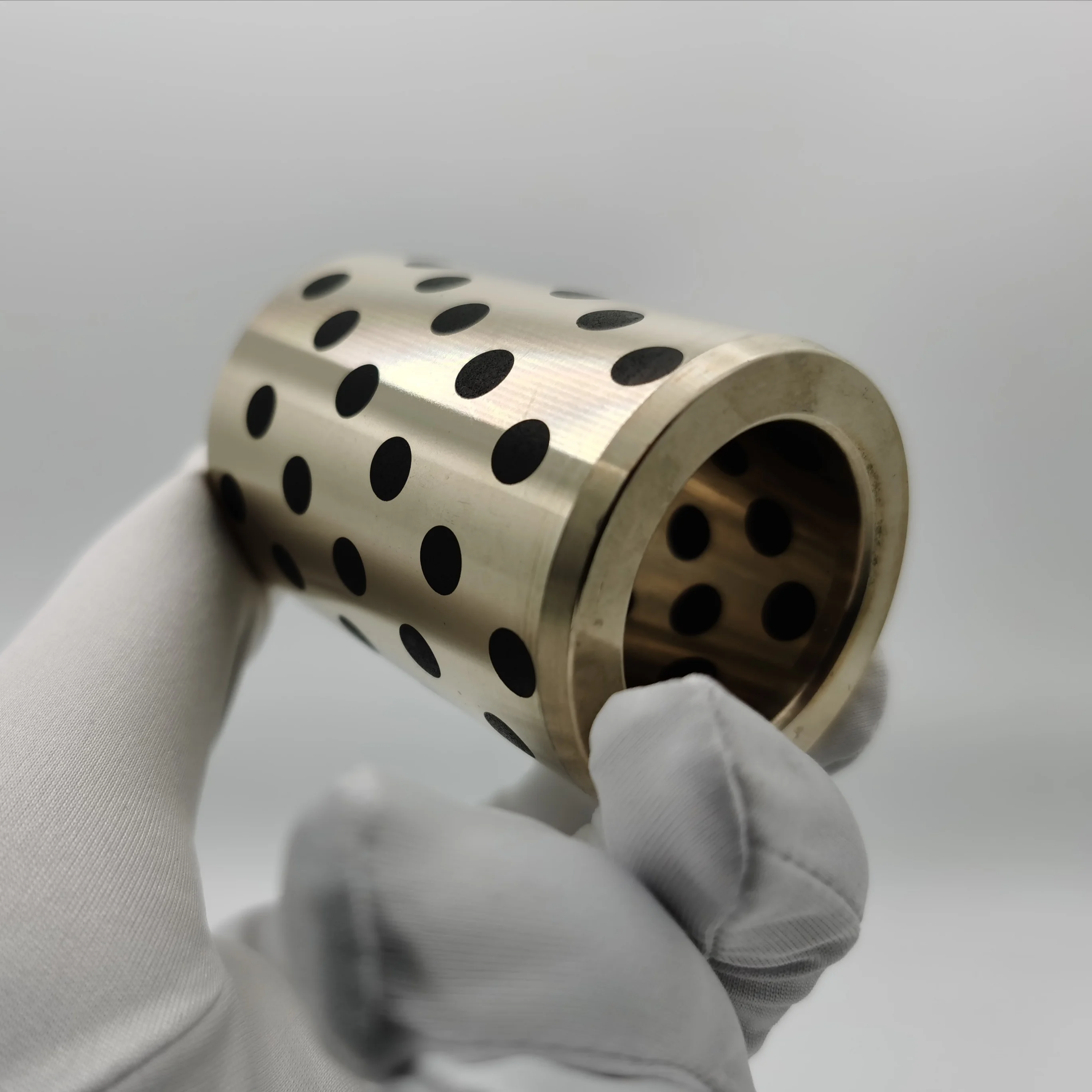

The finished copper alloy bushing provides a simple and economical bearing application, featuring high bearing capacity, good corrosion resistance, and arbitrariness of dimension processing.At the same time, different brands of copper alloy can be provided according to different service conditions, and different forms can be processed according to projection requirements. It has higher dimensional accuracy than rolled copper bearings.

Oil-free bushing lifespan calculation

The life of oilless bushings depends on the amount of wear. The calculation of wear amount is very different due to surface pressure, sliding speed, movement pattern, lubrication conditions, surface roughness of matching shaft and other conditions.From the viewpoint that the wear amount is proportional to the load and sliding distance, the following formula is usually used to calculate the wear amount. Please consider it as the standard for selection.

Estimate wear(mm)W=K*¹×p×v×T

Wear ratio(k):mm/(N/mm²·m/s·Hr)

Design surface pressure(p):N/mm²

Sliding speed(v):m/s

Friction time(T):Hr-hr

Roughly Standard for Friction Ratio

     Sanlong Bearing is a high-tech enterprise integrating R&D, design, production and sales.Introducing the world's top production lines, production processes and processing technologies.

     From the product raw material to finished product ,processing has passed 21 quality inspections to ensure that the products meet international standards. The pursuit of excellence in craftsmanship and devout quality customer service has won recognition from domestic and foreign customers. Self-lubricating oil-free bearing products have been sold throughout the country and 21 countries and regions such as Taiwan, Europe and North America.For decades, we have always adhered to the first line of the bearing industry in China, providing the most professional bearing solutions and striving to build a world-class bearing brand.
