60011 SAE STAPLE LOCK MALE FITTING WITH O RING HOSE TERMINAL
- Category: >>>
- Supplier: Ningbo Laike Hydraulics Co. Ltd.
Share on (62507525598):
Product Overview
Description
Product Description
Fitting Parameter
SAE STAPLE-LOK - MALE - STRAIGHT
Laike: 60011
| PART NO | HOSE O.D (MM) | DASH | A (MM) | C (MM) | J (MM) | K (MM) |
| 60011-04-04 | 6 | 4 | 31 | 25 | 15 | 11 |
| 60011-05-05 | 8 | 5 | 33.5 | 26 | 18 | 13 |
| 60011-06-06 | 10 | 6 | 34 | 26 | 18 | 15 |
| 60011-08-06 | 10 | 6 | 34.5 | 26 | 22 | 18 |
| 60011-08-08 | 12 | 8 | 34.5 | 26 | 22 | 18 |
| 60011-10-10 | 16 | 10 | 39 | 30 | 25 | 20 |
| 60011-12-12 | 20 | 12 | 40.5 | 31 | 28 | 24 |
| 60011-16-14 | 22 | 14 | 41 | 31 | 35 | 30 |
| 60011-16-16 | 25 | 16 | 42 | 31 | 35 | 30 |
* More size availbale upon request.
* For customization, please consult sales.

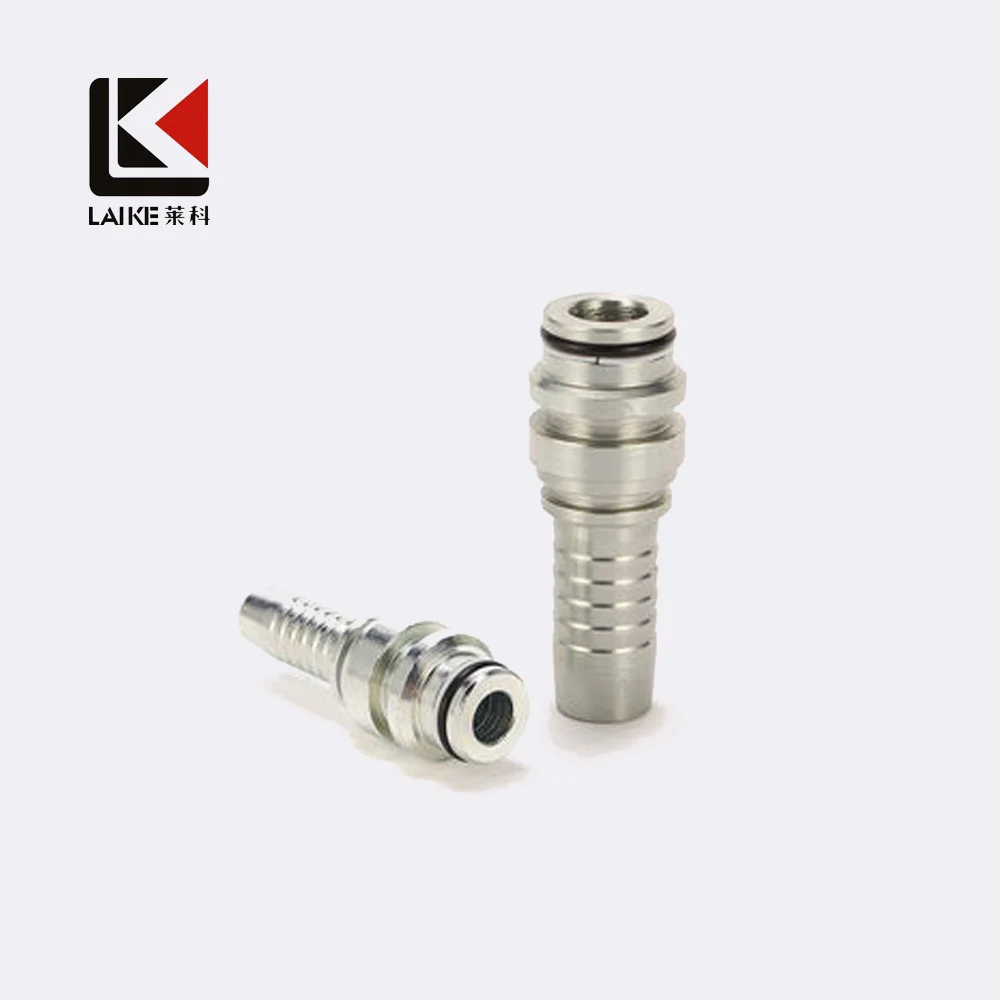

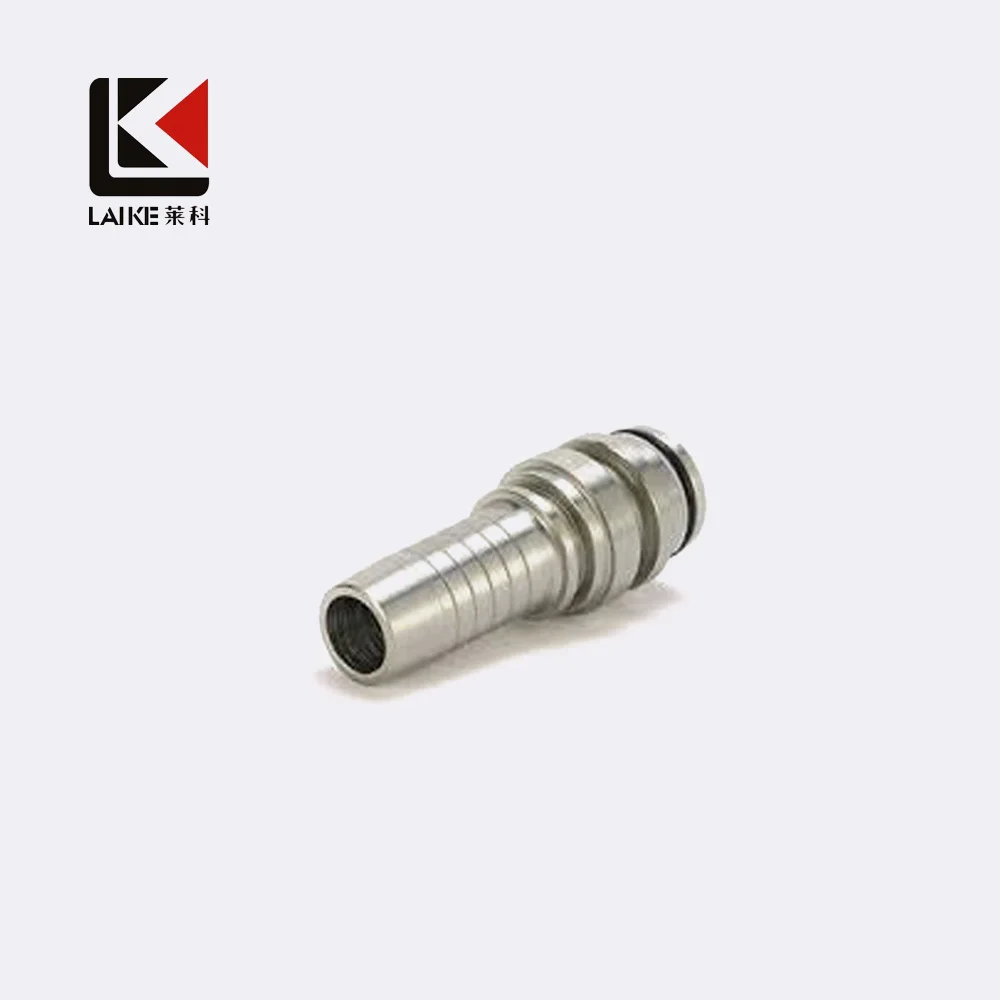

Product Image
How to Read the Fittings
26711DY-06-04SS - Fitting Type (1=Male, 2=Female, 5=Metric Standpipe, 7=Banjo, 8=Flange)
26711DY-06-04SS - End Connection (1=METRIC, 2=BSP, 3=BSPT, 4=ORFS, 5=NPT, 6=JIC, 7=SAE, 8=JIS METRIC, 9=JIS GAS)
26711DY-06-04SS - Seal Type (1=Multi Seal, 2=Flat Seal , 3=Flat Seal with O-ring, 4=24° O-ring Cone Seal, Light Series,
5=24° O-ring Cone Seal, Heavy Series, 6=60° Cone Seal, 7=37° Cone Seal, 8=90° Cone Seal;
For flanges, 3=3,000 PSI, Code 61, 6=6,000 PSI, Code 62, 9=9,000 PSI, Caterpillar Series)
26711DY-06-04SS - Fitting Shape (1=Straight, 4=45 Degree Elbow, 9=90 Degree Elbow)
26711DY-06-04SS - Hose Application (1=For One or Two Wire Braided Hose,
2=For Four Wire Spiral Hose,
3=For Six Wire Spiral Hose)
26711DY-06-04SS - Hexagon (No Suffix=Single Hexagon, D=Double Hexagon)
26711DY-06-04SS - Fitting Type (No Suffix=Two Piece Series Fitting, Y=One Piece Fitting Series)
26711DY-06-04SS - Size of Fitting End Connection
26711DY-06-04SS - Hose Size
26711DY-06-04SS - Fitting Material (No Suffic=Carbon Steel, SS=Stainless Steel, B=Brass)
Company Information
FAQ
- Are you factory? Yes, we are.
- What do you manufacture? We produce fittings, adapters, ferrules, flanges, hose assemblies etc.
- What is the lowest price? Send us the specification and we will quote.
- What is the lead time? 30 - 45 days.
- Can I get samples? Yes, free samples upon request.
- Do you support OEM/ODM/Customization? Yes we do.
- Any other concerns? Contact us for a within-24 hours reply.
