S 50 24 24V 2.1A 50.4W Switching Power Security Monitoring adjustable laboratory power supply
- Category: >>>
- Supplier: Yueqing Tianen Electric Factory
Share on (62507609402):
Product Overview
Description
Product Description

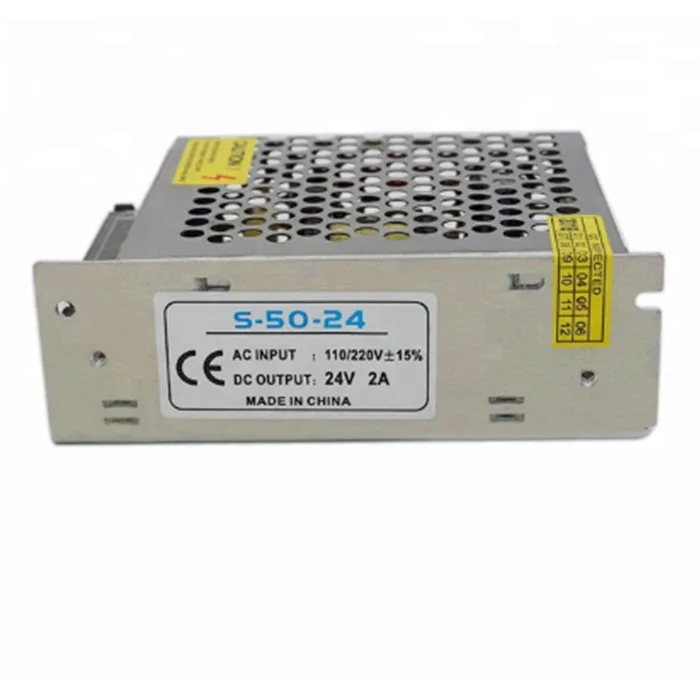

| Model | S-50-24 |
| Specification | 24V 2A 50W |
| DC output voltage | 24V |
| Output voltage error | ±5% |
| Rated output current | 2A |
| Output current rage | 0-2A |
| Wave and noise | 120mVp-p |
| Inlet stability | ±0.5% |
| Load stablity | ±1% |
| DC output power | 50W |
| Efficiency | 72% |
| Adjustable range for DC voltage | +10,-5% |
| AC input voltage range | 85-264VAC 47-63Hz |
| Input current | 0-2A |
| Leakage current | <3.5mA/240VAC |
| Overload proctection | 105%~150% Tpye pulsing hiccp shutdown Reset:auto recovery |
| Over-voltage protection | 115%~135% |
| High-temperature protection | 65℃ |
| Temperature coefficient | ±0.03%/°C(0~50%) |
| Setup rise hold up time | 800ms,50ms,10ms/115V 300ms,50ms,80ms/230VAC |
| Vibration | 10-500HZ,2G 10min,/1cycle,Period for 60min,Each axes |
| Withstand voltage | Input and output internal ,1.5KVAC,Input and enclosure,.5KVAC,Output and enclosure,0.5KVAC |
| Isolation resistance | Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ |
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH |
| Store temperature and humidity | -20°C~+85°C,10%~95%RH |
| Overall dimension | 110*78*36 |
| Weight(g) | 189 |
| Application | LED strip light,LED down light,led panel light, Indoor etc. |
Our Services
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
