Product Overview

Description

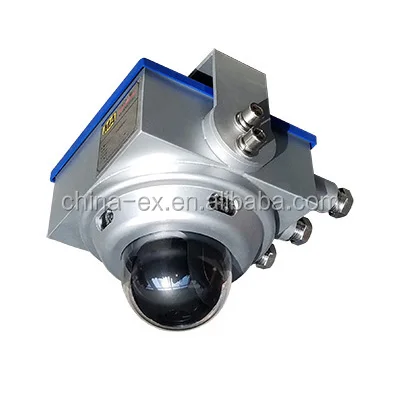

Intrinsically safe Infrared Dome PTZ Camera for mine


Product Description


The mine camera consists of movement, PTZ, infrared lamp, power supply and intrinsic safety switch. When the camera works, the associated intrinsic safety power supply provides 10 ~ 14vdc working power to the camera. The camera will input the scene image of the monitoring site into the intrinsic safety switch through the network TCP / IP protocol, and the intrinsic safety switch will output the optical signal of the TCP / IP protocol, and then transmit it to the terminal equipment for use through the transmission medium.




Power supply：

working voltage
DC 12V
Working current
≤0.8A
Transmission mode of camera：
The camera has two signal transmission modes, but not at the same time (select one of the outputs through the internal plug, and   take photos in the environment Under 150-250lux):
Ethernet electrical signal interface performance:
Transmit Channel
1
Transmit Way
TCP / IP protocol electric signal transmission
transmit speed
100Mbps
Max Transmit Distance
100m
Ethernet optical port performance:
Transmit Channel
2
Interface Type
SC
Transmit Way
TCP/IP protocol optical signal transmission(Wavelength of 1310nm single-mode optical fiber)
Transmit Speed
100 Mbps
Max Transmit Distance
20 km
PTZ   parameter:
Horizontal rotation angle range
0~360°
Pitch rotation angle range
0~90°




Product Features:
1.It can capture real-time images as the video signal, video optical signal or network optical signals outputing.
2.Camera has a fiber optic network hub functions with other network video camera and upload the image optical port connectivity.
3. Under the lowest environment illumination 150 lux,also can see objects clearly.
4. It can capture color images output to a display device directly or convert into a video optical signal to transfer.


Company Introduction


Our company is a professional enterprise of designing and manufacturing explosion-proof monitoring equipment and high-temperature industrial television systems.Our main products including: Explosion-proof infrared camera, Explosion-proof pan/tilt , Explosion-proof speed dome camera, Explosion-proof integrated camera, Explosion-proof hemisphere camera and other explosion-proof monitoring equipment.We already got the < Explosion-proof certification>,and our items have the signs of Ex d ⅡC T6 Gb/DIP A20 TA,T6.They are widely use in petroleum,chemical,natural gas,non-coal dust etc. special industry.




Our Services & Strength
1.Fast reply your enquires with 24hours.
2.Top of security equipment manufacturer and supplier.
3.OEM/ODM welcome.
4.Exclusive design, different for better products with competitive price.
5.Fast delivery, always have the goods in our stock.


Packing&Shipping


Package Type:Standard export packaging(carton box) or customized packing available.
Port:Shanghai
Lead Time :Shipped in 5 days after payment.
Shipping arrangement according to buyers request.




FAQ


Q1: What about the warranty?
A1: All products from us enjoy 1 year warranty.

Q2: Can I get your price list?
A2: Yes, please tell us the products and order quantity, then we will offer the price by e-mail.

Q3: What terms of payment do you use?
A3: We accept L/C,T/T,D/A,D/P,MoneyGram,Western Union,Paypal.

Q4: What the main features of your products?
A4: Explosion-Proof/ Anticorrosive/High Temperature Resistance.
