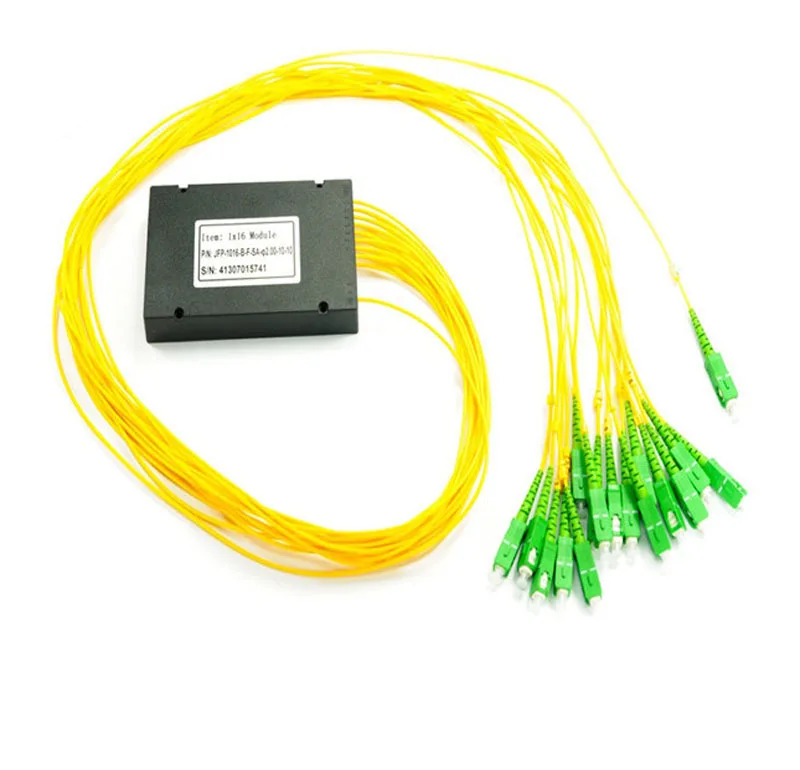

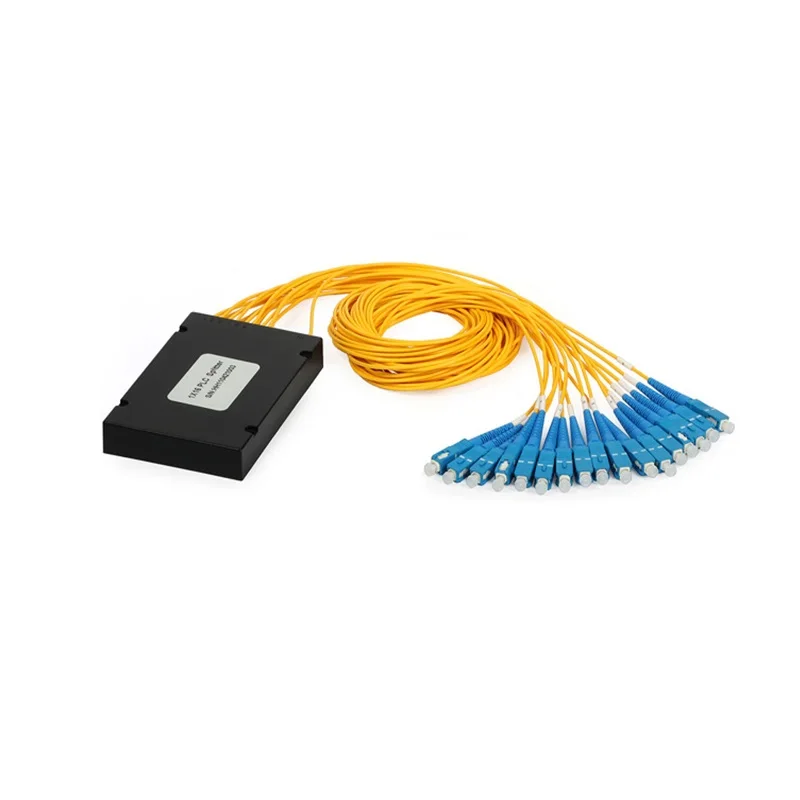

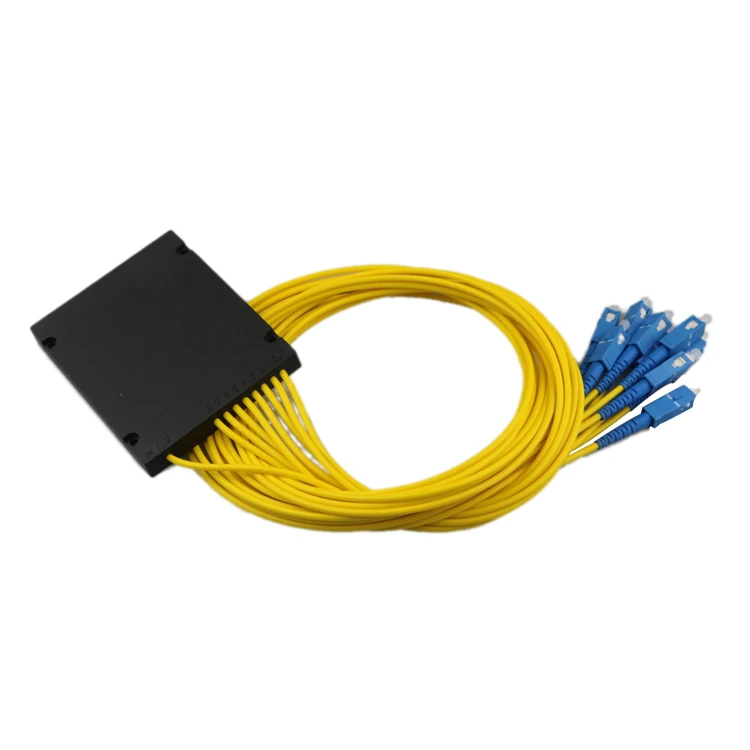

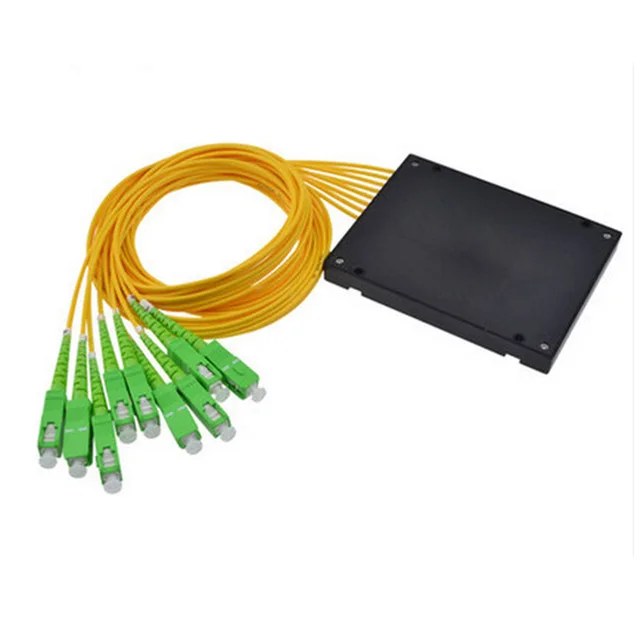

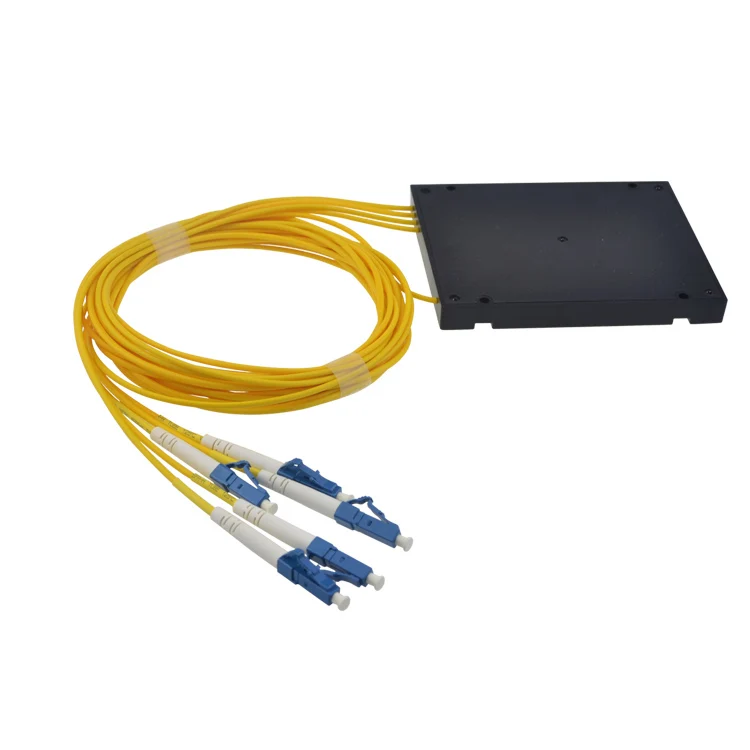

Supply 1x2 1x4 1x8 Cassette Type PLC Optical Splitter with High Quality
- Category: >>>
- Supplier: Shenzhen Puhuixin Technology Co. Ltd.
Share on (62507731541):
Product Overview
Description
Supply 1x2 1x4 1x8 Cassette Type PLC Optical Splitter with High Quality
Product Description
Product Features
Low insertion loss and low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Application
FTTX systems(FTTP, FTTH, FTTN, FTTC...)
Passive Optical Networks (PON)
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Passive Optical Networks (PON)
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Product Paramenters
Parameters | 1X4 | 1X8 | 1X16 | 1X32 | |||
Operating Wavelength (nm) | 1260~1650 | ||||||
Fiber Type | PM fiber 980,1310,1550 or customer specified | ||||||
Insertion Loss (dB) | ≤7.5 | ≤10.5 | ≤13.7 | ≤16.9 | |||
Loss Uniformity (dB) | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | |||
ER (dB) | ≥20 | ≥20 | ≥18 | ≥18 | |||
Return Loss (dB) | ≥50 | ||||||
Operating Temperature (℃) | -5~+70 | ||||||
Storage Temperature (℃) | -40~+85 | ||||||
Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | |||
Module Dimension (mm) (L×W×H) | 100x80x10 | ||||||
