OV9712 camera module 1mp 720P DVP camera module 24 Pin Gold Finger 1/4inch Lens FPC
- Category: >>>
- Supplier: Shenzhen Weinan Electronics Co. Ltd.
Share on (62507733937):
Product Overview
Description
Product Description

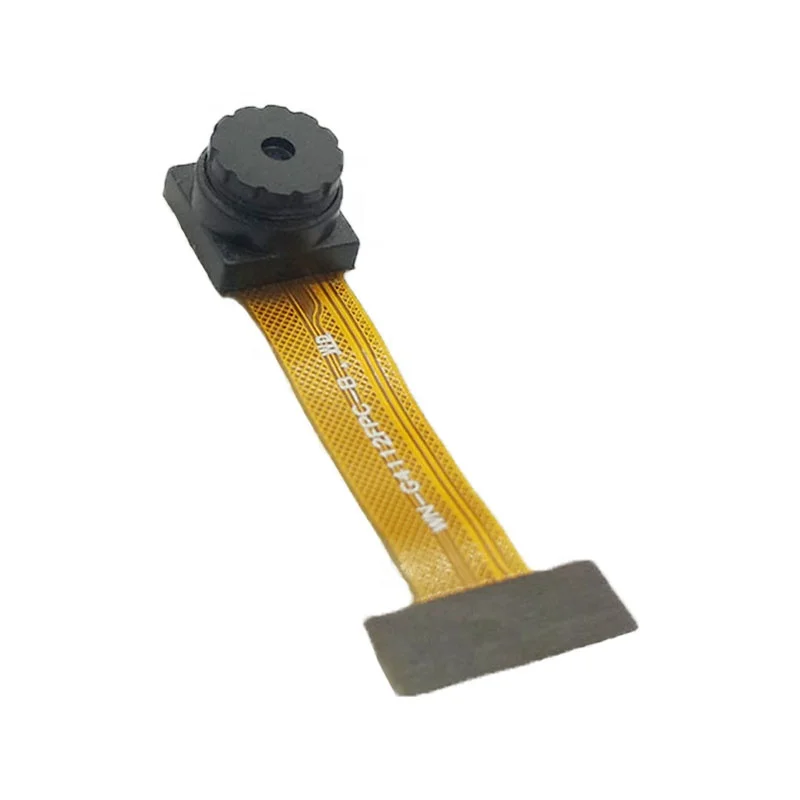

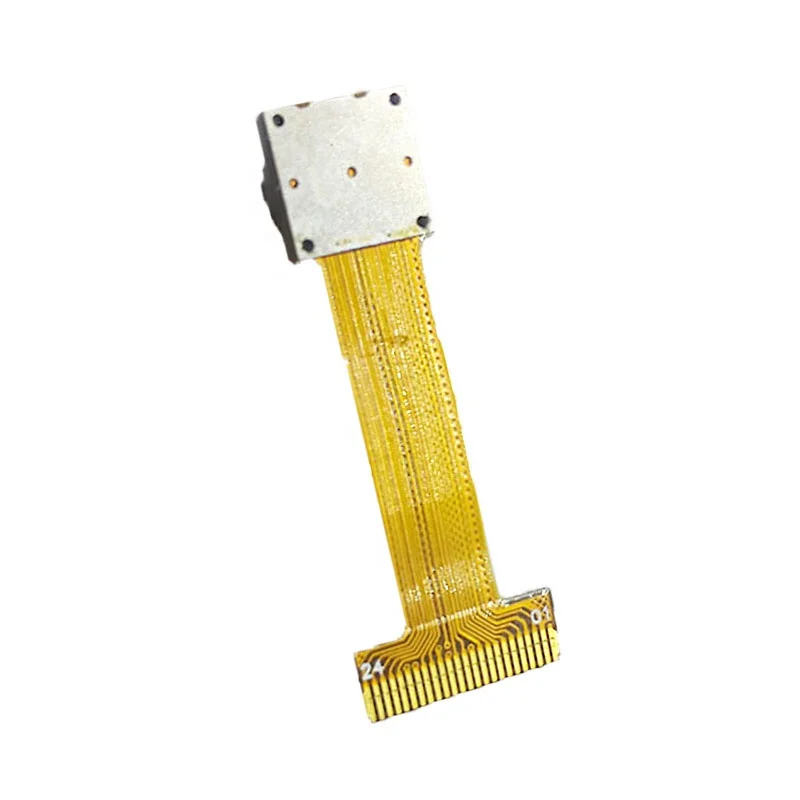

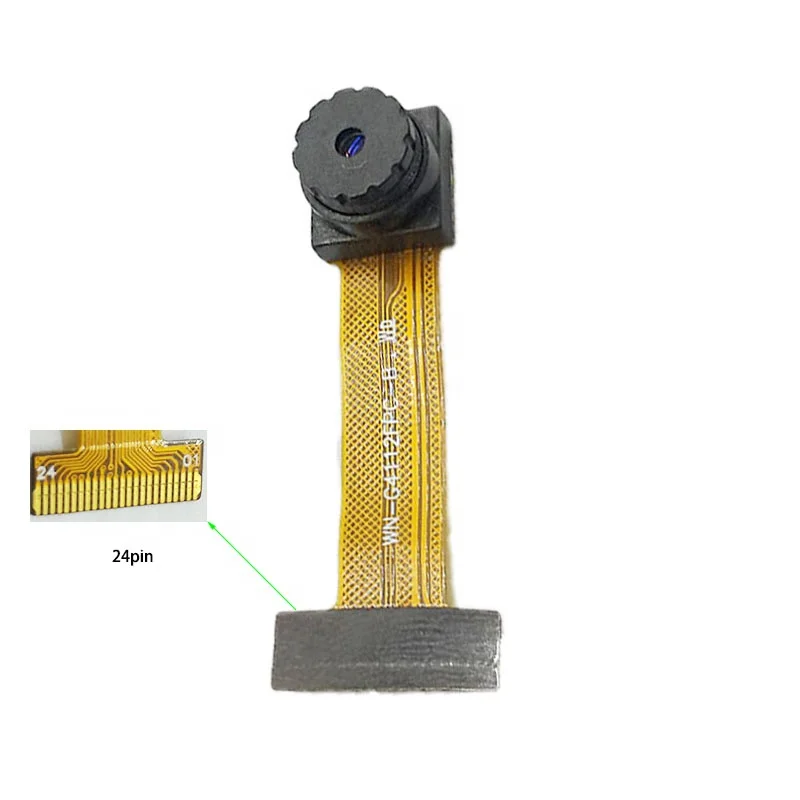

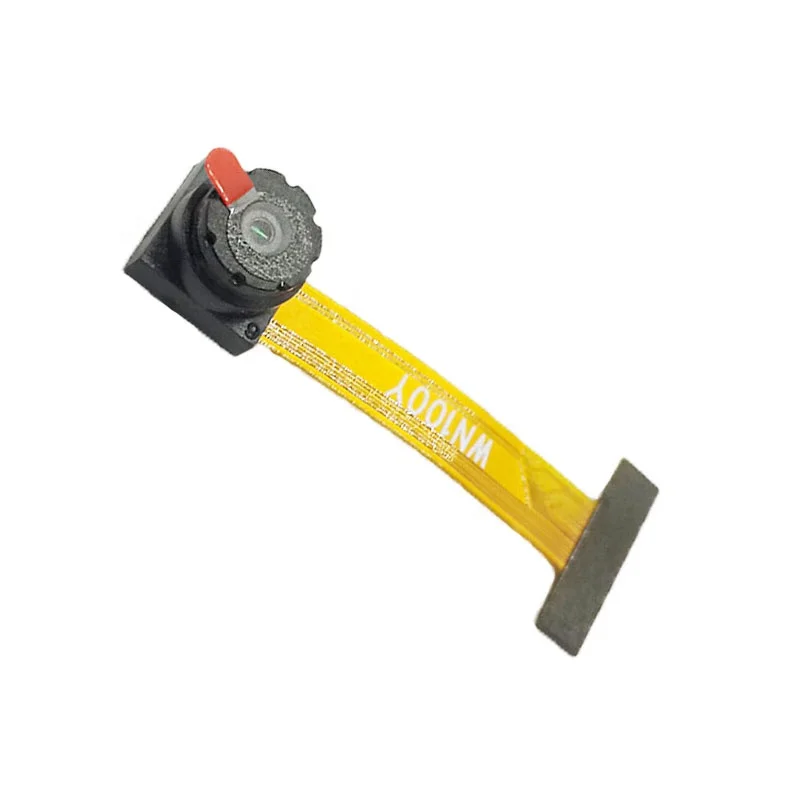

OV9712 camera module 1mp DVP camera 24 Pin Gold Finger 1/4inch Lens FPC
| Model No | WN-4112fpc |
| Sensor | OV9712 |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280 X 720 |
| Image format | VGA |
| Frame rate | 30fps@24Mhz, |
| Shutter Type | Electronic rolling shutter |
| Focus type | fixed focus |
| Shooting Range | 0.3m→∞ |
| Focal length | 2MM |
| Interface type | DVP |
| Output format | YCbCr4:2:2, RGB565, RAW RGB |
| Lens FOV | 60°/120° |
| Working voltage | 1.7V~3.0V |
| Power consumption | 90mW/30µW |

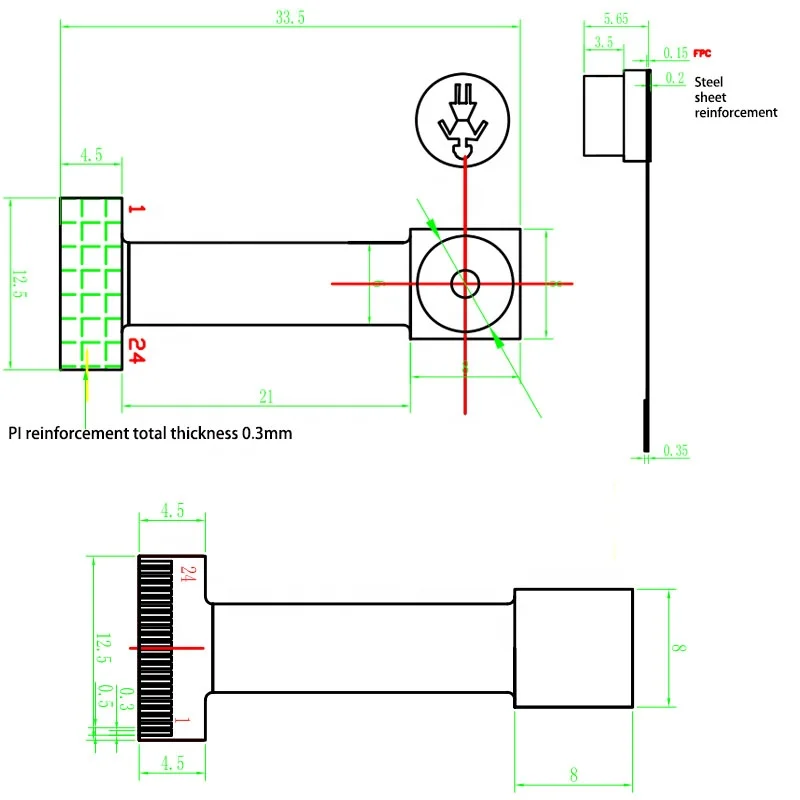

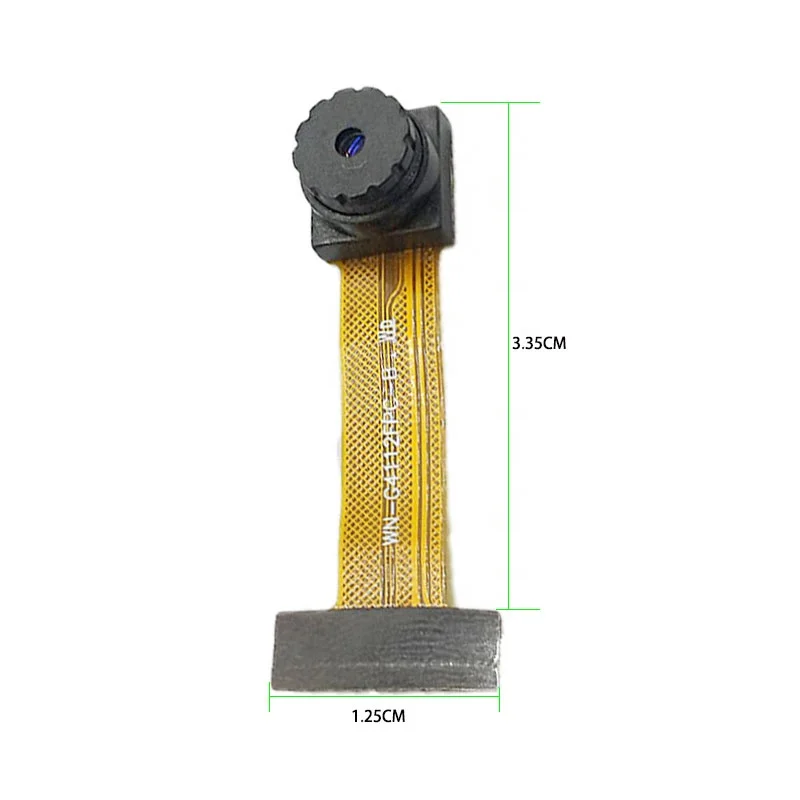

| Dimension | 45mm*6mm |
| Storage temperature | -30°C to 85°C |
| Operating temperature | 0°C to 60°C |
Feature
DVP interface
1MP resolution with OV9712 image sensor
High quality image, high performance
Low power consumption
