Высококачественный электронный контроль, длительный срок службы более 10 лет, без резервуара, для мгновенных горячих водоемов со светодиодным дисплеем температуры
- Category: Water Heaters >>>
- Supplier: Hannnover Electric Appliance Co. Ltd
Share on (62507805884):
Product Overview
Description
Why choose us
Model | ME1 | ||||||
Reference | 60 | 70 | 80 | 90 | 100 | 120 | 150 |
Rated power | 6.2kw | 7.0kw | 8.0kw | 8.8kw | 10kw | 12kw | 15kw |
Rated voltage | 220 - 240V (single phase) | 380 - 400V (3phase) | |||||
Rated frequency | 50 / 60Hz | ||||||
Rated current | 28.2A | 31.8A | 36.4A | 40A | 15.2A | 18.2A | 22.8A |
Circuit breaker | 40A | 40A | 63A | 63A | 32A | 32A | 32A |
Recommend wire | 3 x 4mm2 | 3 x 6mm2 | 5 x 2.5mm2 | ||||
Water temperature | 32℃ - 55℃ | ||||||
Applicable water pressure | 0.25MPa - 0.4MPa | ||||||
Max. water pressure | 1.2MPa | ||||||
Starting flow rate, GPM | 0.3 (1.2L/min) | ||||||
Max. flow rate, GPM | 2.1 | 2.5 | 2.8 | 3.0 | 3.3 | 3.6 | 4.0 |
Inlet/outlet connection | G 1/2 BSP | ||||||
Product size | 320mm x 450mm x 75mm (L x H x T) | ||||||
Features and functions

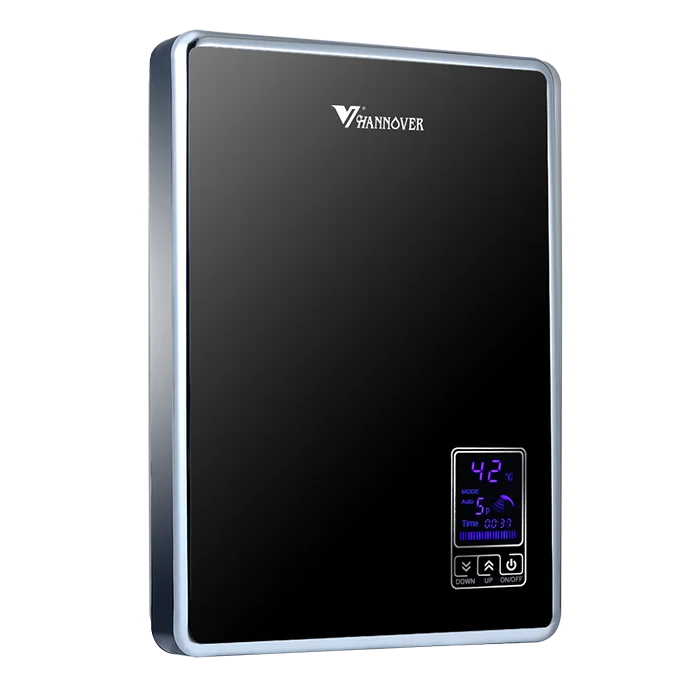

Tempered glass cover
LED temperature display
Constant temperature control by microprocessor
Temperature fluctuation range: +/-0.5℃
Operation mode: electronic
Dual core drive
Hot water capacity: endless
Hot water temperature: 32 - 55℃
Water pressure resistance: ≥ 1.2MPa
Applicable water pressure: 0.25 - 0.4MPa
Starting flow rate: ≥ 1.2L/min.
Splash proof: IPX4

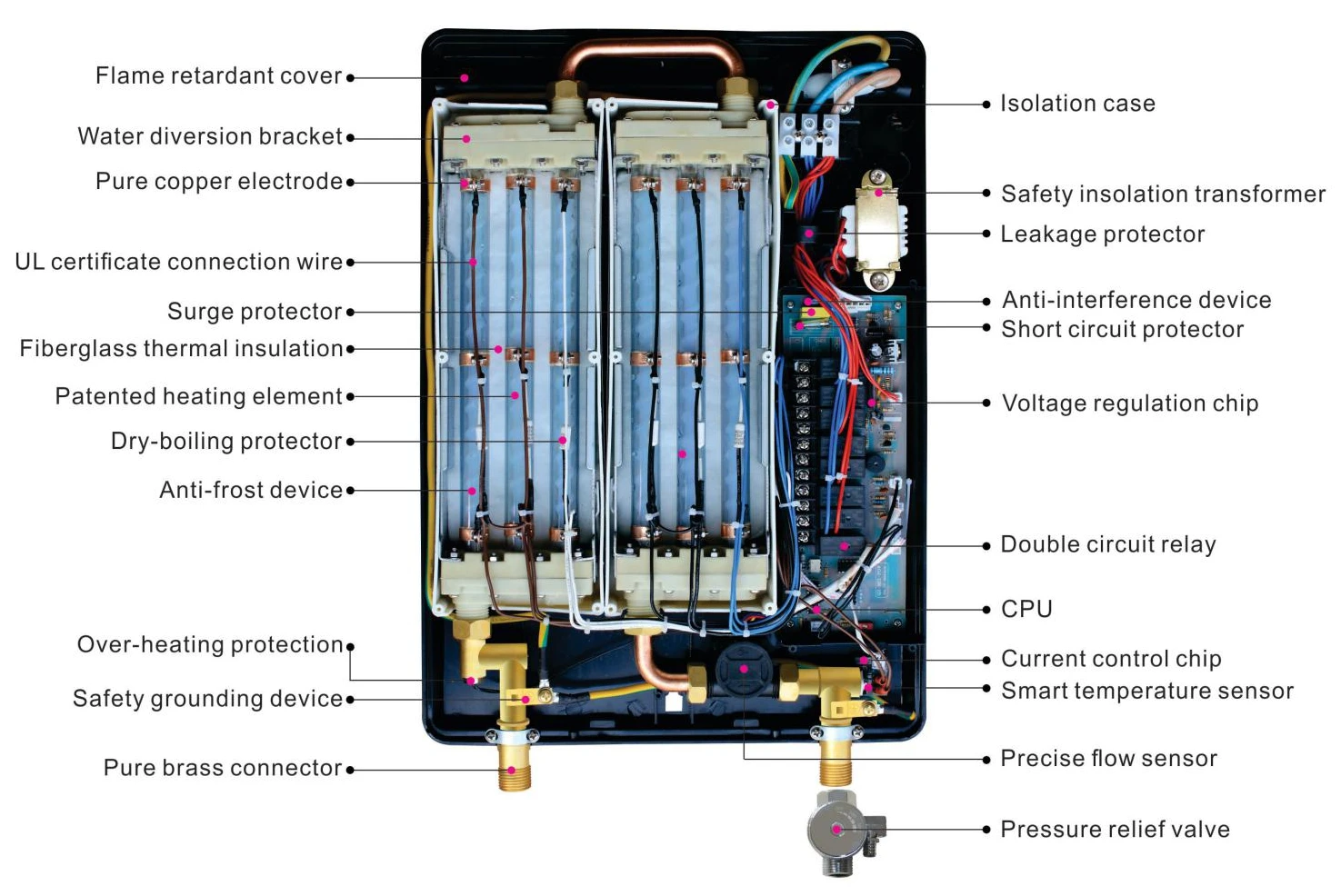

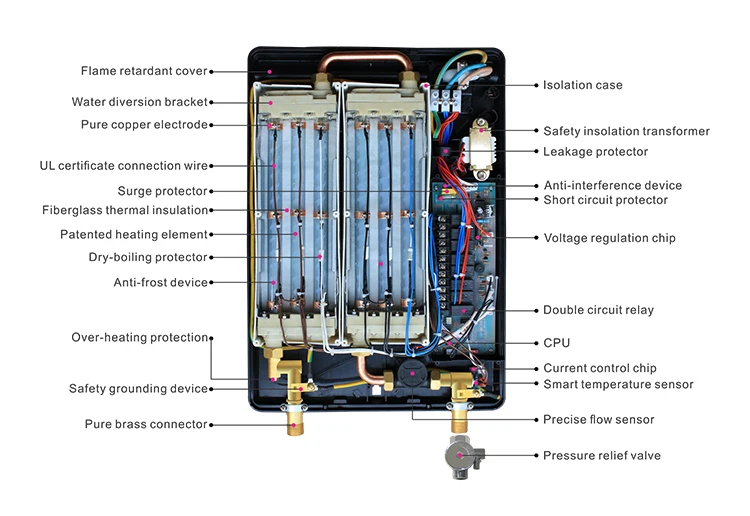

High technology for your safety

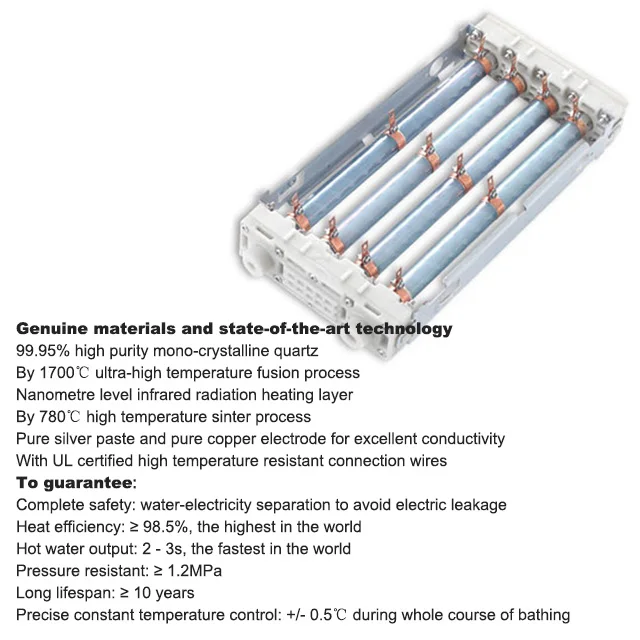

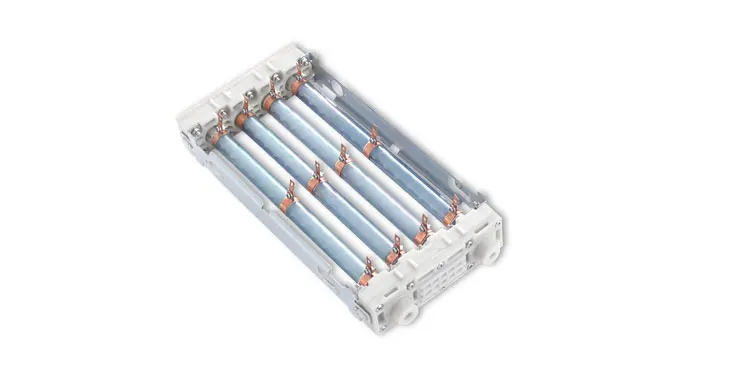

Heating Element
Genuine materials and state-of-the-art technology
99.95% high purity mono-crystalline quartz
By 1700℃ ultra-high temperature fusion process
Nanometre level infrared radiation heating layer
By 780℃ high temperature sinter process
Pure silver paste and pure copper electrode for excellent conductivity
With UL certified high temperature resistant connection wires
To guarantee
Complete safety: water-electricity separation to avoid electric leakage
Heat efficiency: ≥ 98.5%, the highest in the world
Hot water output: 2 - 3s, the fastest in the world
Pressure resistant: ≥ 1.2MPa
Long lifespan: ≥ 10 years
Precise constant temperature control: +/- 0.5℃ during whole course of bathing

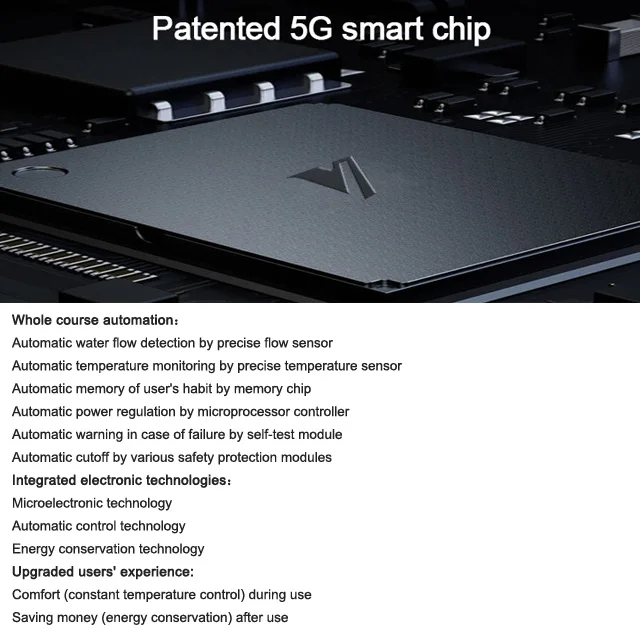

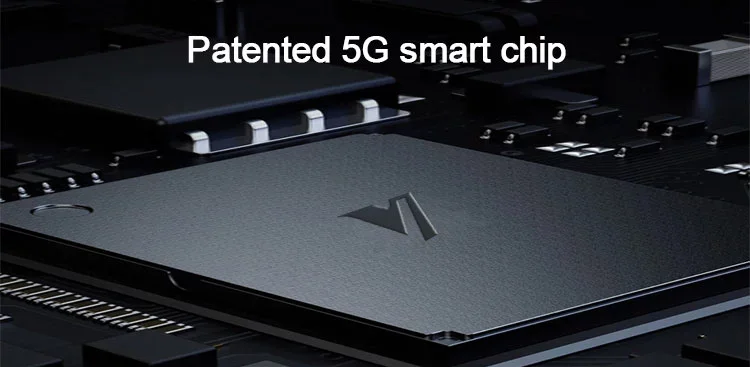

5G Core Technology
5G Core Technology
Whole course automation |
| 1. Automatic water flow detection by precise flow sensor |
| 2. Automatic temperature monitoring by precise temperature sensor |
| 3. Automatic memory of user's habit by memory chip |
| 4. Automatic power regulation by microprocessor controller |
| 5. Automatic warning in case of failure by self-test module |
| 6. Automatic cutoff by various safety protection modules |
Integrated electronic technologies |
| 1. Microelectronic technology |
| 2. Automatic control technology |
| 3. Energy conservation technology |
Upgraded users' experience |
1.Comfort (constant temperature control) during use |
| 2. Saving money (energy conservation) after use |
