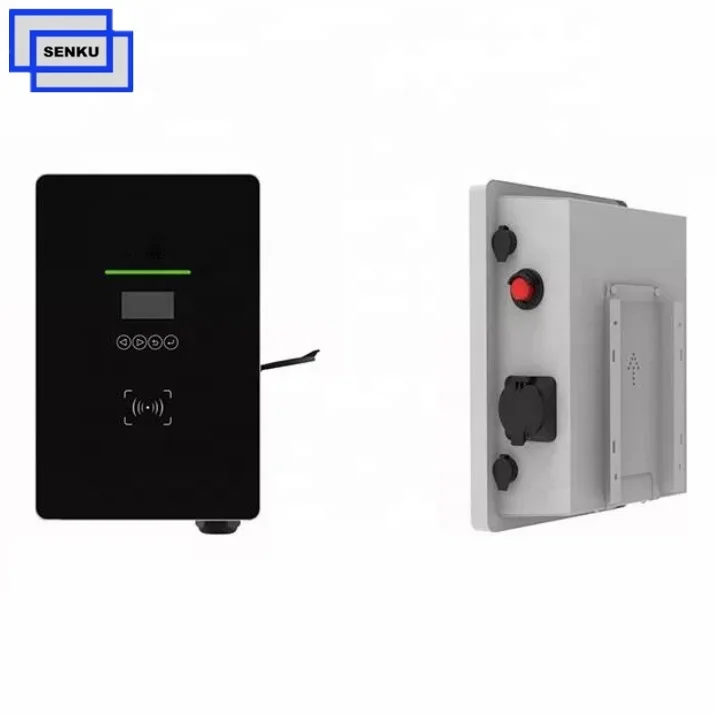

Commercial Application Wallbox OCPP 1.6 Electric Car EV Charger 22KW
- Category: >>>
- Supplier: Chongqing Senku Machinery Imp And Exp Co. Ltd
Share on (62507950233):
Product Overview
Description
Commercial Application Wallbox OCPP 1.6 Electric Car EV Charger 22KW
BASIC DATA
| Rated Voltage | Three phase; 400V AC ±10%; 50Hz |
| Rated Output | 32A / 22 KW ( 11kw when the current is 16A ) |
| Charging Connector | 1 * Type2 Socket for EU market or 1 * Type2 Plug + 4m cable |
| HMI | RFID card; LED indicator light + LCD display screen + Touch button (Smart Phone APP Charger Support) |
| Meter | MID Certificated Meter |
| RCD | Type A (30mA AC) + 6mA DC |
| Internet | OCPP 1.6 (Jason) ; Ethernet /3G/4G |
| Operation Temperature | -30℃ ~ + 50℃ ; 5%~95% without condensation; Altitude<2000M |
| IP Level | IP 54 / IK08 (Indoor or Outdoor Installation) |
| Safety specification | Conforms to the latest IEC 61851 and IEC 62196 standardards |
| Protections | Over/Under voltage, Overload , Short circuit, Current leakage, Grounding, Surge, Over/Under temperature protection |
| Dimension & Weight | 452*295*148MM & 10KG |

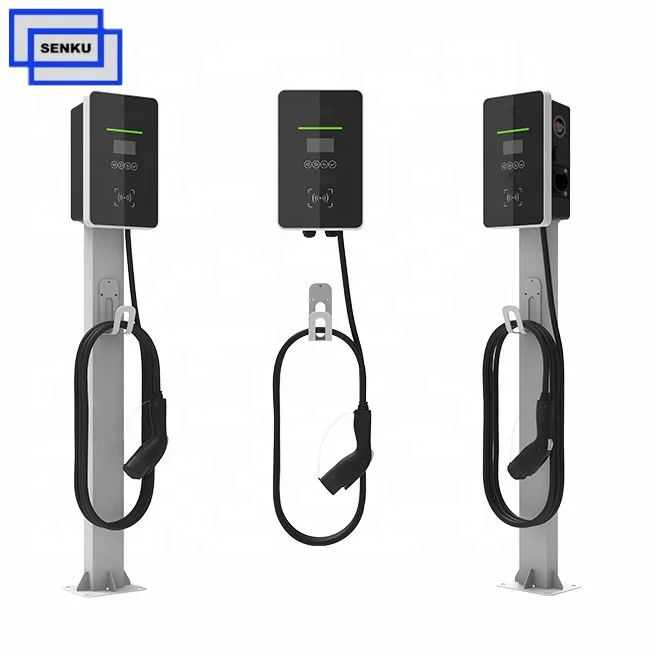

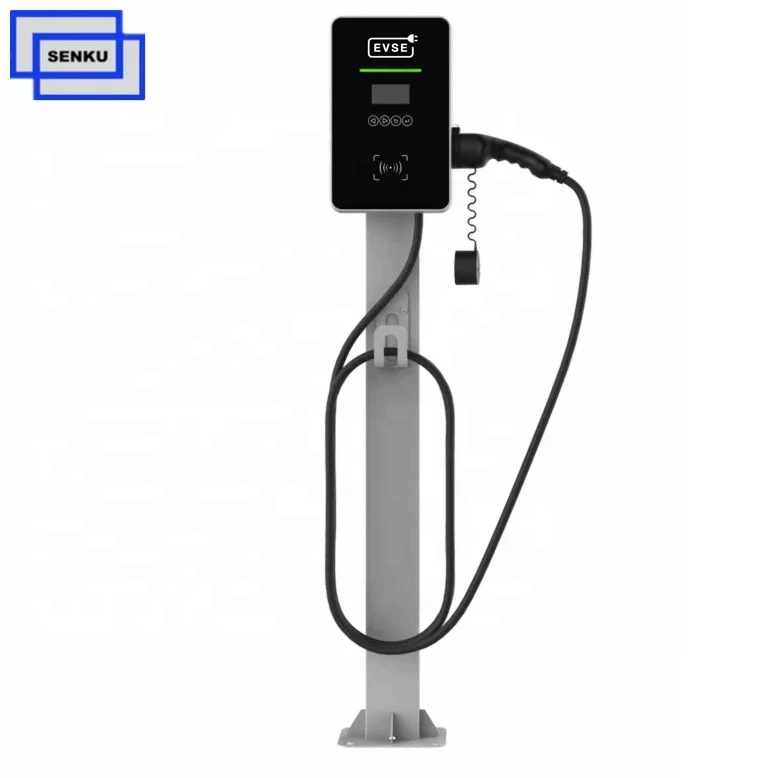

| Option Parts | Floor Stand Install Pile |
EV CHARGER ADVANTAGES
1- Ocpp & Internet Ready.
OCPP1.6 (Jason) protocol supported, Internet 3G/4G/Wifi / Ethernet Supported
2- Intelligent Charging Supported
- Real-time monitoring from voltage,current, temperature, etc..Dynamically adjusted output parameter, protect the charging process and EV battery.
- MID Certificated energy meter, ensure the dara precision.
3- Charging status indicate function
- LED light + LCD display screen to show whole charging process status.
- Touch button for easy operate, and the current can change between 16A /32A by press touch button.
4- RFID Card Function support
- Only authorized RFID Card can change, can effective prevent theft of electricity. Smart Phone scan QR code charging support
5-Safety and Reliable
- More than 9 aspect protection.
- RCD TypeA + 6mA DC protection, it is safety for uses and Evs.
- IP 54 Protection Level, more than 9 aspect protection, install both indoor and outdoor
- More then 15years long design life. Designed in strict accordance with IEC61851-1:2017 and IEC62196-2:2016 standard.
6-Widely application:
a) Parking lot ; b) Restaurants; c) Commercail Centre; d) Destinations; e) Fleets; f) EV charging station site etc...
How to know which ev charging connector I should choose?
This ev charger compatible with all IEC62196 (Type2) plug-in EVs, you can find following IEC 62196 type2 socket on your EV,
Such as Evs: Audi A3 e-tron, BMW i3, BMW i8, BMW X5, Hgundai IONIQ, Jaguar I-PACE, Kia e -Niro, Kia Optima,MG ZS EV, Renault Kangoo, Renault Zoe, Tesla Model 3, Tesla Model S, Tesla Model X, Toyota Prius Plug-In Hybrid...
then you need to buy type2 to type2 ev charging cable.
IEC 62196 type2 socket
If you only find this Sae J1772 type1 socket on your EV, please click the here to check correct charger details.
Such as EVs: Chevy Volt and Bolt EV, Nissan LEAF, Toyota Prius Prime, Ford Fusion and C-Max Energi,Citroen C-Zero, Fiat 500e etc...
Then you need to buy Type2 to Type1 charging ev cable.
Sae J1772 type1 socket
Company Info.

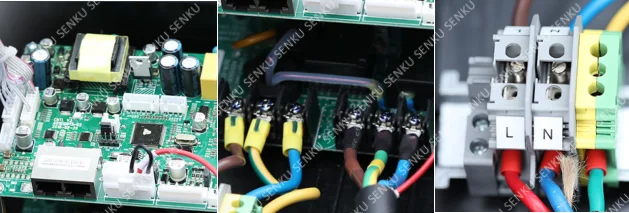

Senku Machinery EV charging station is strictly design and produce according to the CE and IEC 61851 standards. We choose the international high quality components as raw material, ensure the charger stable performance, safe and the long service life of the charger. Instead of using the inferior components. Because poor quality EV charger will bring many additional invisible operation and maintenance costs.
Especially for EV operators,once the EV charging station installed, it will serve many electric vehicles, so a stable & secure and real high efficiency charging station is important, so we always believe one good quality charger can bring more profit.
WE BELIEVE IN
ONE GOOD Quality Charger> N Poor Quality Chargers
