Product Overview
Description
Promotional 7 Inch TFT 2K Lcd Touchscreen Modules1200 X1920 Lcd Module For Industrial Products
Product Description
| LCD SPECIFICATION | ||||||

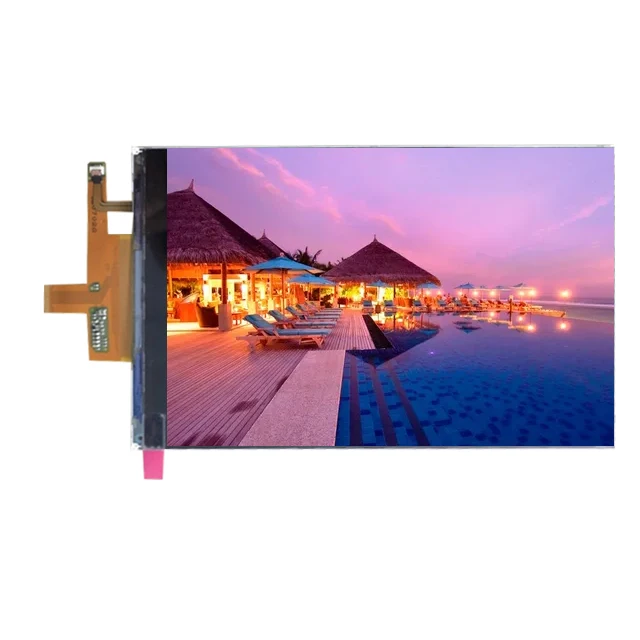

| Diagonal Size | 7.0 inch | Panel Type | LTPS TFT-LCD , LCM | |||

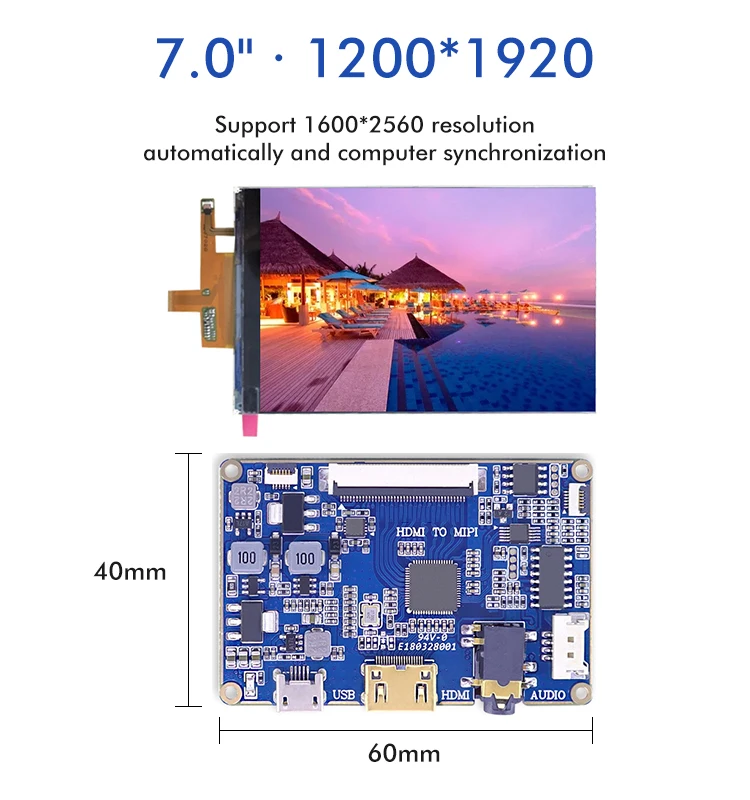

| Resolution | 1200(RGB)×1920 , WUXGA | Pixel Format | RGB Vertical Stripe | |||

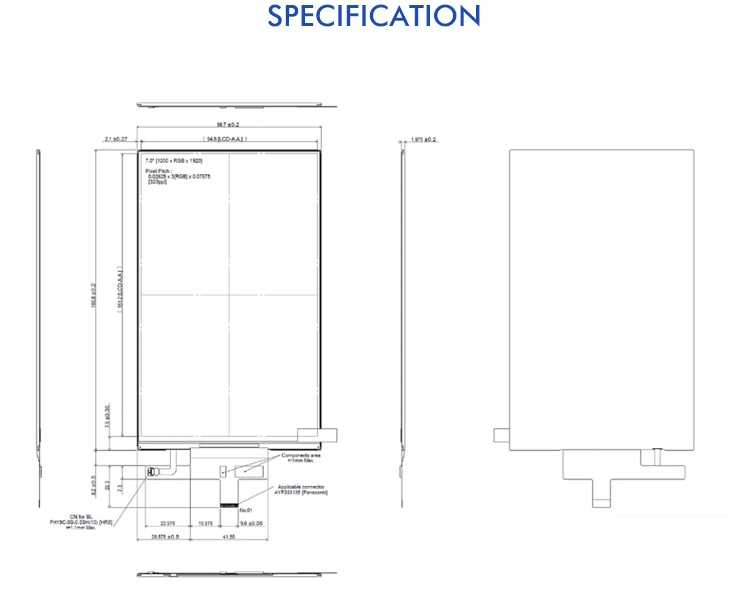

| Display Area | 94.5(W)×151.2(H) mm | Bezel Opening | - | |||
| Outline Size | 98.7(W)×160.8(H) ×2.18(D) mm | Surface | - | |||
| Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1100:1 (Typ.) (TM) | |||
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |||
| Best View on | Symmetry | Response Time | - | |||
| Display Colors | 16.7M 72% NTSC | Lamp Type | 5S4P WLED , Without Driver | |||
| Frequency | 60Hz | Touch Screen | Without | |||
| Weight | 66.0g (Typ.) | Application | Pad & Tablet | |||

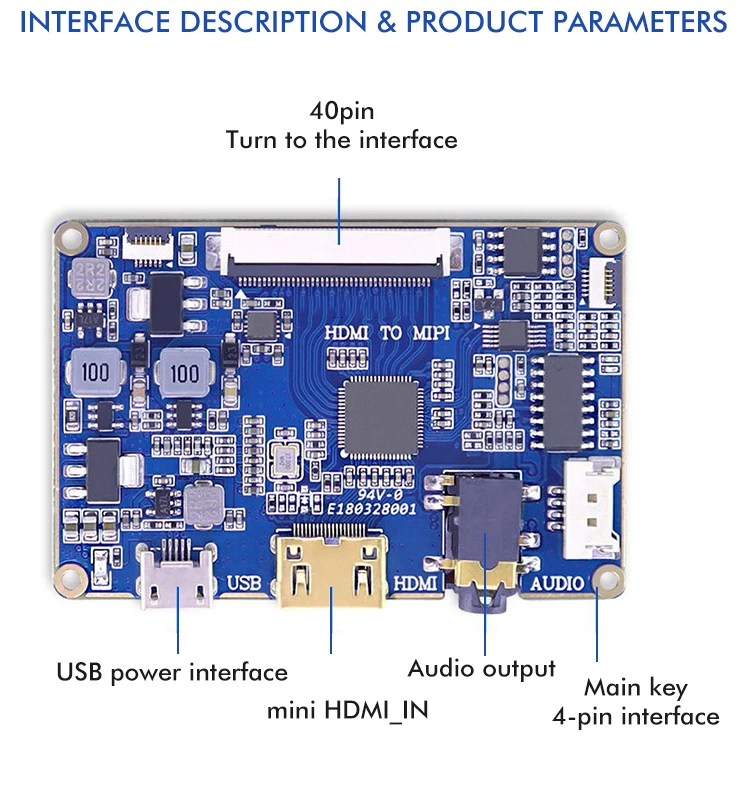

| Signal Interface | MIPI (4 data lanes) , 31 pins , FPC | |||||
| Input Voltage | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) | |||||
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | |||||
