1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor
1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor
1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor
1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor
1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor
1pc Wantai 4.2A 112mm WT57STH115-4204A 425oz-in high torque 57bygh nema 23 stepper motor

1pc Wantai 4.2A 112mm WT57STH115 4204A 425oz in high torque 57bygh nema 23 stepper motor

Share on (62508293495):


Price:RUB 1,872.30

Quantity:


Product Overview

Description

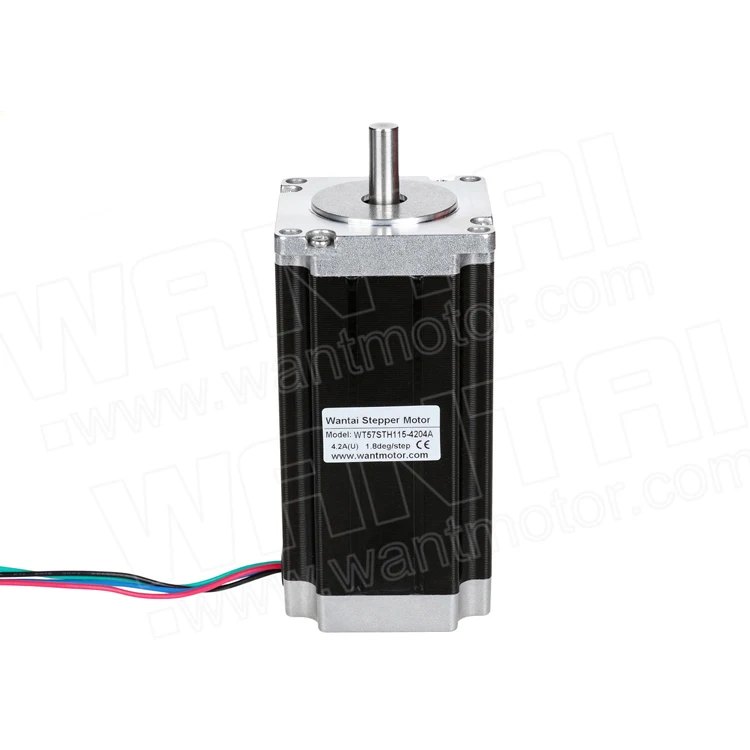

1pc Nema 23 stepper motor WT57STH115-4204A  4.2A 30Kg.cm(425oz-in)





General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ  Min,500VDC

Insultion Strength--------500VAC for one minute

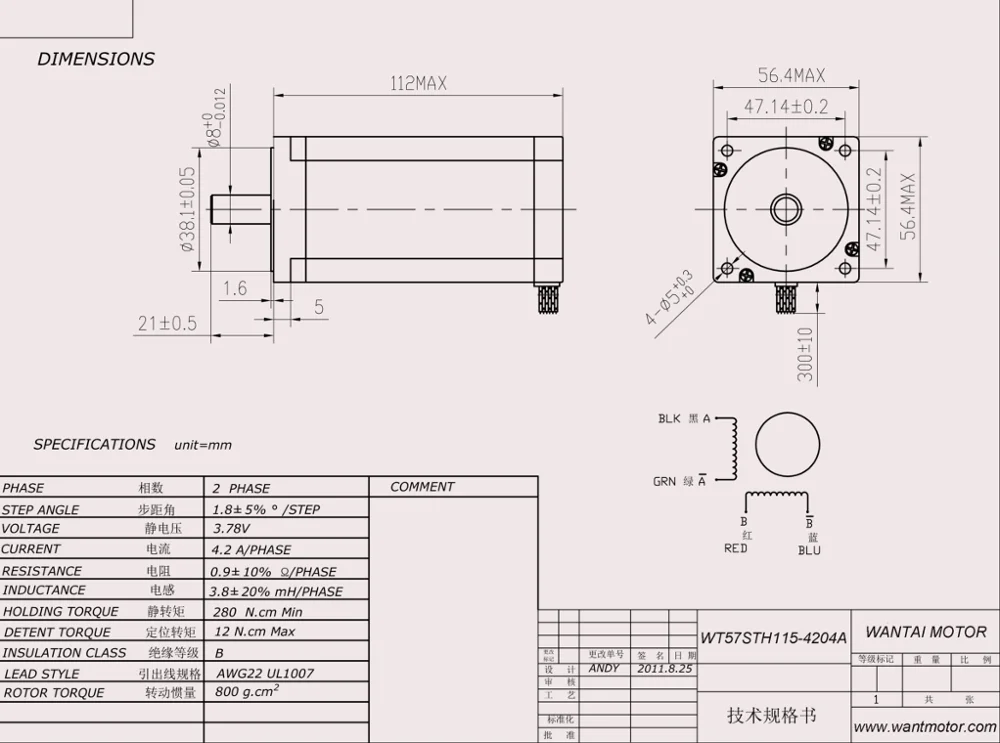

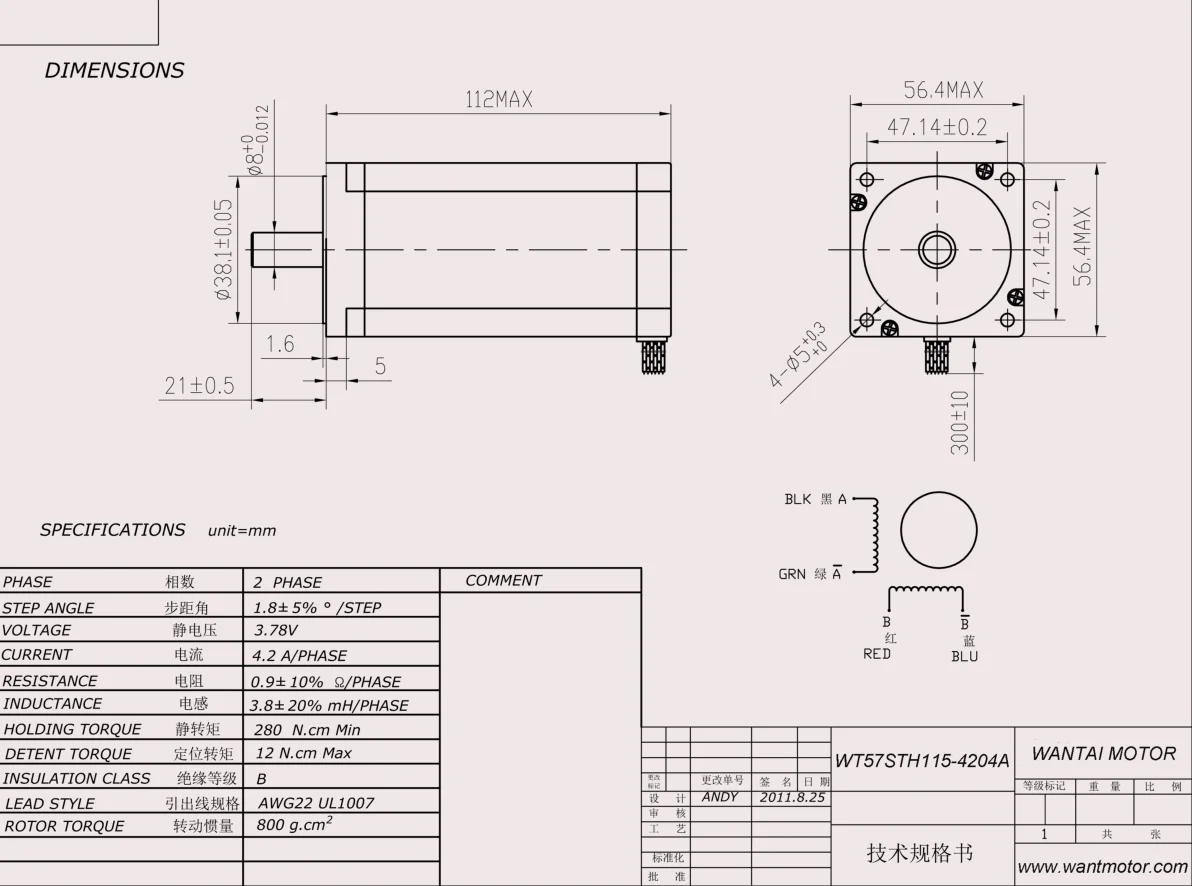

Datasheet(WT57STH115-4204A, 4.2A, 425oz-in holding torque):



PHASE 2 PHASE
STEP ANGLE 1.8 STEP
VOLTAGE 3.78V
CURRENT 4.2A /PHASE
RESISTANCE 0.9
INDUCTANCE 3.8
HOLDING TORQUE 280N.cm
DETENT TORQUE 12N.cm
INSULATION CLASS B
LEAD STYLE AWG26 UL1007
ROTOR TORQUE 800.cm









BLACK           A+

GREEN          A-

RED               B+

BLUE             B-






We are specializing in Stepper Motor, Brushless DC Motor, Stepper Geared
Motor, Servo Motor, Motor Driver and the Control System. And we also
provide professional OEM service, manufacture high-quality customized
products.




1. Do all products in stock?
Sure. All goods can be shipped in 5days if no problems happen!


2.What about the Min. order Quantity?
All products have stock. Customer can order even 1PC.


3.How about the warranty?
We have confident for our product. Every product support 1 years warranty. For sure our products are of high quality control, and have competitive price and we have excellent after sale services.


4. Can you offer OEM or ODM for products?
Yes,we have professional design team and has established the largest software R&D center, we believe we can satisfied all your needs.


5.How to do the payment?
Payment we accept: alibaba. T/T. L/C.Western union. moneygram and Paypal.


6.What is the shipping?
We can provide express,air and sea shipping according to customer requirements.
We will do confirmation with customer!
