Single Panel Bilateral Walk through Metal Detector Security Door
- Category: Industrial Metal Detectors >>>
- Supplier: Heyuan Zhonganxie Technology Co. Ltd.
Share on (62508487369):
Product Overview
Description
Product Description

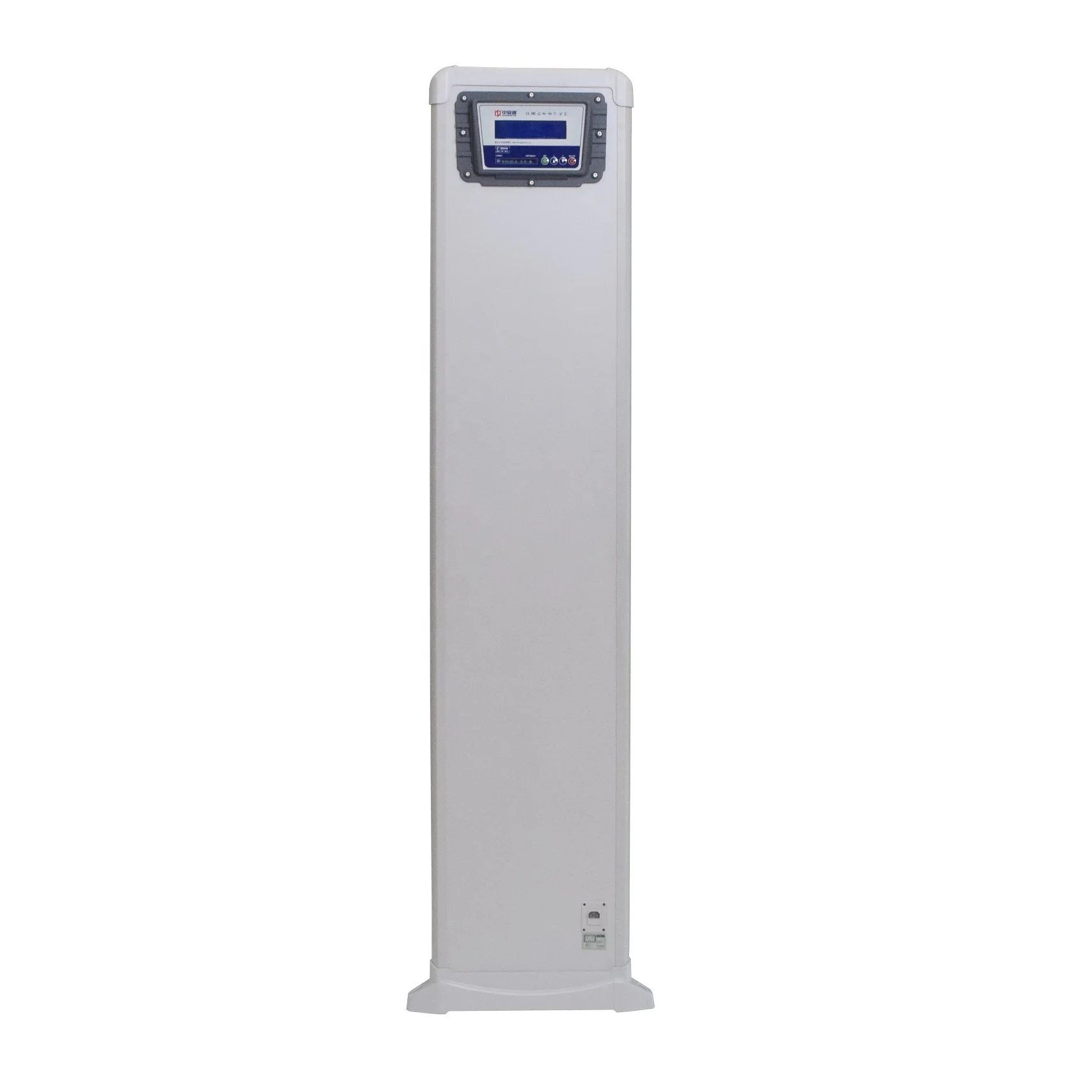

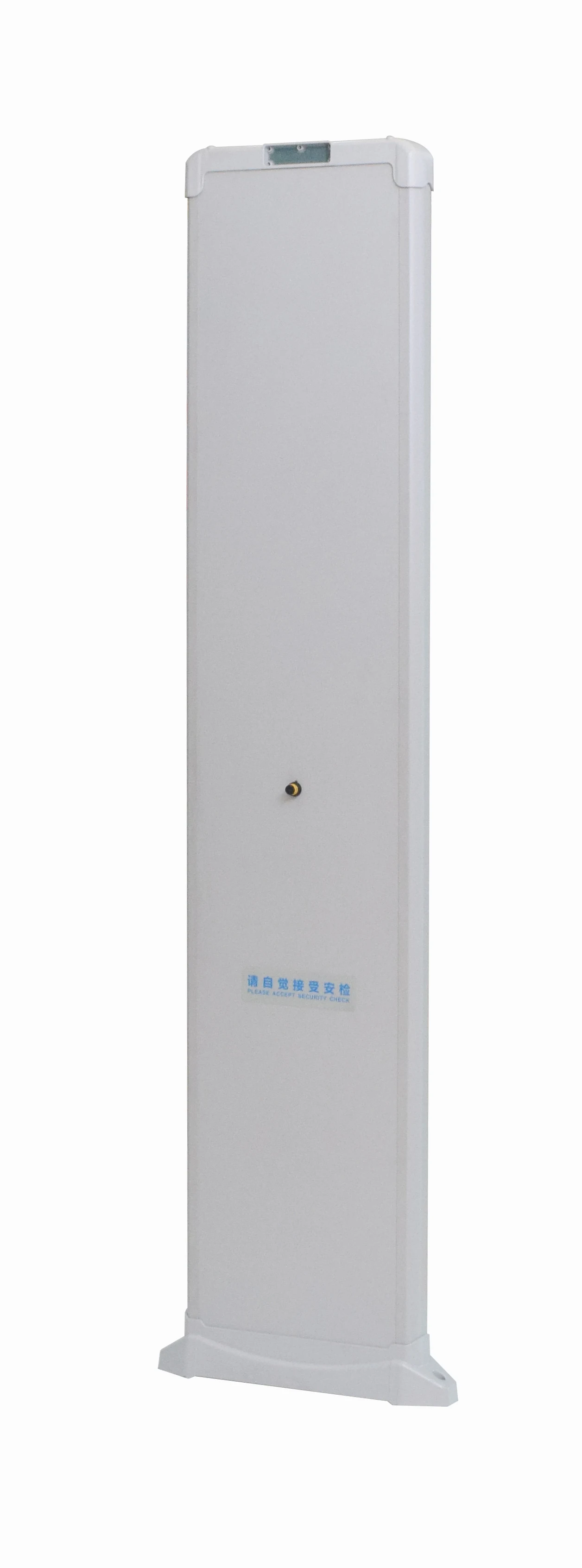

Single Panel Bilateral Walk-through Metal Detector Security Door
Modular product Easy to maintenance / Special material High-intensity & lightweight
Production line assembling Ultra high precision
Production line assembling Ultra high precision
The single panel detector solves the problem of two-way passage, and the detection can be achieved in a narrow passage, which reduces the area of the traditional security door by 50%.
Portable Single Panel Bilateral Walk-through Metal Detector is a kind of high performance security door. This security door breaks the appearance of traditional security door, which is innovative. The product has the characteristics of high detection sensitivity and stable performance when detecting the personnel within the required detection distance. The product uses high strength special material, the texture is very light, easy to transport and install. With modular design, the product is assembled in production line which can well ensure the stability. At the same time, it has the characteristics of intuitive operation interface and easy to use which anyone can operate without any training.
Portable single panel bilateral walk-through metal detector is widely used in sports, meetings, schools and other occasions.
This product has obtained several appearance and structural patents and got the software system registration right. And uses electromagnetic field to detect the structure of the metal object on human body. If the metal objects of the passer exceed a certain amount, it will make sound and light to alarm. It is made of the monitor, high frequency signal generator, signal receiver and infrared sensor. With beautiful appearance, strong metal detection ability, multiple detection zones, unique Internet remote operation management system, lightweight, waterproof characteristic, the product is in the forefront of the metal detector market.
Portable single panel bilateral walk-through metal detector is widely used in sports, meetings, schools and other occasions.
This product has obtained several appearance and structural patents and got the software system registration right. And uses electromagnetic field to detect the structure of the metal object on human body. If the metal objects of the passer exceed a certain amount, it will make sound and light to alarm. It is made of the monitor, high frequency signal generator, signal receiver and infrared sensor. With beautiful appearance, strong metal detection ability, multiple detection zones, unique Internet remote operation management system, lightweight, waterproof characteristic, the product is in the forefront of the metal detector market.
Leading Technology
● Multiple detection zone technology: 1, 3, 5, 6, 9 and 11 detection zones can be switched according to needs and intelligent partitioned. (more detection zone upgrade is available)
● Working frequency band: Ultra-wide working frequency band(0~100), with adaptive function according to working environment.
● Sensitivity of detection zone: The sensitivity of single detection zone can be adjusted up to 255 grade.
● Adaptive diagnosis system: When the product turns on, the system will check the working status of hardware automatically which escorting your using.
● Working frequency band: Ultra-wide working frequency band(0~100), with adaptive function according to working environment.
● Sensitivity of detection zone: The sensitivity of single detection zone can be adjusted up to 255 grade.
● Adaptive diagnosis system: When the product turns on, the system will check the working status of hardware automatically which escorting your using.
● Self-adaptive adjust system: the detection standard can be self-adaptive when entering the debugging system.
●Start and stop technology: infrared device is with automatically start-stop technology which extended the using life span 100 times.
●The sensitivity of each detection zone can be adjusted at will.(with adaptive adjust technology)
●Detection zone can be divided by operator. (the numbers of detection zone can be programmed )
●Alarm sound, light, tones and time can be adjusted at will.
●Query function: the system has real time information query function.
●Detection ability: more than 100 people in 1 minute
●Start and stop technology: infrared device is with automatically start-stop technology which extended the using life span 100 times.
●The sensitivity of each detection zone can be adjusted at will.(with adaptive adjust technology)
●Detection zone can be divided by operator. (the numbers of detection zone can be programmed )
●Alarm sound, light, tones and time can be adjusted at will.
●Query function: the system has real time information query function.
●Detection ability: more than 100 people in 1 minute
◆ Conductive Electron Interference
Connect the power cord to a line that is not connected to other heavy loads (such as high power motor etc.). Because they can cause large power or voltage surge in the line.

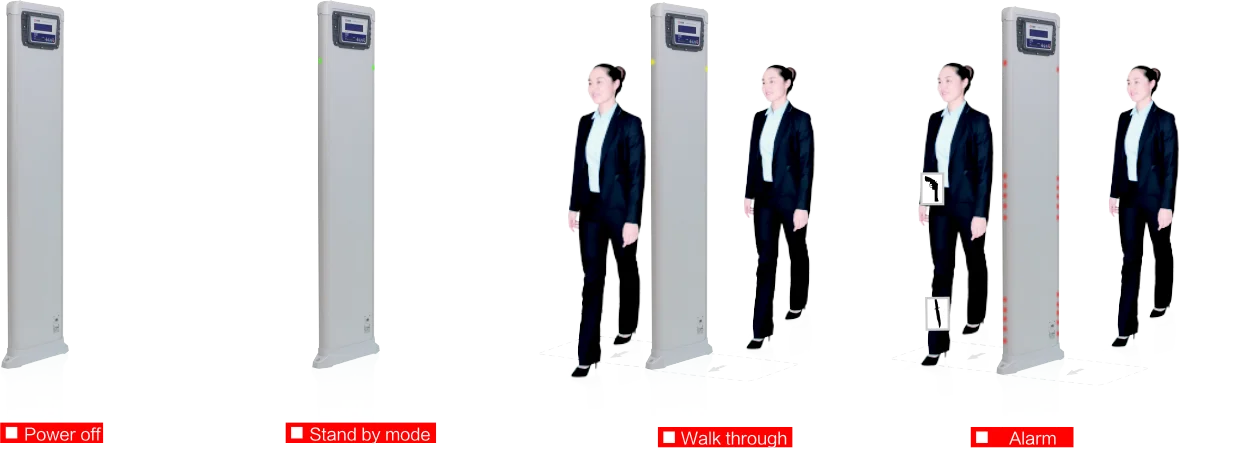

◆ Working Status Display
● Quick setting for application scenarios
The device is equipped with 72 kinds of working scene setting data, which is convenient for users to switch at any time and adapt to various kinds of detection needs.
Equipped with polymer battery which is
convenient for outdoor and temporary
security check with life time 8, 16, 24，48
and 72 hours to choose.(optional)
convenient for outdoor and temporary
security check with life time 8, 16, 24，48
and 72 hours to choose.(optional)
The product can be used side by side which
will make detection more precise.
will make detection more precise.
Working normally at the environment temperature of -20℃ to 85℃.(customized)
Product Paramenters
Technical Parameters | ||
Product model | Portable TD-800H/5 | |
Detection object | Contraband, more magnetic metal | |
Vertical Dimension | 2005x430mm | |
Vertical channel Dimension | 2005x430mm | |

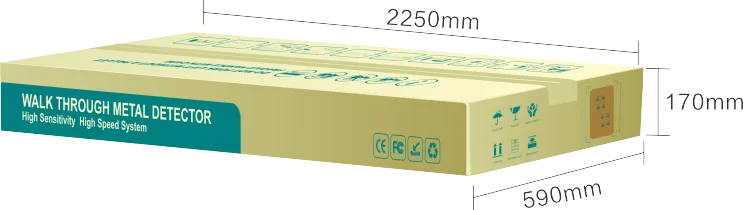

Packing Dimension | 2100×500×200mm | |
Working Humidity | 99%, non-condensing | |
Working environment | -20℃~65℃ | |
Regional detect metal precision range | Maximum sensitivity≥10g Metal | |
Operating voltage | AC90V～240V 50／60Hz | |
Power consumption | 12W | |
Weight | N.W.: 20KGS, G.W.: 22KGS | |
