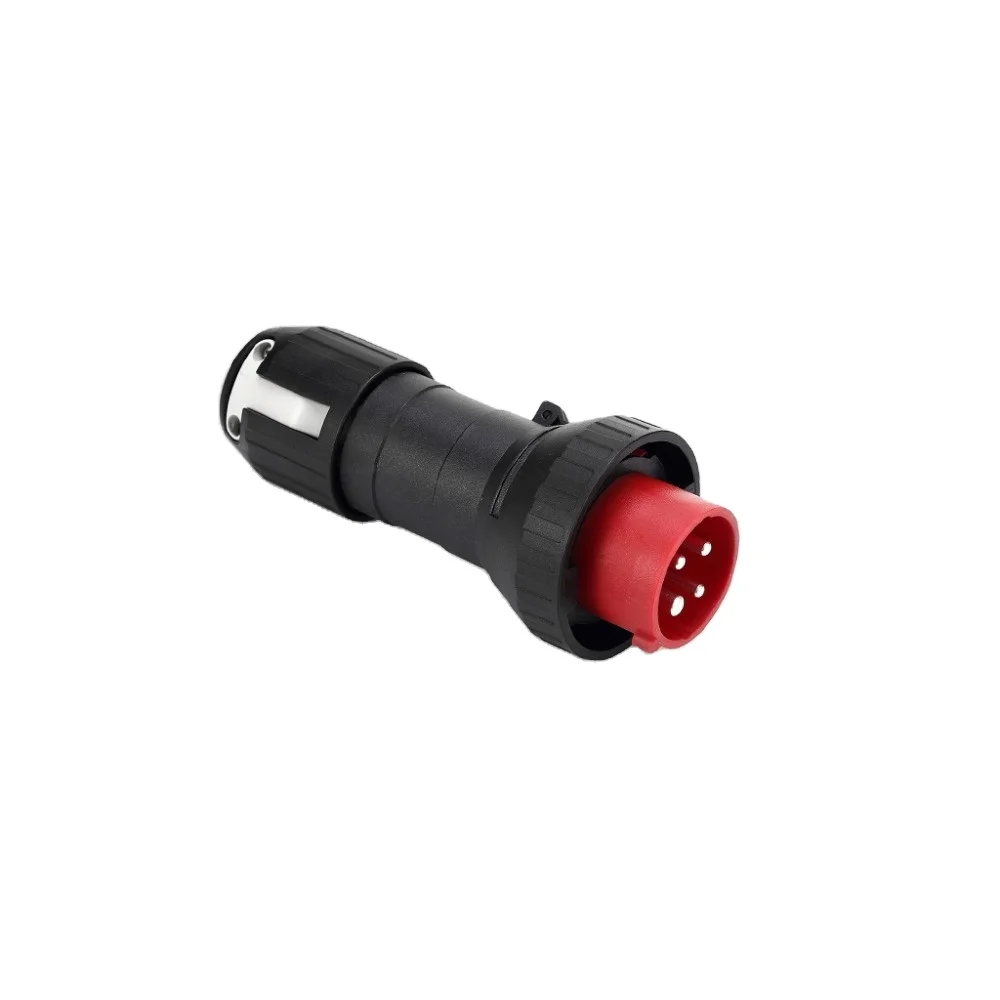

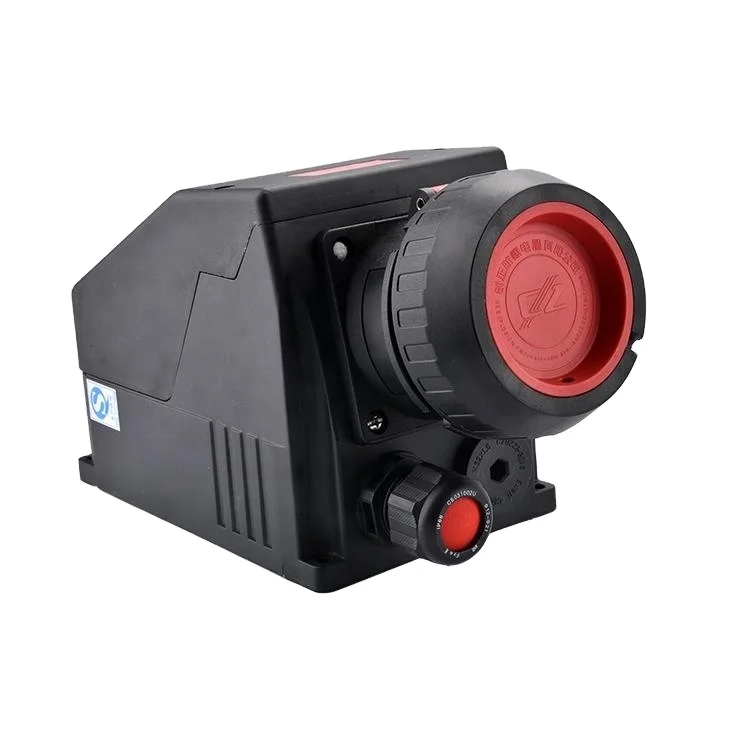

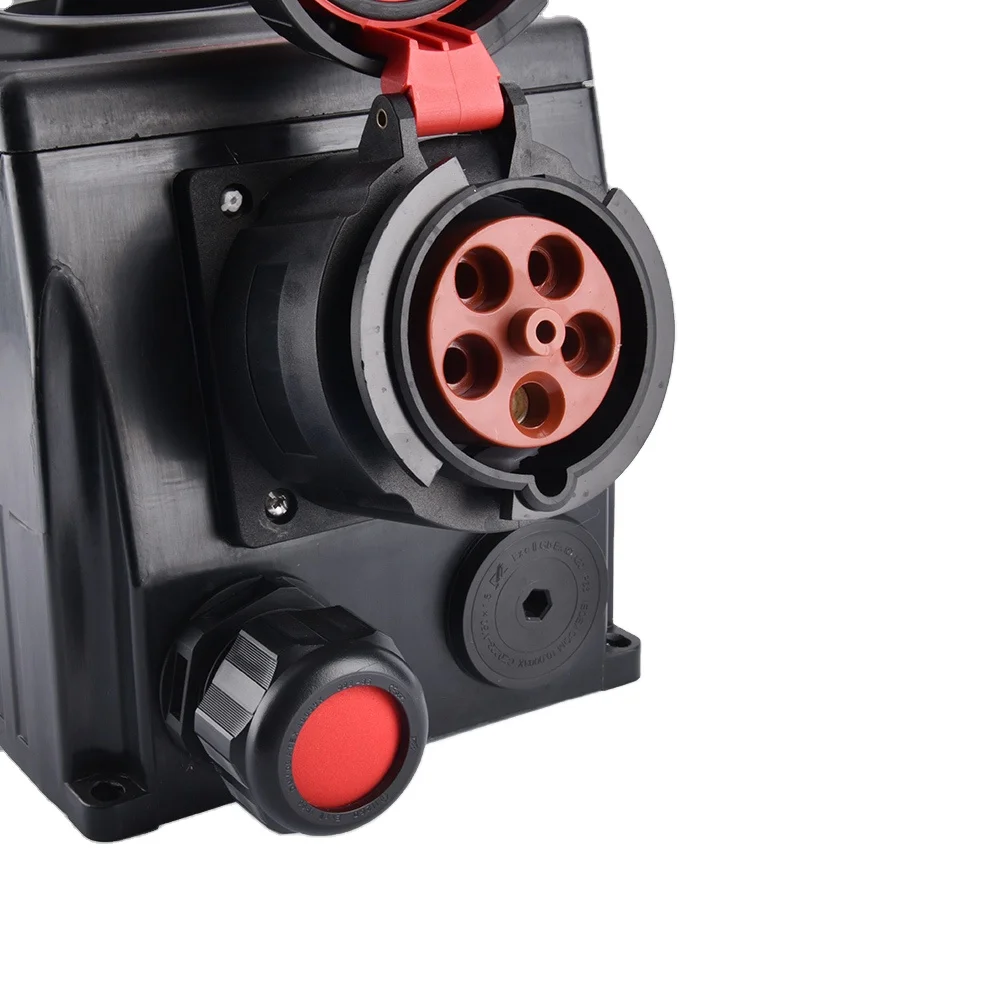

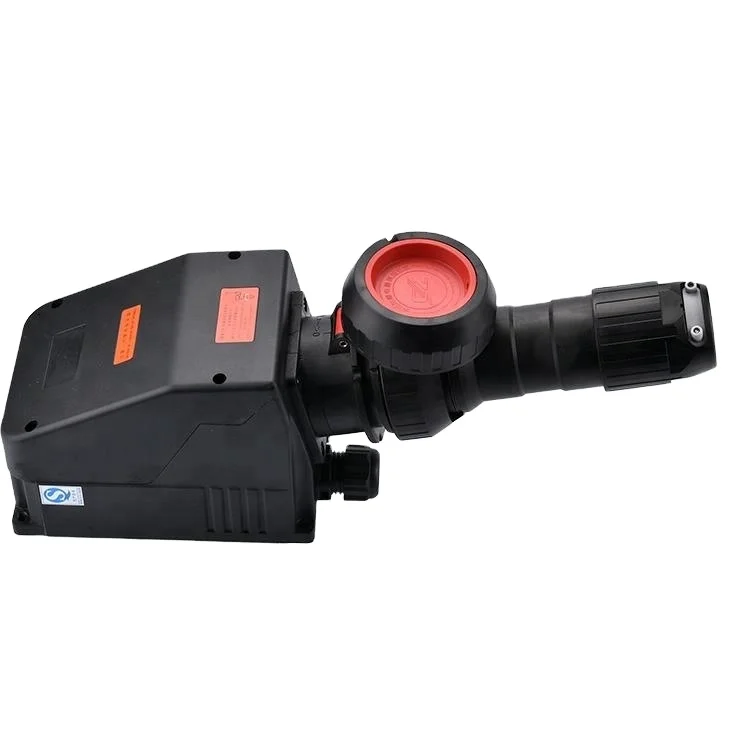

2022 plastic wall coupler mounting 63A 125A explosion proof socket

Product Overview

Description







Certification	Ex mark
IECEx	Ex de IIC T6 Gb  Ex tb IIIC T 80°C Db
ATEX	II 2GD, Ex de IIC T6 Gb  Ex tb IIIC T 80°C Db



Intended use	zone1 and zone2  zone21 and zone22
Ambient temperature	-40°C≤Ta≤50°C
Degree of protection	IP66(Match with operation head)
Rated voltage/current	AC250V/16A  DC110V/1A
mechanical life	1000000 times
Conformity	CE 0575



Descriptions:
The standard diameter of panel mounting explosion-proof component front operation head is Ø30mm, mounted on the panel which the thickness is 1~6mm, can be used independently, widely applies in the piano typ table control device and the monitoring equipment. The flexible cable can be equipped according to the user′s request.
CZ0201 panel mounting type explosion-proof buttons and switches are designed to 2-pole contacts.

CZ0240/9 panel mounting type explosion-proof buttons and switches are designed to 4-pole contacts
The various kinds of button operation heads and switch operation heads with the different functions can be selected and used in the board back unit type explosion-proof pushbutton.
The LED light source is used in the panel mounting explosion-proof signal lamp components, built-in the temperature switch and there are five colours can be selected.
The panel mounting explosion-proof ammeters are fitted with the adjustable red pointers on the ammeter panel, with the functions of two times, five times overload and can be divided into direct and indirect measure. The direct measure is suitable for the current range of O~10A and the scales of ammeters for indirect measure (for current transformer) are interchangeable.

Order specifications:



Outline dimensions:
