Introduction

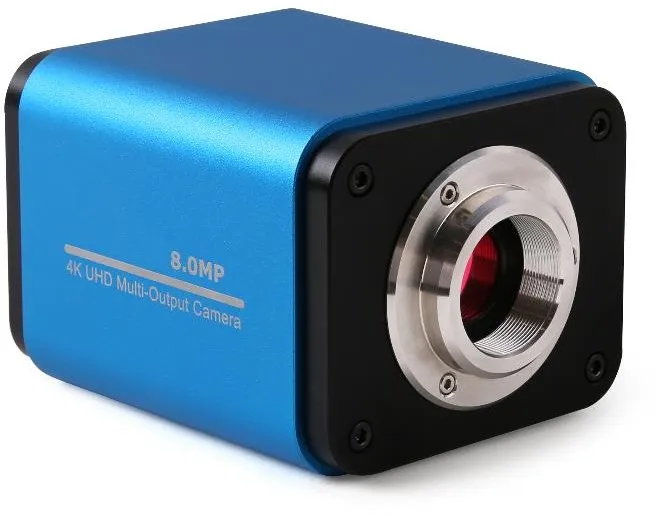

BWHC-4K8MPA 4K UHD WIFI HDMI digital camera has adopted high sensitivity 1/1.8 inch 8.3MP Sony CMOS

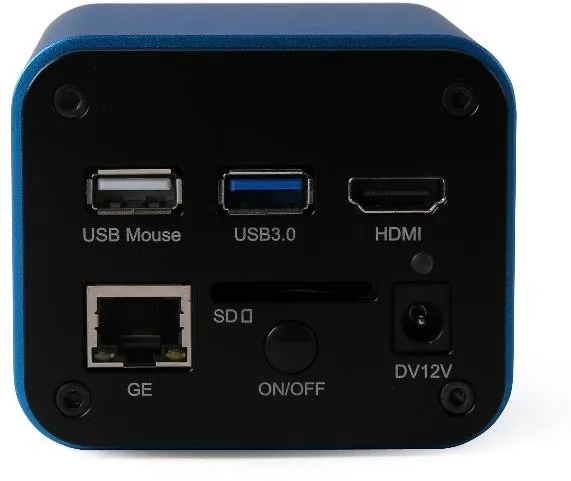

image sensor, pixel size 2.0um. The camera has high dynamic range, high sensitivity and excellent thermal noise suppression features. The camera outputs 4K resolution of 3840 x2160 pixels, the resolution is 4 times as 1080P cameras, maximum frame rate is 60fps. The Camera can be connected to 4K UHD Screen via HDMI interface, it also can be connected to PC via USB3.0, WIFI or GigE and controlled with professional software. The captured

images will be saved to SD card, the camera can ensure every detail is not to be missed.

BWHC-4K8MPA can be controlled by a mouse, the operation is simple and quick. This camera has many

measurement functions, like point, line, circle, rectangle, annulus, polygon, polyline, angle, double circle, distance from point to line, concentric circles and so on.

Application

BWHC-4K8MPA 4K UHD WIFI HDMI digital camera can be widely used in video conferencing, remote medical diagnosis, microscopy images, industrial inspection, video projectors, security monitoring field. With the high image quality and easy to operate features, it will be your best assistant for following applications:

 Live Cell Imaging

 Surgical Microscopic Imaging

 Pathology

 Cytology

 Defect Analysis

 Semiconductor Inspection

 Electronics and circuit board inspection

 Metrology

 Navigation for Processed Imaging

 Industrial Optical HD Digital Imaging

 Astronomical Observation
