Rotary broach tool works by rotating the cutting force.It is most suitable for geneal machines,CNC automatic lathe,drilling machine.It can be used to make blind holes,through holes or regular/irregular polygons.Apart from standard hexagon and square holes,special shapes such as star shape and spline can also be cstomized.
1.Product performace and features
1.No need to malke Punch head or electrode,reduce the cost,quaity is good, improve efficiency,has strong generality.
2.One step of lathe work,reduce process and processing time.Use this tool can make square hole and hexagonal hole etc.Only need 30s to process a hexagonal hole which is 10mm width and 15mm depth.
3.Suitable to process parts which hardness less than HRC30.
2.Method of use
1.Use rotary broach tool,you can rotate the tool or the parts.It means you can use on lathe,milling machine,drill machine and CNC machine.In order to make sure the working accuracy,you must calibrat center.
2.Working speed:800-2000R.P.M,Feed:0.02-0.1mm/rev,Increase 2-3times for copper/aluminum parts

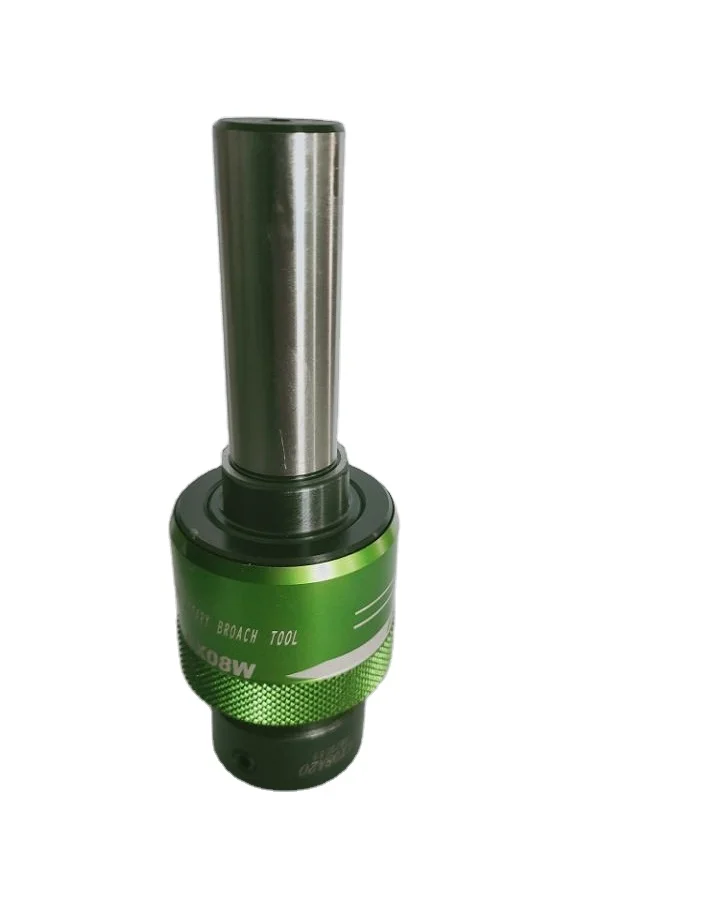

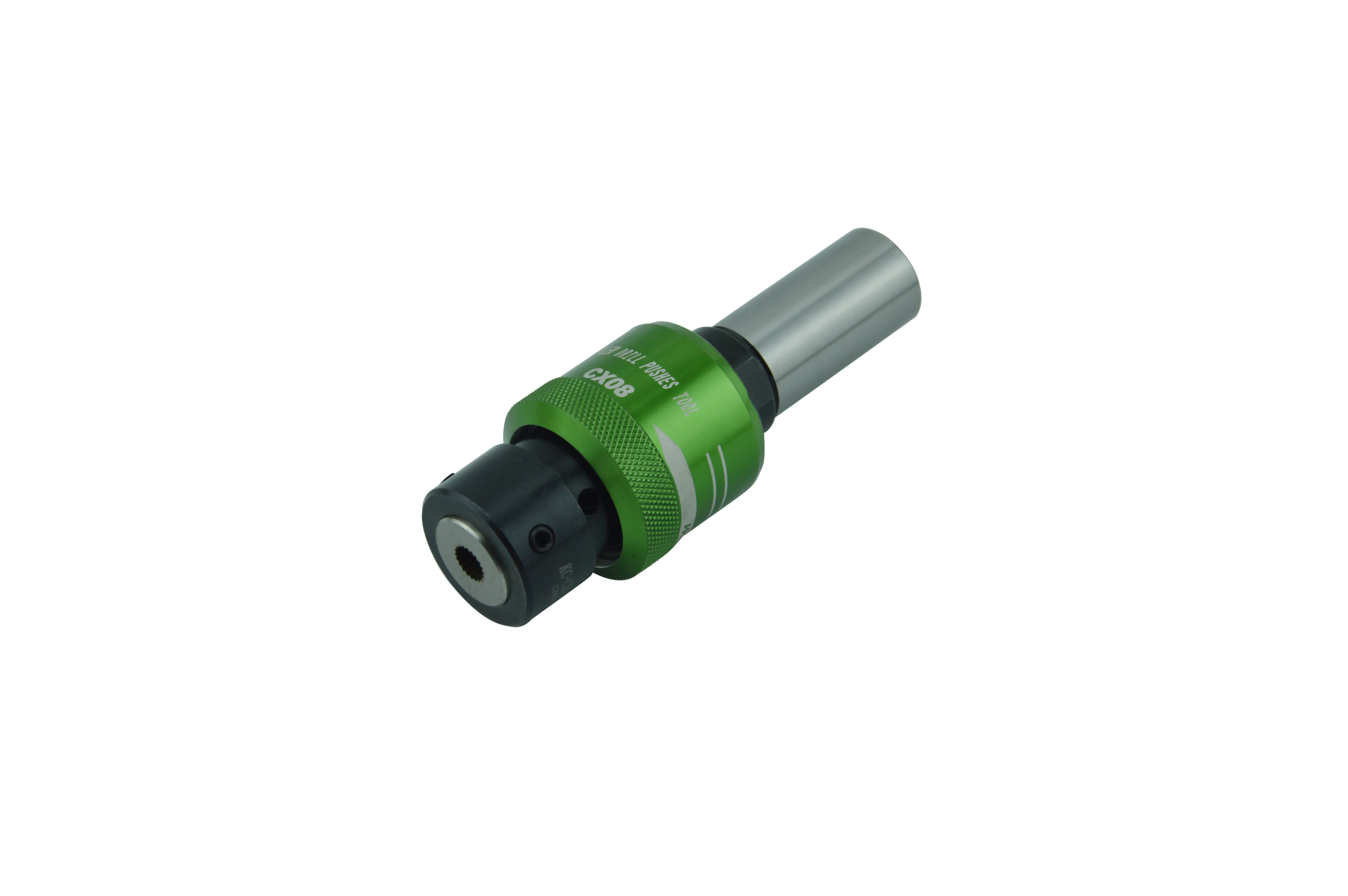

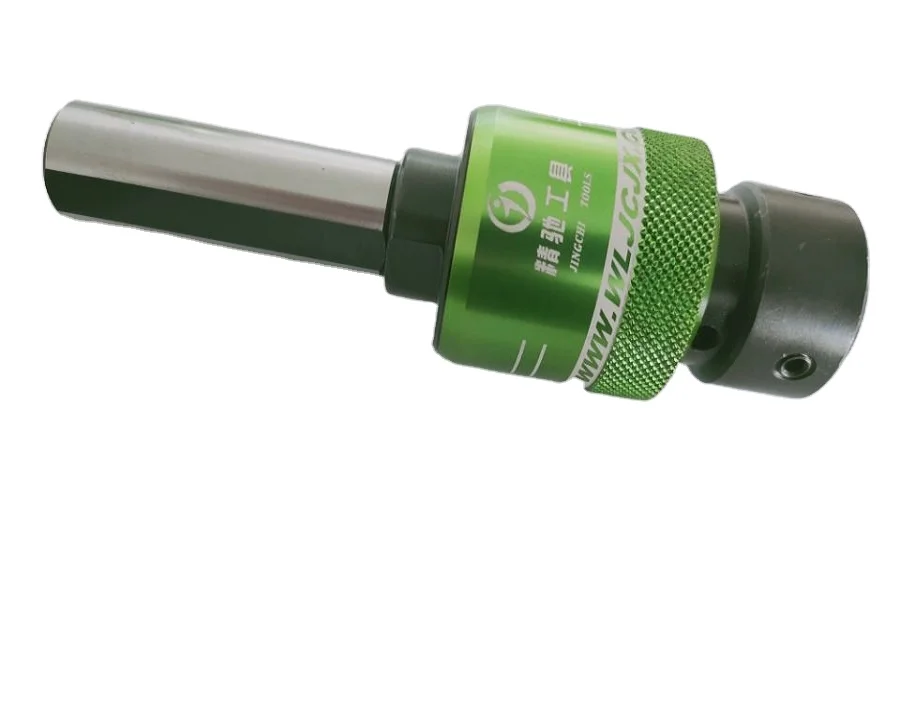

KC-CX EXTERNAL ROTARY BROACH TOOL
Parameters of external rotary broach tool
Model
Size
Broach head
ΦE×L1
D1
d
L
C
KC-CX22A16
Φ16×50
45
22
70
30
KC-CT22-***
KC-CX22A20
Φ20×60
KC-CX22A25
Φ25×60
KC-CX32A16
Φ16×50
62
32
87
32
KC-CT32-***
KC-CX32A20
Φ20×60
KC-CX32A25
Φ25×60

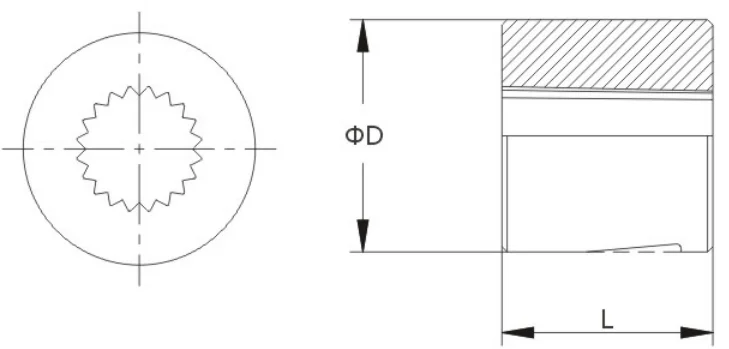

Parameters of external broach cutters
Model
Size
L
D
KC-CT22-***
20
22
KC-CT32-***
32
