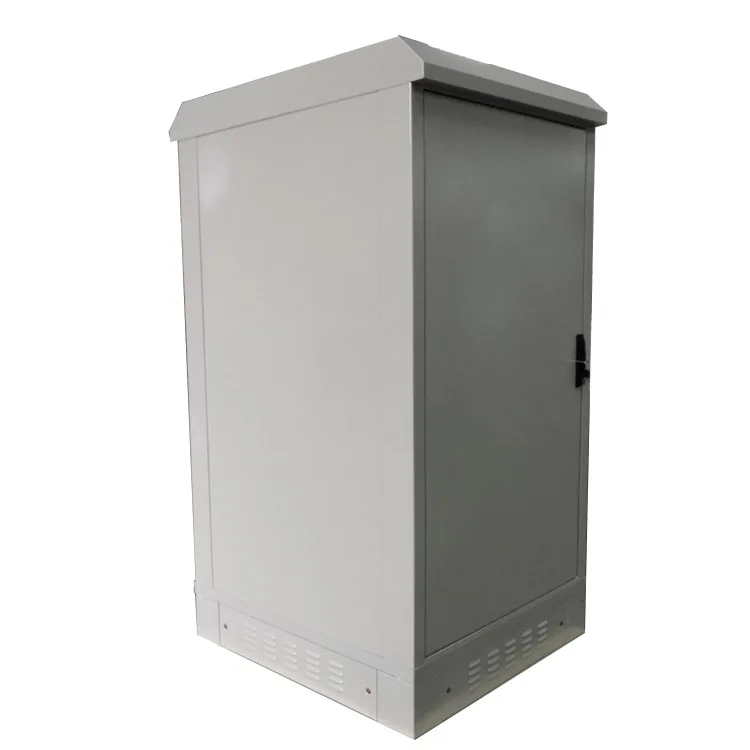

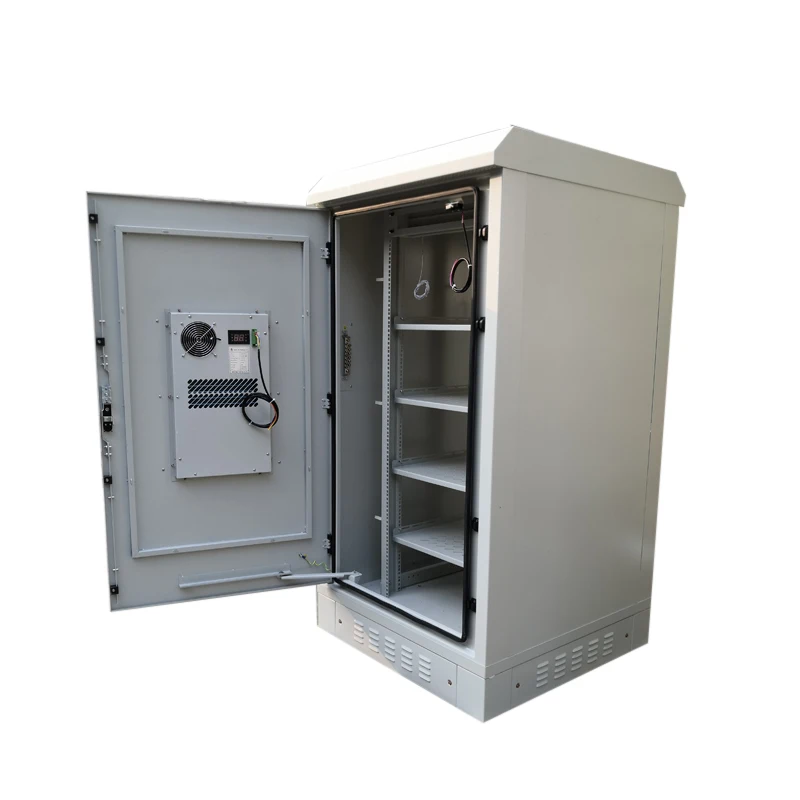

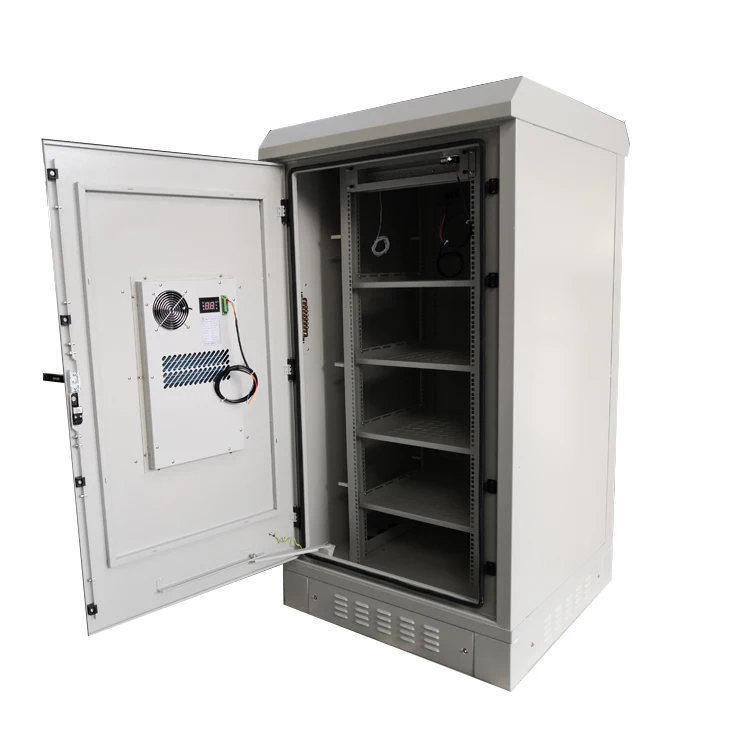

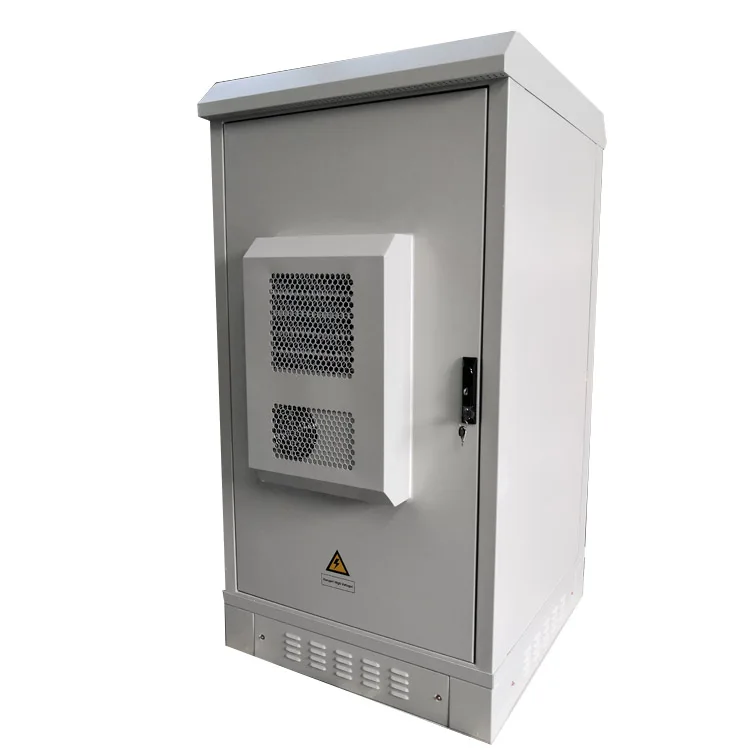

waterproof outdoor equipment telecom UPS lithium battery enclosure charging 19 inch rack cabinet
- Category: >>>
- Supplier: Suzhou Langji Technology Co. Ltd.
Share on (62508751683):
Product Overview
Description
Product Description
Product Features
Attractive powder coat finish
Galvanized steel base
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test
Technical Data Sheet
Technical Parameter
Structure
Internal Dimension(H*W*D) :Standard 30U *800*800mm
External Dimension(H*W*D) : Standard 1700*900*900mm
Structure
Internal Dimension(H*W*D) :Standard 30U *800*800mm
External Dimension(H*W*D) : Standard 1700*900*900mm
Internal Capacity:22U,27U,30U,32U,35U,37U,40U,42U etc (based on customers' requirements)
Door :With two doors, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material:galvanized steel with powder coat ,insulation thickness
45mm,insulation cotton material is EPS
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB

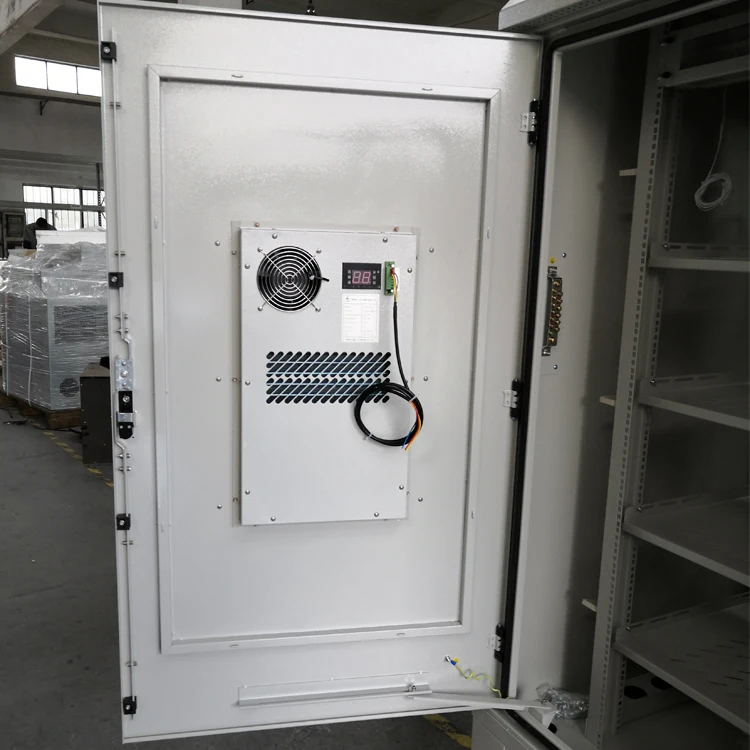

Temperature Control Cooling :500W air conditioner AC220V
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Door :With two doors, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material:galvanized steel with powder coat ,insulation thickness
45mm,insulation cotton material is EPS
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :500W air conditioner AC220V
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Accessory List(options) | ||||
No. | Item | Specifications | ||
1 | Fan | DC48V, START WORK AT 35°C | ||
2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 or customer requirement | ||
3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional | ||
4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. | ||
5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. | ||
6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. | ||
7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. | ||
8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. | ||
9 | Ground Bar | Resistance value: 0.021Ω | ||
10 | Built-in power supply | 150A/200A/300A | ||
11 | Packaging | Wooden case/Export pallet | ||
Cooling System(Optional) | ||||
No. | Item | Specifications | ||
1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w | ||
2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k | ||
3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w | ||
4 | Fan | DC48V | ||
Product Application
Outdoor Telecommunication Cabinet is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is ocated at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.
Langji company provides full range of temperature control products and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Suzhou Langji Technology Co., Ltd. is always taking the concept of "well-grounded, ambitious and make all efforts to create national brand of precision air conditioner", holding 3 point management strategy that includes technique, force, and service,tracking the market trend and focusing on the development of products. Based on strong technical force, and advanced design ideas,Langji has promoted many models of precision air condition, heat exchanger, and energy-saving products for base station or equipment room, outdoor communication equipment cabinet and thermostatical battery cabinet etc. to meet the diversified needs of the domestic and overseas customers.
Suzhou Langji Technology Co., Ltd. manages the company and production scientifically according to ISO9001 and ISO14001 international management system. The products are certified by CE and CCC, with stable and reliable quality, Langji products are sold in many countries and regions including China, India, Russia, the Middle East, South-east Asia, South America, Africa, Europe and the USA.
Packing & Delivery

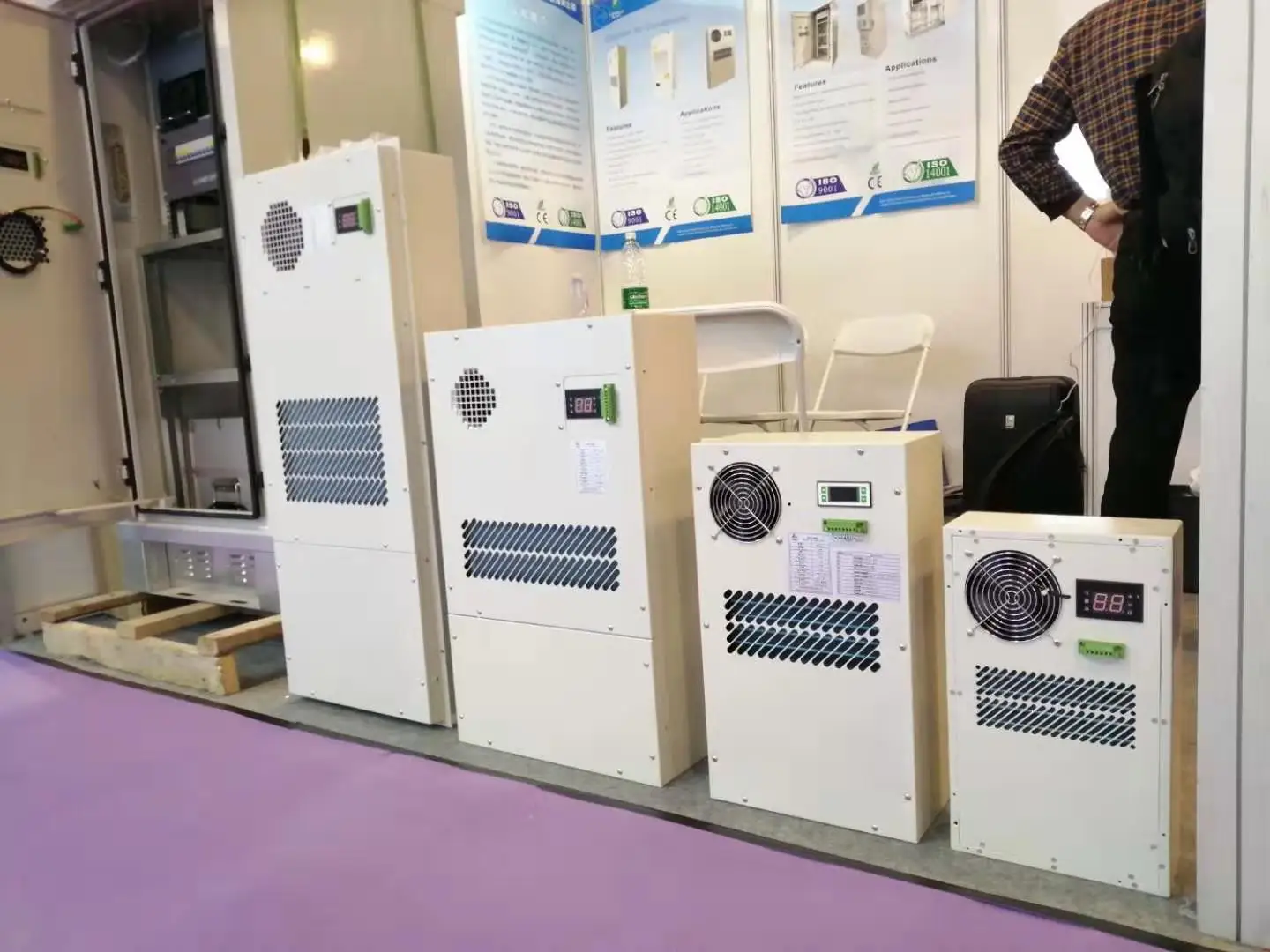

Our Exhibition
Contact us
Email | alisa.he@szlangji.com |
Phone Number | +86-15162405475 |
Wechat/Whatsapp/Skype | +86-15162405475 |
Tel | +86-512-66892668 |
Fax | +86-512-66592789 |
Manufacturer | Suzhou Langji Technology Co., Ltd. |
Add | No. 58, Tongxin Road, Tongan Town, High-Tech Zone, Suzhou, Jiangsu province, China |
FAQ
Q1.Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your products can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee for the products?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
