FPL450L P 100m/min Small Craft Paper Slitting Machine Slitter Rewinder
- Category: >>>
- Supplier: Jinhua Ziye Technology Co. Ltd.
Share on (62508948016):
Product Overview
Description
Recommend Products
Product Description

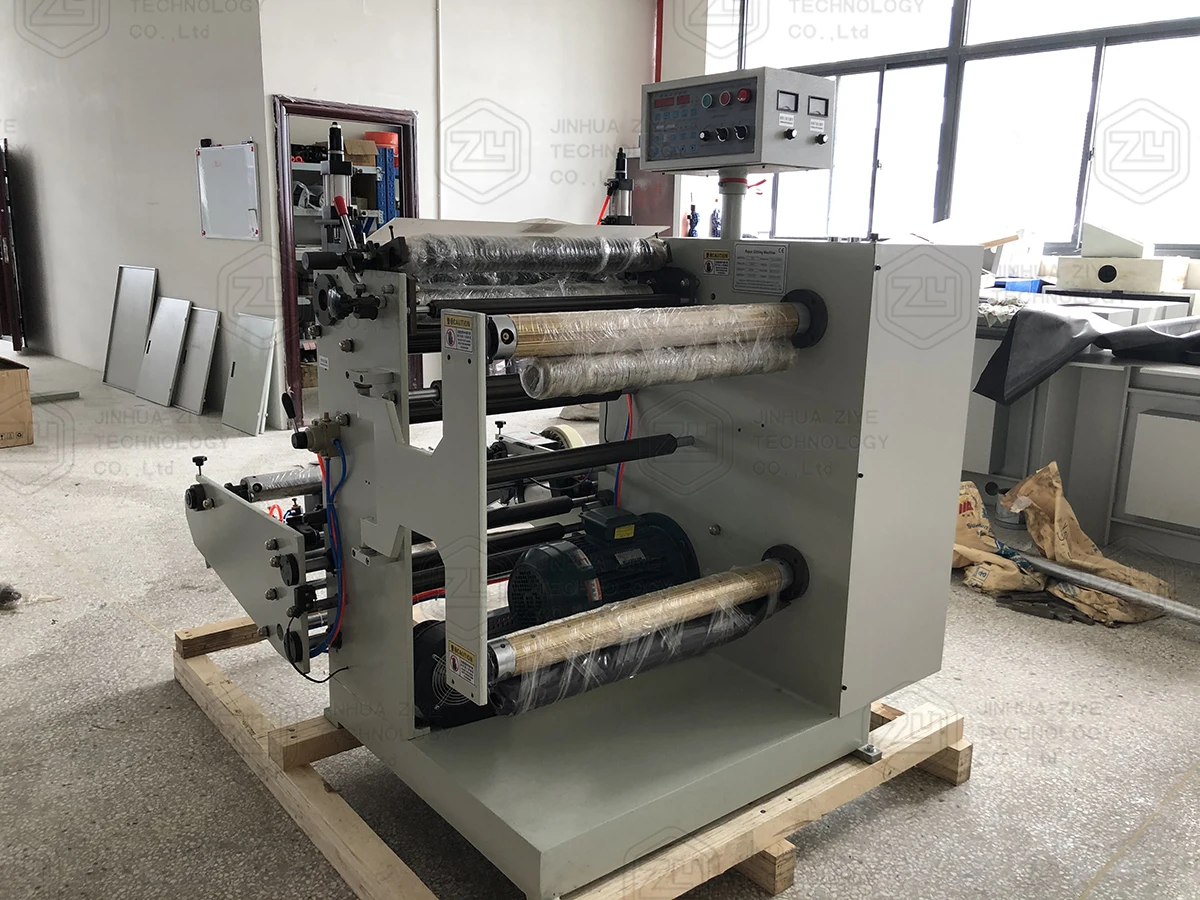

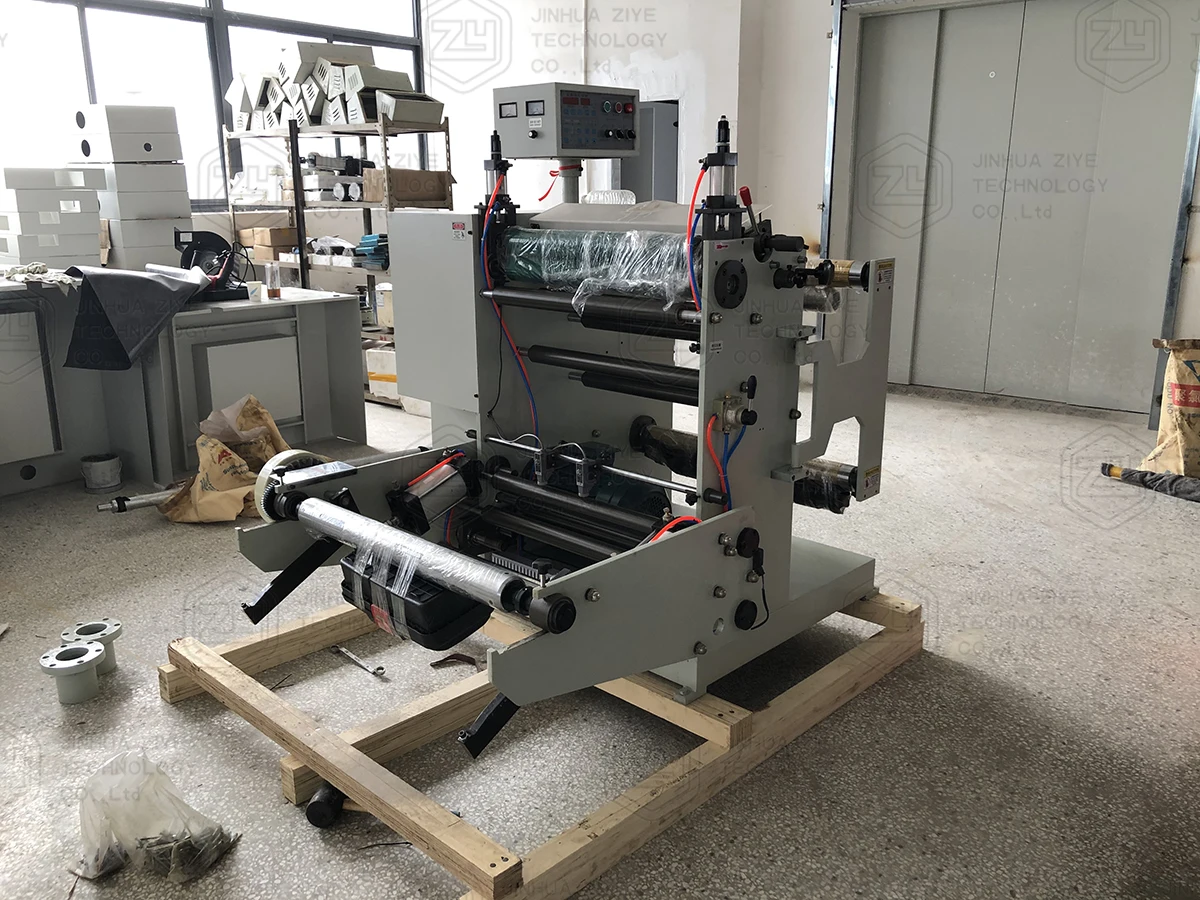

FPL450L-P High Speed Hot Stamping Foil Kraft Paper Roll Slitter Rewinder Slitting And Rewinding Machine
Slitting machine FPL450L type is a complete set of equipment for full automatic roll slitting machine. It is applicable to slit the narrow scope paper, automatic counting the length(meter), quantity of paper(piece) and setting the length, automatic stopping, giving an alarm and unreeling, magic eye automatic correcting the error, inflatable shaft receiving material, tension controlling. Recording Paper number import electric eye, so it is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.
1.Unit slitting station with 8 pcs rotary slitting knife.
2.With 1pc 3’’ unwinding shaft, 2 pcs 3’’ rewinding shafts
3.Splice and Connect Table With Meter Counter & Number Quantity Counter.
4.With two photoelectric eyes--- web guide
5.1pc magnetic brake, 2pcs magnetic clutch. 1 set Tension Control. Machine is drive by synchronous belt.
Samples
Ivory Board Paper Roll
and other Paper: Kraft paper, art paper,, thermal paper....
Label Stick Roll
Plastic Film Roll: PET, BOPP, PE...

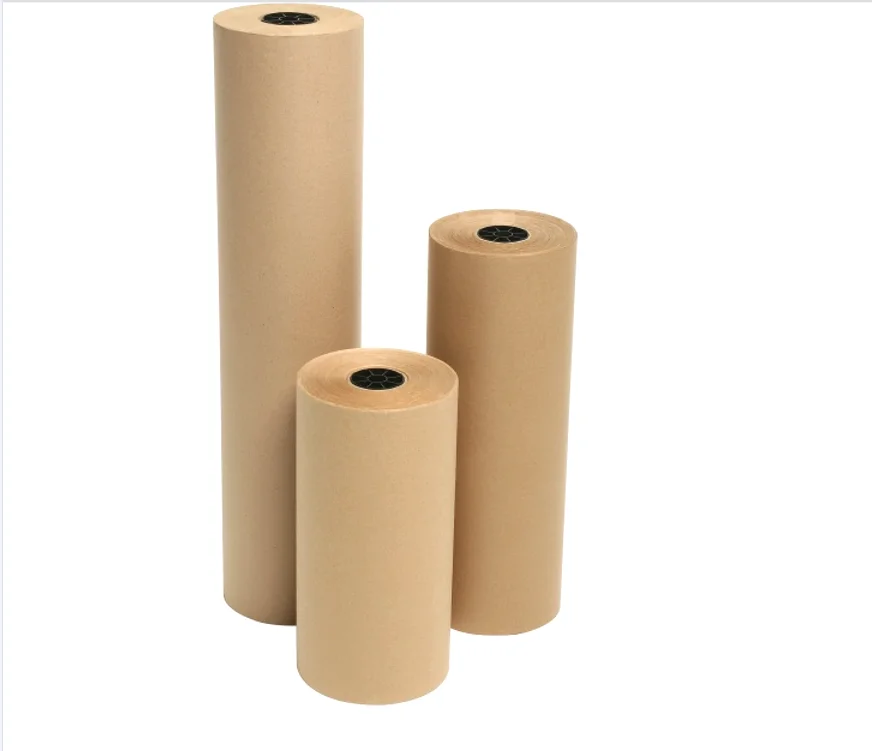

Kraft Paper Roll
Aluminum Foil Roll
No Woven Fabric Roll
Product Paramenters
Machine Model | FPL320L-P | FPL450L-P |
Slitting Speed | 100m/min | 100m/min |
Max. Web Width | 320mm | 420mm |
Max. Unwinding Diameter | 950mm | 950mm |
Max Rewinding Diameter | 500mm | 500mm |
Max Width of Slitting | 310mm | 410mm |
Size | 1100*800*1300mm | 1100*900*1320mm |
Main Motor | 2 KW | 2 KW |
Voltage | 220V/380V | 220V/380V |
Min. Slitting Width | 12mm | 12mm |
Machine Weight | 700kg | 800kg |
Details Images
Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in standard configuration.
Web Guide System
With Two Photoelectric Eyes to control paper move straightly.
Unwind Unit
-With 1 pc 3" Air Expanding Shaft.
-Can accept max diameter 950mm material jumbo roll. (can be customized)

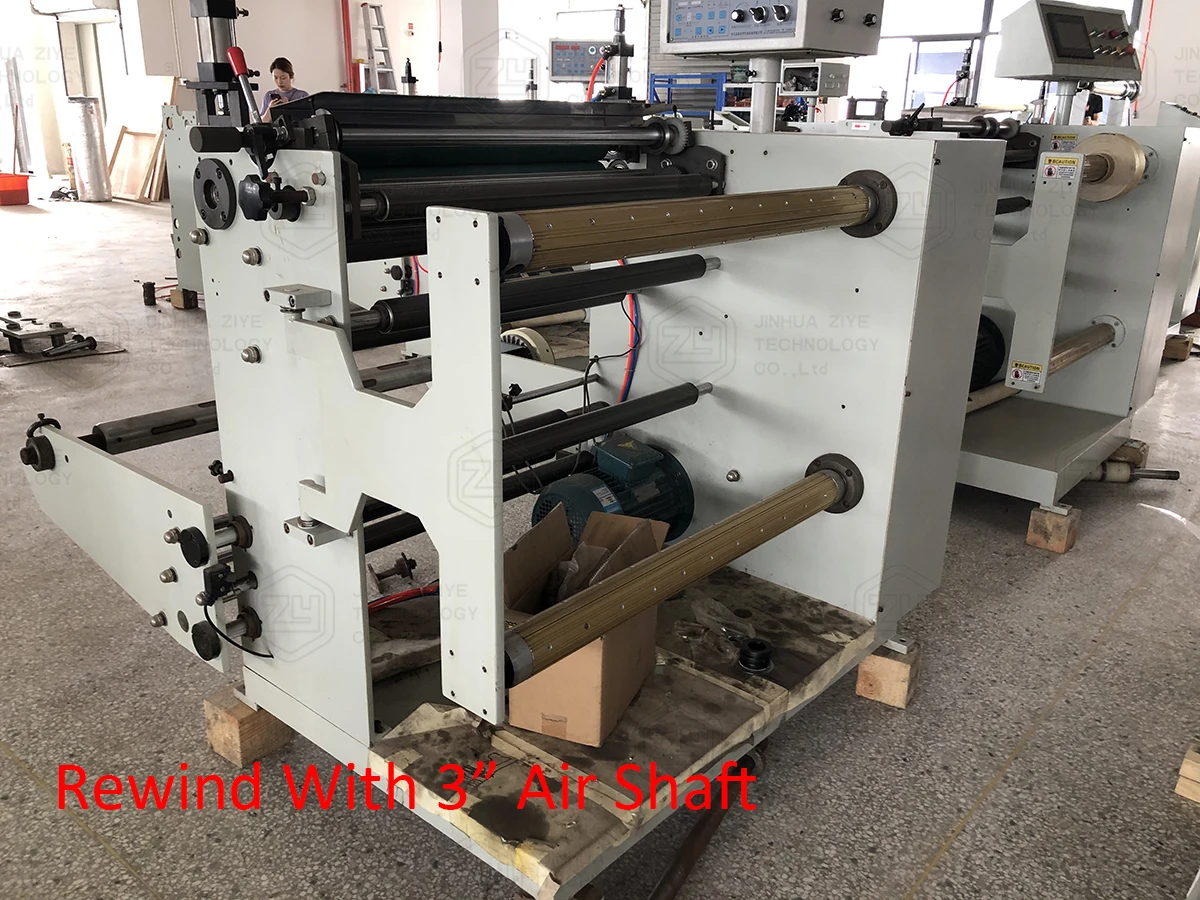

Rewind Unit
-With 2 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.
Or Customize Turret Rewind
Magnetic Brake and Clutch (Optional)
-With One 50 N.M Magnetic Brake, One 50 N.M Magnetic Clutch
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Controller Panel
-Speed Controller
-Tension Controller
Company Profile
Jinhua Ziye
professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
Product packaging
Package
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
