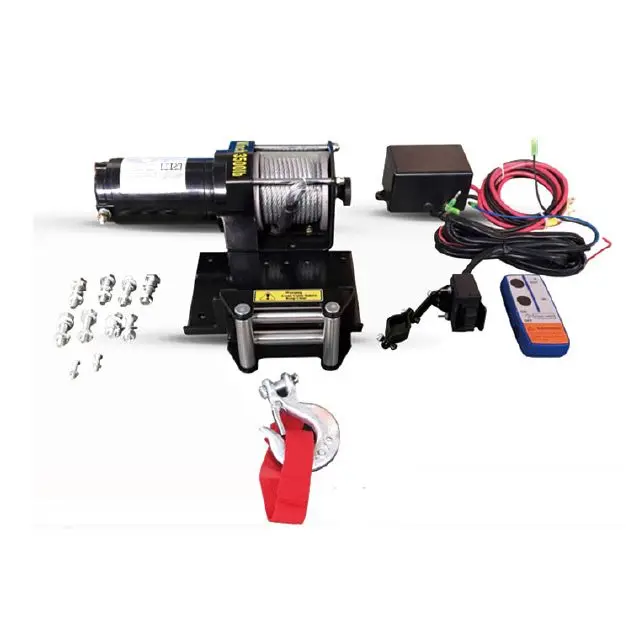

Electric 3500lbs Car Winch 12V/24V ATV Winch Towing Cables Pull Kit Remote Control Set Winch Trailer Truck GDY 3500A 1

Share on (62509123722):


Price:$42.00 - $49.00

Quantity:


Product Overview

Description


1111ATV/UTV Winch

  • Permanent magnet motor supplies excellent line pull and faster speed
  • Differential Planetary gearbox delivers the most stable and durable performance and is smooth and efficient for operation
  • Wire rope can be easily pulled out with the freespooling clutch.
  • Easy for installation, operation and maintenance.


3500A-1, WINCH SPECIFICATIONS

Rated line pull:3500LBS(1590kgs) single lineMotor:Permanent magnet, 1.5hp
Voltage:12V/24VGear train:Dierential Planetary
Cable(Dia×L):Dimaete (4.8mm) Length (12m)Control:Remote switch
Gear Ratio:136:1ClutchSliding Ring Gear
Braking actionAutomatic In-The-DrumMEAS:316x120x106mm
Gearing:Differential planetary



Pull, Speed, Amperes, Volts



Line Pull (lbs./kgs)Line Speed FBM (m/min)Motor (Amps)
010.8ft (3.3m)12
1000(454)8.2ft(2.5m)60
2000(907)3.6ft(1.1m)80
3500(1590)2.6ft(0.8m)130



Line Pull and Rope Capacity IN Layer

LayerRated Line Pull (lbs./kgs)Tatal Rope On Drum(ft/m)
13500(1590) 4.9(1.5)
22320(1050) 11.5(3.5)
31890(858) 19.3(5.9)
41590(720) 28.5(8.7)
51380(620) 32.3(10.0)

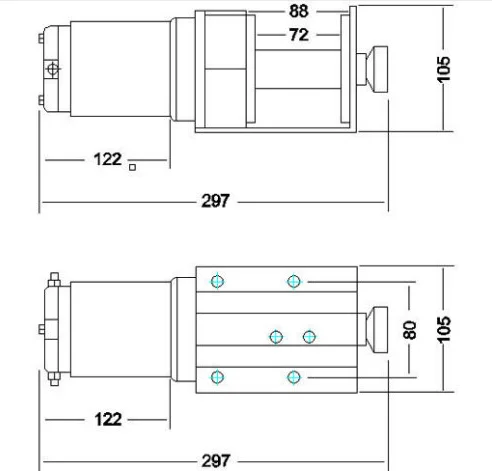

2500 -3000 draw

photobank(3)-.jpg-1(4)

FAQ

1: Are you factory or trade company?

 Answer: We are a professional factory to produce electric winch over 10 years experience.



2.When and How can I get the quotation?

Answer: We will reply you in 1 hour in the working time. All messages will be replied whenever it comes.



3.Whats your production capacity?

Answer: 30,000pcs per month.



4.What is the lead time?

Answer: Samples 5-7days.Mass order 15-45 days.



5.Are there samples available before orders?

Answer: Please contact us for sample at any times, we are pleased to offer you sample order & small order.



6.Do you provide After- sales service parts ?

Answer: Yes. We can supply service parts within one year.



7.How long is your electric winch warranty?

Answer: One year.



8.What's the payment method?

Answer: T/T 30% Deposit, Balance against with Copy Bill,LC At sight, West union, ESCROW.



9. How to Control the quality?

Answer: We have our own QC department in our factory to make sure that all our products are in very good quality before ship to clients. Before delivery, clients could send one QC or point the third party to check the quality.



10.Can you do OEM for us?

Answer: Yes, of course. We have over 15 years OEM experience.



11.How about your price of electric winch?

Answer: Send me details about what you need, you will make the best price and good quality in China.



12. Can I mix different Models in one shipment?

Answer: Yes. Of course.
