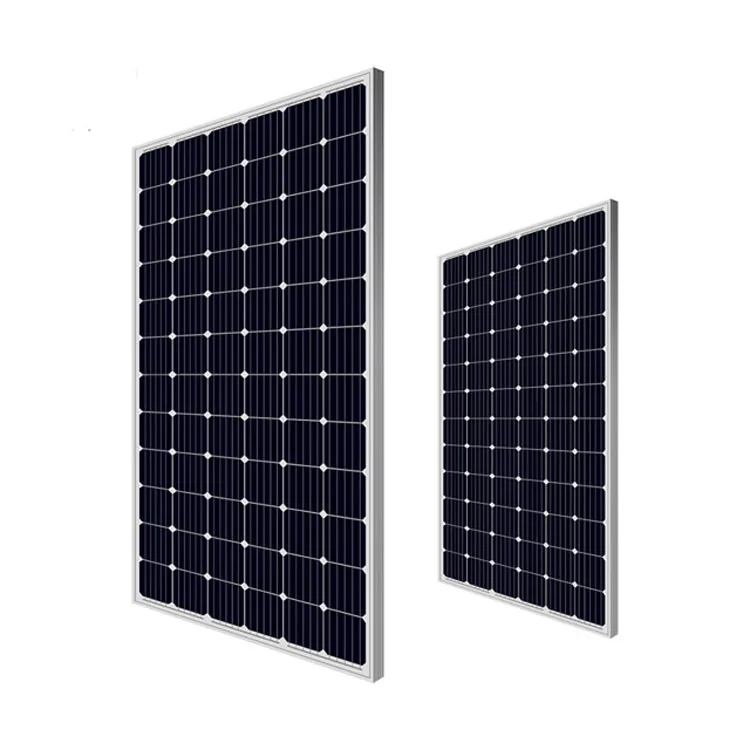

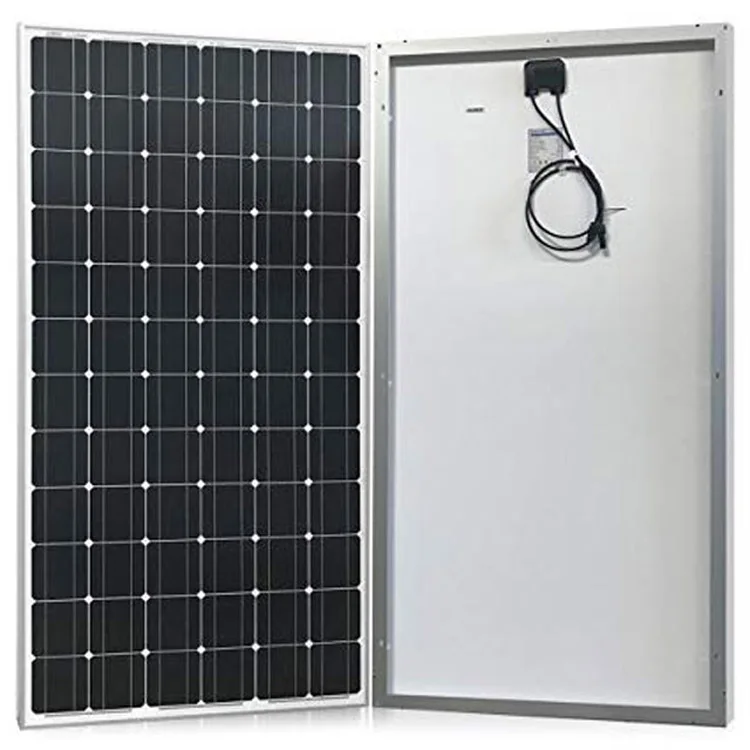

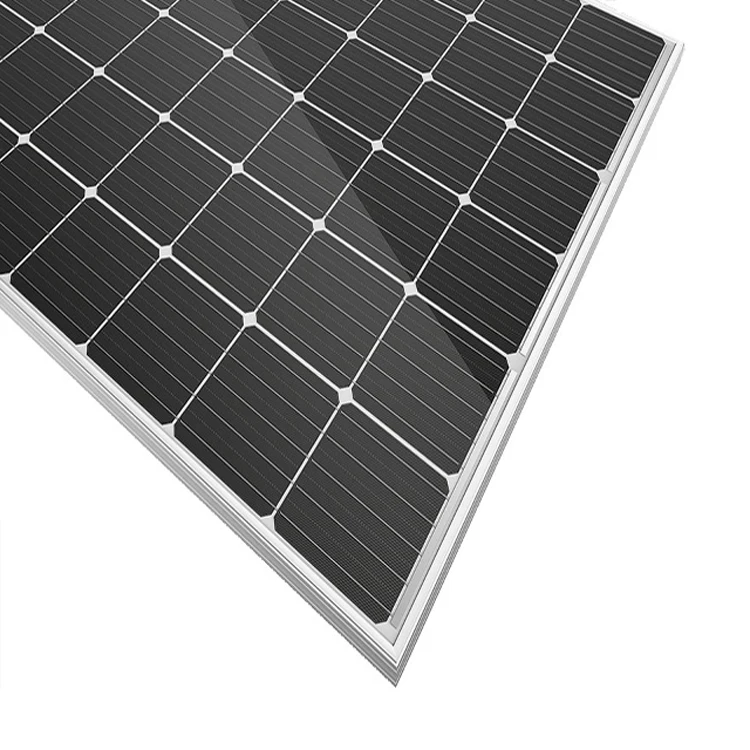

Mono high efficiency cells mono solar pv panel 350w 360w 370w 380w system use
- Category: >>>
- Supplier: Xuzhou Hengda Electronic Co. Ltd.
Share on (62509198245):
Product Overview
Description
Product Description

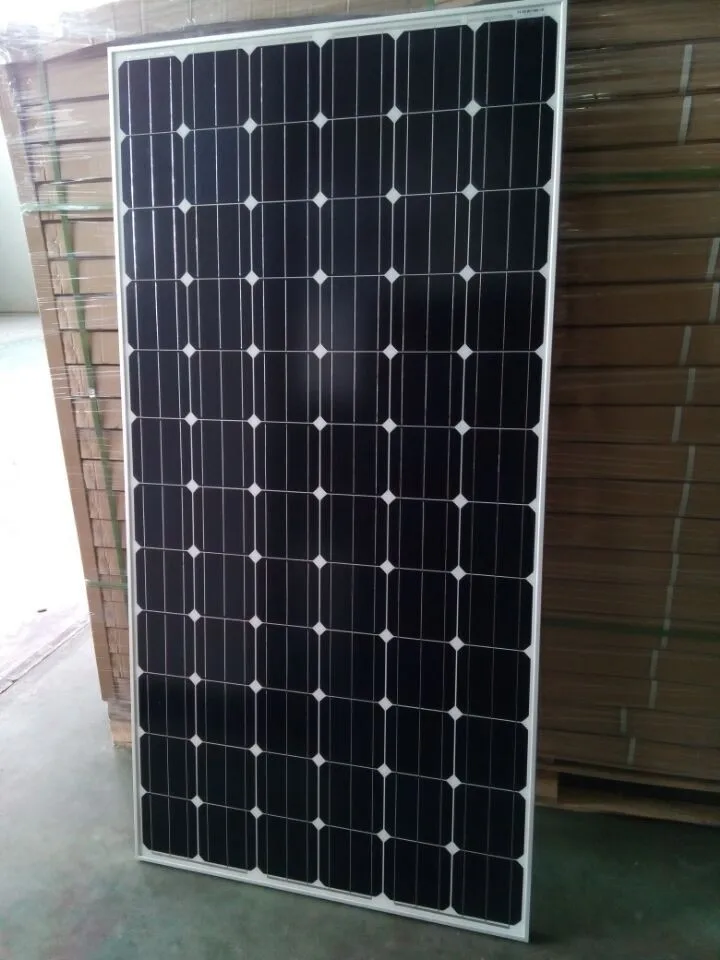

Detailed Images

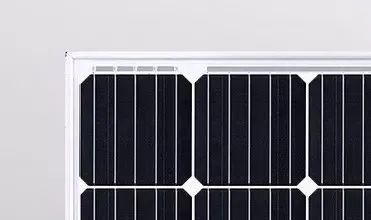

Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

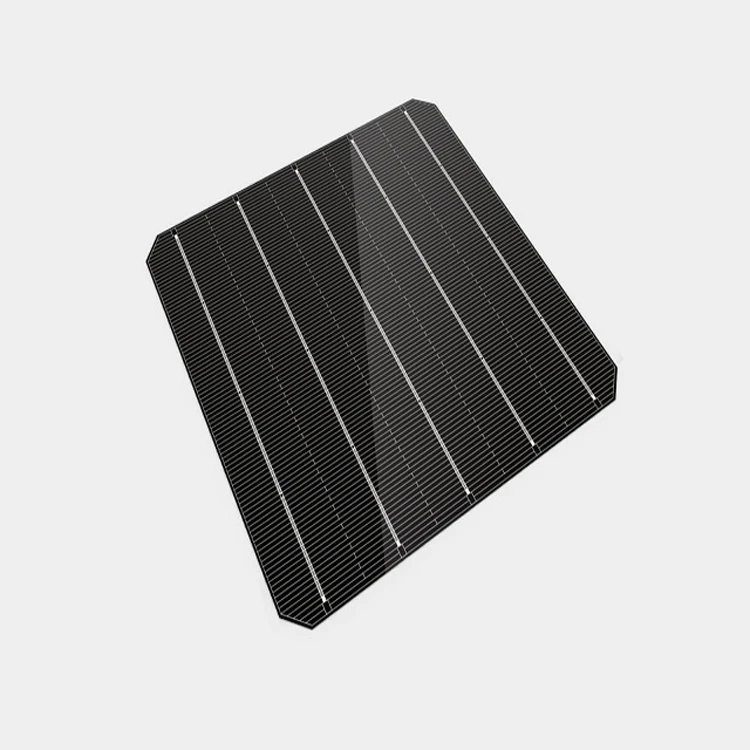

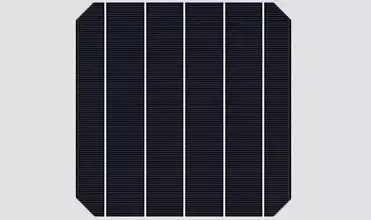

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

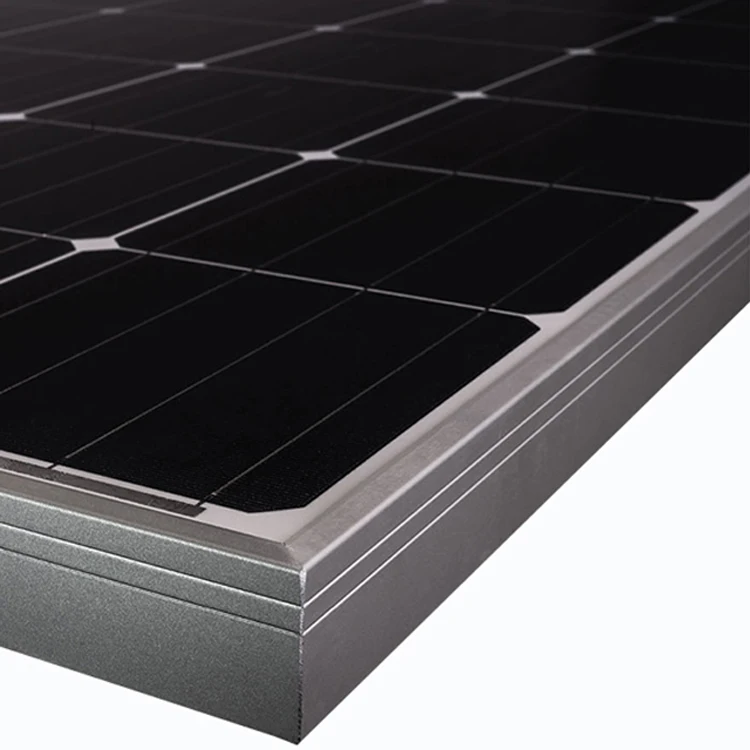

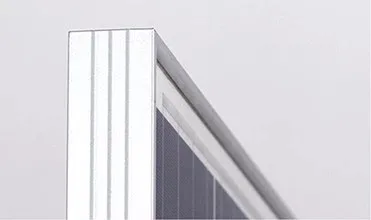

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

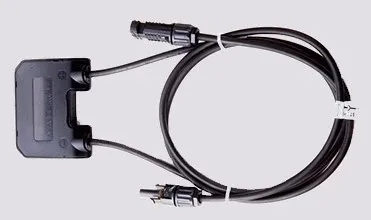

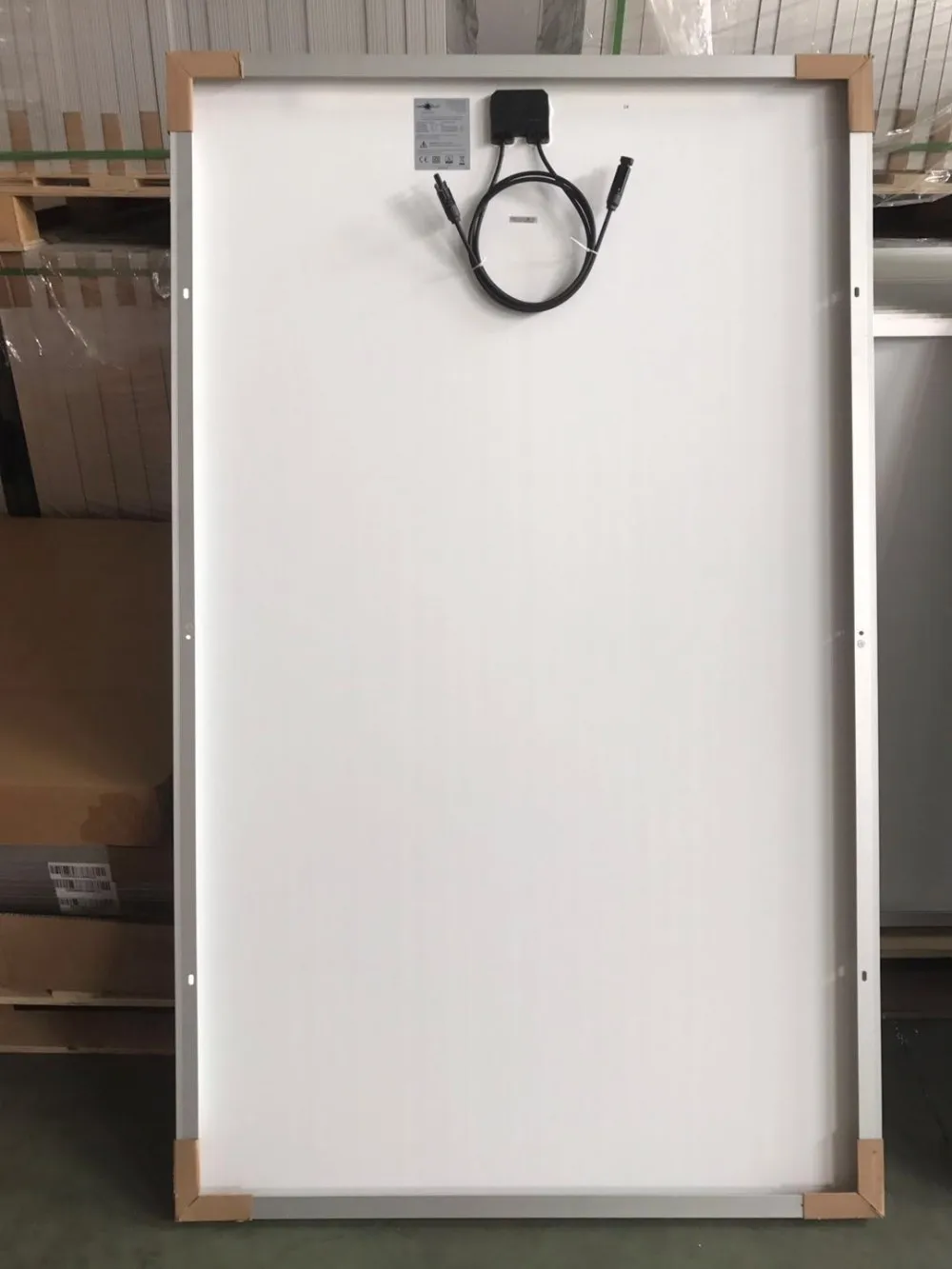

Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Mechanical Specification | ||||||
Cells Type | Mono156.75×156.75mm | |||||
Weight | 22.5kg | |||||
Dimension(L×W×T) | 1956×991×40mm | |||||
Output Cables | TUV,Length900mm,4.0mm² | |||||
No.of Cells | 72(6×12) | |||||
Front Glass | 3.2mm High Transmission,Low Iron Tempered Glass | |||||
Frame | Anodised Aluminium | |||||
Junction box | IP67,3 Bypass Diodes | |||||
Connector | MC4 or MC4 Compactible | |||||
Packing Configuration | |||||
Container | 20GP | 40GP | 40HC | ||
PCS per pallet | 27 | 27 | 27 | ||
PLT per container | 10 | 24 | 24 | ||
PCS per container | 270 | 648 | 696 | ||
Operating Parameters | |||||
Maximum system voltage | DC1000V | ||||
Operating Temperature(℃) | -40 ~+85℃ | ||||
Maximum series fuse rating | 15A | ||||
Snow load,frontside | 5400Pa | ||||
Wind load,backside | 2400Pa | ||||
Nominal operating cell temperature (NOCT) | 45℃±2℃ | ||||
Application level | Class A | ||||
Electrical Characteristics (Standard Test Conditions) | ||||||||||
Module Type | HDM72-360 | HDM72-365 | HDM72-370 | HDM72-375 | HDM72-380 | |||||
MaximumPower(Pmax) | 360W | 365W | 370W | 375W | 380W | |||||
Open-circuitVoltage(Voc) | 47.44V | 47.67V | 47.81V | 47.93V | 48.06V | |||||
Maximum Power Voltage(Vmp | 39.01V | 39.38V | 39.40V | 39.45V | 39.55V | |||||
Short-circuit Current(Isc) | 9.77A | 9.84A | 9.89A | 9.95A | 10.11A | |||||
Maximum Power Current(Imp) | 9.23A | 9.27A | 9.41A | 9.51A | 9.61A | |||||
Module Efficiency(%) | 18.6% | 18.8% | 19.1% | 19.30% | 19.60% | |||||
PowerTolerance | 0~+5W | |||||||||
Temperature Coeffcient of Isc | 0.05%/℃ - 0.29%/℃ | |||||||||
Temperature Coeffcient of Voc | ||||||||||
Temperature Coeffcient of Pmax | - 0.39%/℃ | |||||||||
Standard Test Environment | Irradiance 1000w/m², Cell temperature 25℃, Spectrum AM1.5 | |||||||||

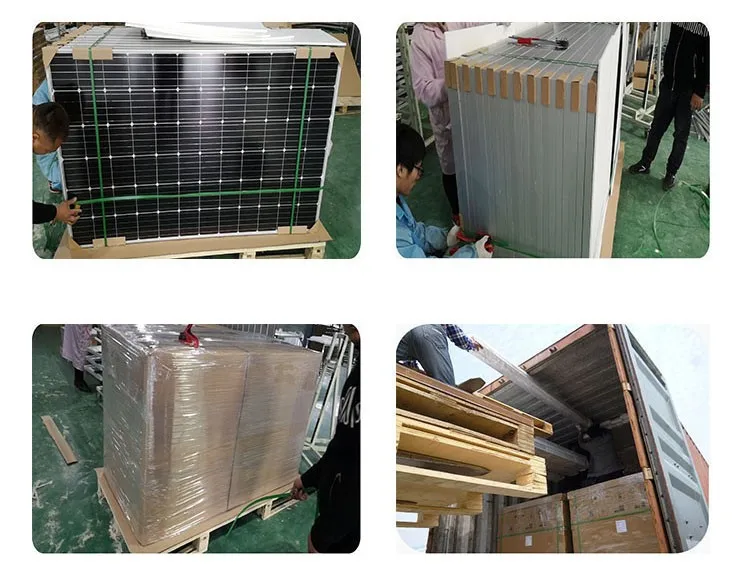

Packing & Delivery
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL | ||||
Related Products
SOLAR PANEL
SOLAR CHARGE CONTROLLER
BATTERY
ON GRID INVERTER
OFF GRID INVERTER
MOUNTING STRUCTURE
Certifications
Our Company

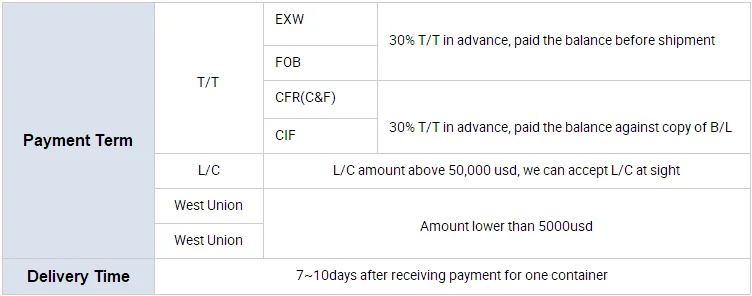

Payment
