Wholesale Price 2 Years Warranty 6000K 220V 100W AC Driverless DOB SMD led module PCB board 50watt for LED Floodlights
- Category: >>>
- Supplier: Demo Photoelectric Technology (Wuxi) Co. Ltd.
Share on (62509200048):
Product Overview
Description

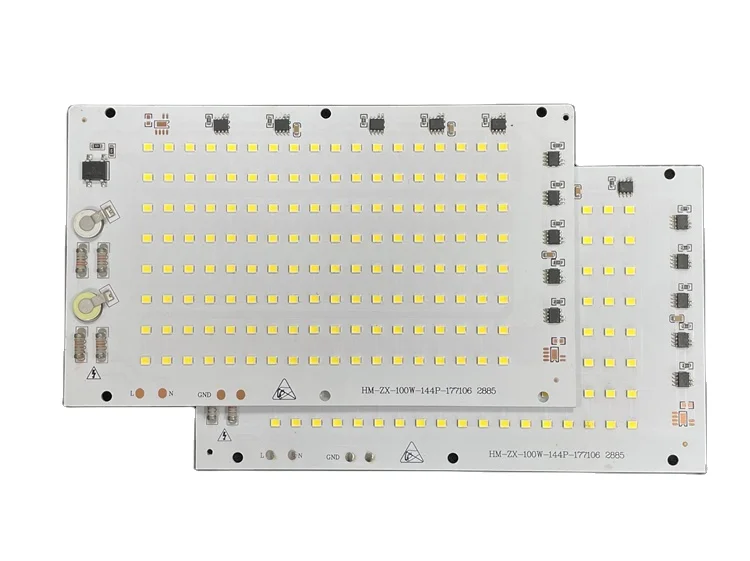

Wholesale Price 2 Years Warranty 6000K 220V 100W AC Driverless DOB SMD led module PCB board 50watt for LED Floodlights
Product Description
Specification
item | value |
Color Temperature(CCT) | 6000K (Daylight Alert) |
Input Voltage(V) | AC 220V( ± 10%) |
Warranty(Year) | 2-Year |
Type | LED Modules |
Support Dimmer | NO |
Lighting solutions service | Lighting and circuitry design, auto CAD layout |
Luminous Efficacy(lm/w) | 90 |
Chip Material | INGAN |
Emitting Color | White |
Luminous Intensity | 90 lm/W |
Luminous Flux(lm) | 9000 |
Optical Attenuation(%) | 1 |
Power | 100W |
Power Dissipation | 100W |
Viewing Angle(°) | 120 |
Color Rendering Index(Ra) | 70 |
Color Temperature | 6000-6500K |
Place of Origin | China |
Jiangsu | |
Brand Name | Demo |
Input Voltage | AC 220-240V 50Hz |
Power Consumption | 100W |
PCB Insulation Class | ACW>1.5KV |
Luminous Efficiency | 90 Lm/W |
PCB Size | 177mm*106mm*1.2mm |
LED Type | SMD 2835 |
LED color temperature | 6000-6500K |
CRI | Ra 70 |
Warranty | 2 years |
Certification | ce/RoHS |
Product Featured In
1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long
lifespan.
2.Over-voltage & over-current protection.
With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±10% fluctuation range to protect the module from over-voltage and over-current.
3.Over-temperature protection design.
When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce
the output current to control the temperature rising of the PCB.
4.High quality PCT 2835 LED with high color rendering index. Ra > 70. No concern in ultraviolet ray or electromagnetic radiation.
5.No EMI.
The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.
6.Custom design and Manufacturing.
Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.
lifespan.
2.Over-voltage & over-current protection.
With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±10% fluctuation range to protect the module from over-voltage and over-current.
3.Over-temperature protection design.
When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce
the output current to control the temperature rising of the PCB.
4.High quality PCT 2835 LED with high color rendering index. Ra > 70. No concern in ultraviolet ray or electromagnetic radiation.
5.No EMI.
The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.
6.Custom design and Manufacturing.
Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.
Company Profile
Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of
photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized
manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main
products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding
photoelectric products.
Our Vision: Win-win cooperation is the only way to business success in the long run!
photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized
manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main
products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding
photoelectric products.
Our Vision: Win-win cooperation is the only way to business success in the long run!
Workshop View
Certifications
FAQ
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art technology.
Q2: What products you main business?
A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every
product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our
LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art technology.
Q2: What products you main business?
A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.
Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every
product passed aging test well then delivery to every client.
Q4: Can you offer customized design and manufacturing?
A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our
LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board
Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test.
Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
