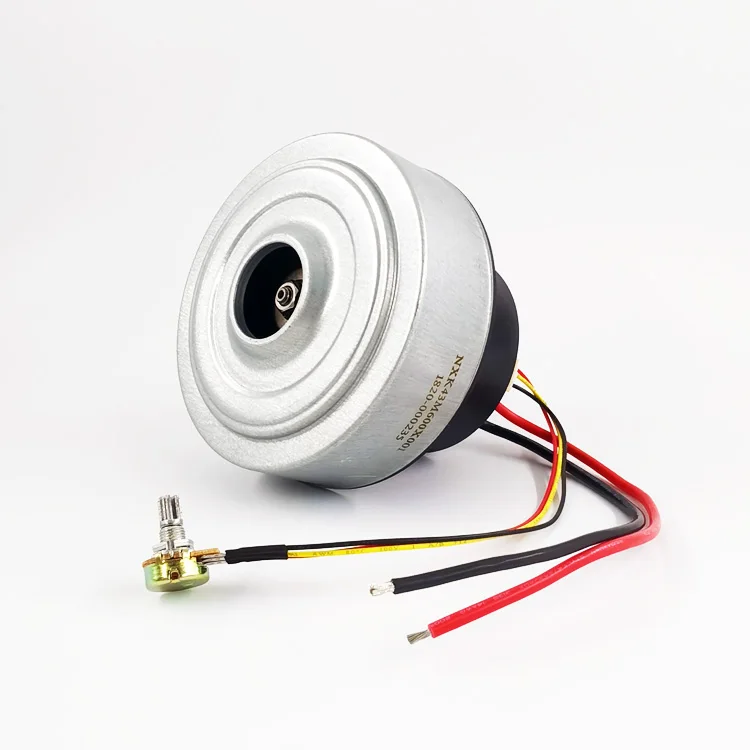

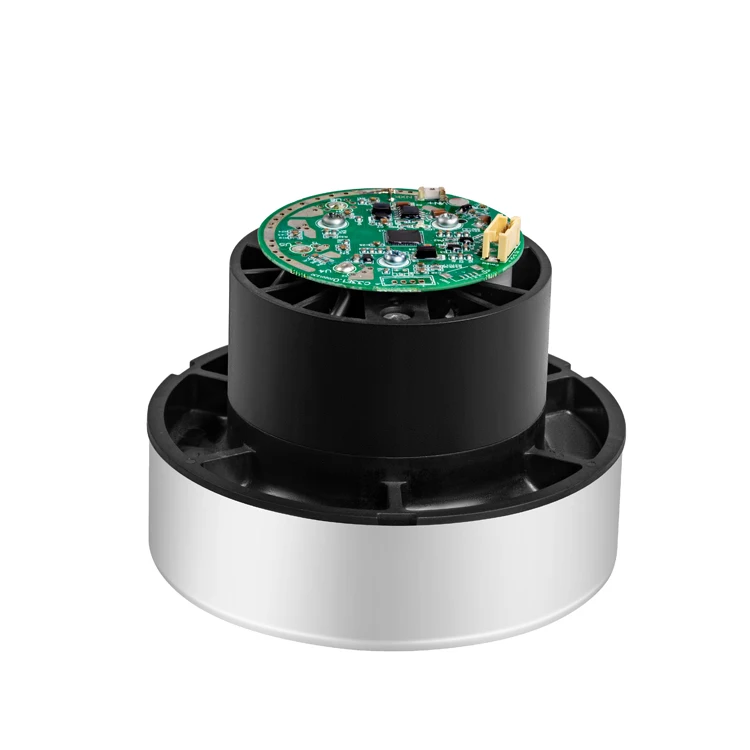

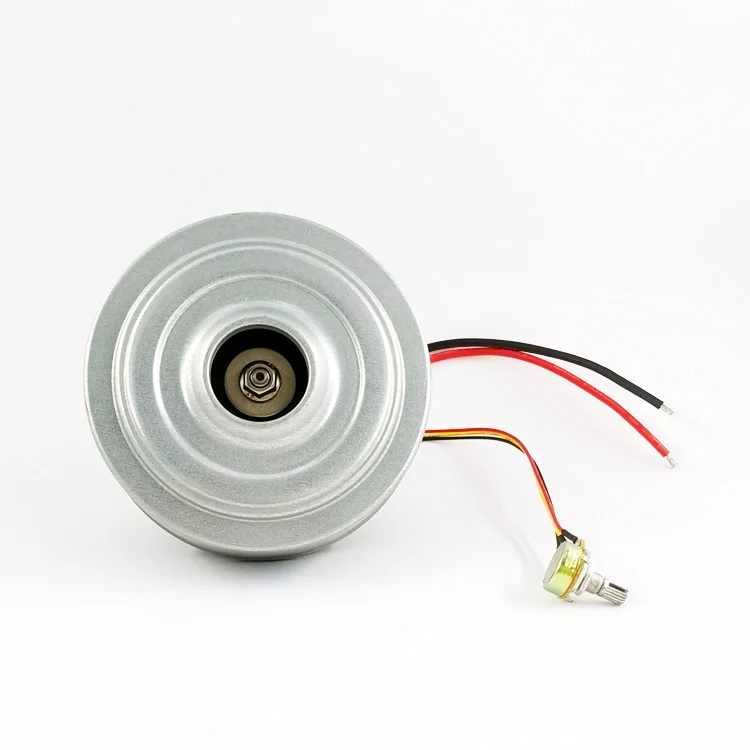

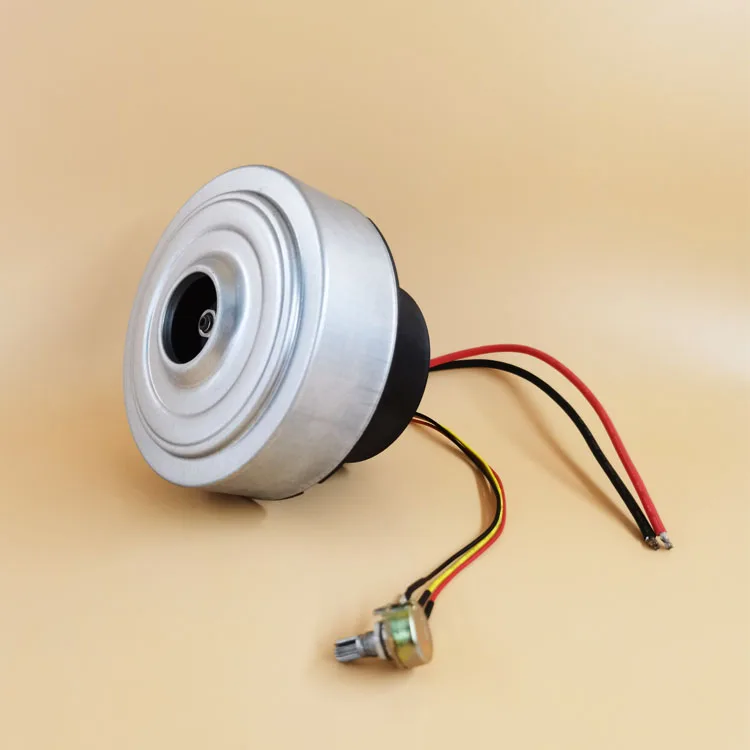

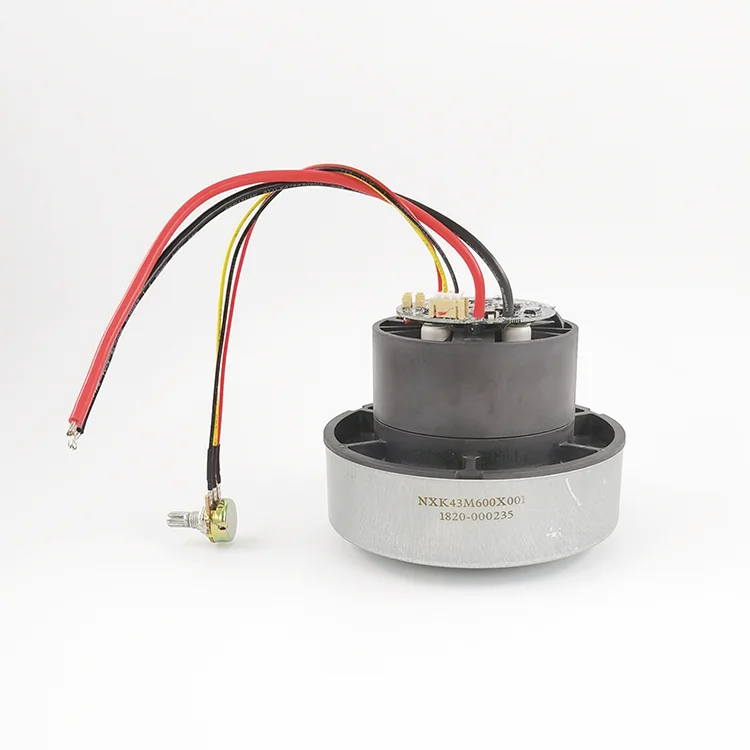

600W 48V 36V 24V brushless dc suction motor for vacuum cleaner

Share on (62509296704):


Price:$28.00 - $42.00

Quantity:


Product Overview

Description



Product Description




Specification


Item
NXK43K350X001
NXK43L500X001
NXK43M600X001
Tolerance
Max.input power
350W
500W
600W
±10%
Voltage
24V DC
36V DC
48V DC
±10%
Max. air flow
2 m3/min
2.3 m3/min
2.5 m3/min
±10%
Max. vacuum pressure
17 kPa
18kPa
20 kPa
±10%
Speed control
ON-OFF/0~5V DC
ON-OFF/0~5V DC
ON-OFF/0~5V DC

Weight
1 kgs
1 kgs
1 kgs
±10%
Insulation level
F
F
F

Working environment
Temp.:-15~+40℃
Humidity:0~85%RH
Temp.:-15~+40℃
Humidity:0~85%RH
Temp.:-15~+40℃
Humidity:0~85%RH

Stock environment
Temp.:-15~+45℃
Humidity:0~90%RH
Temp.:-15~+45℃
Humidity:0~90%RH
Temp.:-15~+45℃
Humidity:0~90%RH




Application






Company Profile




NEWTHINK MOTOR

Founded in 2011, It is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc.

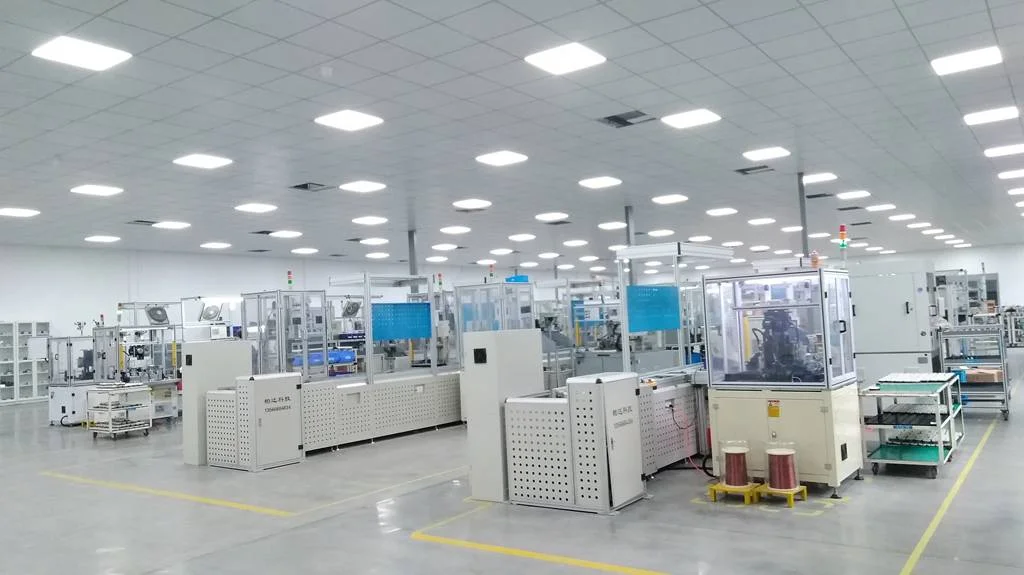

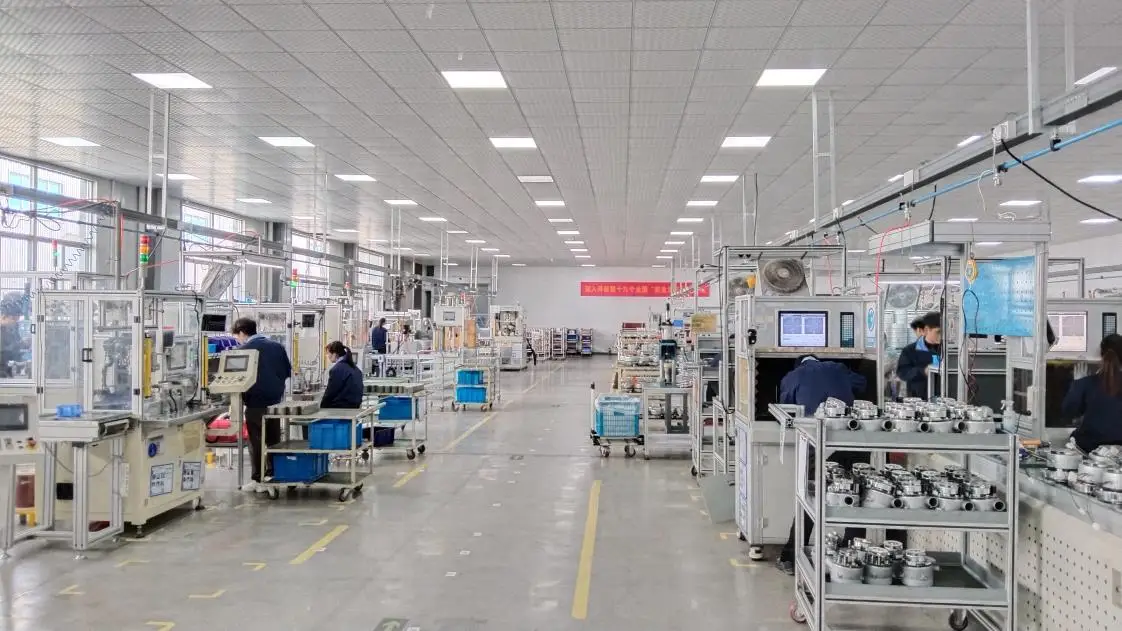

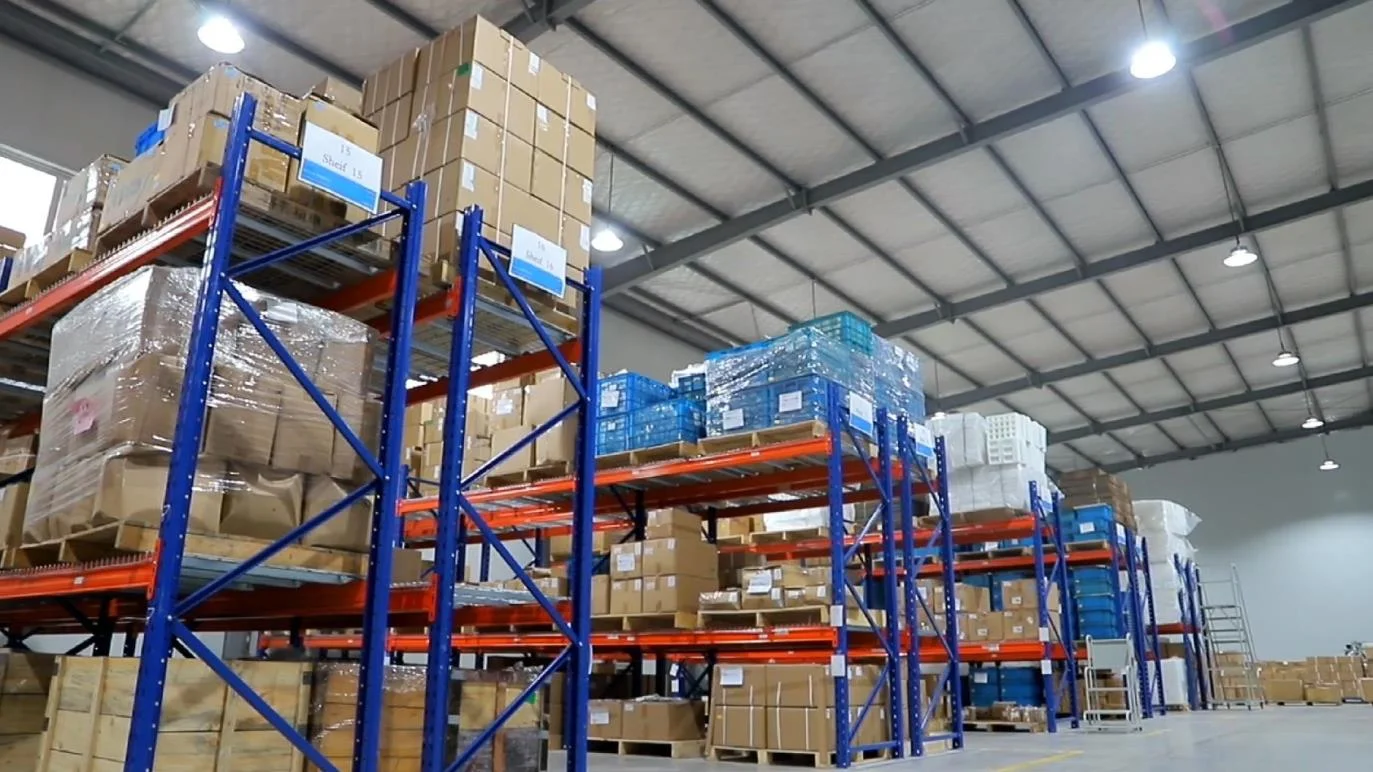

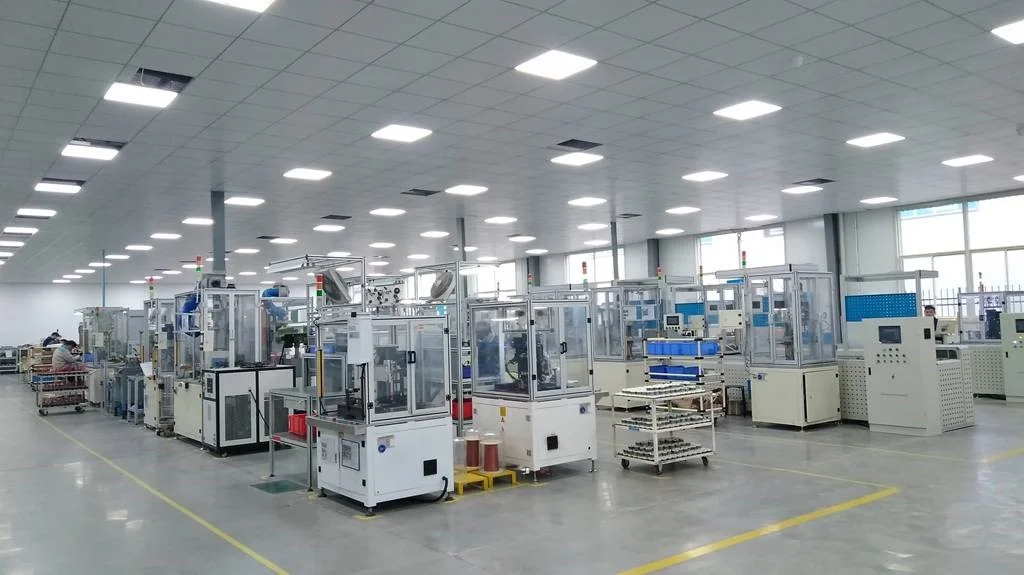

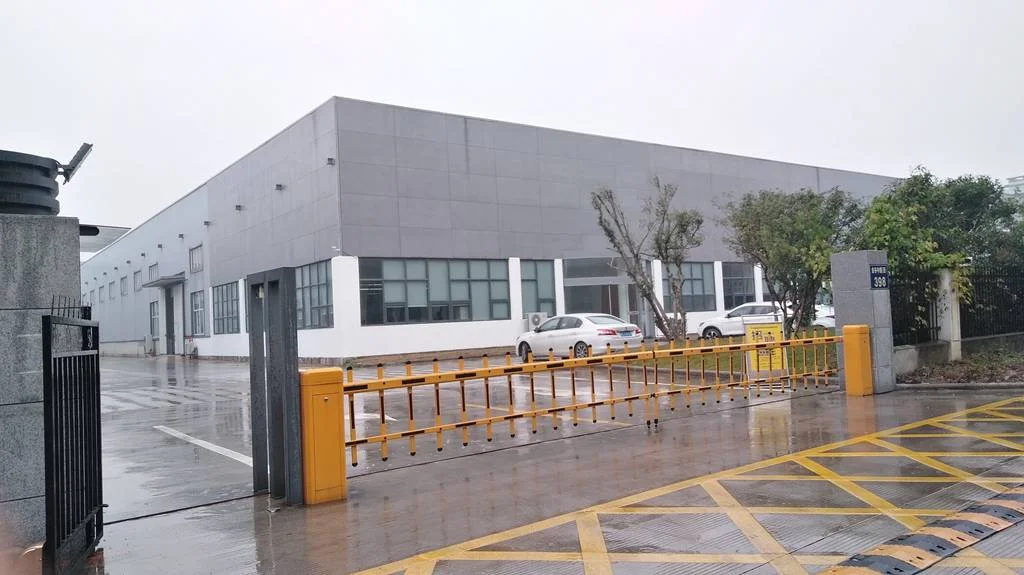

Newthink locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe.

Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client






FAQ


1. who are we?

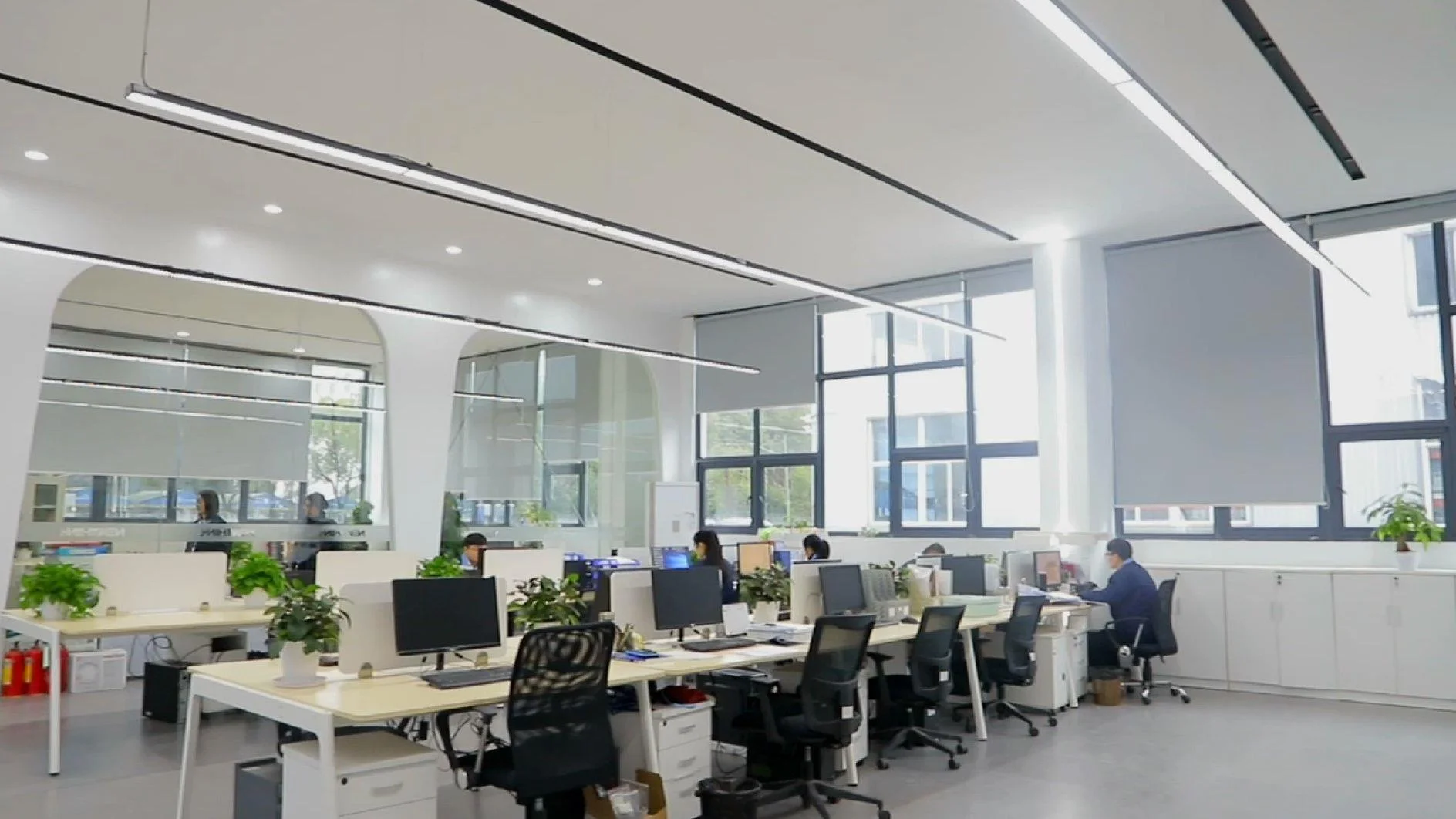

We are based in Zhejiang, China, start from 2011,sell to Domestic Market(70.00%),Western Europe(28.00%),Mid East(00.00%),Eastern Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Motor,Blower

4. why should you buy from us not from other suppliers?
Cooperative with skill-full and know-how engineers, Newthink Motor has become one of the important bases in brush less motor manufacture and R&D in China.
Brush less motor for vacuum cleaner is compatible with world well-known Enterprises.
NO.1 NXK0155

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian


Certifications




Recommend Products


NXK51 series
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
NXK60Y series
Input power: 1200W
Voltage: 230V AC
Max. air flow: 2.98 m³/min
Max. vacuum pressure: 31.3kPa
NXK60Z series
Input power: 1200W
Voltage: 230V AC
Max. air flow: 2.98 m³/min
Max. vacuum pressure: 31.3kPa


NXK71A series
Input power: 300W
Voltage: 230V AC
Max. air flow: 4.4 m³/min
Max. vacuum pressure: 6.4kPa
NXK71B series
Input power: 200W
Voltage: 230V AC
Max. air flow: 3.7 m³/min
Max. vacuum pressure: 4.3kPa
NXK73 series
Input power: 1100W
Voltage: 230V AC
Max. air flow: 5 m³/min
Max. vacuum pressure: 10kPa
