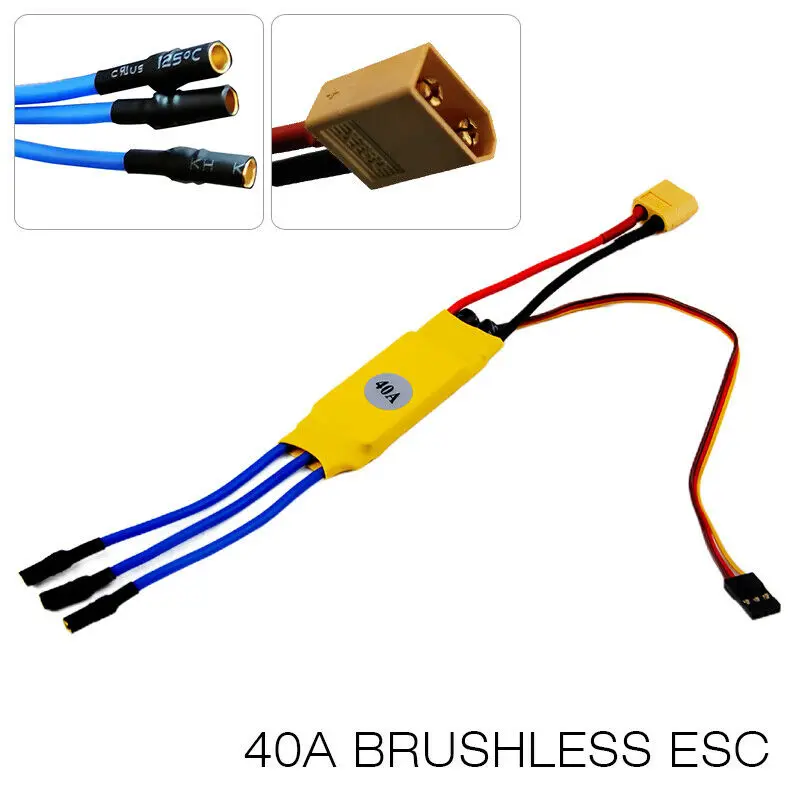

Cheap XXD 40A Brushless ESC Electric Motor Speed Controller with T plug connector for RC Airplane

Product Overview

Description

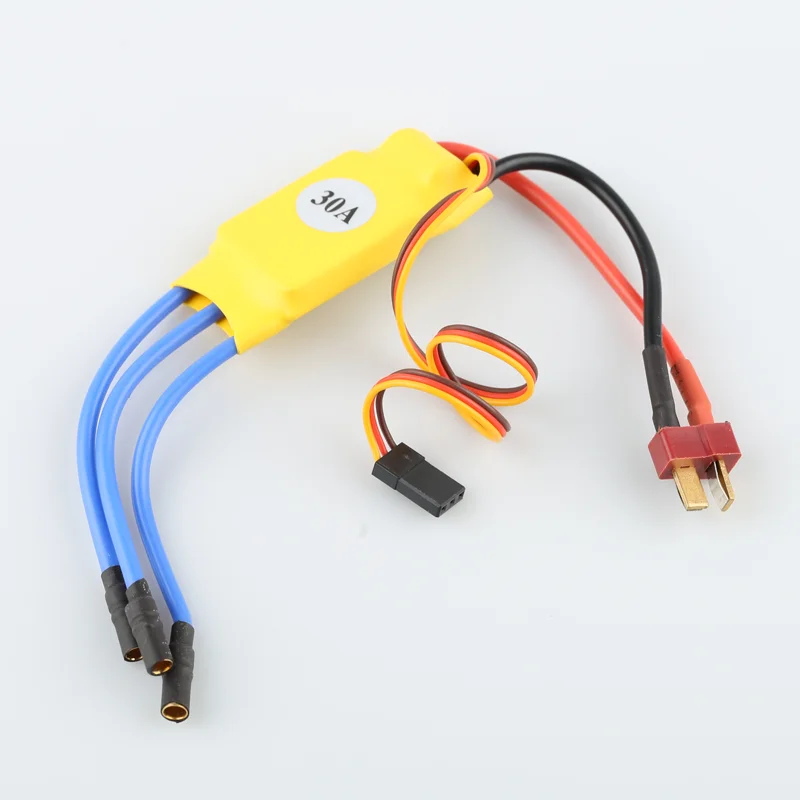

electric adjustment XXD 30A brushless electromechanical adjustment is applicable to the wholesale of aircraft with fixed wing of flight mode KT plate

Electrical adjustment is a good welding T inserted banana head shipments absolutely cost-effective products!

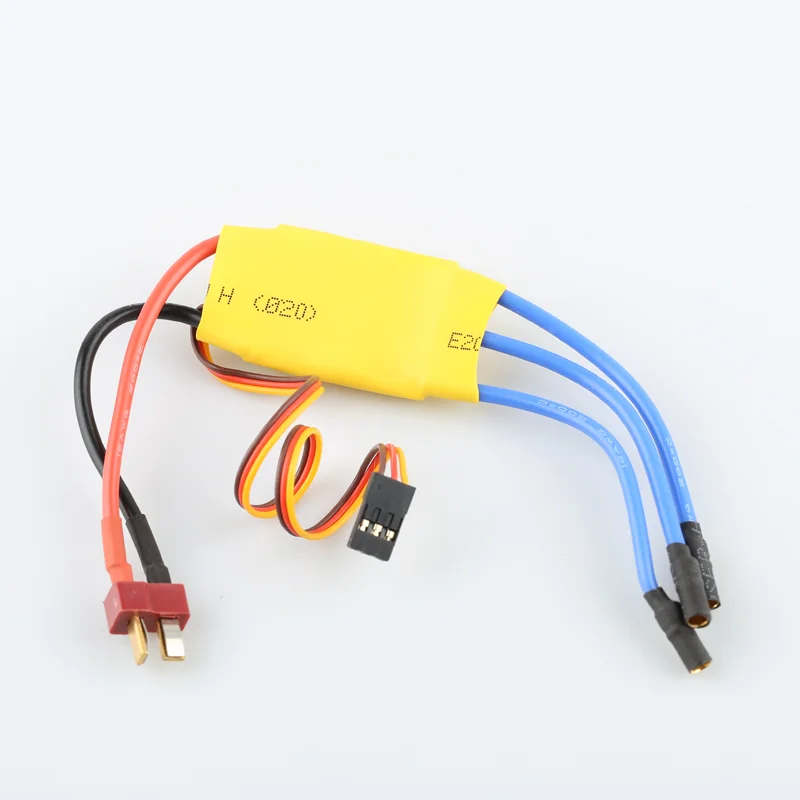

Handy, T plug, banana head are welded

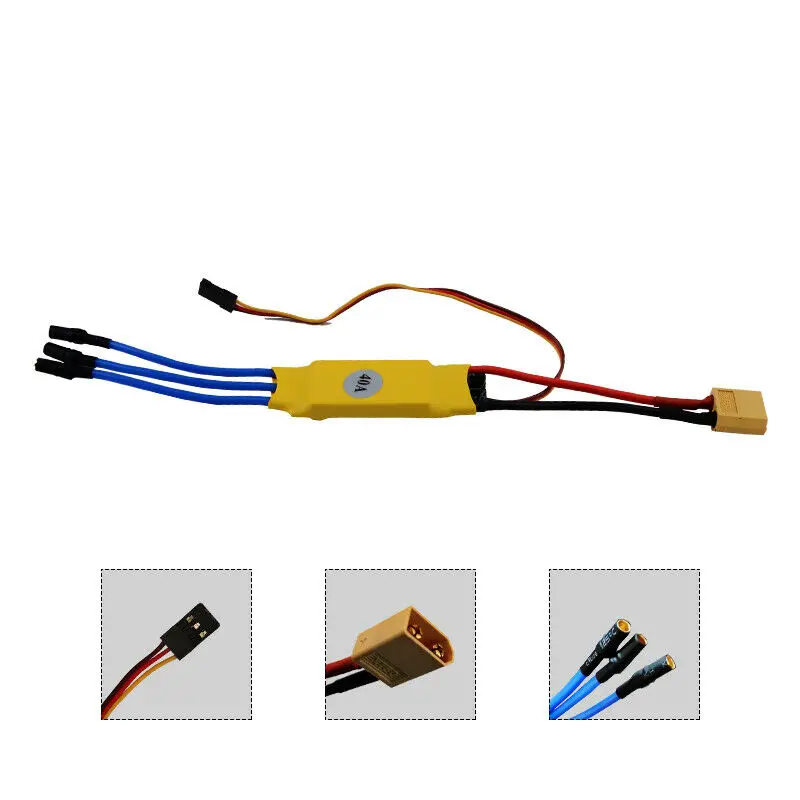

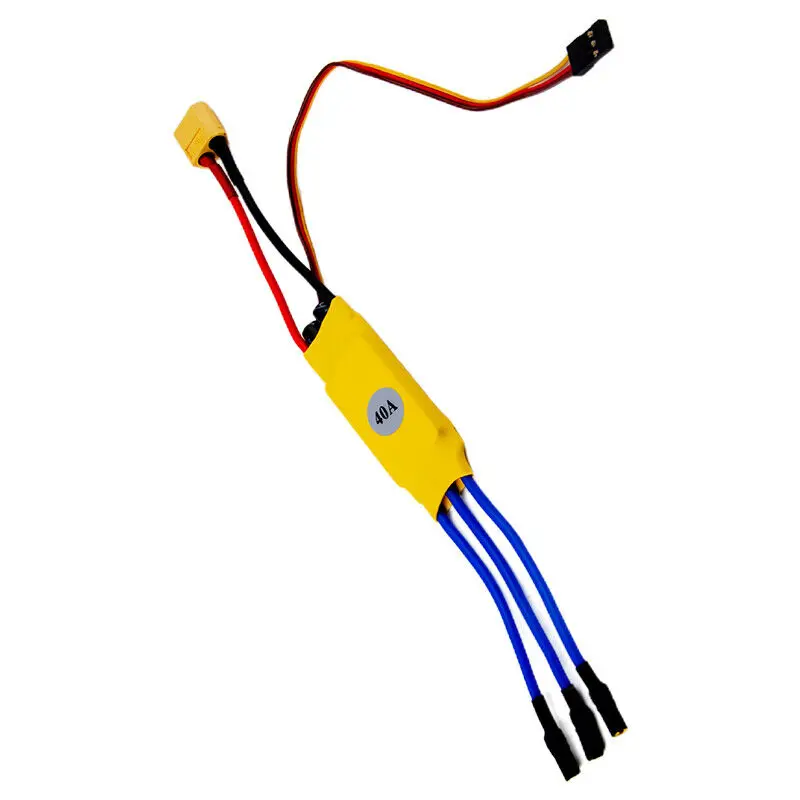

40A brushless ESC

Electrical control parameters:

1 product specification

1.1 output capacity: continuous current 30A, short-term current 40A (no less than 10 seconds);

1.2 power input: 6V -- 12V (2-3 lithium batteries or 5-10 ni-h/ni-cd batteries);

1.3BEC output: 2A/5A;

1.4 size: 26mm*46mm*10mm

Weight: 28g

2 product functions

2.1 multi-layer PCB power supply to MCU respectively to improve the stability and durability of the motor

2.2 low current protection function

2.3 overheating protection function to prevent damage electrical control

2.4. Warranty protection for accelerator

2.5 smooth and accurate speed control, automatic positive and negative control, without changing the connection sequence of motor and electrical control

Normal start procedure

3.1 push the throttle switch to the bottom and then the development switch

3.2 connect the battery to the power switch and make a special sound: "DEE DA --DEE DA", indicating power supply OK

3.3 after the self-test, a long "BEEEEEP" will be emitted, indicating that it is normal. If it is not adjusted well, an alarm will be sounded

3.4 a few "beep--" will be sent out to indicate the parameter status of other programs

Move the throttle lever and start flying

4 throttle setting

4.1 turn on the transmitter and move the throttle lever to the top

4.2 connect the battery to ESC for 2 seconds

4.3 "beep-beep" sound is emitted, indicating confirmation of the throttle peak setting

Move the throttle lever to the bottom, wait 1 second or so

4.5 "BEEP" sound sent out, indicating the lowest throttle setting confirmed

4.6 ESC starts making sounds and can fly
