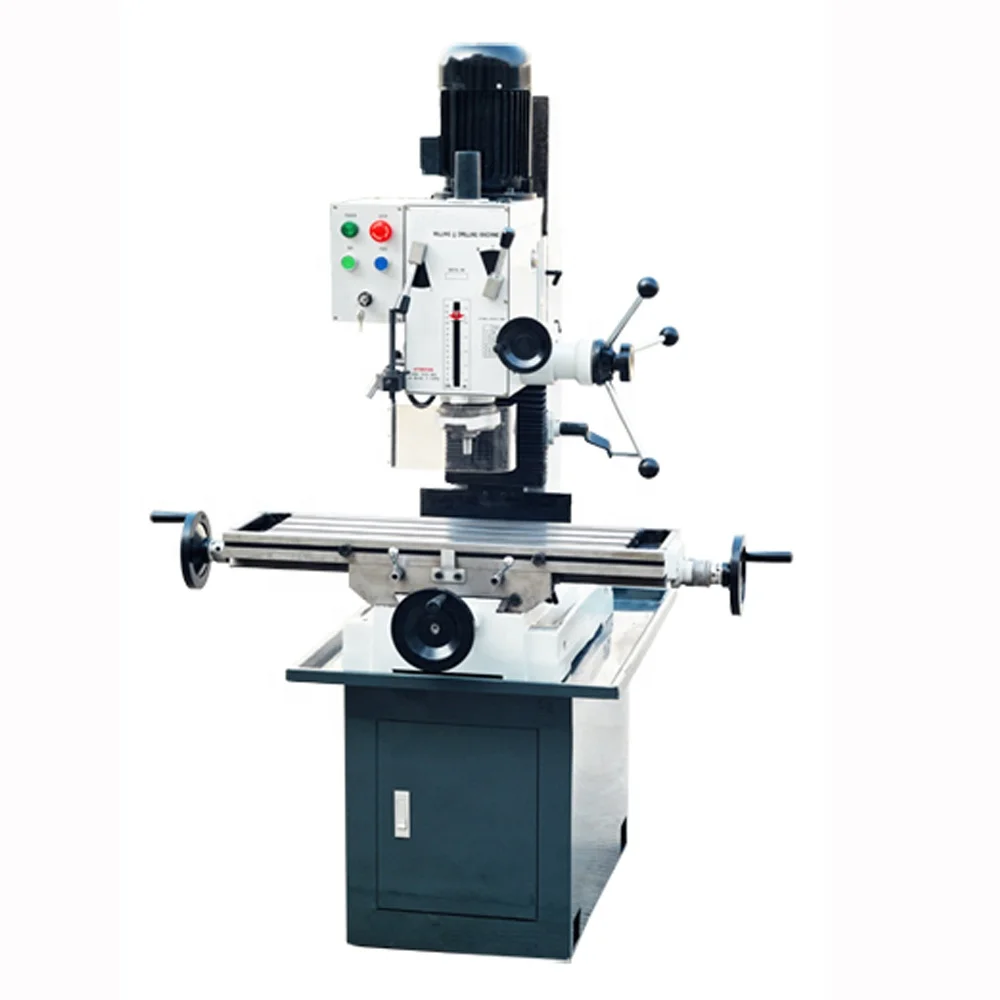

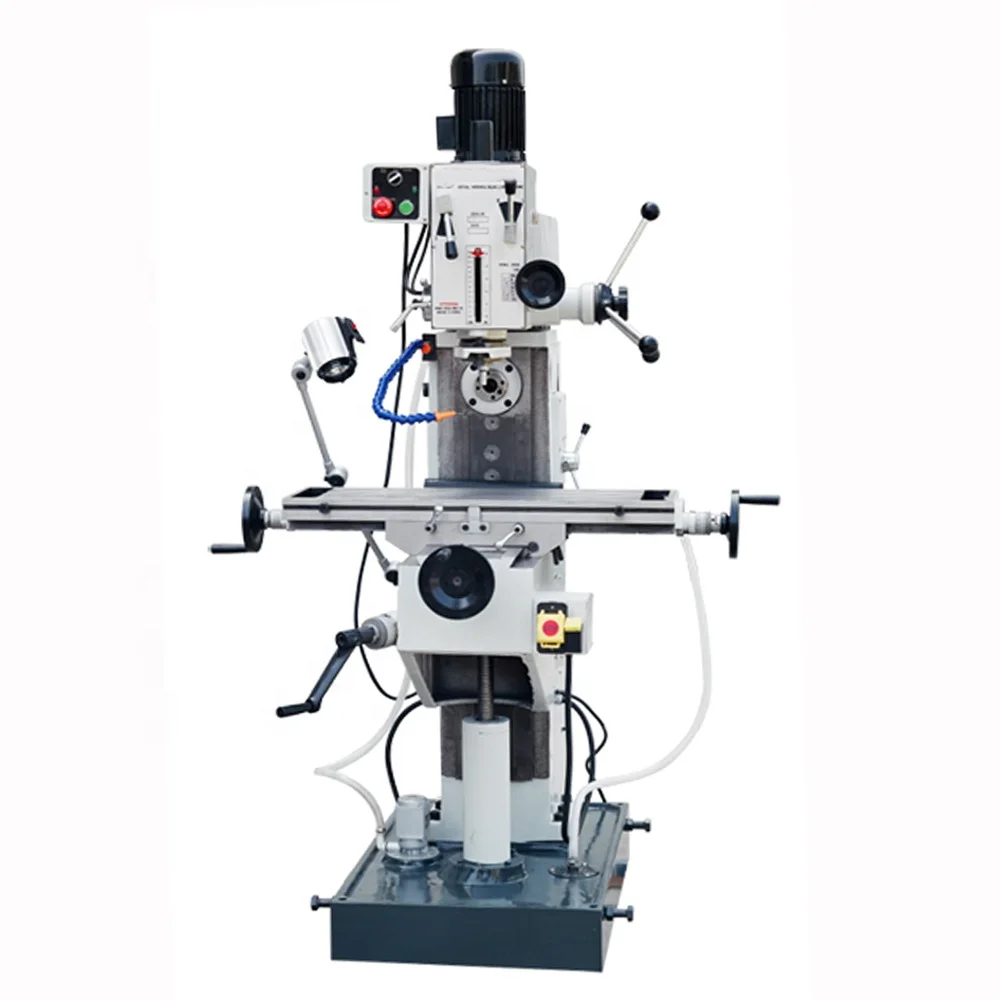

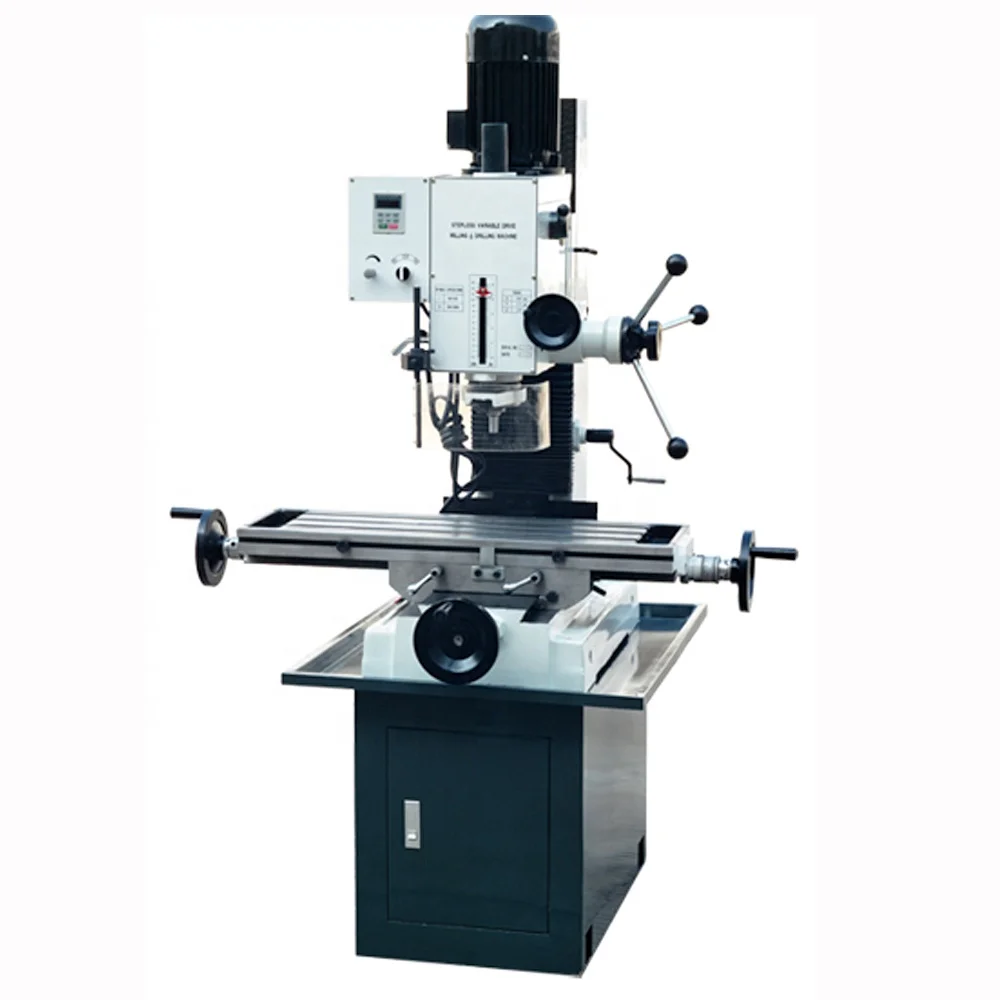

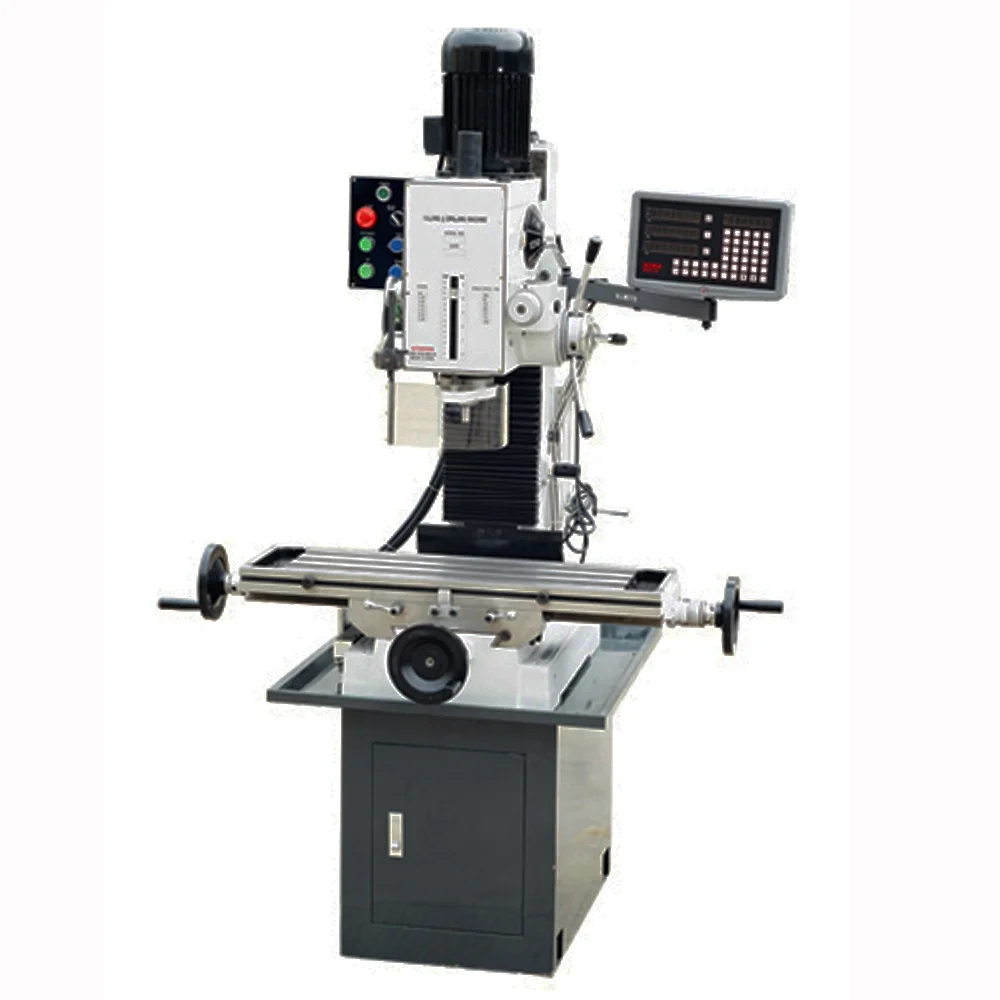

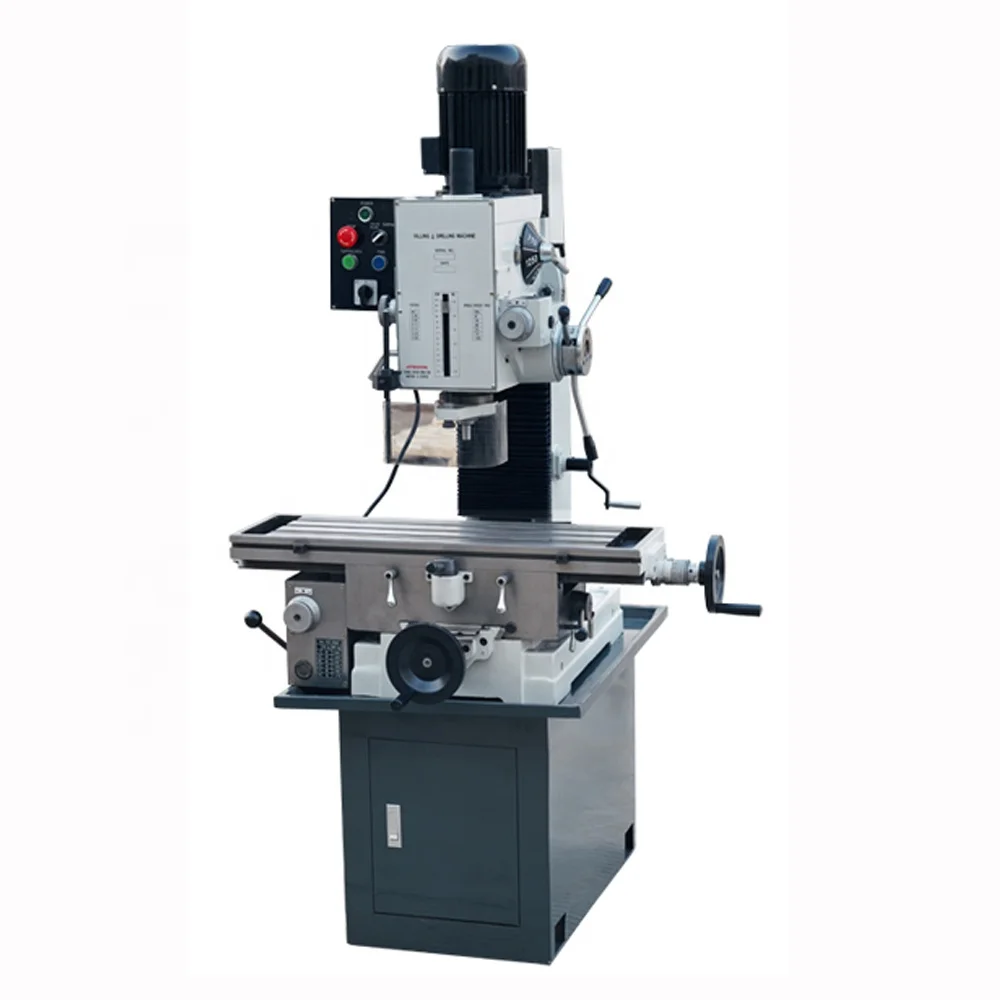

ZX7032 Vertical milling and drilling machine
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62509409163):
Product Overview
Description
Products Description
ZX7032 Vertical milling and drilling machine
Model | ZX7020 | ZX7032 | ZX7040 | ZX7045 | |||
Drilling capacity | 20mm | 32mm | 40mm | 45mm | |||
Face milling capacity | 63mm | 63mm | 80mm | 80mm | |||
End milling capacity | 20mm | 20mm | 32mm | 32mm | |||
Distance from spindle nose to table | 435mm | 450mm | 450mm | 450mm | |||
Min.distance from spindle axis to column | 181.5mm | 203.5mm | 203.5mm | 203.5mm | |||
Spindle travel | 85mm | 130mm | 130mm | 130mm | |||
Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 | |||
Step of spindle speed | 12 | 12 | 12 | 12 | |||
Range of spindle speed 50Hz | 100-2200 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | |||
60Hz | 120-2640 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | |||
Swivel angleof headstock (horizontally) | 360° | 360° | 360° | 360° | |||
Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm | |||
Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm | |||
Left and right travel of table | 290mm | 500mm | 500mm | 500mm | |||
Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW | |||
Voltage/frequency | As customer's requirement | ||||||
Net weight/gross weight | 130kg/190kg | 280kg/330kg | 283kg/333kg | 285kg/335kg | |||
Packing size | 620×750×1000mm | 1020×820×1160mm | 1020×820×1160mm | 1020×820×1160mm | |||
Loading amount | 48pcs/20' container | 28pcs/20' container | 28pcs/20' container | 28pcs/20' container | |||
Other models milling drilling machine for your choice:
ZX7032A-1 drilling milling machine
ZX7032FG milling drilling machine
ZX7032V metal drill mill machine
ZX7032FG-1 mill drill machine
ZX7532 drilling & milling machine
