Manual vacuum forming plastic blister thermoforming machine
- Category: >>>
- Supplier: Shenzhen Huaxiang Mechanical Equipment Co. Ltd.
Share on (62509450101):
Product Overview
Description
production description

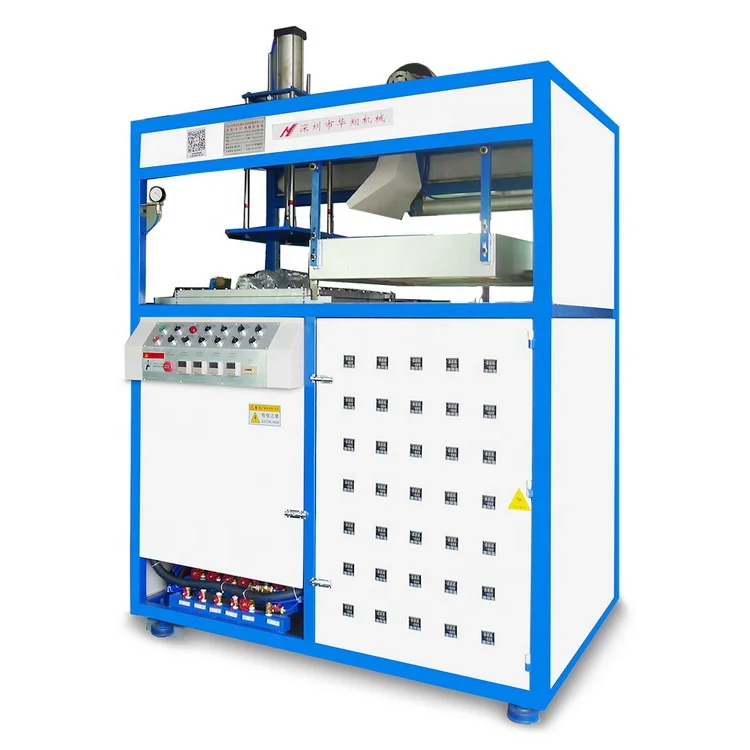

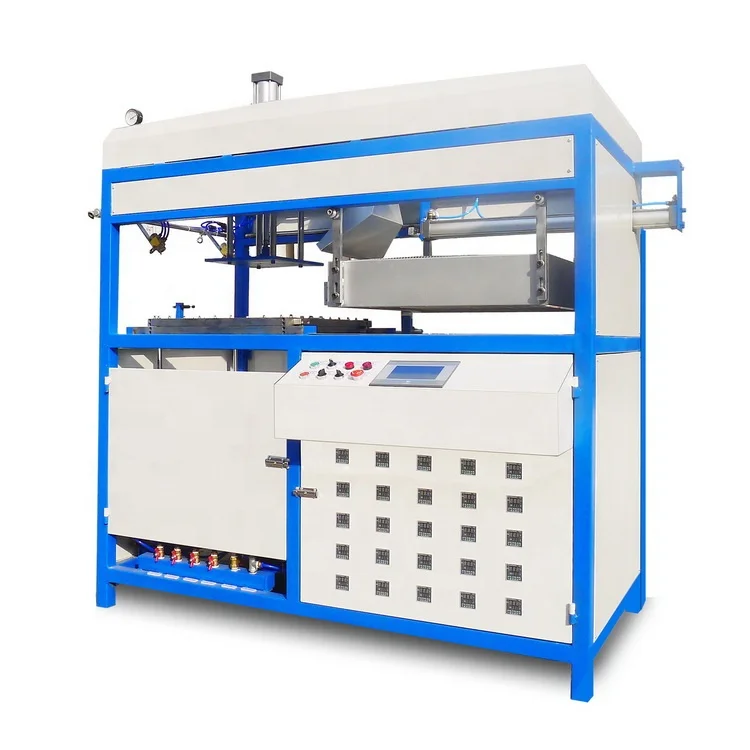

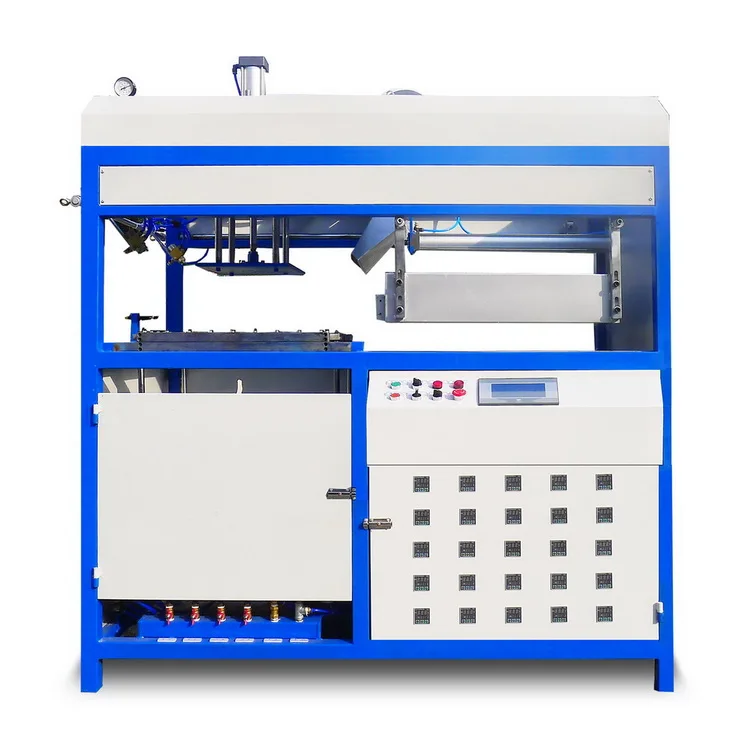

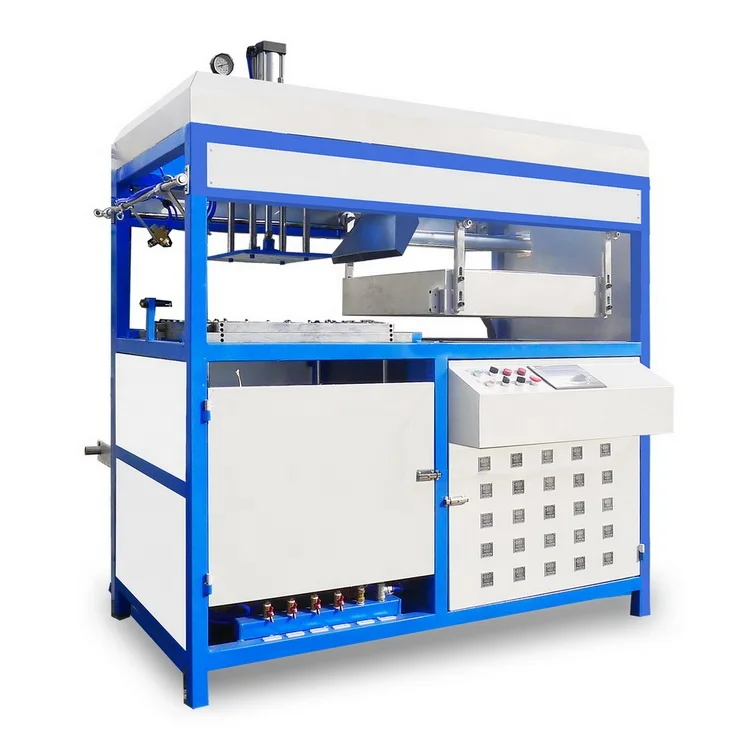

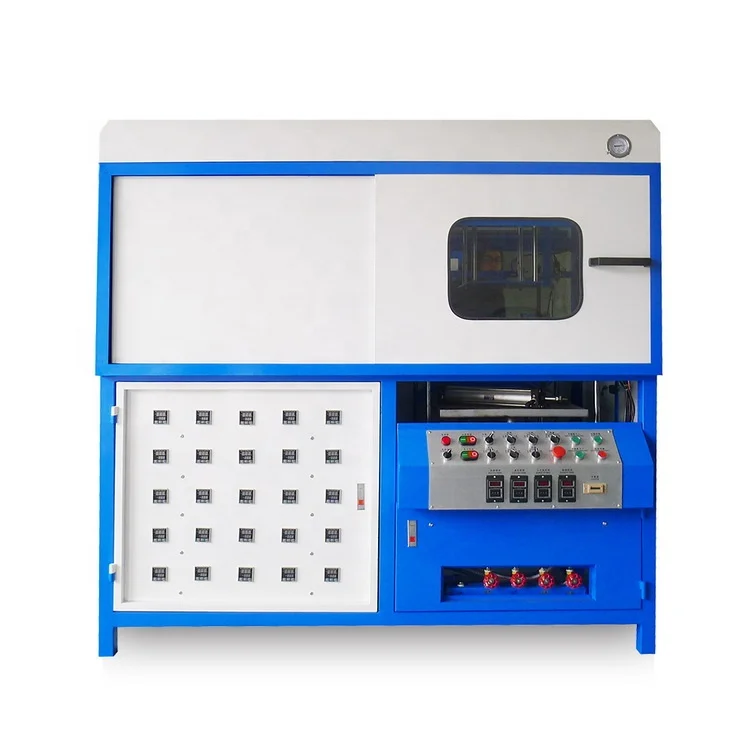

HX-2224 Series Semi-automatic Vacuum Forming Machine
INFO
PLC touch screen control, HX-2224A is user friendly machine with the power and capability to form demanding shapes and materials. Rapid, energy efficient ceramic heaters with variable standby, pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times.
Parameter

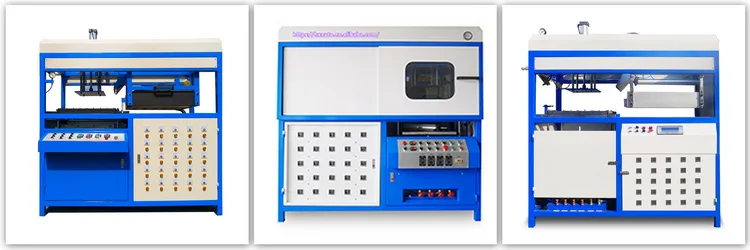

HX-2224C Low Cost HX-2224B Automatic oven HX-2224A PLC control
Model | HX-2224C | HX-2224B | HX-2224A |
Forming Length (mm) | 610 | 610 | 610 |
Forming Width (mm) | 560 | 560 | 350-560(adjustable) |
Roll Material width | 610 | 610 | 400-610(adjustable) |
Heater(pcs) | 25 | 25 | 25 |
Heating Power (Kw) | 15 | 16.25 | 16.25 |
Vacuum Pump(M³) | 20 | 40 | 40 |
Cooling Fan | . | . | . |
Upper Mold | . | . | . |
Digital temperature Setting | N/A | . | . |
Pneumatic Oven | N/A | . | . |
Spray Gun | N/A | . | . |
PLC Control | N/A | N/A | . |
Forming Width adjustable | N/A | N/A | . |
Machine Weight(Kg) | 300 | 350 | 450 |
Machine Size (mm) | L1700×W1100×H1700 | ||
Material | PET,PVC,PP,PS,ACRYLIC,ABS | ||
Material type | Roll or Sheet, thickness: 0.1-2.0(mm) | ||
*Parameter customizable
Function:
Ceramic Heaters with Full Temperature
Vacuum Receiver Tank
25 Independently Controllable Heating Zones
Vacuum Flow Regulator
Pneumatically Powered Clamping Frame Mold
Vacuum and Pressure Gauges
Digital Timer
20m³/40m³ Vacuum Pump
One Cooling Fan
Extra function for HX-2224A/B
Pneumatic Oven, move automatic
Digital tempetature control
2 spracy gun
Safety cover
Extra Function for HX-2224A
PLC Control
Mold table with cooling
Features
1) 25pcs ceramic infrared heating boards which can be controlled separately, suitable for different size or different thickness material.
2) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3) Large-scale cooling fan which can cool the products quickly.
4) Cooling system which suitable for thick material. (optional)
5) Manual and Semi-auto style.

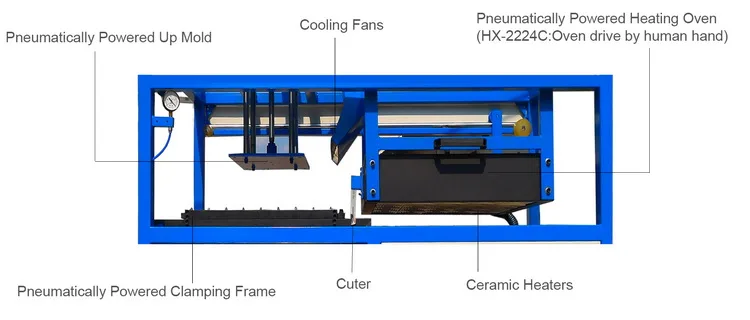

Forming part:
Semi-Automatic Vacuum Forming Machine. HX-2224 is equipped with a max. forming area of 610 x 560 mm.
1. HX-2224A and 2224B setting pneumatically powered heating oven, HX-2224C move by human hand.
2. HX-2224A and 2224B use digital temperature control,HX-2224C micro temperature control
Adjustable Mold table
1. HX-2224A forming width can be adjust from 350mm to 560mm;
2. HX-2224B and HX-2224C forming width invariable;

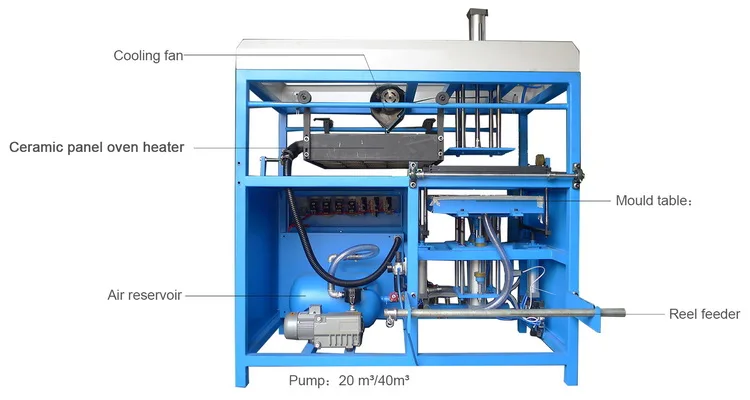

Detailed Part

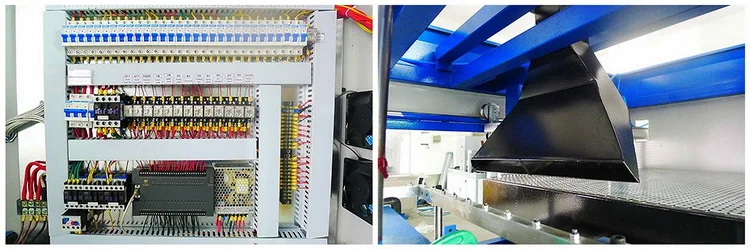

Electricity box
Brand: CHNT,OMRON
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese accessories
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese accessories
Industry Cooling fun
Name: cooling fan
Brand: HUAXIANG
Original: CHINA
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;
Brand: HUAXIANG
Original: CHINA
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;

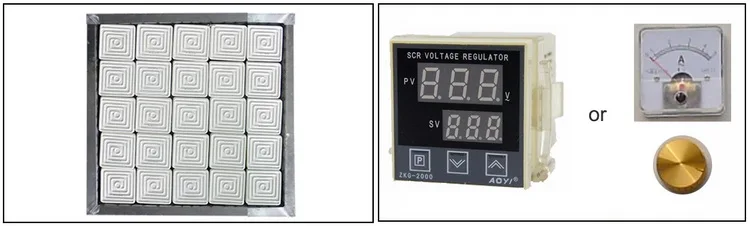

Ceramic heater/oven
Name: Heating system
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;

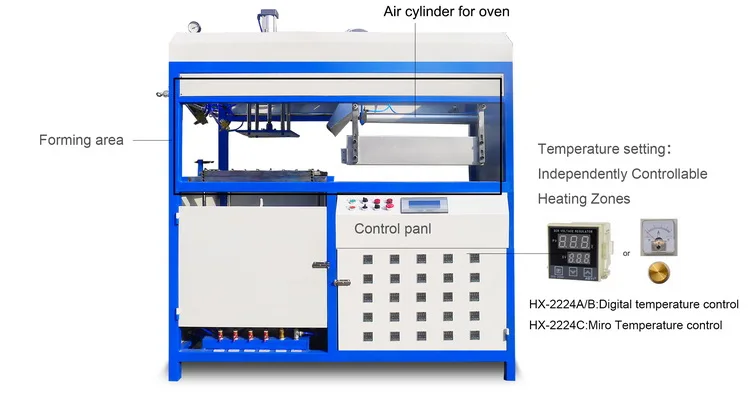

Temperature control
Name: Digital temperature or micro controller
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone
Sample

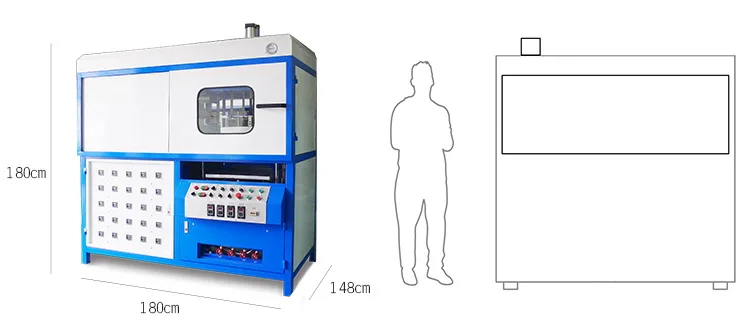

Packing Size
1) The machine overs an area of 2.664m²;
2) Requires 20m² of space to place ;
3) In the open air environment;
4) Weight: 400kg
Packing:
1. Wooden box or wooden frame, box: 30USD/CBM, wooden frame: 15USD/CBM;
2. Woodwork will be fumigated in many country;
3. If container too tightly, we only use PE- film for packing or pack it according to customers special request.
4. Machines will be Split to facilitate placement.
Factory
Shenzhen HUAXIANG Factory Co., Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging field;
More about us please click our website below:
https://huaxiangjx.en.alibaba.com/
Machine recommend

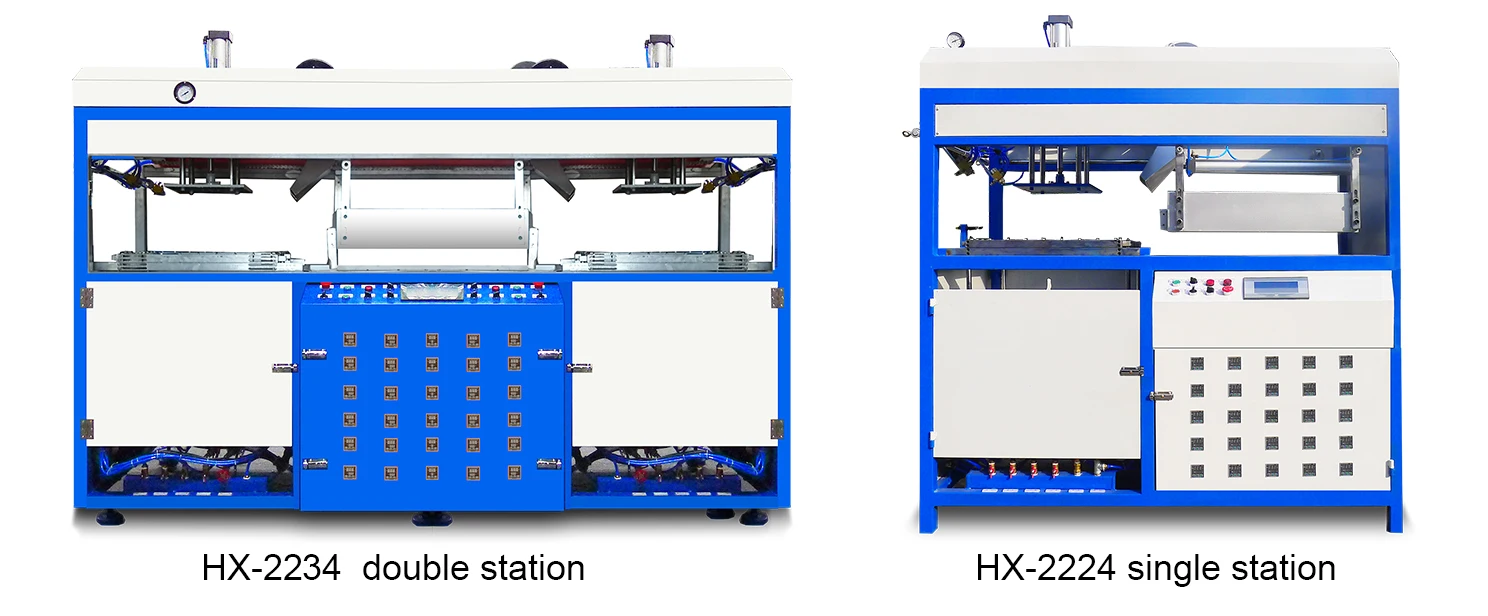

1. HX-2234 One single heating oven with two work station;
2. Capacity of production almost twice as HX-2224 average;
3. Power consumption similar as HX-2224;
Welcome to Inquiry us
In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?
