Price:9,00 $

Quantity:


Product Overview

Description



Products Description

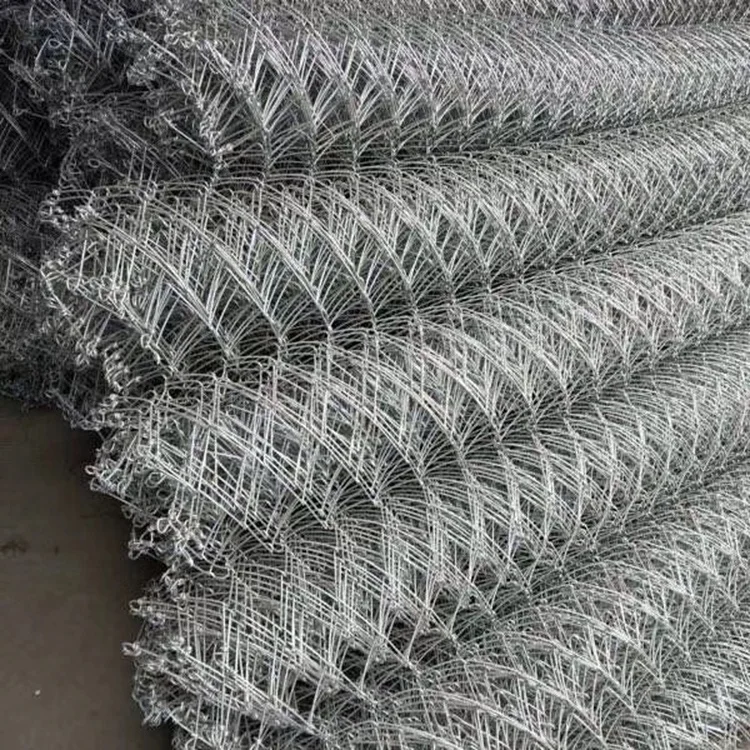

Rockfall Wire Mesh—Slope Stabilization With High Tensile Wire Mesh
Materia: High Tensll steel wire.
Wire diameter: 3.0mm, 4.0mm

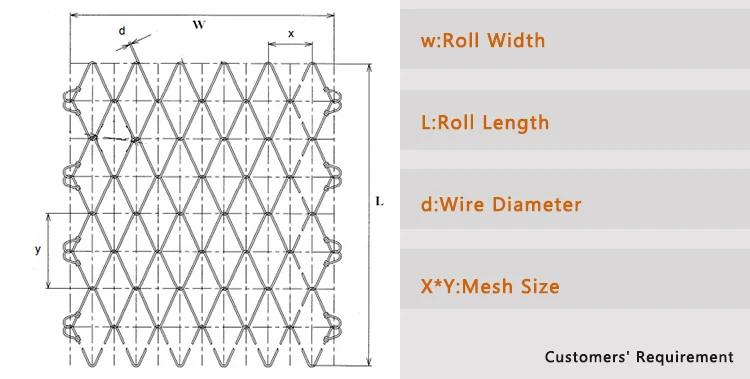

Mesh type: Rhomboid hole
Mesh size : 83mmx143mm（ inscribed circle diameter65mm）
Tensile strength: Minimum 1770 MPa
Braking load of single wire: 12.5 kN
Mesh roll width: 1–3.5m，Customized
Mesh roll length:1–30 m，Customized
Surface treatment: Hot dipped galvanized, zinc-aluminum coated
Zinc thickness: galvanized coating ( 95% ZN -5% Al )，No less than 150 g/㎡

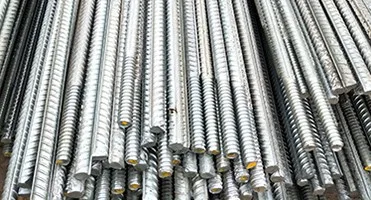

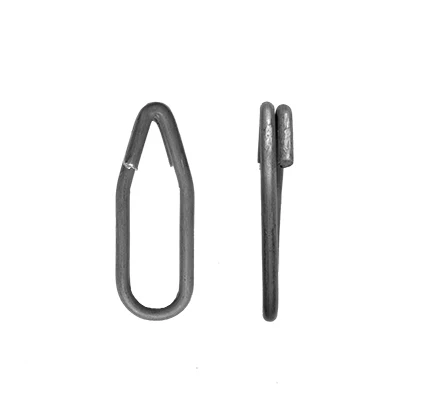

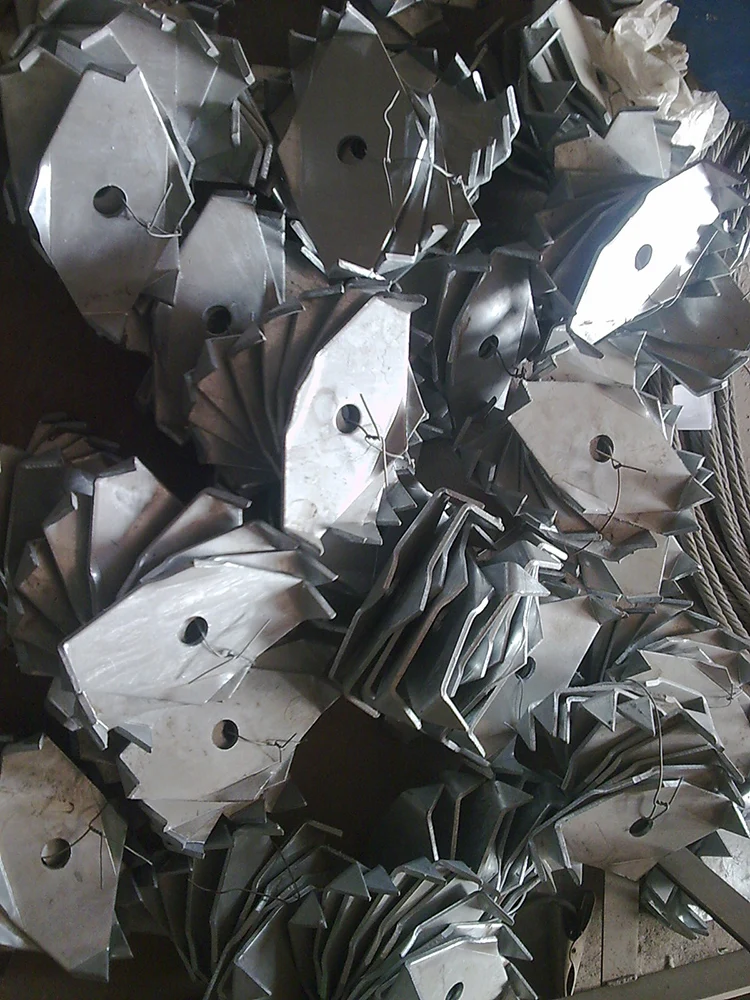

Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is made
ofdeformed steel bar of 25 mm diameter)

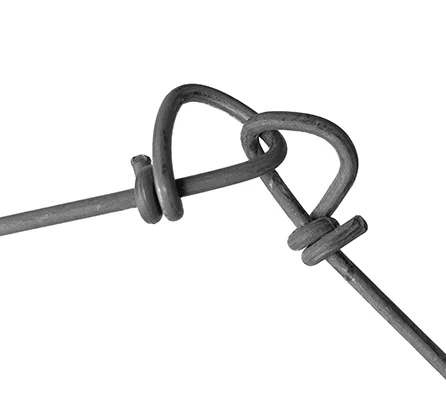

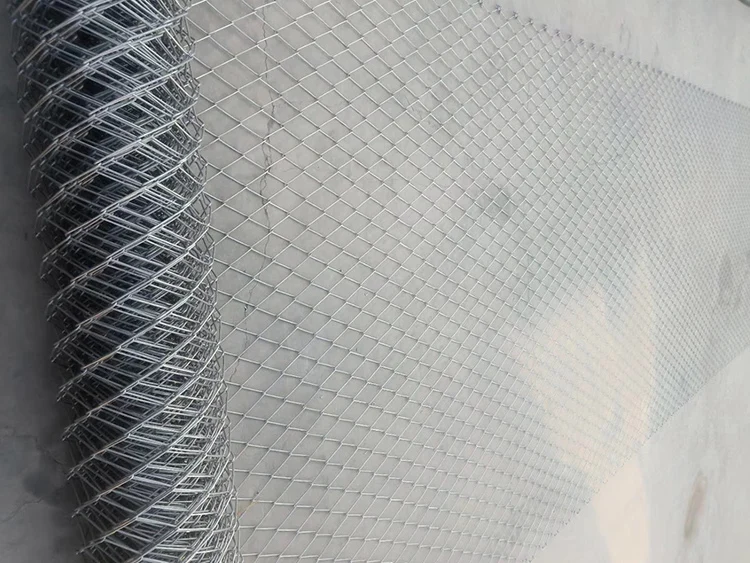

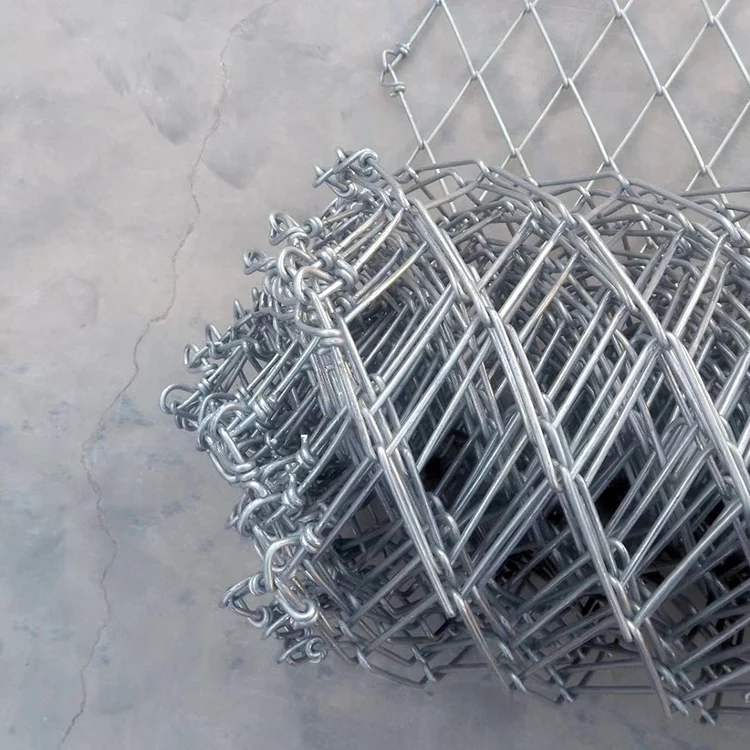

Detailed Images


wire
 Tensile strength
Wire diameter
(mm)
Hole size
（mm）
 weight
KG/㎡
width
M/Roll
length
M/Roll



Braking load of single wire: 12.5 kN.


1770MPa

3
83x143
1.65
1-3.5
1-10
70x130
1.90
1-3.5
1-10

4
83x138
3.30
1-3.5
1-10
70x130
3.60
1-3.5
1-10

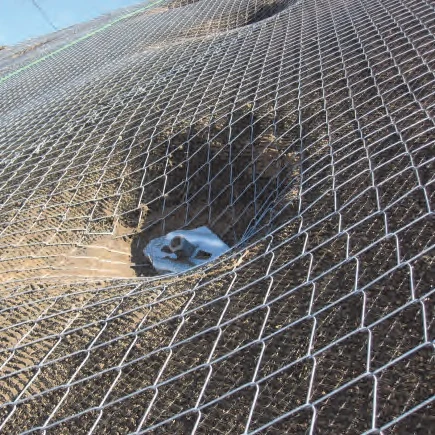

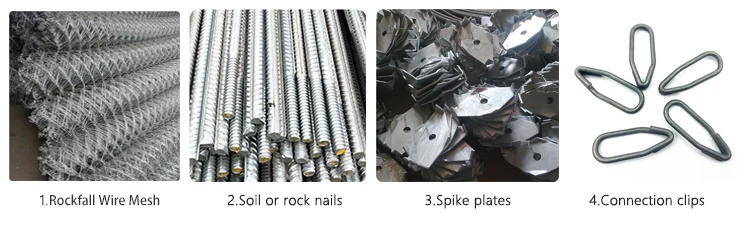

system Components


Rockfall Wire Meshsystem Components
Main Components: High-tensile steel wire mesh,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock.

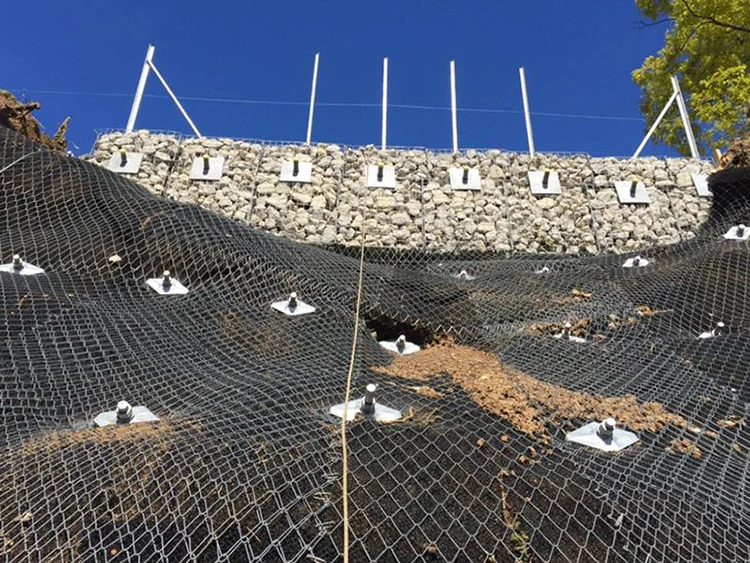

Product Application

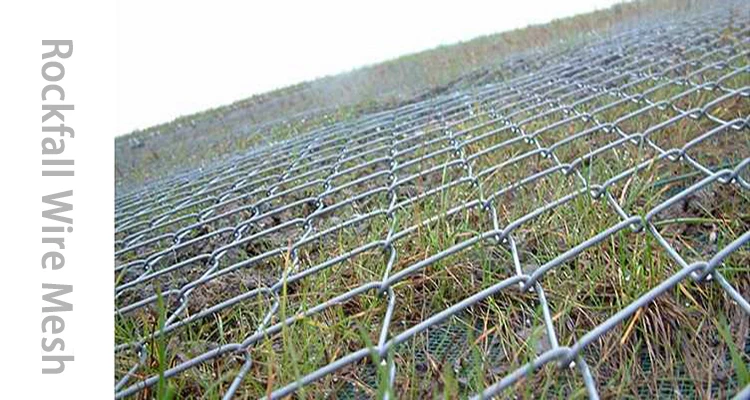

The Rockfall Wire Mesh is usually installed on soil or rocky textured surfaces such as mountains and slopes to prevent falling rocks and to ensure plant growth. In addition, it can be used to control water, soil loss and external soil spray sowing.






Company Information


Hebei Longen Wire Mesh Co.,LTD

With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh...see more>>




Packaging & Shipping


Delivevr time ：10~20 workinng days after payment receipt confirmed (based on actual quantity) Packing : standard export packing or customized packing as your request.
