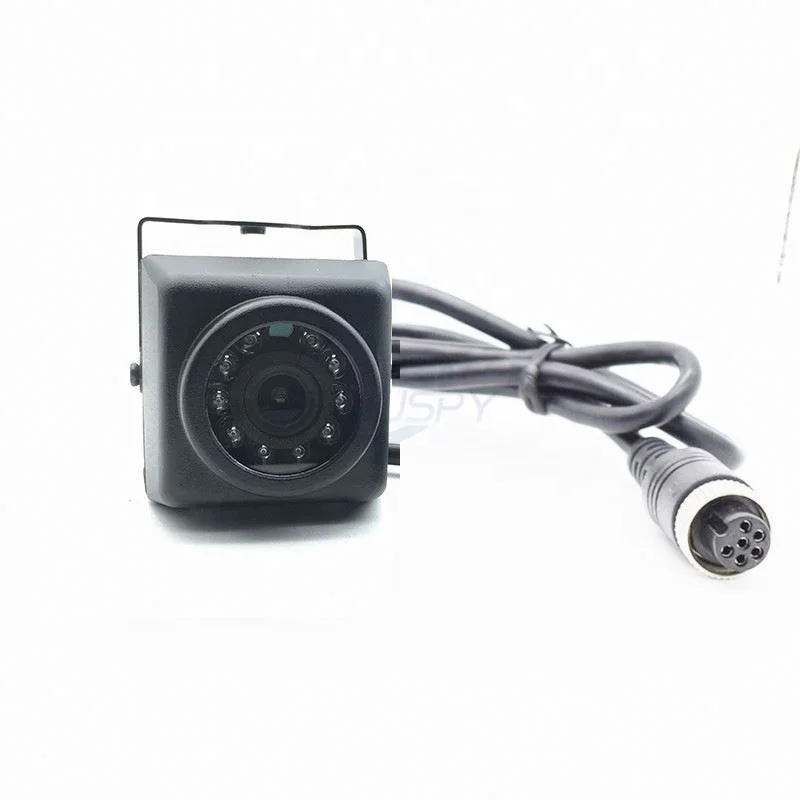

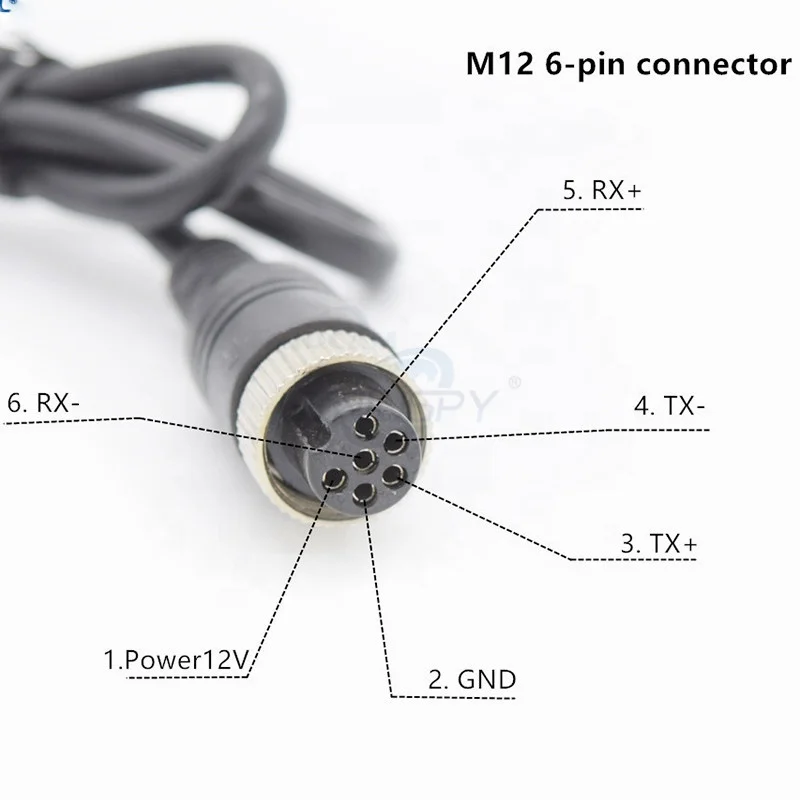

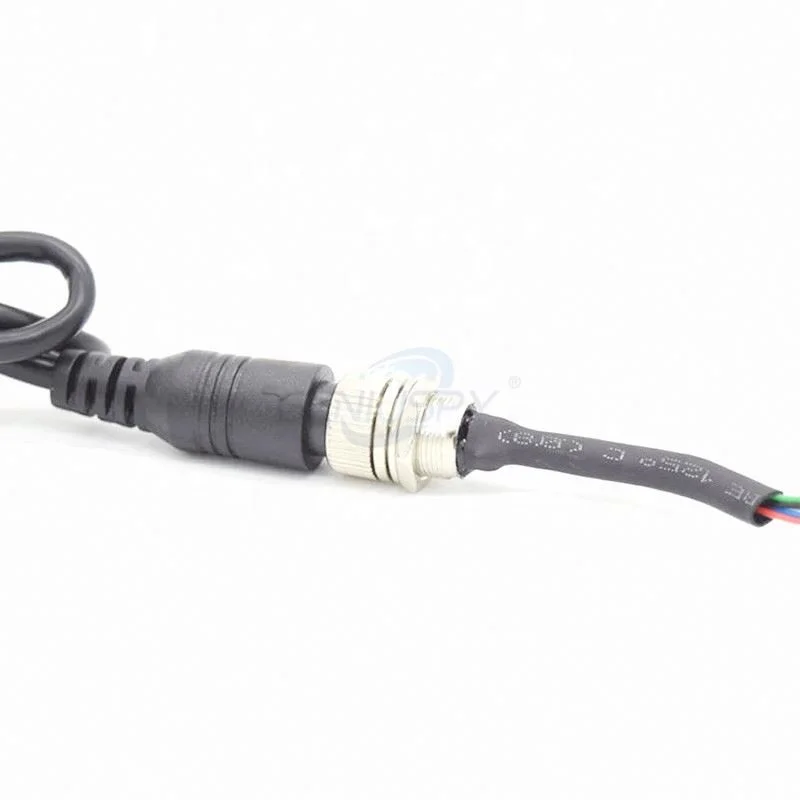

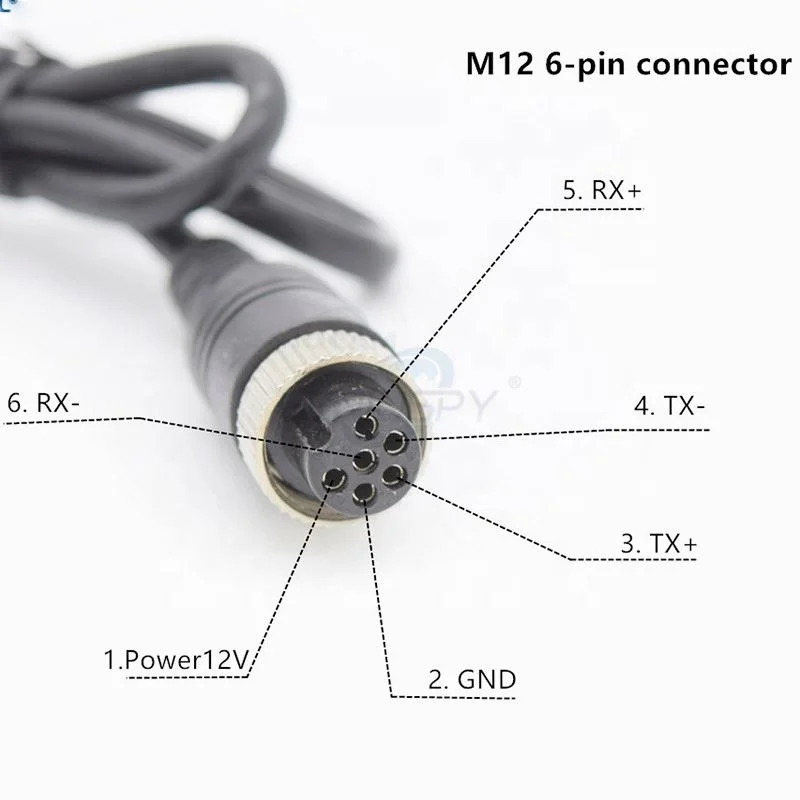

720P 960P 1080P M8 6Pin M12 6 Pin Connector SD Card IR CUT Night Vision Outdoor Security Waterproof Bus IP Camera Camhi App

Product Overview

Description





Specification: 2.0MP Models:GS-HXFSTCM6P

Resolution:1920x1080

Image Sensor: 1/2.8 inch IMX307

Support 128GB TF Card Max



Specification: 3.0MP Models:GS-HXFST6P3M

Resolution:2304x1296

Image Sensor: SC3235

Sensor Size: 1/2.7 inch

Support 128GB TF Card Max





Specification: 5.0MP Models:GS-HXFST6P5M

Resolution:2560x1920 or 2560x1440

Sensor Size: 1/2.8 inch

Image Sensor: IMX335

Support 128GB TF card Max



support tf card slot



Features

High sensitivity, high signal-to-noise CMOS image sensor

H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone  operating system

Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on

Support :on vif 2.0

Support :DDNS and three DDNS

Support :sending email, attaching picture

Support :Alarm picture and record Uploaded to FTP server

Support :Timing captured picture to FTP server

Support :Static IP and DHCP

Support :P2P

Support :privacy mask

Support up to 12 users browsing at the same time(Each stream supports four users

Support remote alarm linkage

Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting



 Features

5.0 megapixel HD IP camera, maximum resolution 2560x1920P

3.0 megapixel HD IP camera, maximum resolution 2304x1296

2.0 megapixel HD IP camera, maximum resolution 1920*1080;

1.3 megapixel HD IP camera, maximum resolution 1280*960P;

1.0 megapixel HD IP camera, maximum resolution 1280*720P;



Support up to 128G TF card storage;

Optional 2.8/3.6(default)/6mm lens;

Support P2P, view & anywhere & anytime;

Elegant outline and easy installation;

Provide android & ios APP and professional CMS PC client software;

The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable



2. Specifications

Model		GS-HXFST6P5M/GS-HXFST6P3M/GS-HXFSTCM6P/GS-HXFSTCH6P/GS-HXFSTC6P
Video	Sensor	GS-HXFST6P5M :5.0megapixel.  HI3516EV300+IMX335 Low Lux CMOS.   GS-HXFST6P3M :3.0megapixel. HI3516E+SC3235 Low Lux CMOS GS-HXFSTWCM6P   :2.0 megapixel 1/2.7" CMOS IMX307 GS-HXFSTCH6P :1.3 megapixel 1/2.7" CMOS GC2053 GS-HXFSTC6P :1 megapixel 1/4" CMOS GC1034
	Video resolution	GS-HXFST6P5M  Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps   GS-HXFST6P3M Main stream: 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps   GS-HXFSTCM6P :Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps GS-HXFSTWCH6P :Main stream:, 1280x960@25fps Sub stream: 640x352@25fps, 320x176@25fps GS-HXFSTC6P :Main stream:, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps
	Video compression	H.264 OR H.265 3mp 5mp
	Lens	3.6MM Lens default Optional 2.8/3.6(default)/6mm lens
	View angle	based on lens
Audio	Audio compression	G.726/G.711
	Audio code rate	Rate adaptive
	Audio input	Not support audio
Alarm	Motion detecting alarm	Can set 4 independent detection region (1-100 sensitivity can be set)
	Alarm linkage	Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card,  Alarm mobile phone message push
	Alarm recording	Support Micro SD card and PC client linkage alarm recording
Network	Wireless	N/A
	Ethernet	RJ45 Ethernet
	on vif protocol	Support on vif 2.4(backward compatible)
Storage	Micro SD card	Support up to 128G micro SD card max
	Recording mode	Alarm record, timing record,
	Video playback	Support APP, IE browser, remote client play and download the video
General specification	Power	12V 1A/2a
	Operating environment	Environment -20°C~+60°C(-4°F~+140°F), Humidity 10%~90%, non-condensing
	Product size	/
	Product weight	0.35kg
	IR Night vision	n/a
	Package weight	0.5kg
	Reset	/

Package Include:
