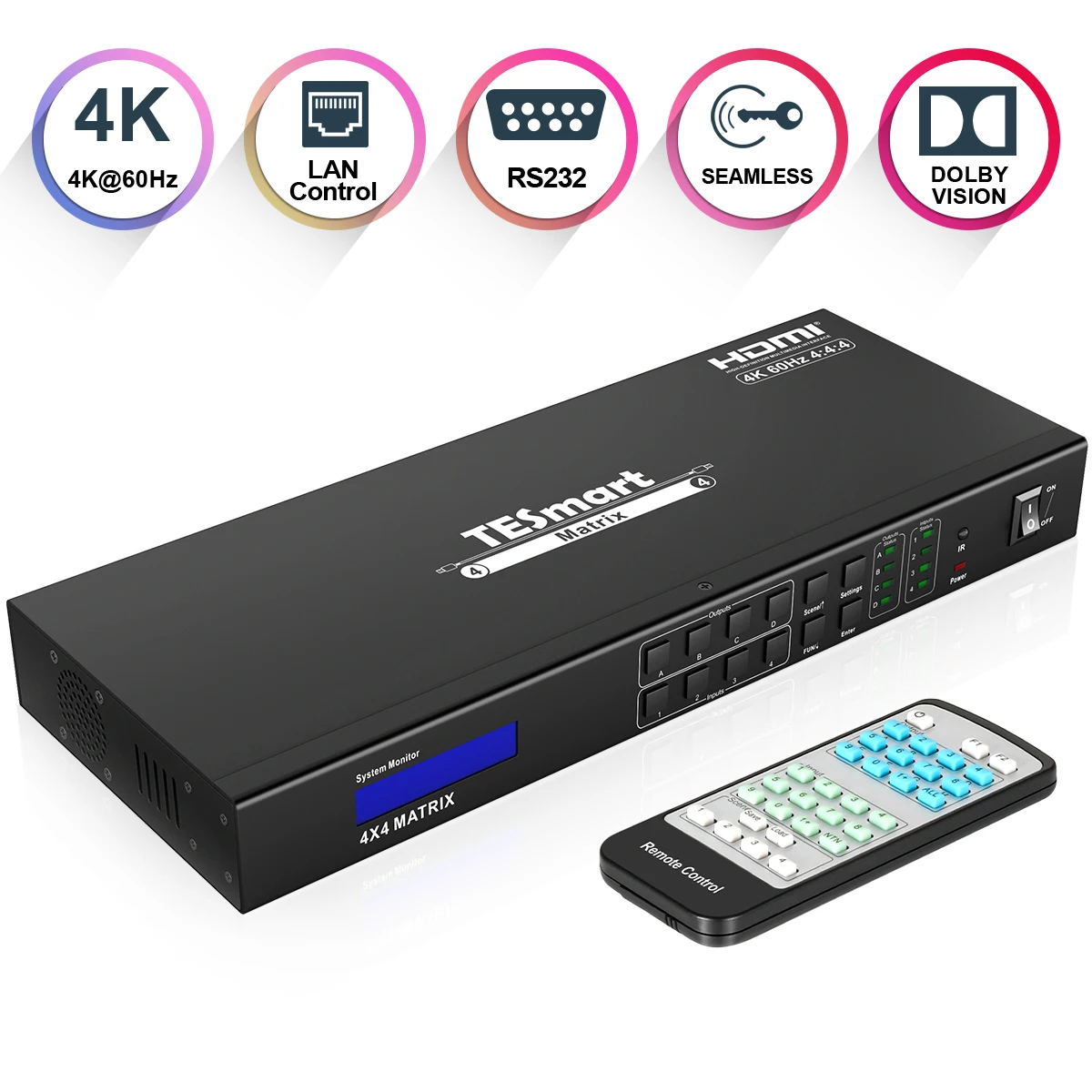

TESmart 4x4 HDMI Matrix 4K@60Hz video matrix switcher
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (62509634717):
Product Overview
Description
Product Description
4x4 HDMI Matrix 4K@60Hz video matrix switcher
This 4x4 HDMI matrix routes 4 Ultra HD sources to 4 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232 or LAN port. With
smart EDID management, make it compatible with most of the HDMI source and sink devices.
smart EDID management, make it compatible with most of the HDMI source and sink devices.
Features
* resolution up to 3840*2160@60Hz.
* Each HDMI output can share same input or select standalone input.

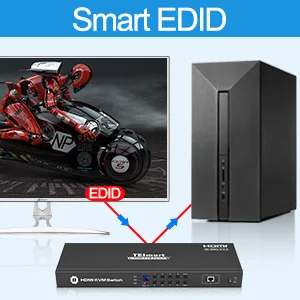

* Smart EDID management, make it compatible with most display devices.
* Matrix status could be memorized after power down, automatically restoreprevious matrix status after next power on.

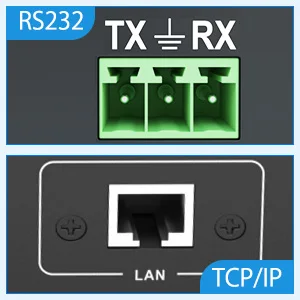

* Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port).
* Easy to view connection status via LCD display.
* Supports 4 configurable user preset connections.

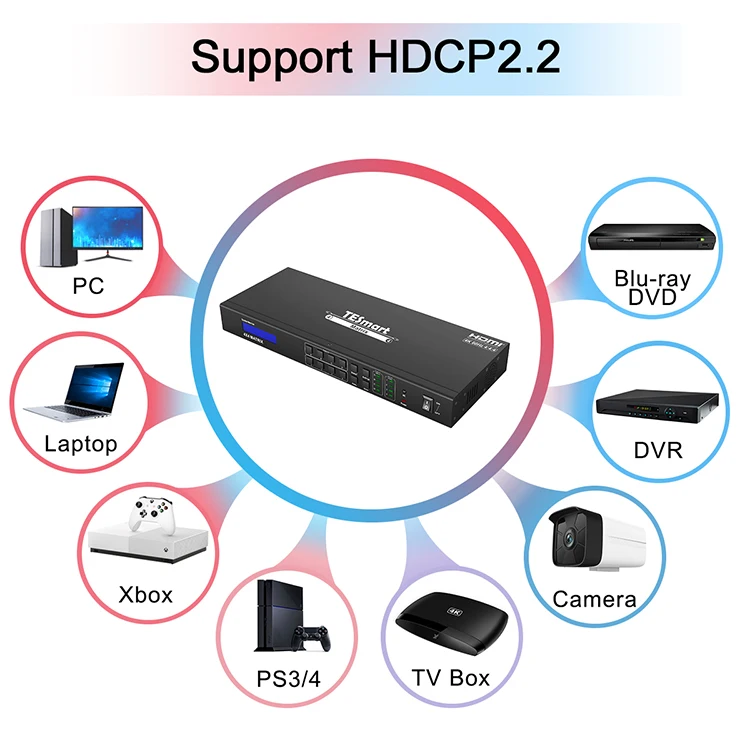

* HDCP 2.2 compliant.
* Support HDR
* Support L/R audio output.
* Each HDMI output can share same input or select standalone input.
* Smart EDID management, make it compatible with most display devices.
* Matrix status could be memorized after power down, automatically restoreprevious matrix status after next power on.
* Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port).
* Easy to view connection status via LCD display.
* Supports 4 configurable user preset connections.
* HDCP 2.2 compliant.
* Support HDR
* Support L/R audio output.

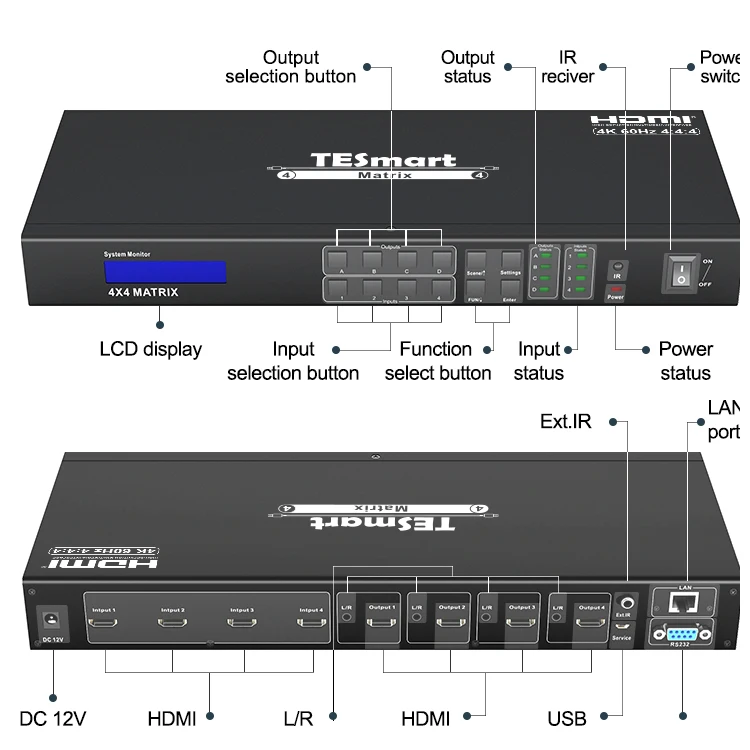

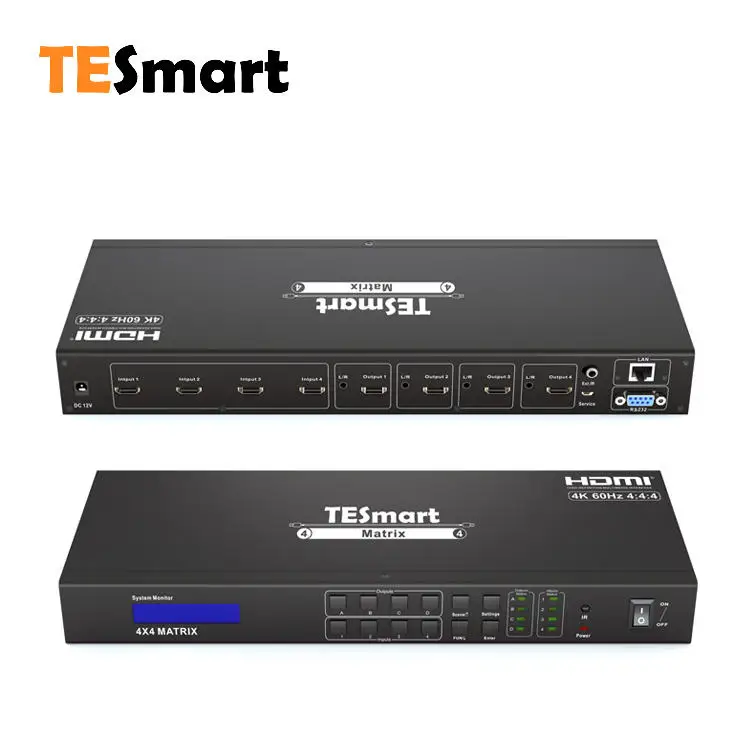

Panel Description

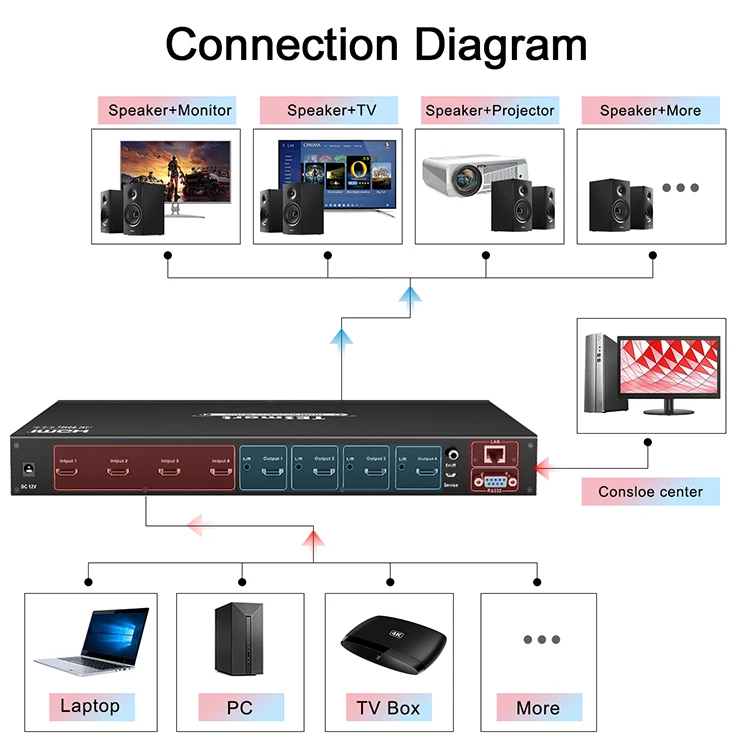

Connection Diagram
Specification
HMA0404A1U | 4x4 HDMI Matrix | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
IR remote control | Yes | |||
Console commands | RS232 / IP | |||
LCD Display | 16x2 characters | |||
OSD | No | |||
Smart EDID | Yes | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz | |||
HDCP | 2.2 | |||
Data rate | 18 Gbps | |||
Input | 4*HDMI Type A | |||
Output | 4*HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Metal | |||
Product Dimensions | 308(L) x 150 (W) x 44.5 (H) mm | |||
Item Weight | 2000g | |||
Power supply | DC 12V 2A | |||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating Humidity | 10 to 90% RH | |||
Details Images
Packing and Shippment
Packing list
1 * 4x4 HDMI Matrix
1 * IR Remote control
1 * 12V 2A Power Adapter
1 * User manual
1 * IR Remote control
1 * 12V 2A Power Adapter
1 * User manual
DHL, UPS, EMS, FedEx, TNT, Air freight supported.
