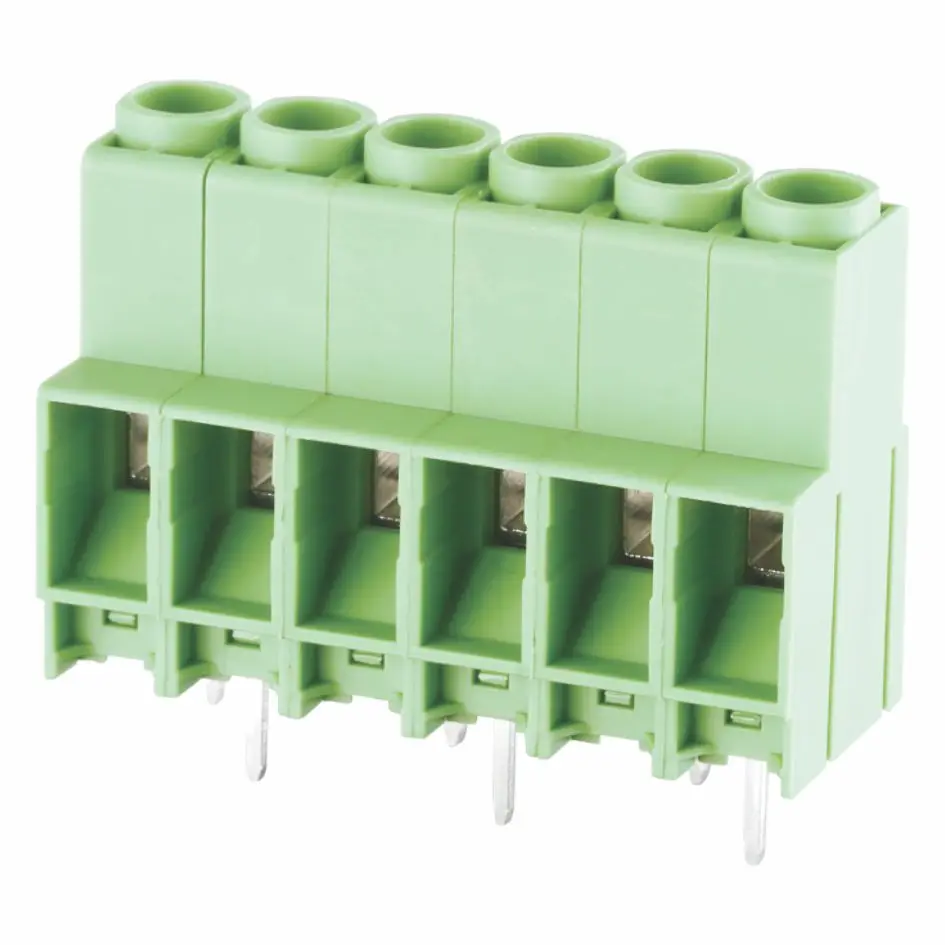

Wanjie 6.35mm pitch Screw terminal block connector WJ635VK 6.35
Wanjie 6.35mm pitch Screw terminal block connector WJ635VK-6.35

Wanjie 6.35mm pitch Screw terminal block connector WJ635VK 6.35

Share on (62509651682):


Price:

Quantity:


Product Overview

Description


Wanjie 6.35mm pitch Screw terminal block connector








Product Description


Material
























ScrewsM3.0 Steel Zn plated
CageBrass,Ni plated
Pin headerBrass,Sn plated
HousingPA66  UL94V-0




Electrical

































Standed            UL                             IEC
Rated voltage          300V                           450V
Rated current           30A                            32A
Wire range        26-10awg                      4mm2
Contact resistance                         20mΩ
Insulation resistance                   500MΩ,DC500V
Withstanding voltage                     AC2000V/1Min







Mechanical
























Temp.range-40℃-+105℃
Max.soldering+250℃ for 5 sec
Torque5.10kgf-cm/0.5Nm/4.43Lbin
Strip length6-7mm
