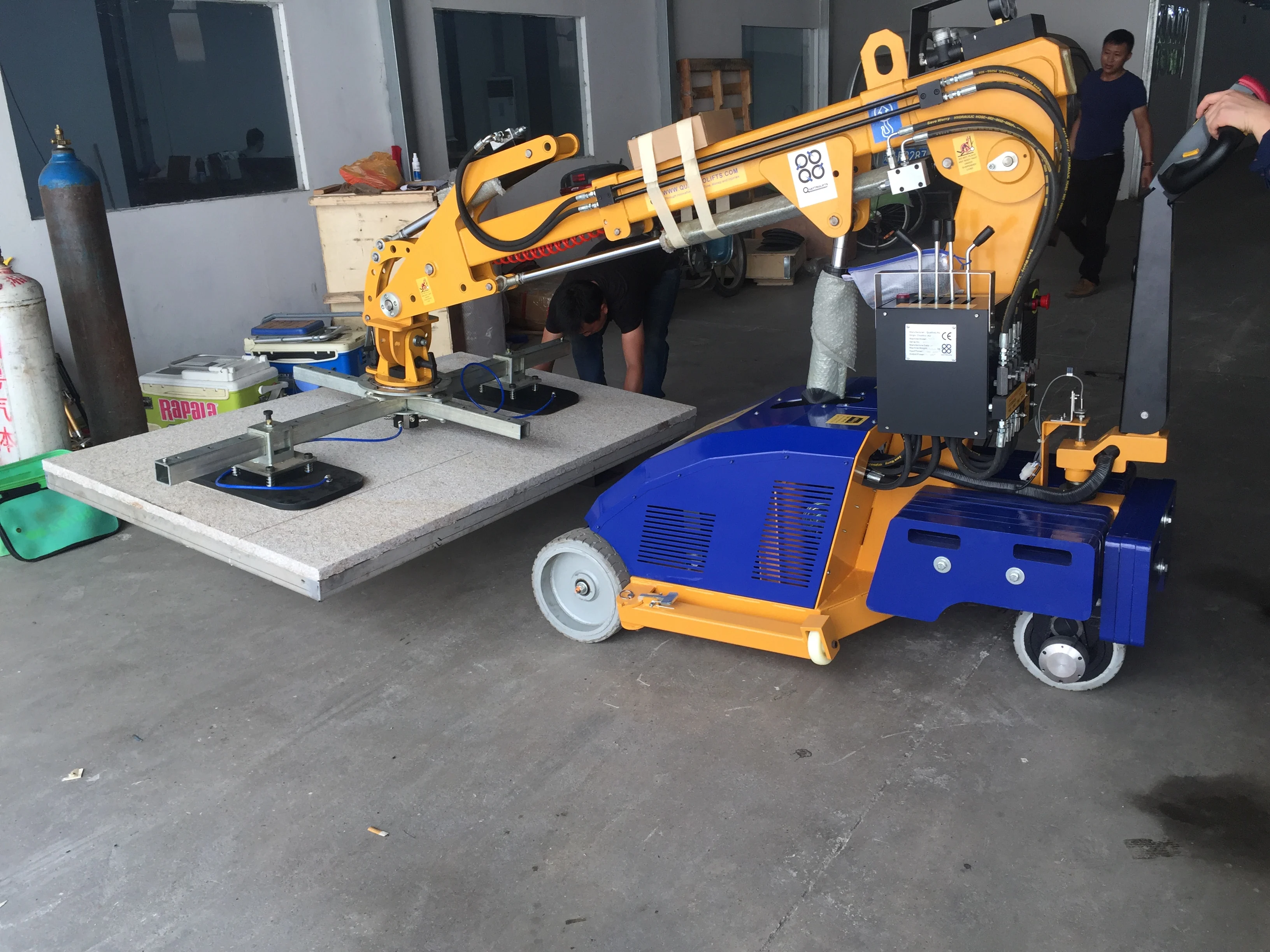

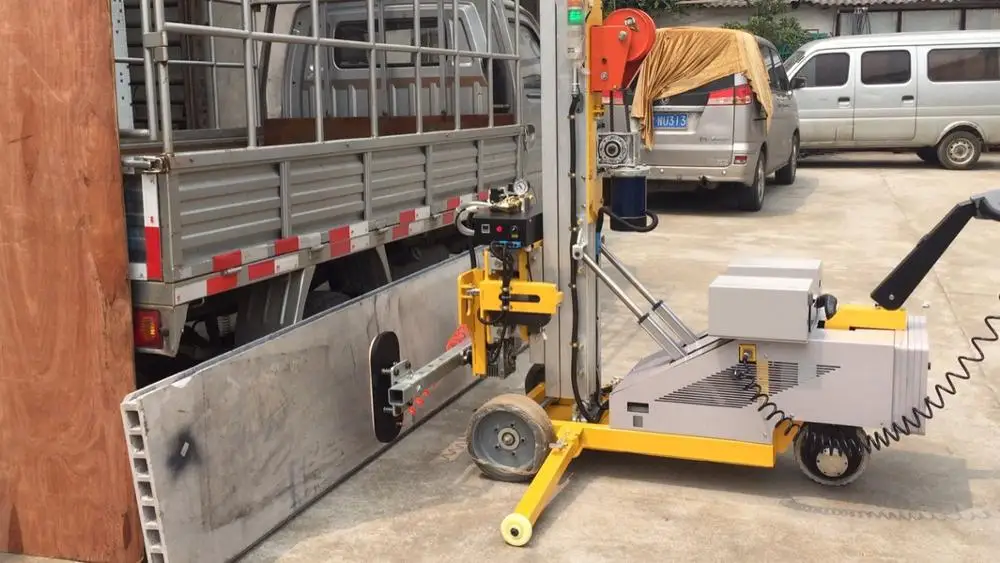

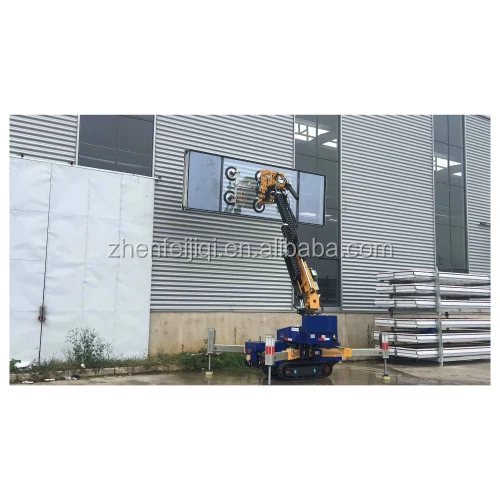

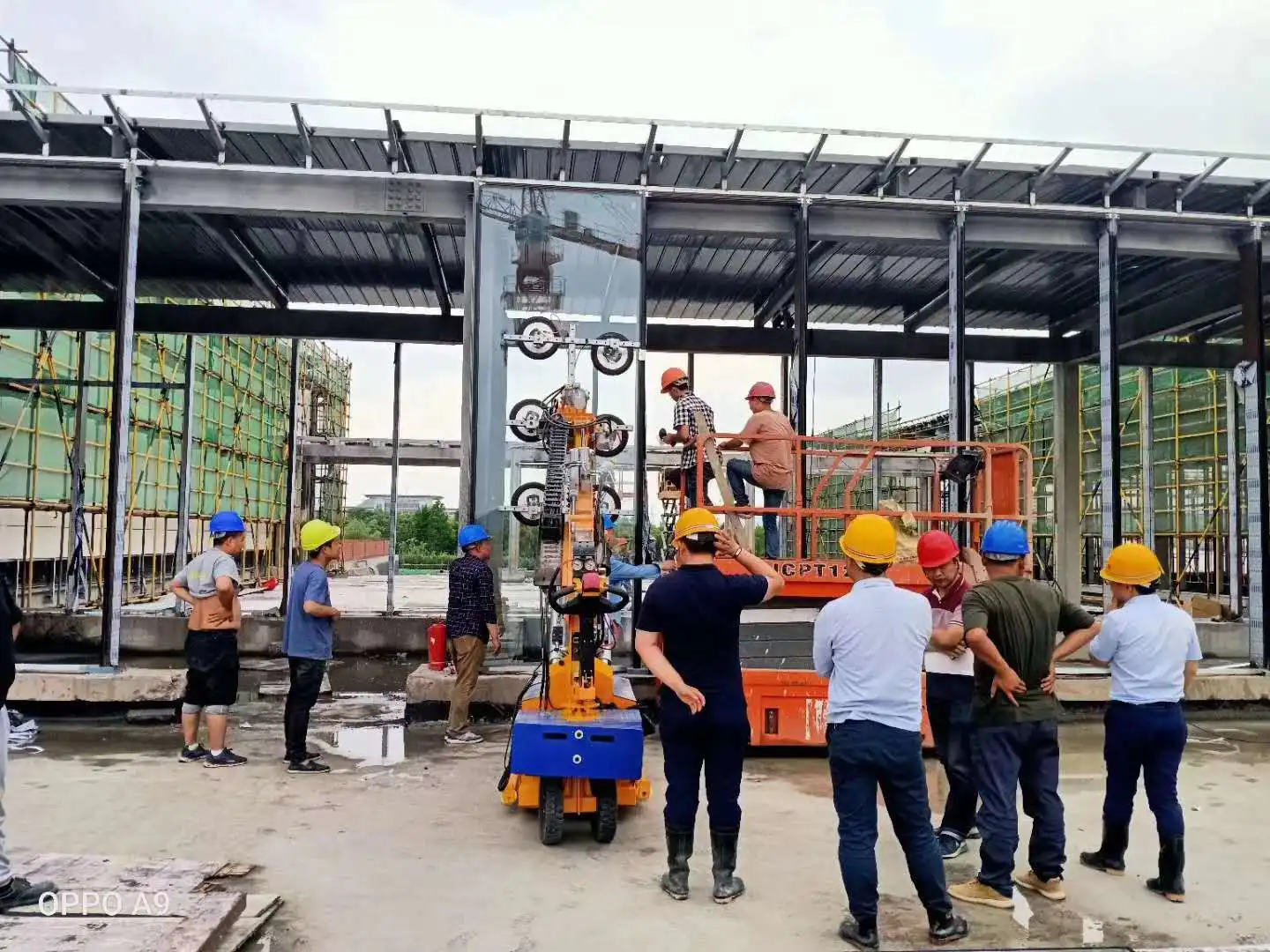

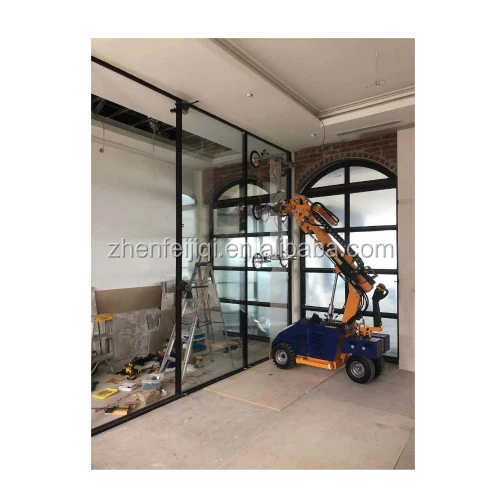

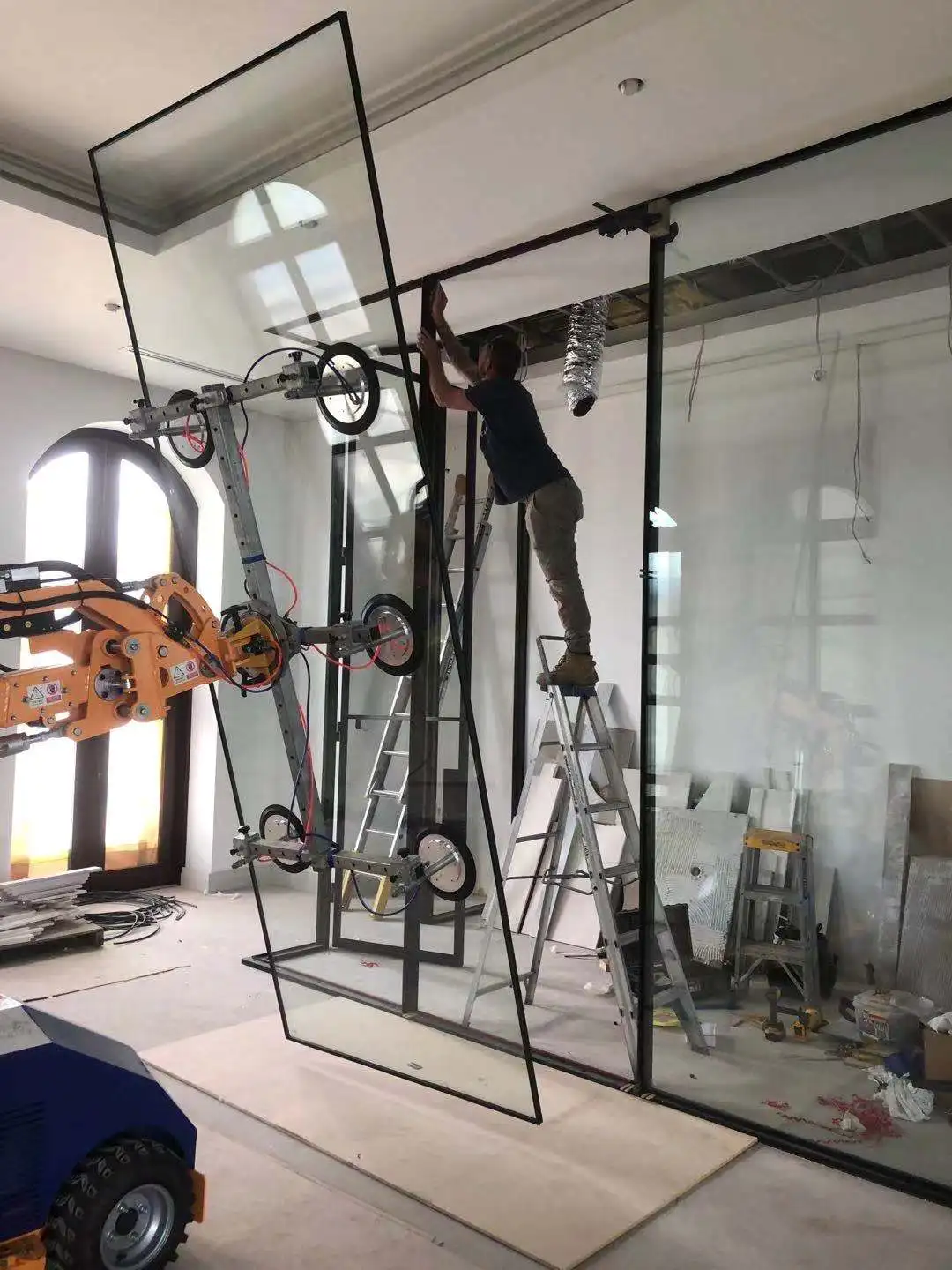

400KG/600KG/800KG Glass Robot Lifter/Glass Lifter Trolley

Product Overview

Description



400KG/600KG/800KG Glass Robot Lifter/Glass Lifter Trolley :





Main Specifications:

1. Maximum load: 400kg while the second ram back to end, 250kg while the second

    ram full extended

2. Maximum lifting height: 3500mm from ground to the center of the suction frame

3. Moving: automatically moving, speed control by manual roller sensibly

4. Lifting control: with hydraulic ram, controlled by manual mechanism valve sensibly

5. extension control: with hydraulic ram, controlled by manual mechanism valve sensibly,

    maximum extension distance 650mm, maximum extension distance from the front

    wheel to the suction pads was 1350mm( the ram in parallel with ground)

6. tilting control: with hydraulic ram, controlled by manual mechanism valve sensibly,

     the maximum tilting degree near to 125 degree

7. rotation control: By manual, with a spring lock for positioning, the maximum rotation

    was 270 degree

8. Side moving: with hydraulic ram, controlled by manual mechanism valve sensibly,

    75mm for both sides, totally 150mm

9. side turning: By manual, with a spring lock for positioning, the maximum rotation was

    180 degree, 90 degree for both sides

10. self weight: about 850kg with counterweight, 530kg without counterweight

11. Power: DC 24V

12. Driven unit: the rear wheels driven with DC motor worked as driven unit as well as

      for turning

13. Wheels: 300mm*150mm *2 solid type in front, single wheel of 250mm in rear

14. Driven unit power: DC 24V brush-less motor, .1.2KW

15. Hydraulic station power:1.2KW

16. Battery: 12V,55A*4

17. Maximum working period: about 20 Hours

18. Dimensions: pls see the drawing

19. Charging power:110-220V

20. Charging time: about 5 hours

21. Vacuum system: Dual pump and dual system

22. the suction frame sized of 1800mm(L) and 800mm(W)



















Hot Sale 400kgs Manual Nomad Glass Vaccum Lifter :



Quattro model: This model adapted hand-pump suction pads instead of powered pads.

It featured With its convenience with no power needed and detachable parts for easy

carry, its movable function help people to handle or transport glass indoors with easy,

unload glass from truck, as well as for installation indoors, the Quattro has continuous

360°rotation but without tilting.



Model	Express	Nomad
Capacity (kg)	150	400
Dia of pads (mm)	230	4 of 300mm, 1 of 230mm
Pad number	2	5
Vacuum source	Hand-pump	Hand-pump
Lifting	By hand winch	By hand winch
Moving	Manual	Manual
Rotation	Manual	Manual
Rotation degrees	Continuous 360°	Continuous 360°
Packing size	1790*600*700mm	2010*1025*740mm
Weight (G.W)	90kgs	200kgs
H.S.Code	8425110000	8425110000









Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
