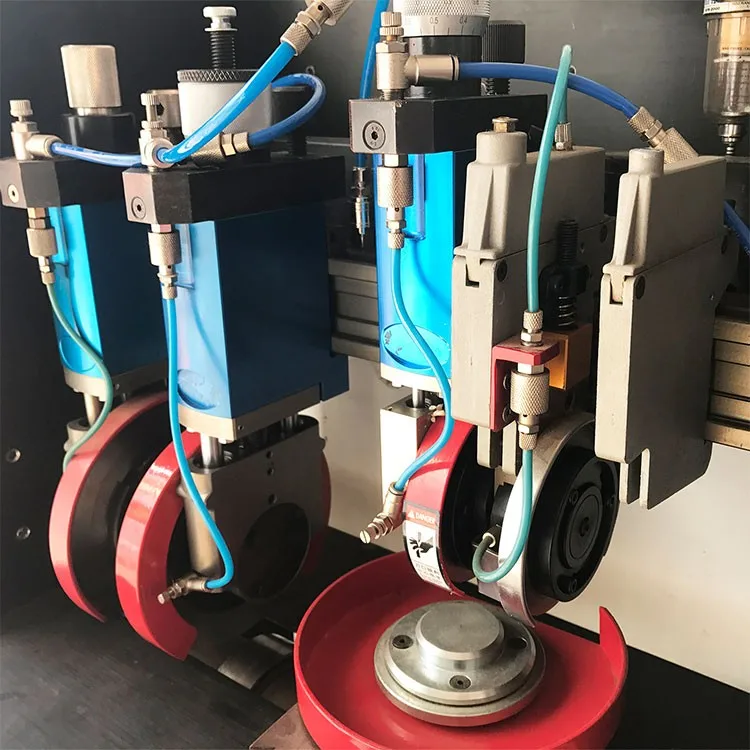

Excellent Cutting Pneumatic Shearing Tool Holder
- Category: >>>
- Supplier: Nanjing,Wanguo,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features:
1. Suitable for cutting hard thick material or high speed strip
2. Minimum width can be up to 60mm
3. Automatic pneumatic knife and knife system
4. Lower cutter depth can be adjusted separately
5. Adjustable upper and lower cutter touching angle
6. The highest speed can reach to 1200M/min
2. Minimum width can be up to 60mm
3. Automatic pneumatic knife and knife system
4. Lower cutter depth can be adjusted separately
5. Adjustable upper and lower cutter touching angle
6. The highest speed can reach to 1200M/min
Depth adjust

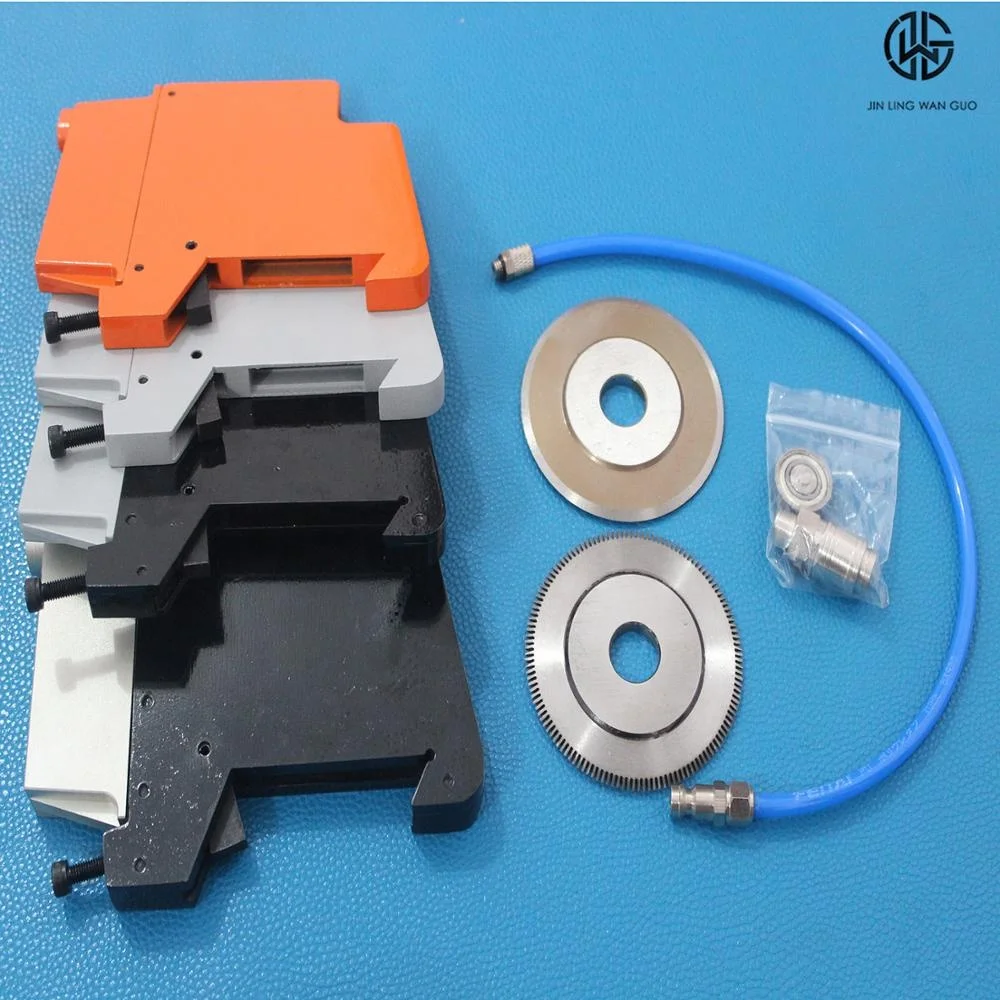

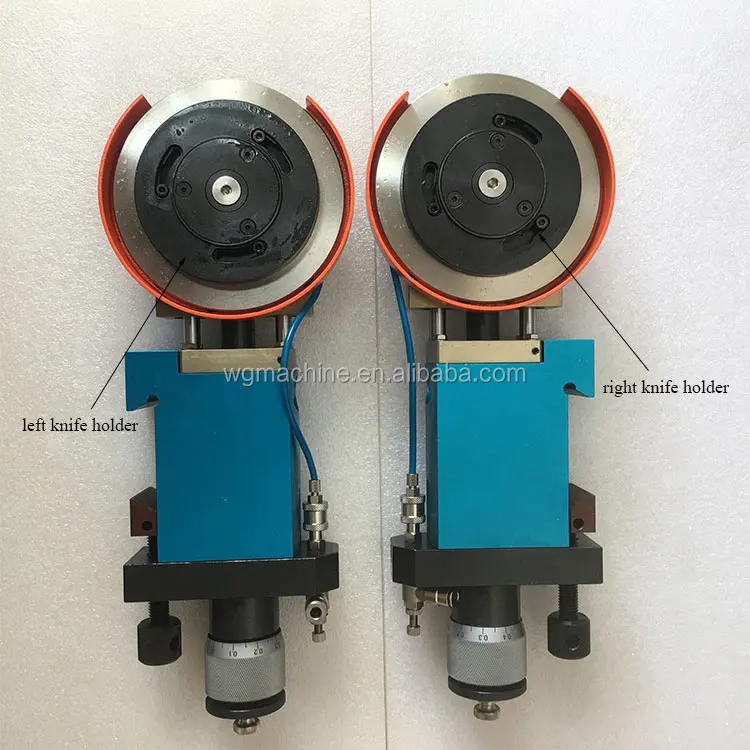

Knife-holder direction arrange
For different web path application now is more easily to adjust. Unscrew angle plate and rotate bottom knife holder for different web path direction and to get better efficiency result.
Application:
Paper: kraft paper, release paper, wallpaper, paper, sticky paper, cardboard, corrugated board, sandpaper.
Plastic film: soft PVC, hard PVC, PP, PE, ps, SBB, adhesive tape.
Cloth: non-woven cloth, synthetic leather cloth, natural cotton cloth, emery cloth, medical adhesive cloth, trademark cloth.
Foam category: foam cotton, foam cloth.
Rubber: rubber magnetic board, rubber skin.
Other products: adhesive straps and other laminating products.
Plastic film: soft PVC, hard PVC, PP, PE, ps, SBB, adhesive tape.
Cloth: non-woven cloth, synthetic leather cloth, natural cotton cloth, emery cloth, medical adhesive cloth, trademark cloth.
Foam category: foam cotton, foam cloth.
Rubber: rubber magnetic board, rubber skin.
Other products: adhesive straps and other laminating products.

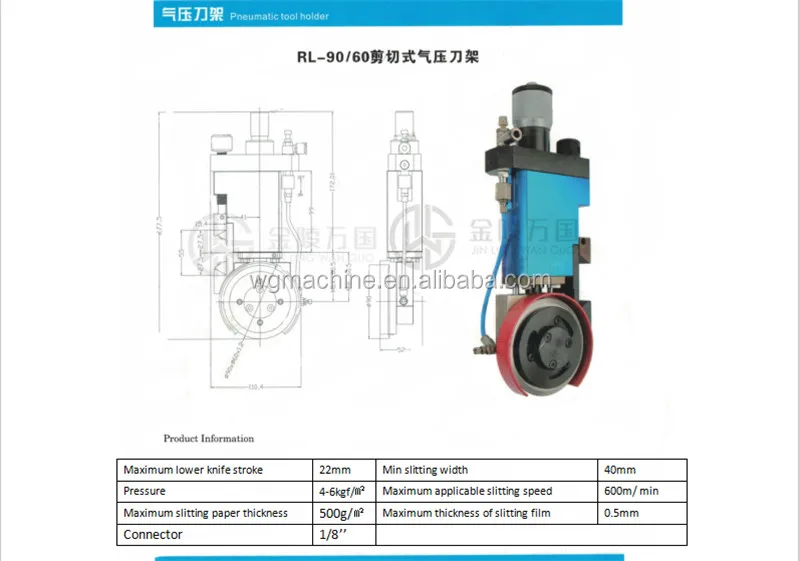

90 Type ( Blade size: 90*60*1.2MM)
90Type PNEUMATIC CUTTING TOOL HOLDERS | ||||||
Maximun knife stroke | 22mm | Minimum slit width | 40mm | |||
Knife trip | 3mm | Maximum applicable strip speed | 6000m/min | |||
Working pressure | 4-6kdm/m2 | Maximum sltting paper thickness | 500g/m2 | |||
Quick Connector | 1/8″ | Maximum sltting film thickness | 0.5mm | |||
130 Type ( Blade size: 130*80*2.5MM)
130 Type PNEUMATIC CUTTING TOOL HOLDERS | ||||||
Maximun knife stroke | 28mm | Minimum slit width | 60mm | |||
Knife trip | 3mm | Maximum applicable strip speed | 1200m/min | |||
Working pressure | 4-6kdm/m2 | Maximum sltting paper thickness | 1000g/m2 | |||
Quick Connector | 1/8″ | Maximum sltting film thickness | 1.5mm | |||

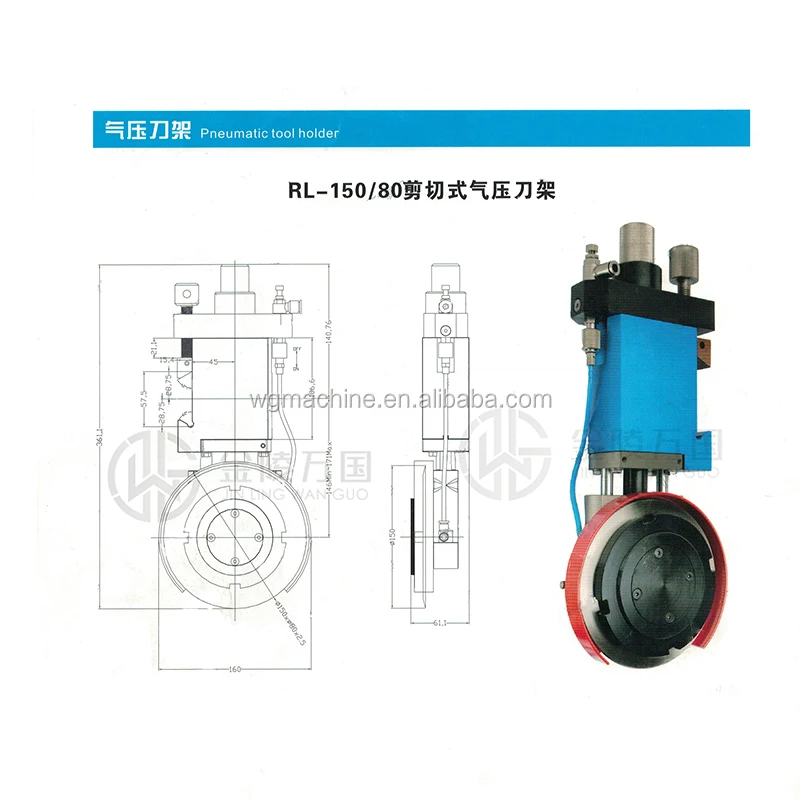

150 Type ( Blade size: 150*80*2.5MM)
150 Type PNEUMATIC CUTTING TOOL HOLDERS | ||||||
Maximun knife stroke | 30mm | Minimum slit width | 60mm | |||
Knife trip | 3mm | Maximum applicable strip speed | 1500m/min | |||
Working pressure | 4-6kdm/m2 | Maximum sltting paper thickness | 1000g/m2 | |||
Quick Connector | 1/8″ | Maximum sltting film thickness | 2mm | |||

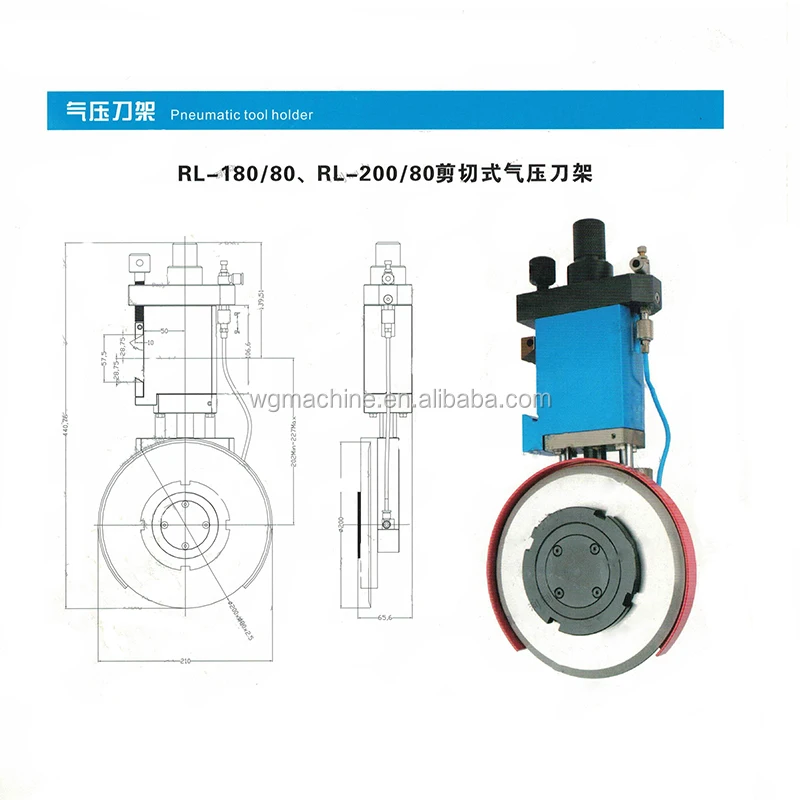

150 Type ( Blade size: 200*80*2.5MM)
150 Type PNEUMATIC CUTTING TOOL HOLDERS | ||||||
Maximun knife stroke | 32mm | Minimum slit width | 65mm | |||
Knife trip | 3mm | Maximum applicable strip speed | 1800m/min | |||
Working pressure | 4-6kdm/m2 | Maximum sltting paper thickness | 2000g/m2 | |||
Quick Connector | 1/8″ | Maximum sltting film thickness | 3mm | |||
Our Company

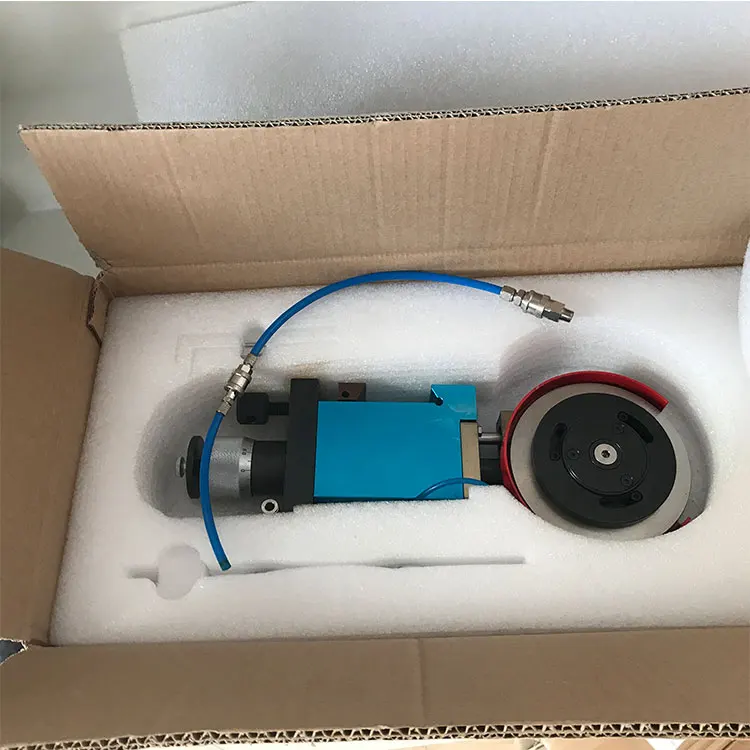

Packing & Delivery
