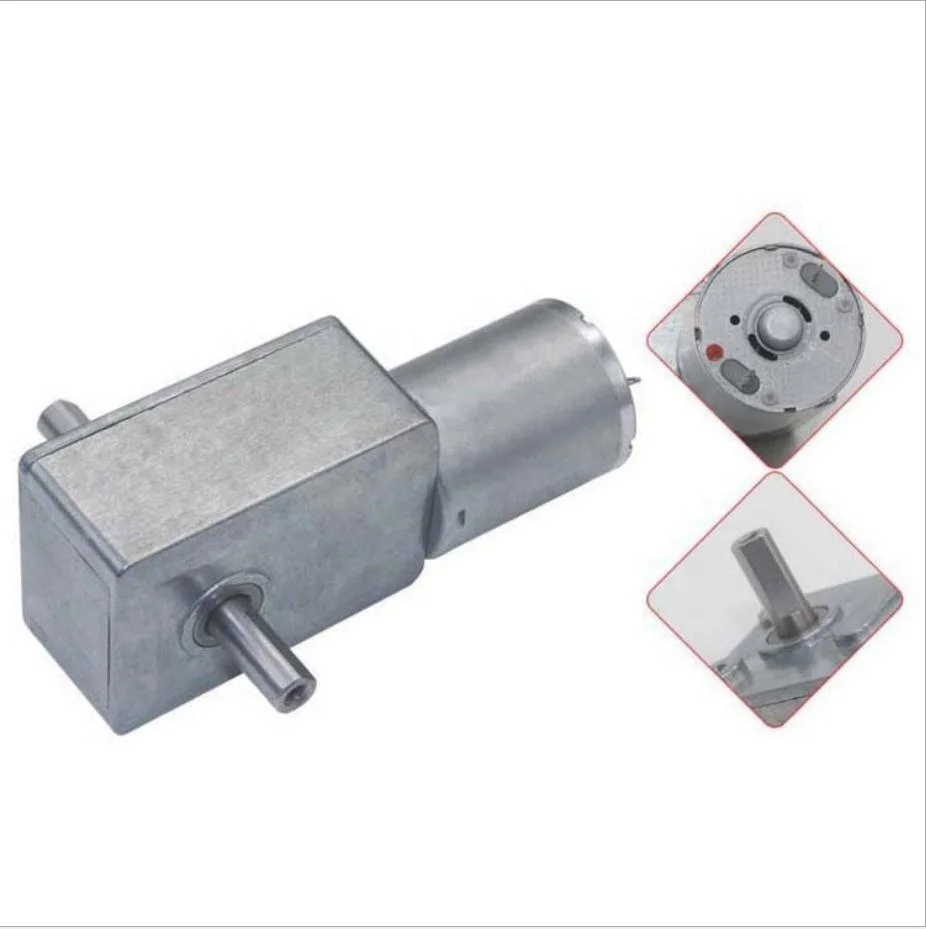

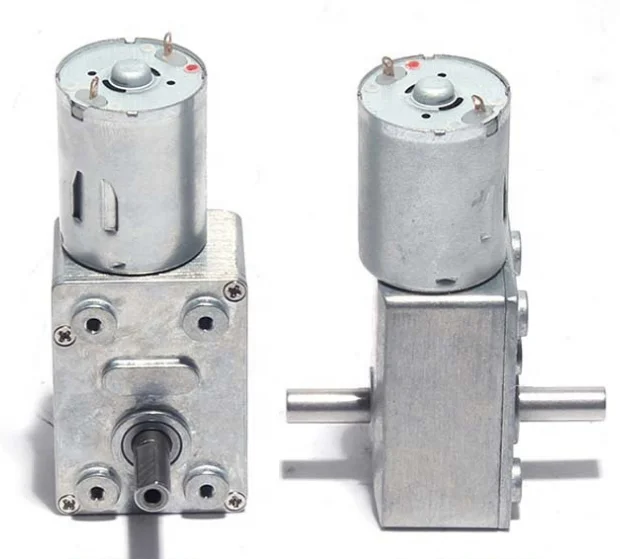

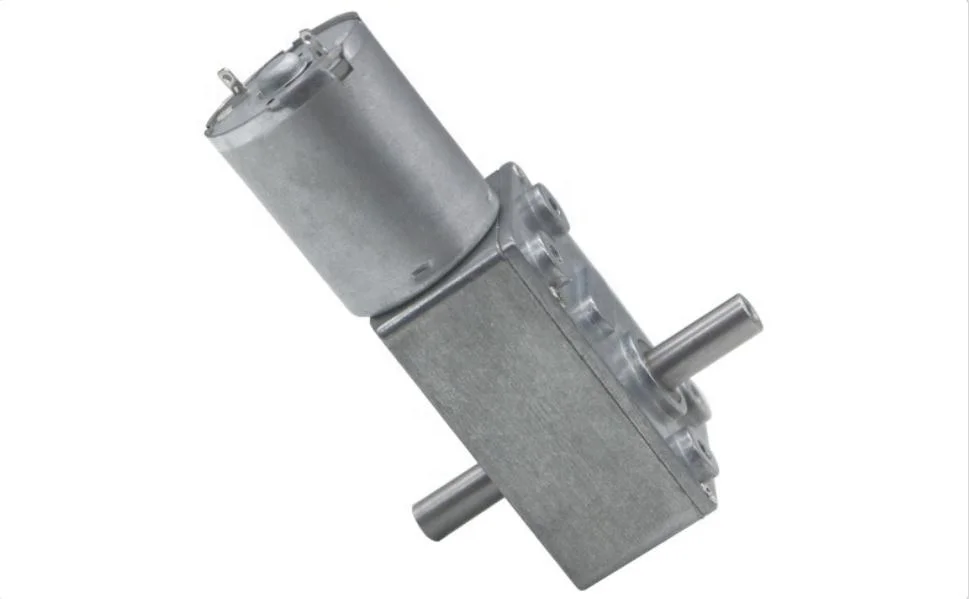

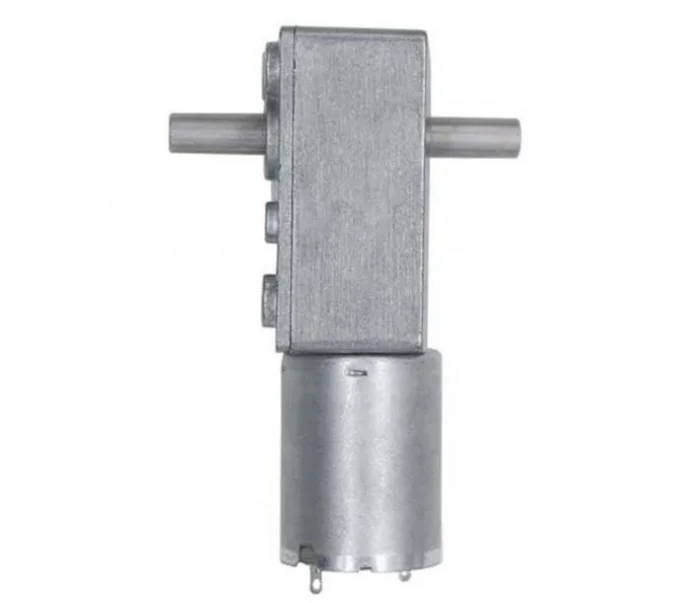

DC 100RPM Speed Double Shaft Reducer High Torque DC Worm Geared Box Motor 370
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62509821976):
Product Overview
Description
Product Description
DOOR LOCK GEAR MOTOR
Main voltage: 6VDC 12VDC 24VDC
Voltage range: 3v-24v
Maximum power: 12W
Output shaft: conventional short shaft, long shaft, screw rod M6, double output shaft and other customized.
Deceleration ratio: 52,65,801121581802002553375641019 (the maximum speed ratio can be 1019:1, 2rpm / min)
No load speed: 2 RPM ~ 115rpm
Typical application:
Automatic fingerprint lock motor, password lock deceleration motor, window opener, door opener, micro winch,
face recognition lock motor, medical equipment, household appliances, mechanical equipment, lifting equipment,
kitchen equipment, robot, intelligent toy, etc.
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | |||||
| Rated | SPEED | CURRENT | SPEED | CURRENT | OUTPUT | TORQUE | TORQUE | CURRENT | |
| V | r/min | mA | r/min | mA | W | Kgf.cm | Kgf.cm | mA | |
46GF69-370 | 12 | 120 | 60 | 101 | 300 | 3 | 0.38 | 2.5 | 1.7 |
46GF100-370 | 12 | 65 | 60 | 45 | 300 | 3 | 0.75 | 3.0 | 1.7 |
| 46GF180-370 | 12 | 45 | 60 | 36 | 300 | 3 | 1.13 | 6.0 | 1.7 |
| 46GF330-370 | 24 | 24 | 40 | 18 | 300 | 12 | 4.10 | 12.5 | 0.9 |
| 46GF950-370 | 24 | 9 | 40 | 7 | 220 | 12 | 11.5 | 42.0 | 0.9 |
46GF69-370 | 12 | 120 | 60 | 101 | 300 | 3 | 0.38 | 2.5 | 1.7 |
| 46GF100-370 | 12 | 65 | 60 | 45 | 300 | 3 | 0.75 | 3.0 | 1.7 |

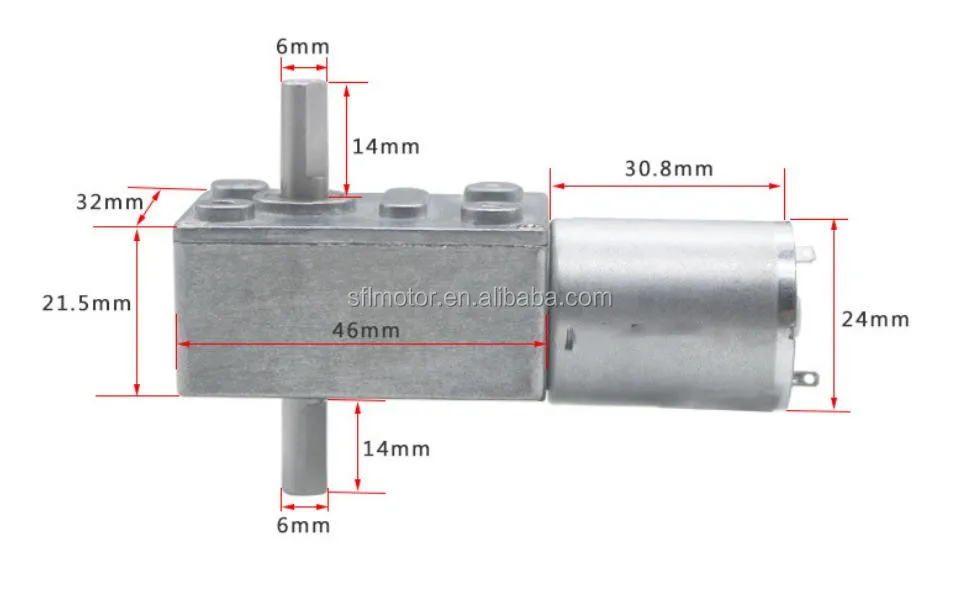

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
