Product Overview
Description
Multicast MPTS SPTS ASI IP to RF modulator COL5011N
Input: IP ASI (optional or hybrid)
Output: DVB-C/DVB-T/ATSC-T/ISDB-T (Co-exist,work at one standard)
product description
Outline

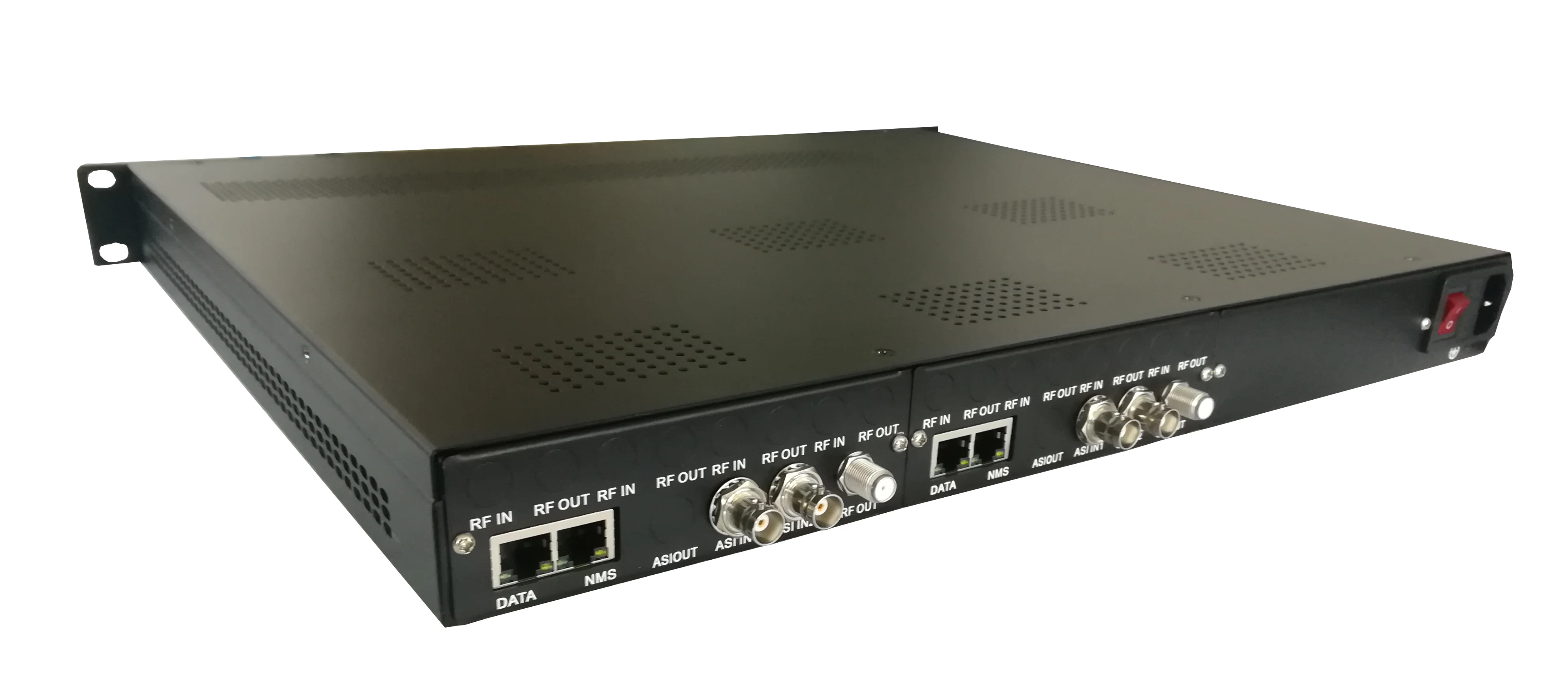

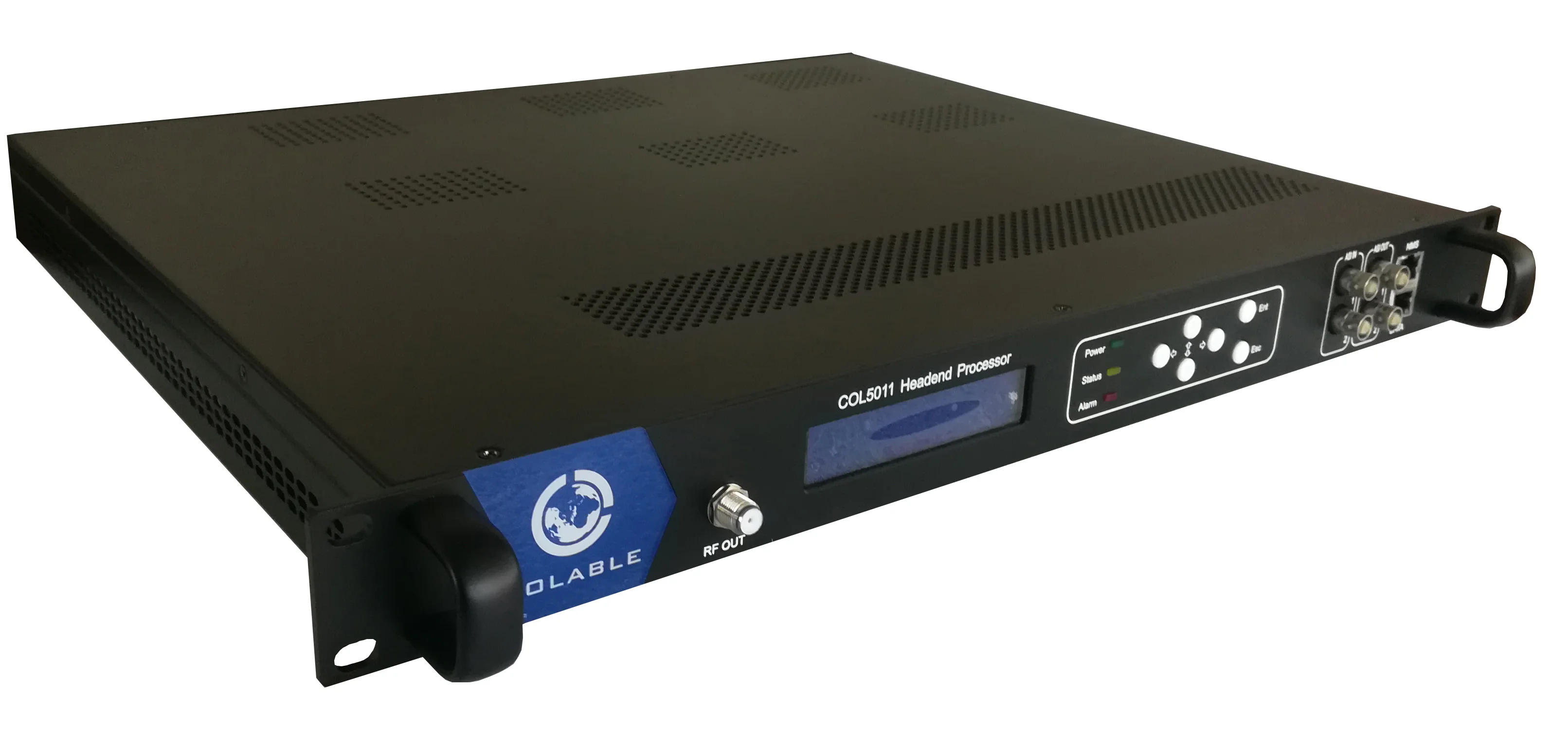

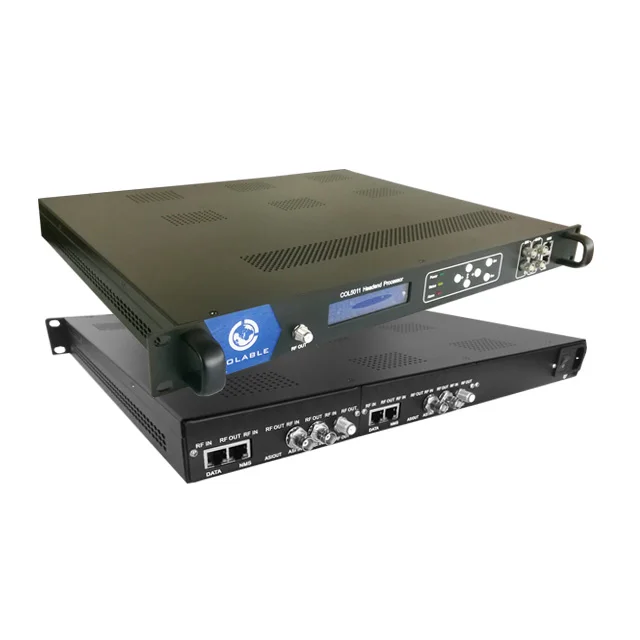

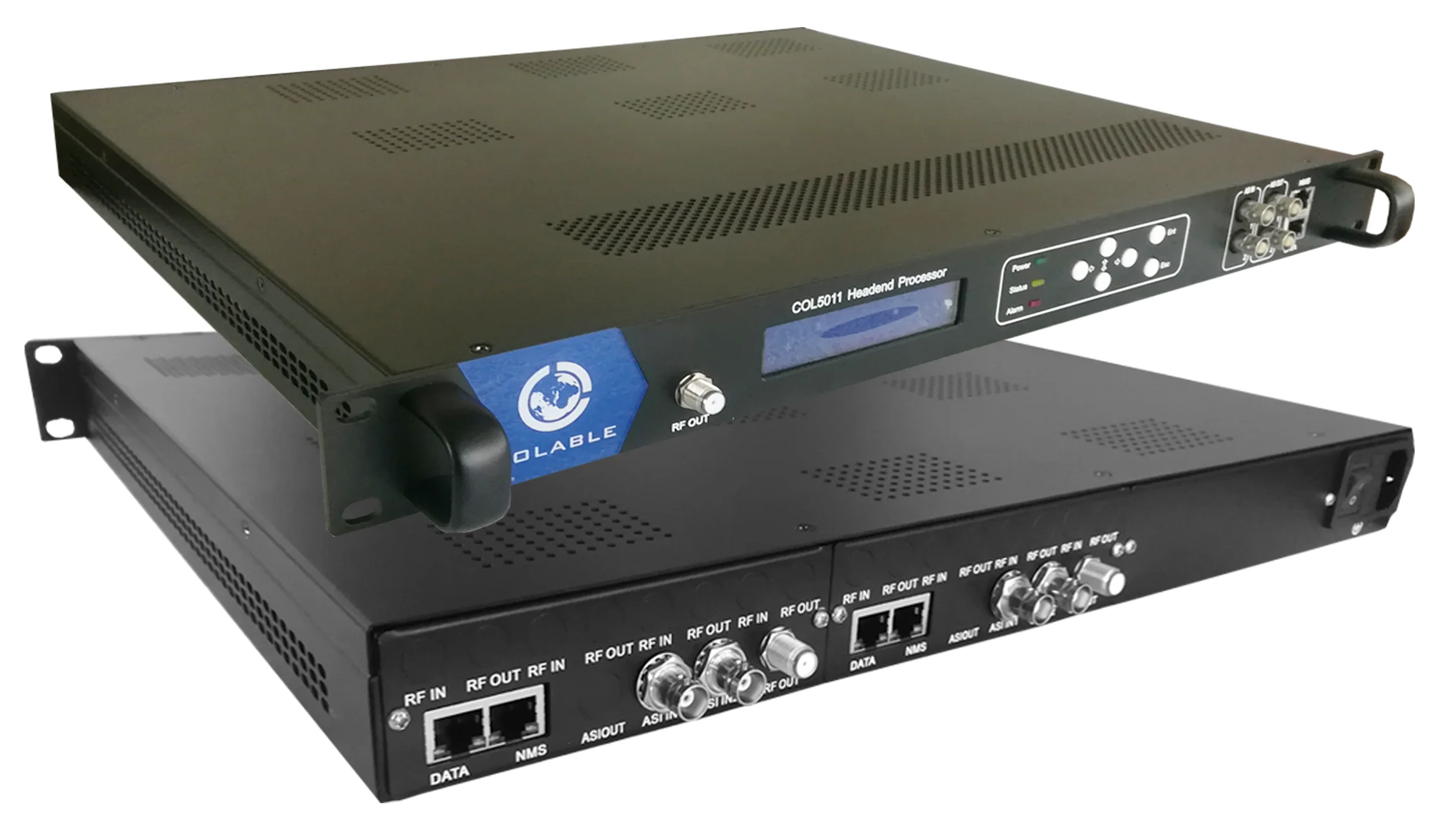

COL5011N IP to DVB-T /ISDB/ATSC Modulator is the new generation of intelligent head-end equipment. This 1U chassis includes 2ASI and IP input, 8 carriers out supporting DVB-C/T/ISDB-T/ATSC. Meanwhile this device supports 6 independent modulation module slots, and each module can be configured individually based on 4 carriers (DVB-C/T/ISDB-T/ATSC ). This product will be widely used in new generation digital TV system with most cost effective proposal.
Main Features
ü Support up to 6 modules
ü Support 2 ASI output
ü Support 2 ASI input
ü Support 1 GE bi-direction(Data port), RJ45 interface
ü Support 1 RF output based on 4CH (optional)
ü Support Web management, Updates via web
Specification
Module Specifications

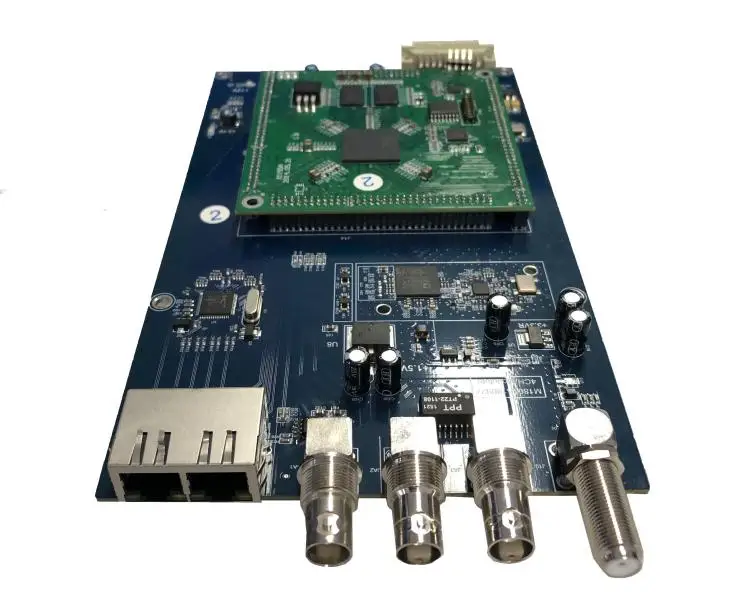

4CH Modulating Module
(support following multiple modulations meantime) (M)
Interface:1GE bi-direction Data port,NMS port, 2ASI input,1 ASI output, 1RF output
DVB-C modulation
Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40db
RF frequency: 50~960MHz, 1KHz step
RF output level: 0~+10dbm (87~117 dbµV), 0.1db step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
DVB-T modulation
Standard: ETSI EN300 744 MER: ≥40db
RF Frequency: 50~960MHz, 1KHz step
Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output Level: 0~+10dbm (for all carriers), 0.1db stepping
ISDB-T modulation
Standard: ARIB STD-B31
Bandwidth: 6M Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: 0dBm~+10dBm (87~117dbµV), 0.1dB stepping
ATSC-T modulation
Standard: ATSC A/53 MER: ≥40db RF Frequency: 50~960MHz, 1KHz step
Constellation: 8VSB Bandwidth: 6MHz FEC: RS(208 188)+Trellis
RF Output Level: 0~+10dbm (for all carriers), 0.1db stepping
Latest hot products
Packaging & Shipping
Packing for IP to RF ISDB-T Modulator
With some accessories Cable. Power cord and User Manual. One unit for one carton, Export Carton with foam
Delivery for IP to ISDB-T Modulator
Sample or small quantity, we suggest Express, such as Fedex, UPS, DHL, EMS etc.
If bulk order, we suggest you by air transport or by sea.
If bulk order, we suggest you by air transport or by sea.
Package Size: 57*54*15 cm Weight by Demension:9 KG Gross Physical Weight: 8 kg
Remark: we can check freight for your reference, also support freight collected at your side if you have courier account.
Why choose us?
Colable Electronics Co.,Ltd
We specialize in Digital TV broadcasting equipment for more than 15 years, and experienced in Digital
Cable/Satellite/ Terrestrial tv broadcasting solution and IPTV system, If you have any questions and ideas,
please don't hesitate to contact us!
Our experience: Continuous experienced and reliable R&D team , Engaged in DVB Head-end
system solution more than 15 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer
,Scrambler, Modulator, Encoder Modulator ,Tuner to ip gateway ,Tuner to RF modulator, Transmitter,Antenna,Set top box .
Our service: Life-long Technical support.
Warranty: 1 years ,free repair for headend in 3 years.
Lead time: 2-5 working days after payment confirmed
