BY682 High precision Survey GPS/GLONASS/BDS/GALILEO multi-system RTK GNSS ANTENNA with CE
BY682 High precision Survey GPS/GLONASS/BDS/GALILEO multi-system RTK GNSS ANTENNA with CE
BY682 High precision Survey GPS/GLONASS/BDS/GALILEO multi-system RTK GNSS ANTENNA with CE
Product Description

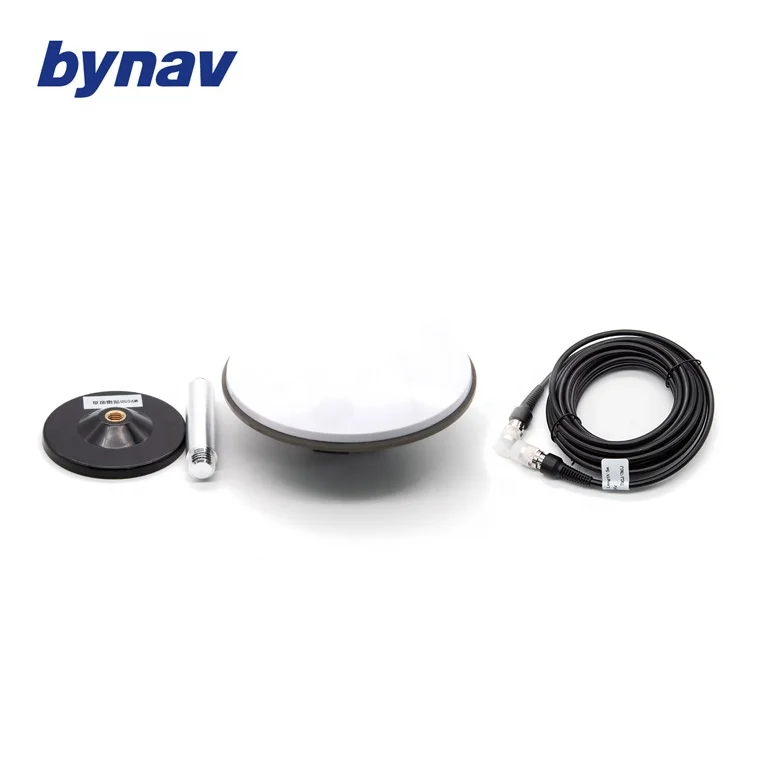

BY682 Antenna is a high precision GNSS antenna suitable for surveying, mapping, CORS, deformation monitoring etc.
Item
Specifications
Antenna
Frequency
GPS L1/L2
GLONASS G1/G2
BDS B1/B2/B3
GALILEO E5b/E6
Polarization
RHCP
Axial Ratio
≤3dB
V.S.W.R
≤1.5
Peak Gain
≥5dBi
Impedance
50Ω
Horizontal Coverage Angle
360°
LNA
Gain
40±2dB
Noise Figure
≤2.0
Supply Voltage
3.3~12V DC
Current Consumption
≤45mA
V.S.W.R
≤2.0
Mechanical
Connector
TNC-K
Radome Material
ABS
Mounting method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Storage temperature
-40℃~+85℃
Relative Humidity
Up to 95% (Non condensing)
Environmentally friendly
RoHS
Ingress Protection
IP67
Company Information
Bynav is a leading high precision GNSS core components manufacturer, the R&D team is originated from Chinese BeiDou Satellite System construction main force and won over 30 patents and 4 National Progress Awards. With GNSS signal processing algorithm, RTK algorithm and multi-source fusion algorithm, the company has produced a series of products such as GNSS ASIC, GNSS OEM board, receivers and GNSS/INS system.
Packaging & Shipping
Packing details: 1, Standard packing: 1pc/polybag, and shipped out in carton. 2, Per buyer's request.
Delivery details: 1, Sample lead time: within 7 days upon receipt of your payment. 2, Shipment terms: we can shipp out by DHL/TNT/UPSFedex/EMS/Aramex, or per buyer's request.
Our Services
Please get in touch with us by leaving a message here, we will contact you soon.
We provide fast response and strong technical support for every customer.
