Wifi Modbus Rtu Dtu Module Modem for data collector transmission

 WEC-71161 wireless data collector DTU(WIFI) is developed and made by our company which can collect data of 32 meters in maximum. Data collector DTU reads meter’s data through its RS485 communication and uploads the data to the server through the wireless network(WIFI) to achieve the effect of remote monitoring. The data collector can receive commands from server and perform related operations.

This product uses high performance industrial grade wireless communication module (WIFI) and has RS485 interface. The product bears features of high reliability, stable performance, long service life, small volume, light weight, low power consumption and easy operation, etc. It is widely used in electricity measurement and electricity utilization auto management sector of communication industry.

Functions

1. Data collection

    Through the RS485 interface, various data of electricity meters can be collected in real time with time scale, including voltage, current, active power, reactive power, active power, reactive power, power factors, etc.

2. Data storage

    It supports the storage of electricity meter frozen power data for 31 days and frozen power data for 12 months.

3. Data upload

    Use wireless public network to upload the collected electricity meter data. Wireless transmission Wifi.

4. Maintenance and debugging

    Through the RS485 interface, the local parameter setting and maintenance debugging can be realized

5. Remote time calibration

    Support for remote time calibration through the system platform

6. Fault monitoring

    Support monitoring equipment failure and abnormal event of electricity meter and report in time.

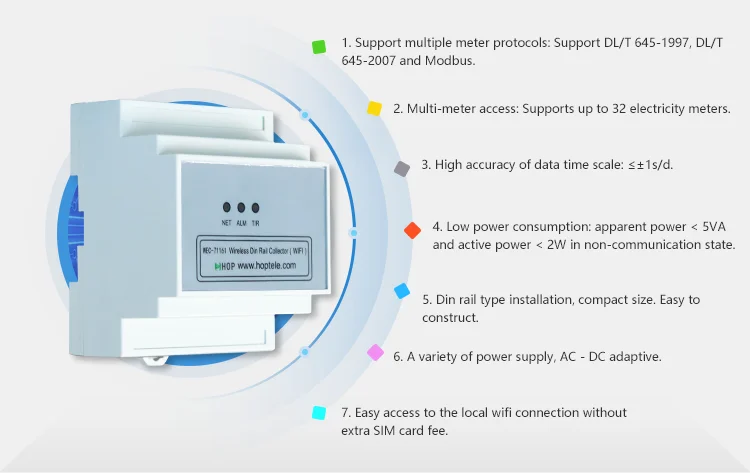

Features & Advantages

1.Support multiple meter protocols: Support DL/T 645-1997, DL/T 645-2007 and Modbus.

2.Multi-meter access: Supports up to 32 electricity meters.

3.High accuracy of data time scale: ≤±1s/d.

4.Low power consumption: apparent power < 5VA and active power < 2W in non-communication state.

5.Din rail type installation, compact size. Easy to construct.

6.A variety of power supply, AC - DC adaptive.

7.Easy access to the local wifi connection without extra SIM card fee.

System Diagram

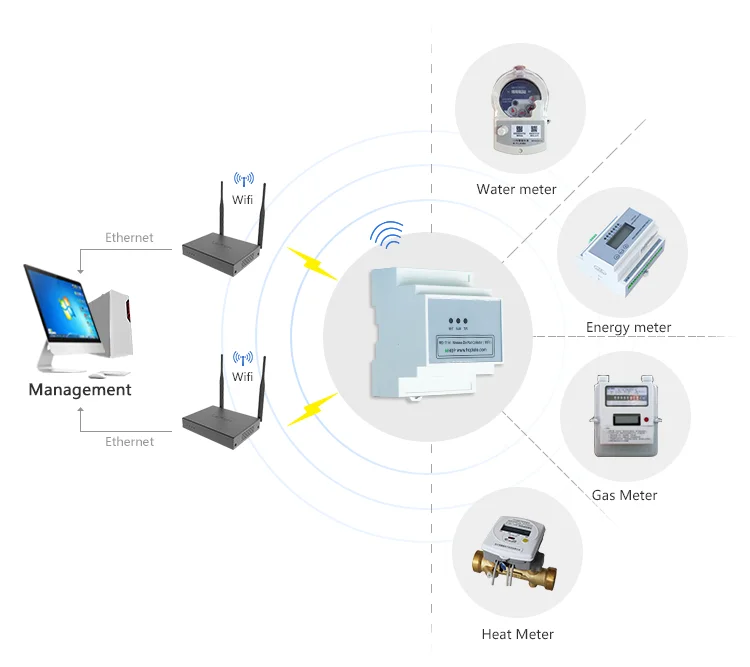

The WIFI DTU can collect data from a variety of base meters and transmit the data directly to the server platform via wifi. One DTU can manage up to 32 circuits in total.

Parameters

It is mainly used in electric power centralized meter reading, water meter centralized meter reading, heat network monitoring, gas monitoring, water conservancy monitoring, environmental monitoring, oil monitoring, security monitoring, meteorological monitoring, earthquake monitoring and other industries.

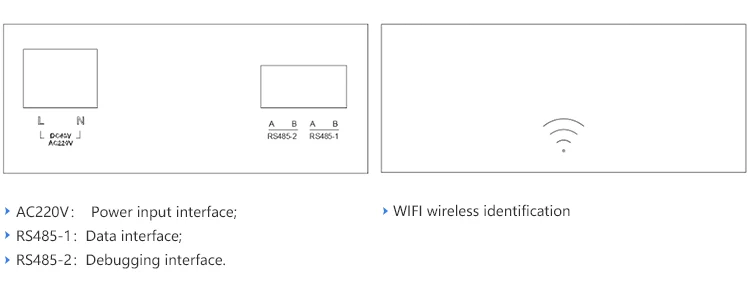

Interface Specification

Since the foundation in 2012, Hop Technology is a professional energy management solution provider and energy saving device manufacturer, including smart energy meters, energy management software. Together with the mother company Guangzhou Super Telecom Co., Ltd., Hop has been leading the NB-IoT smart energy management industry in telecommunication and other fields.

What We Offer

• Smart Energy Management Platform
• Smart Energy Meter
• RTU/DTU (Data Collector)
• OEM/ODM services are available

Manufacturing Facility

1.500 employees with specialized R&D team of 100+ members.

2.Production capacity of 12,000,000pcs per year.

3.3000m² cleaning room with 4 automatic production lines in strict accordance with 6S standards.

4.32 meter runs (for aging test), 30 meter calibration test benches.

5.8 drying rooms with high temperature electrified aging equipment for reliability & environmental test.

6.Advanced production and test equipment:

       * SMT equip.; Reflow Oven & Wave Soldering equip.; Automatic Winder; Automatic Molding machine; Automatic Rubber Packing equip.; Automatic Shaping equip.

       * Automatic Optic Inspection (AOI) equip.; Functional Circuit Test (FCT); EMI/EMC test equip.; Programmable Temperature & Humidity Chamber; Shock Vibration Test equip.; Magnetic Field Influence Test equip.

Quality Control

HOP uses the finest materials on all smart energy meter, DTU (Data Collector), CT/Hall Sensor, etc. which endures a series of inspection and testing procedures in our high-level quality control system.

HOP has always had well-established, written practices and procedures assuring complete product integrity throughout all stages of design, manufacture, test and inspection. ISO 9001 quality system certification of HOP Technology further assures you of consistent and reliable products. The ISO 9001 certification emphasizes the company's commitment to provide our customers with the highest quality electricity energy meters, DTU/RTU, CT/Hall Sensor, etc.

Q: Can the data collector DTU panel directly reflect the current working state of the device?

A: Yes, there are three status indicators on the collector panel, namely the network status indicator, the platform server connection status indicator and the meter data reading indicator.

Q: Can the DTU collect metering data in the gas meter or water meter?

A: Yes, it is compatible with modbus gas or water meters.

Q: When the network is abnormal, will the data be lost?

A: No, we designed a memory chip that can store 2-12 months’ meter data.

Q: Do you have APP for the data collector. The DTU/RTU?

A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.

Q: Can you put our logo on the smart energy meter, DTU and software?

A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
