Yanbixin производитель YX81G2 220V 10A 30A 40A электронный пассивный трехфазный выходной инвертор EMC фильтр
- Category: Filters >>>
- Supplier: Shenzhen Yanbixin Technology Co. Ltd.
Share on (62510203392):
Product Overview
Description
Yanbixin Manufacturer YX81G2 220V 10A 30A 40A Electronic Passive Three Phase Output Inverter EMC Filter
Product Description
Specification
Item | Low Pass EMI Filter |
Model | Low Pass EMI Filter -YX81G2 |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 380V/440V |
Rated Current | 1A-100A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 1450VDC |
Line to Ground | 2250VDC or 2000VAC |
Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max |
MOQ | 5pcs |
Price | USD60~80/Meter |
Lead Time | 5~15 weekday for Low Pass EMI Filter |

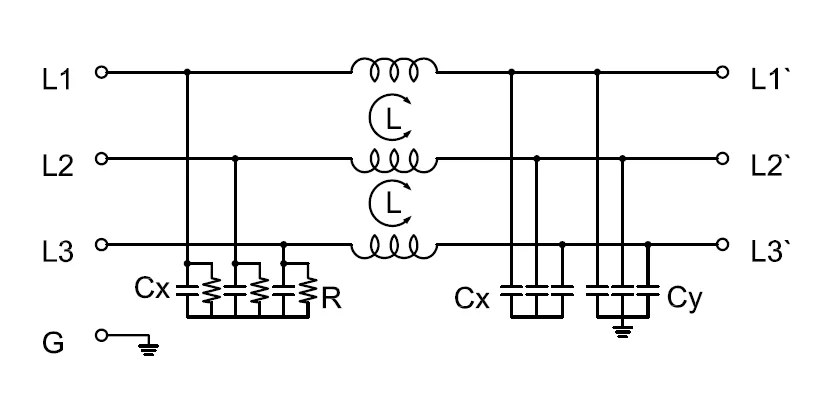

Electrical schematic

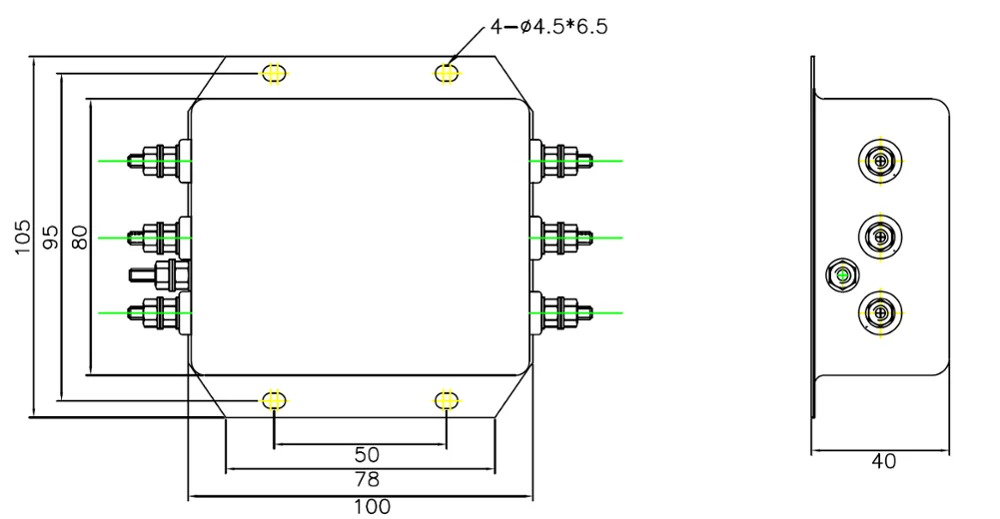

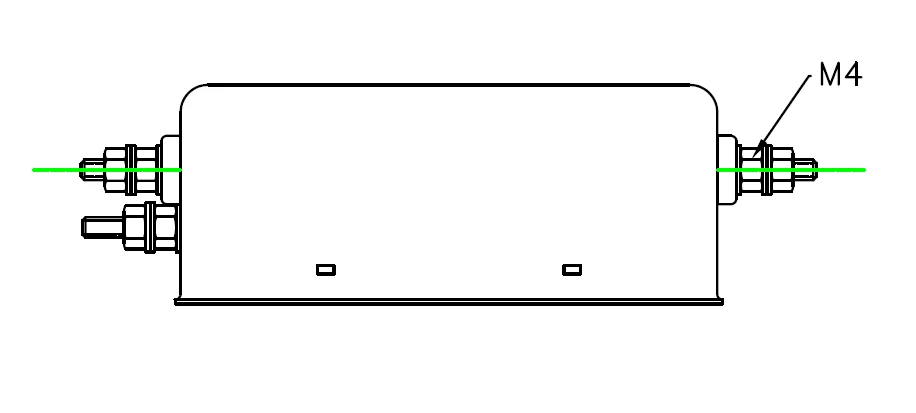

Outline dimension drawing

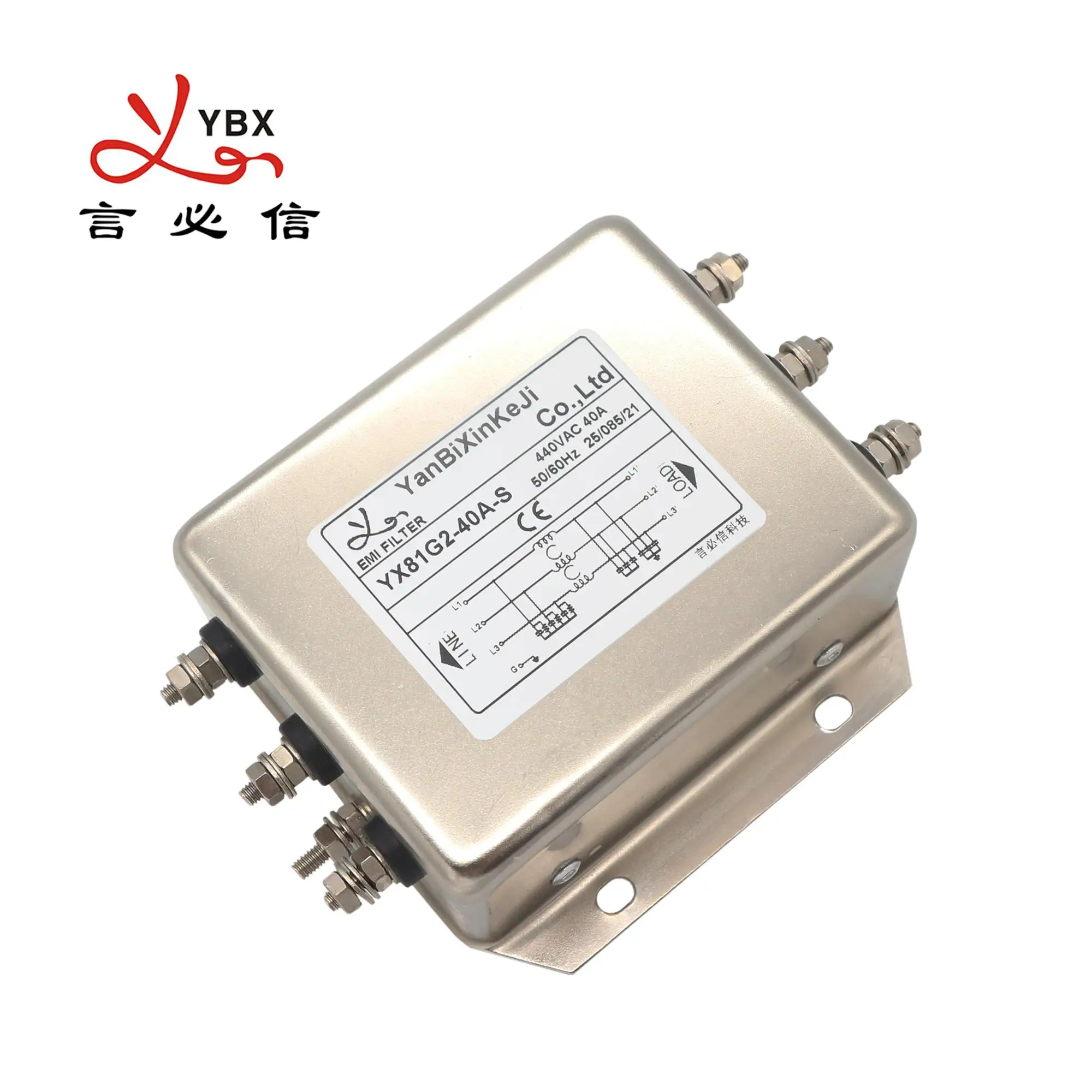

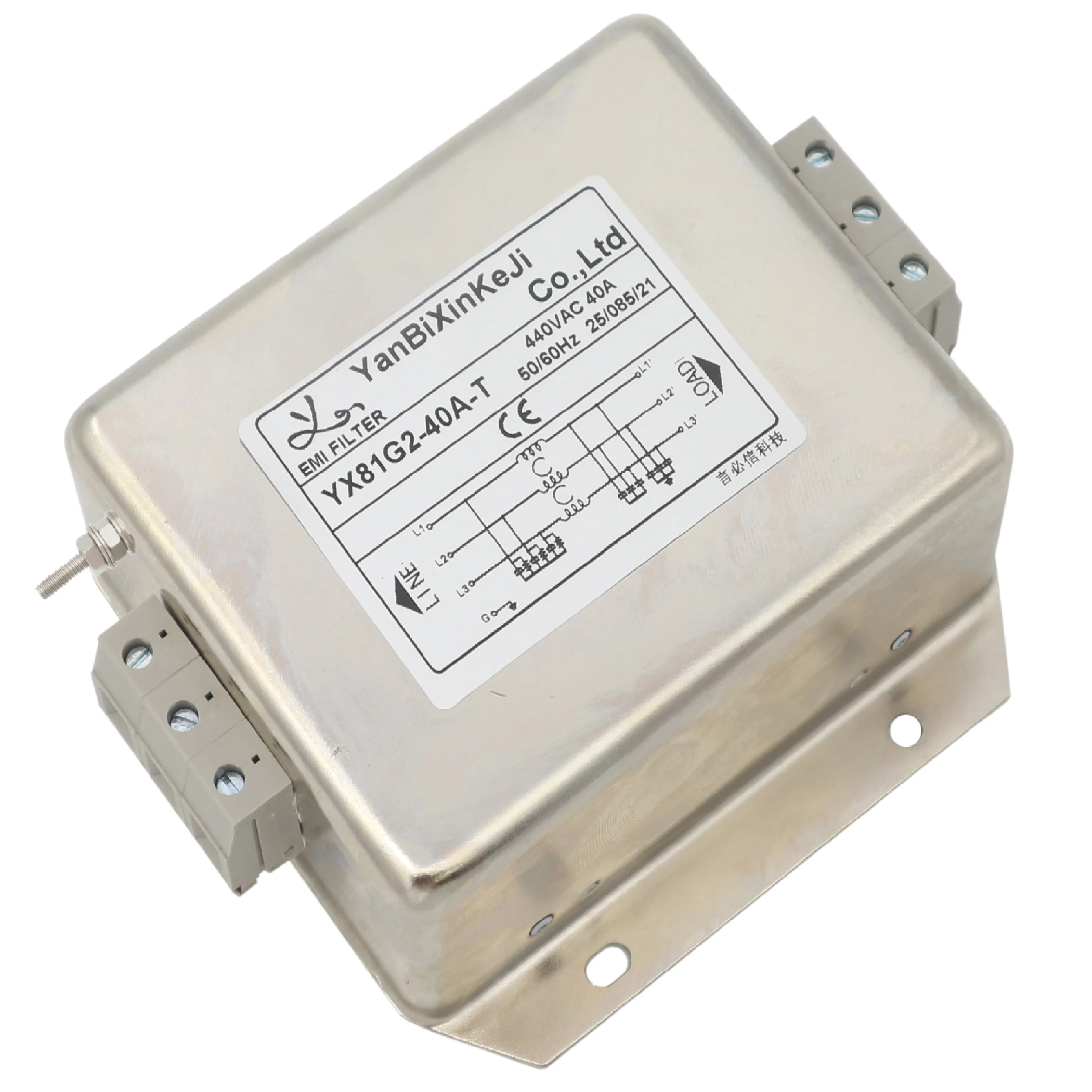

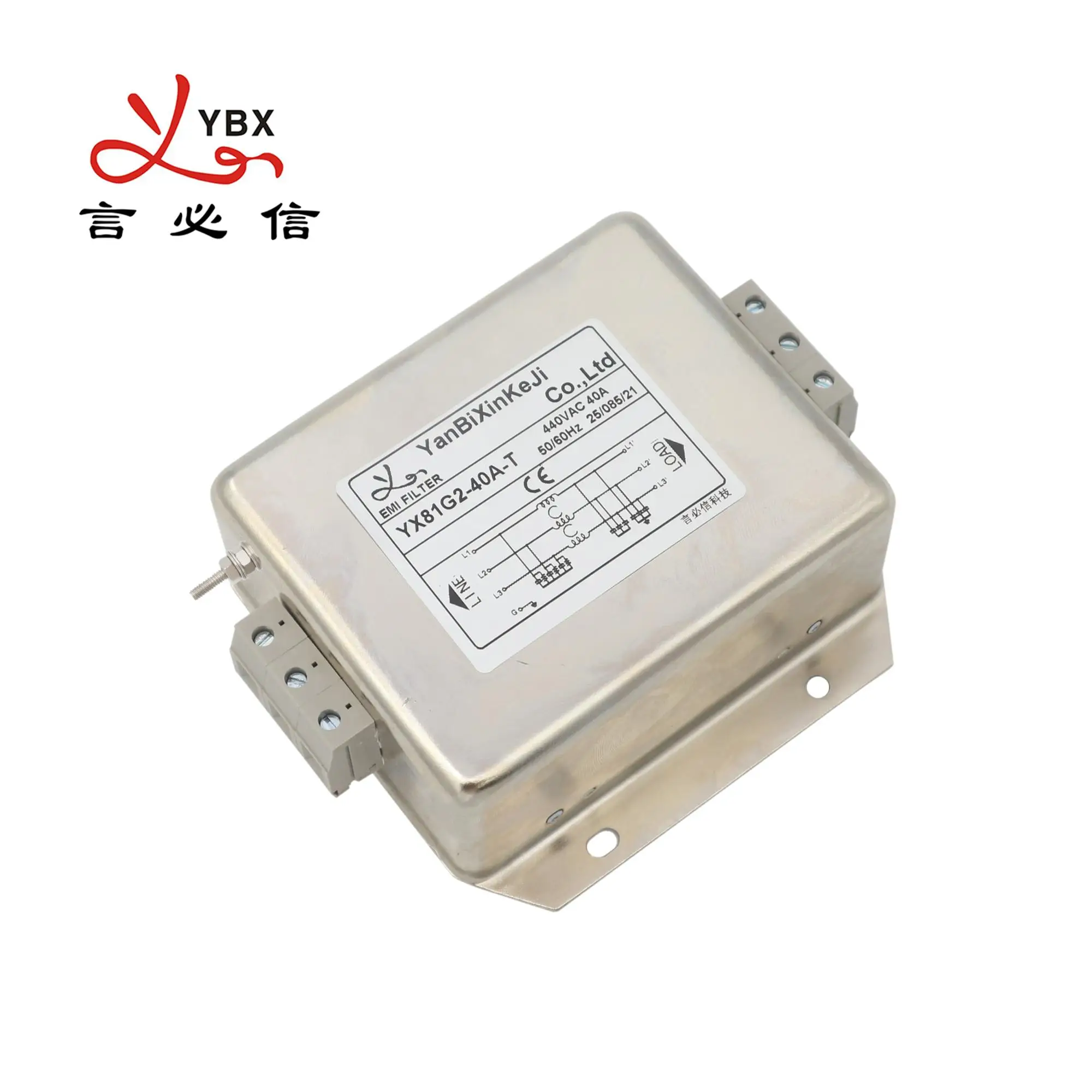

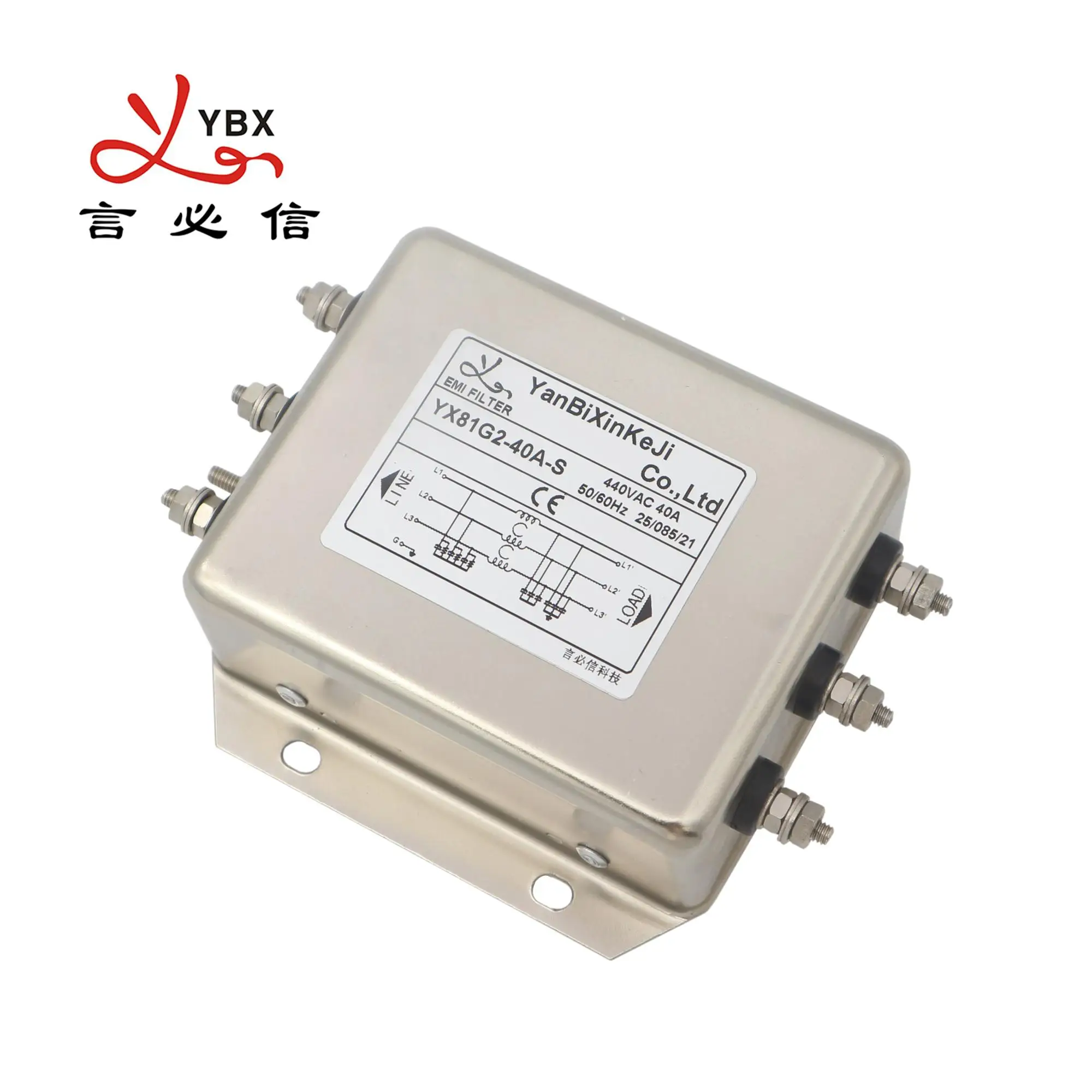

Pictures
Our Company
1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and
we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,
fast delivery! Free replacement within three months, free maintenance within six years,
life-long maintenance!
Working Environment
The Exhibitions
Our Certificates
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Our service
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
Packaging and Shipping
Packaging
Power Line Filter: CTN/300pcs
N/G W.: 13.5/14.3KG
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
