  • Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4 колесный скейтборд Электрический вилочный погрузчик
Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4 колесный скейтборд Электрический вилочный погрузчик
Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4-колесный скейтборд Электрический вилочный погрузчик
Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4-колесный скейтборд Электрический вилочный погрузчик
Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4-колесный скейтборд Электрический вилочный погрузчик
Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4-колесный скейтборд Электрический вилочный погрузчик

Шилин 1500/3000/3500kgs 1,5 t 3 т 3,5 3300/6600/7700lbs 4 колесный скейтборд Электрический вилочный погрузчик

Share on (62510609453):


Price:

Quantity:


Product Overview

Description

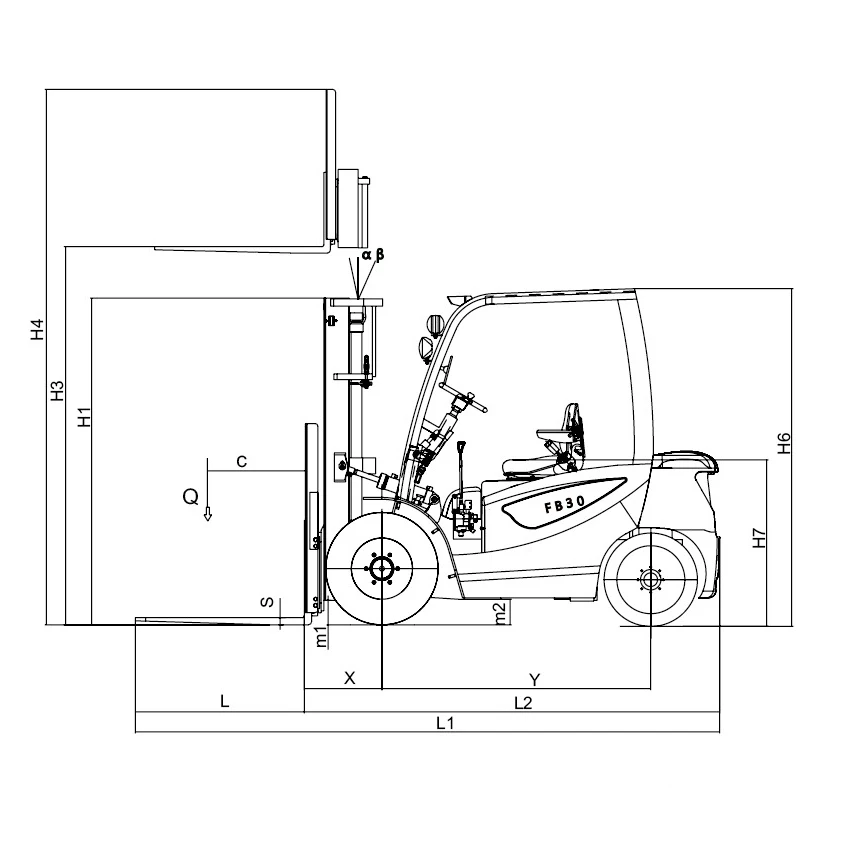

Model
FB15
FB30
FB35
Capacity/rated load
Q(kg)
1500
3000
3500
Load centre distance
c(mm)
500
500
500
Lift height
h3(mm)
3000-6000
3000-7000
3000-7000
Load distance,centre of drive axle to fork
x(mm)
395
493
498
Wheelbase
Y(mm)
1300
1700
1700
Service weight(with battery)
kg
3080
4750
5050
Axle loading,laden front/rear
kg
4030/550
7000/750
7750/800
Axle loading,unladen front/rear
kg
1232/1848
2250/2500
2250/2800
Height,mast lowered
h1(mm)
2015-2610
2060-3670
2060-3670
Free lift
h2(mm)
0-180
0
0
Height,mast extended
h4(mm)
4067-7067
4250-8250
4280-8250
Height of overhead guard(cabin)
h6(mm)
2105
2135
2135
Steat height/stand height
h7(mm)
1043
1050
1050
Overall length
l1(mm)
3025
3690
3690
Length to face of forks
l2(mm)
2085
2650
2650
Overall width
b1(mm)
1100
1220
1220
Fork dimensions
s/e/l(mm)
35/100/1070
45/125/1070
50/125/1070
Aisle width for pallets 1000*1200 crossways
Ast(mm)
3305
4090
4090
Aisle width for pallets 800*1200 lengthways
Ast(mm)
3125
4290
4290
Turning radius
Wa(mm)
1760
2400
2400
Travel speed,laden/unladen
Km/h
0-10
12/13
12/13
Lift speed,laden/unladen
mm/s
205
220/300
200/300
Battery voltage,nominal capacity K5
V/Ah
48/400
80/450
80/450












Q1:Are you a factory?
A1: Of course.Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique
combination of scientific research,development, production, sale and service. Moreover, the trademark of Xilin has been registered in 68 countries and regions around the world and its products sell well in more than 100 countries and regions until this year.
Q2: Do you have agent or representative abroad?
A2: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q3: What's the specification of the chargers?
A3: Xilin have all kinds of the chargers and welcome the customers to custom-made.
Q4: Warranty for the product?
Q4：We do offer one year warranty which would cover the failure not caused by miss-usage like over loading or misplacing the item.And There is no warranty for wearing parts such as wheel and fuse.
Q5: How about the delivery time?
A5: Usually Xilin producing time is 15-20 working days after we receive the advanced payment. For some standard products,we have most in stock and could delivery immediately.
Q6:What is your payment term?
A6: T/T or L/C,if you want any other way,please contact us.
Q7: What can I get from cooperating with Xilin?
A7: 1. Unique products, with customized service.2. Timely production and delivery, time is money. 3. Market protection service, long term business strategy.
