cnc pattern clothe fabric cutting machine cutter
- Category: Cloth Cutting Machines >>>
- Supplier: Jinan Reci Cnc Machine Co. Ltd.
Share on (62510623867):
Product Overview
Description
Product Description

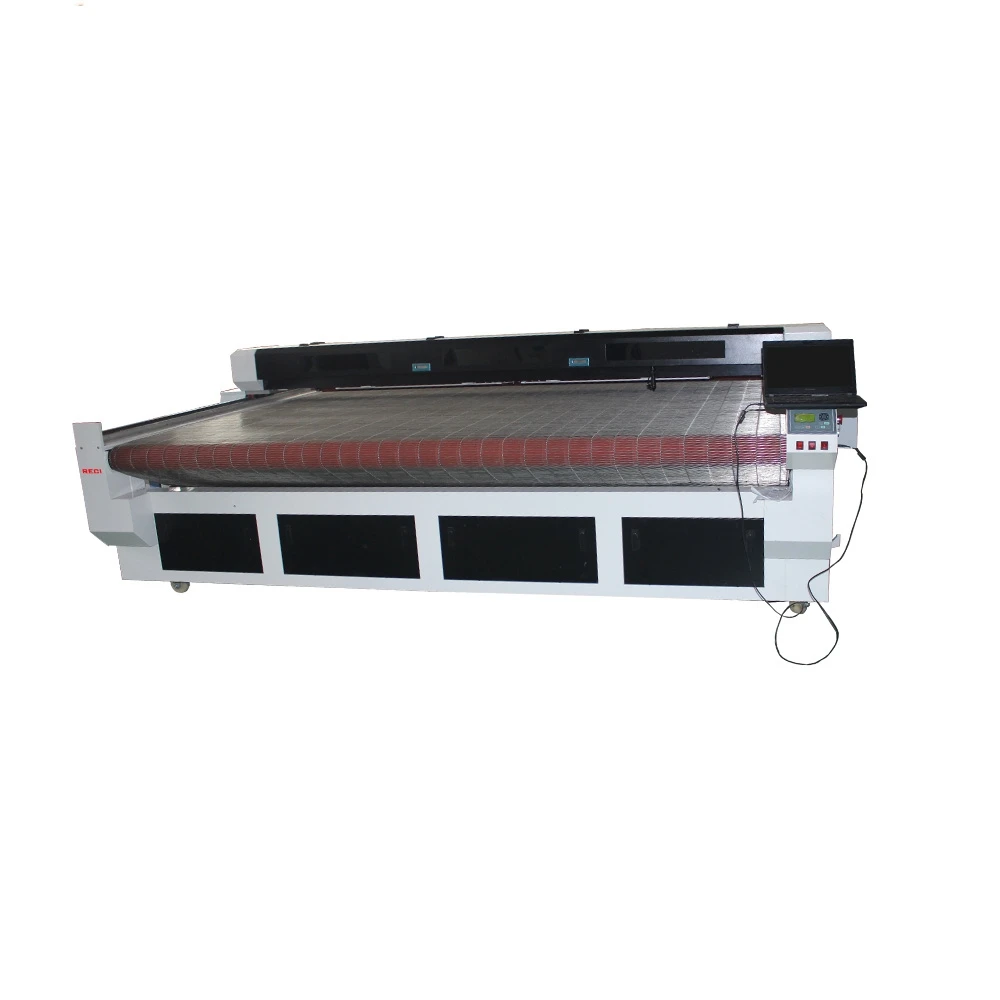

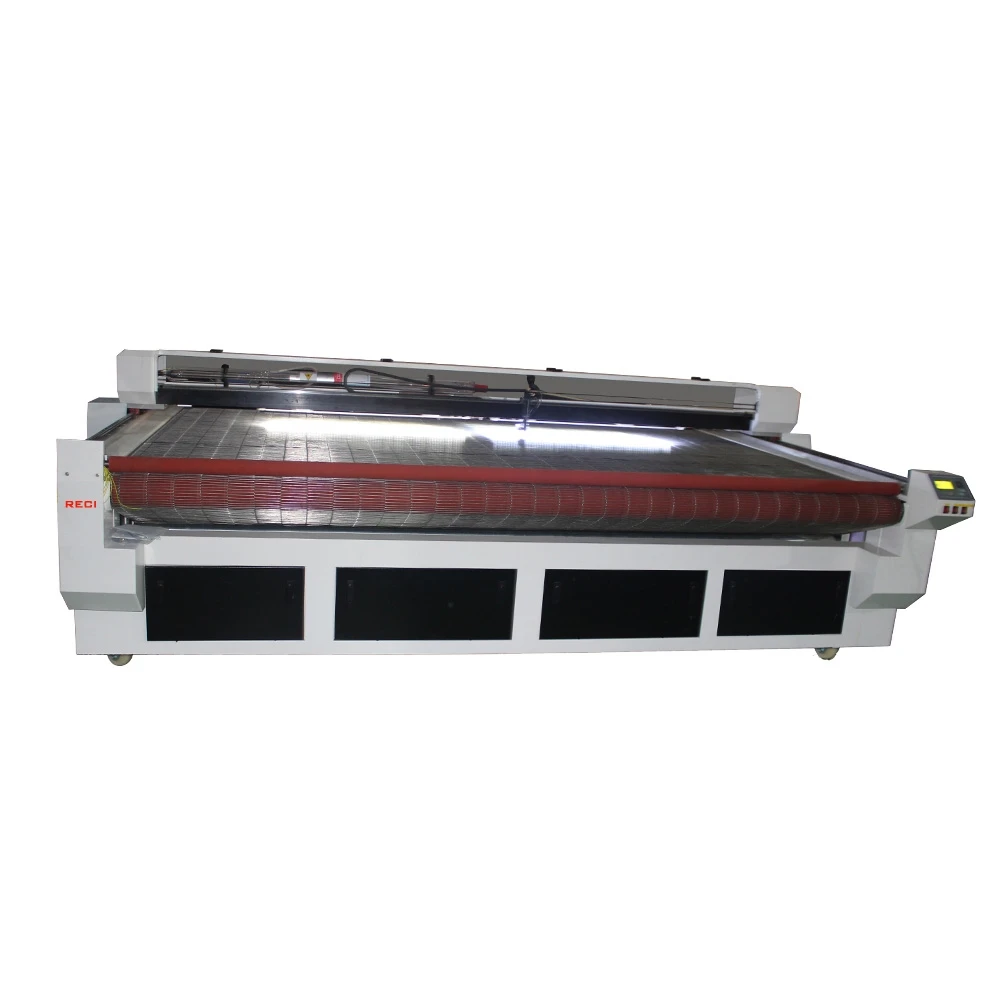

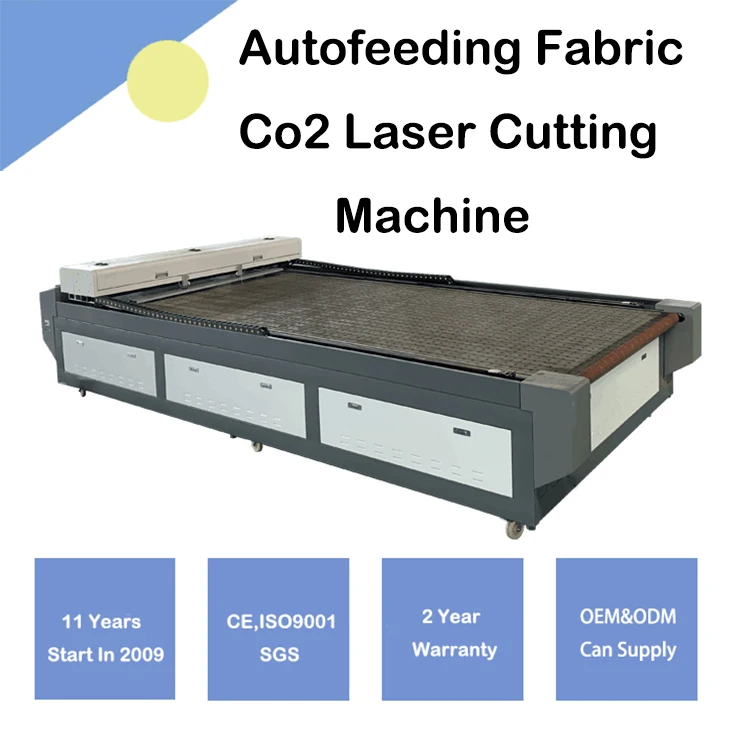

cnc pattern clothe fabric cutting machine cutter
We use cost-effective RECI CO2 laser tube and water-cooling systems. This machine can provide 60 watt, 80 watt, 100 watt, 130 watt and 150 watt lasers. It can cut all kinds of materials, such as various textiles and leather, and other non-metal materials such as acrylic, wood, paper, etc.
Machine specifications
Model | RC-1610C/1625C/1630C/1810C/1825C/1830C |
1600*10000mm/1600*2500mm/1600*3000mm/1800*1000mm /1800*2500mm/1800*3000mm | |
Laser Power | 60-150w (power is optional ) |
Laser Type | RECI Brand Hermetic CO2 glass tube |
Working Speed | 0-40000mm/min |
Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD |
Power Supply | AC220±10% 50HZ / AC110±10% 60HZ |
Locating Precision | less 0.01mm |
Operating Temperature | 5℃-35℃ |
Worktable | Vacuum absorb conveyor working table |
Controlling Software | Eversccdcut (Ruida also can optional) |
Driving system | Stepper motor |
Cooling Way | Water Cooling and Protection System |
Graphic Format Supported | All formats which CorelDraw, Photoshop, AutoCAD can identify |
Cutting Thickness | 0-30mm (eg: if acrylic/wood board is20mm) |
Sloping Engraving | Yes,slope can be designed discretionarily |
MATERIALS | Engrave | Cut |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Mat Board | √ | √ |
Melamine | √ | √ |
Paper | √ | √ |
Mylar | √ | √ |
Pressboard | √ | √ |
Rubber | √ | √ |
Wood Veneer | √ | √ |
Fiberglass | √ | √ |
Plastic | √ | √ |
Cork | √ | √ |
Corian | √ | √ |
Twill | √ | √ |
Painted Metals | √ | |
Tile | √ | |
Glass | √ | |
Coated Metals | √ | |
Ceramics | √ | |
Marble | √ |
1 The machine tool level use stable and solid work sites,to ensure the stability and accuracy of the fast motion;
2, Motion system using direct guide and precision rack drive to ensure the accuracy of processing;

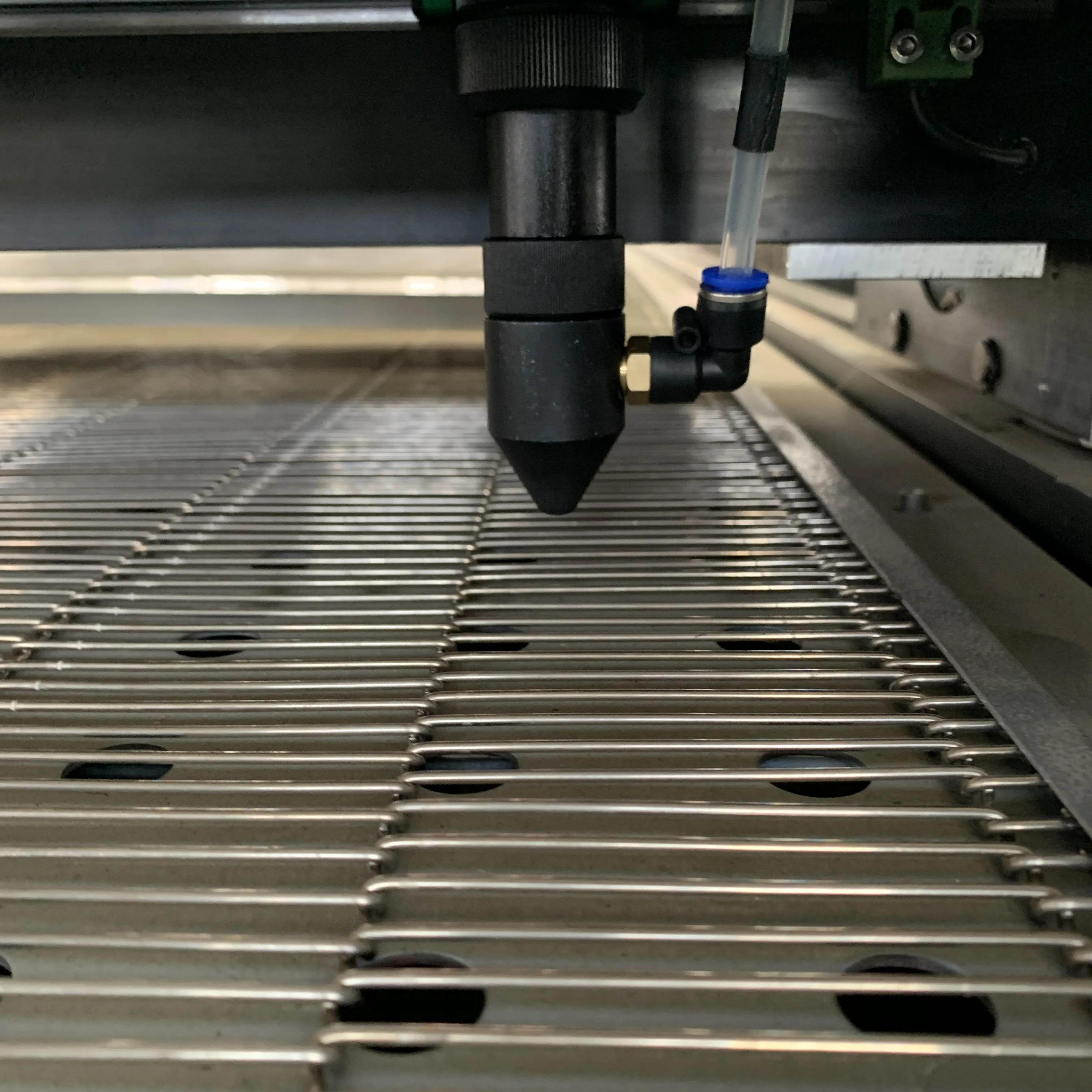

3, Use the special treatment of stainless steel mesh work table, with negative pressure adsorption function, to ensure the smooth operation of the fabric is convenient, never wear;
4 Increase the automatic feeding system save time, save costs,improve the work efficiency greatly .
5, Be widely used in a variety of textile and apparel fabrics, in particular, seamless bonding fabric, suitable for large
2, Motion system using direct guide and precision rack drive to ensure the accuracy of processing;
3, Use the special treatment of stainless steel mesh work table, with negative pressure adsorption function, to ensure the smooth operation of the fabric is convenient, never wear;
4 Increase the automatic feeding system save time, save costs,improve the work efficiency greatly .
5, Be widely used in a variety of textile and apparel fabrics, in particular, seamless bonding fabric, suitable for large
quantities of material processing enterprises.

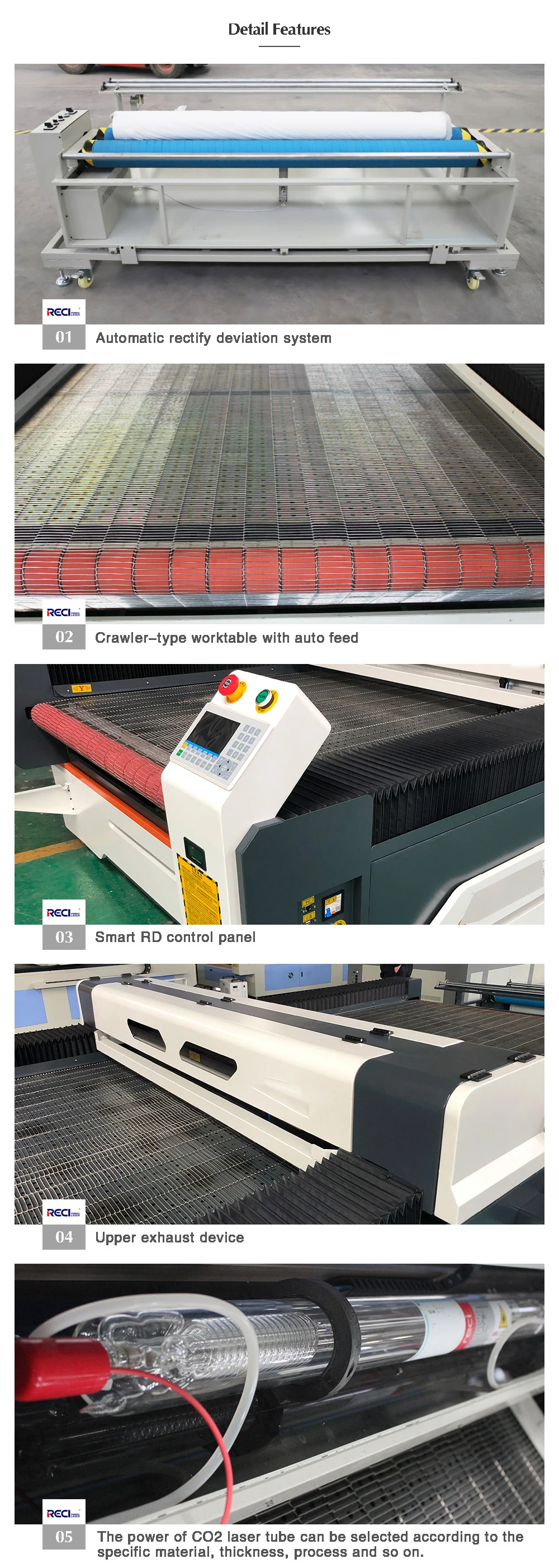

Product Details
1. Equipped with Auto-feeding system enable the machine to cut soft materials in rolls automatically
2. Imported dual linear guide which enable the machine move stably and cut the edge smoothly
3. Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.

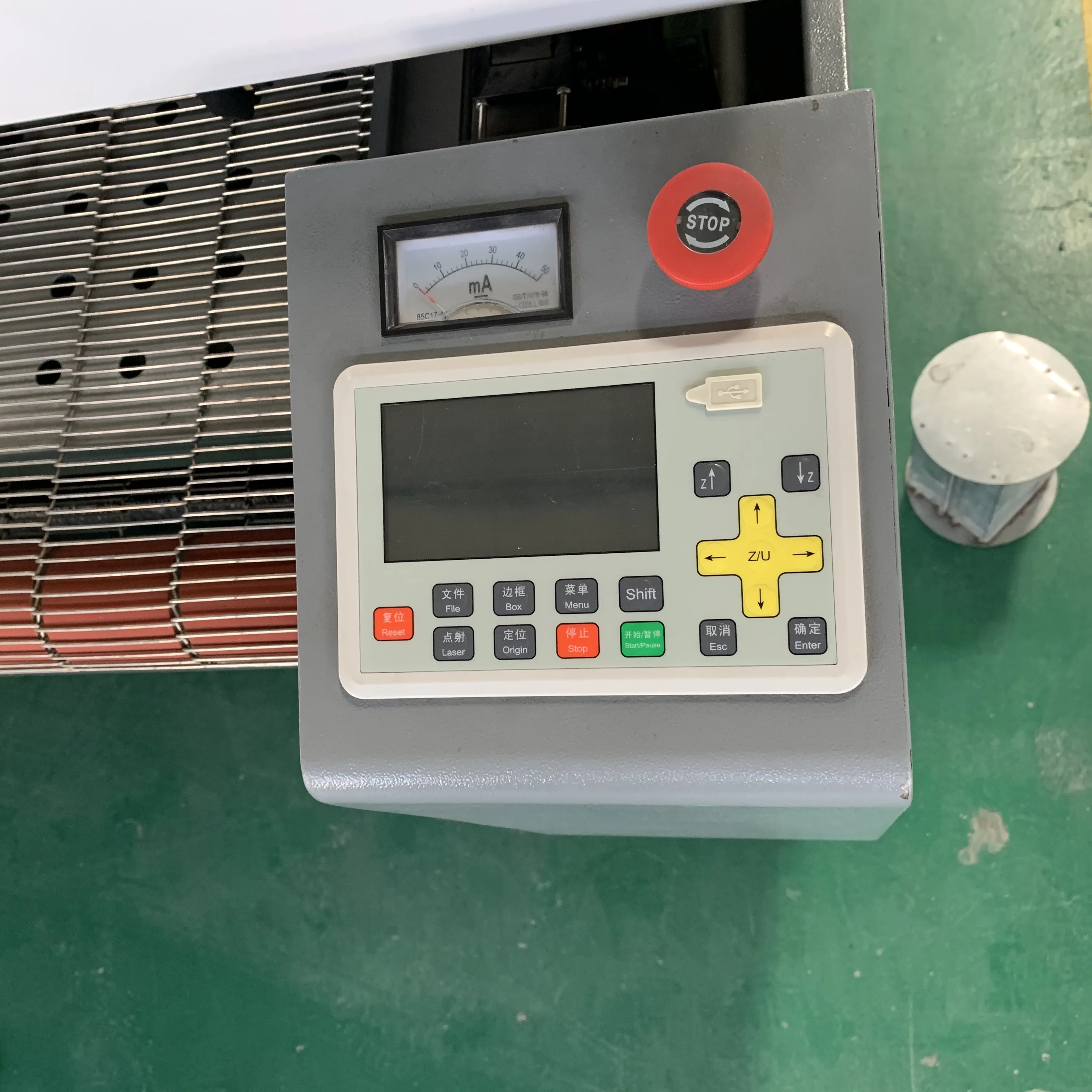

4. Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal display brings out much convenient operation and simpler maintenance.Special intelligent precalculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.
5. Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
6. Offline control system: Apply USB interface to communicate with computer under the systemof WIN98/NT2000/XP, which can instantly compete transmission.
2. Imported dual linear guide which enable the machine move stably and cut the edge smoothly
3. Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
4. Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal display brings out much convenient operation and simpler maintenance.Special intelligent precalculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.
5. Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
6. Offline control system: Apply USB interface to communicate with computer under the systemof WIN98/NT2000/XP, which can instantly compete transmission.
Other Optional
Double heads laser cutting machine.
If you need the highest possible efficiency, you can choose to have dual laser heads to double the efficiency.
The operation is very simple and can be done with the tools that came with the machine.
Co2 laser engraving machine
This is a very high versatile machine: it can engrave on many different types of materials such as Glass, Wood, Leather, Ceramic, Acrylic, PC plate, slate, ceramic, clothing and many more.
Quality Control
We are the reliable manufacture and have been in this field since 2009,you will get the best quality and after-sale service if you choose us,cause long time cooperation and business are what we want,we won't leave any customer who bought machine from us.INTEGRITY&QUALITY&RESPONSIBILITY are our company rule),and you will know about our quality,after-sale service after you build the cooperation with us)
It's our honor that you can choose our products！
It's our honor that you can choose our products！
Our services
Free Pre-Sales Consulting / Free Sample Marking
Reci Laser offer 12 hours quick pre-sales response and free consulting.
Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services :
1. 2 year guaranteefor fiber laser cutting machine .
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare partssupply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
Packing&Shipping
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
Company Introduction
Jinan Reci CNC Machine Co.,Ltd is a professional direct manufacturer of fiber laser cutting machine, co2 laser engraving &cutting machine ,fiber laser marking machine , co2 laser martking machine, Laser cleaning machine, 3d robot cutting machine, etc advertising equipment .not vendor. So good price, complete after sale service, technical support and full set of available accessories is our advantage.
We have many other models.If you have special requirement, such as need double laser heads, need water chiller or rotary attachment, pls contact with us for quotation.We are looking for distributor from all over the world. If you are interested in, please contact with us.
FAQ
FAQ:
Q1: What materials can this machine cut?
Co2 laser treatment of non-metallic materials. You can tell us your work materials, work with pictures or video details, and we can recommend the most suitable model for you.
Q2: What is the warranty policy?
This machine has a two-year warranty, and if there is a problem, our technicians will solve the problem for you. Broken parts will be replaced freely, except for human reasons.
Question 3: What is the delivery time?
For standard machines, it will be 7-10 days; for non-standard machines and machines customized to your specific requirements, it will be 15 to 30 days.
Question 4: What language is your software?
Our software uses common languages such as English, Spanish, French, German, Russian, Portuguese, Japanese, Korean, etc.
Q5: How about payment?
Wire transfer (T / T) 50% First, the balance before shipment.
Q6: Do you arrange shipment for the machine?
Yes, for FOB or CIF prices, we will arrange the shipment for you. For EXW prices, you need to arrange the shipment yourself or your agent.
Q1: What materials can this machine cut?
Co2 laser treatment of non-metallic materials. You can tell us your work materials, work with pictures or video details, and we can recommend the most suitable model for you.
Q2: What is the warranty policy?
This machine has a two-year warranty, and if there is a problem, our technicians will solve the problem for you. Broken parts will be replaced freely, except for human reasons.
Question 3: What is the delivery time?
For standard machines, it will be 7-10 days; for non-standard machines and machines customized to your specific requirements, it will be 15 to 30 days.
Question 4: What language is your software?
Our software uses common languages such as English, Spanish, French, German, Russian, Portuguese, Japanese, Korean, etc.
Q5: How about payment?
Wire transfer (T / T) 50% First, the balance before shipment.
Q6: Do you arrange shipment for the machine?
Yes, for FOB or CIF prices, we will arrange the shipment for you. For EXW prices, you need to arrange the shipment yourself or your agent.
Pls feel free to contact us if you have any questions, our sales manager are 24/7 on-line for receiving your question or requesting, Providing solution within 12 hours!
