Мини токарный станок, фрезерный станок, металлический мини токарный станок, Настольный Токарный станок для домашнего использования (62510640056)

Share on (62510640056):


Price:355,00 $ - 385,00 $
Price in USD:Details

Quantity:


Product Overview

Description


7" X 12" Variable-speed Metal Lathe With A Movable Lamp & 9 Cutters & 1x 4-Jaw Chuck



Product Description



Our Precision Mini Benchtop Lathe is by far-and-away the best spec mini-lathe for the money. With this lathe you will get a superb workhorse, a guarantee and a full after sales service. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor. 0-2250RPM continuously adjustable. 1x free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post Set and 4x Engineers Measuring Kit for free.

  • Sturdy Iron Construction
  • Infinitely Variable Speeds
  • Accurate 3-jaw Chuck
  • Professional Compound Rest

Features & Details
1. STURDY IRON CONSTRUCTION:
The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.

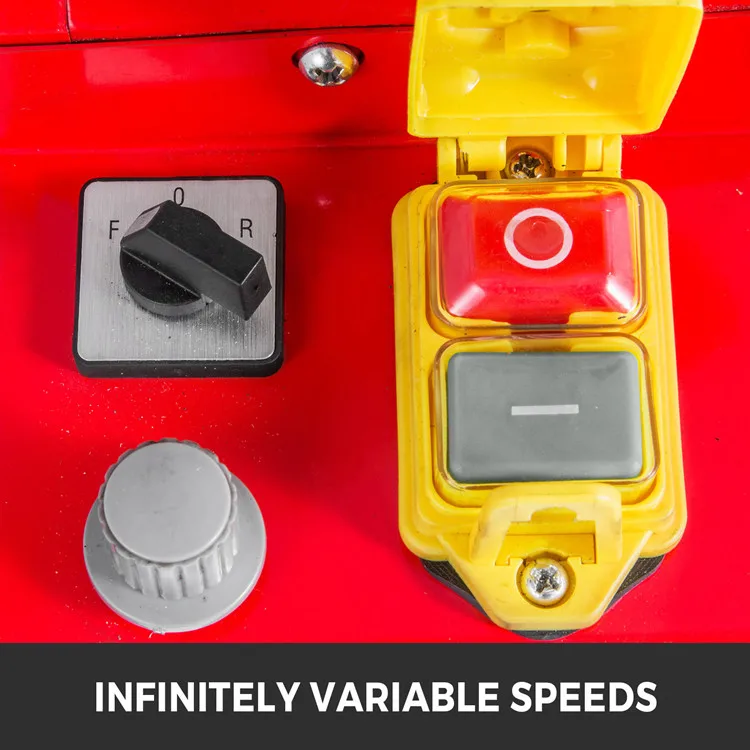

2. INFINITELY VARIABLE SPEEDS:
0-2250RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.
3. ACCURATE 3-JAW CHUCK:
Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. A free lamp, 1x 4-Jaw Independent Chuck, 1x Quick Change Tool Post and 4x Engineers Measuring Kit are included.
4.PROFESSIONAL COMPOUND REST:
The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
5.WIDE APPLICATION:

Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.

Application

· Suitable for turnings of metal, wood, jade, etc.

· Ideal for use in labs, workshops, engineering and education.

· Can be turned within foreign aid, turning thread, turning taper and so on.

Key Features

  1. Heavy & Sturdy Machine

    Features a 7 inch swing over bed, 11.81 inch distance between centers and 20mm spindle bore. Includes a thread range of 12-52 TPI, standard and metric handwheel graduations.
  2. Infinitely Variable Speeds

    Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

  3. High Accuracy Chuck

    3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. One free 4-Jaw Independent Chuck for you.

  4. Four-way Tool Post

    T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1x free Quick Change Tool Post Set.

  5. Professional Cross Slide

    Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300mm(11.81"). A lamp is for acurate operation in a dark environment.

  6. Wide Applications

    Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Specifications:

  • Power of Motor: 550W DC Single Phase
  • Spindle Speed: 0-2250PRM
  • Swing Over Bed: 180mm(7.09")
  • Chuck Diameter: 80mm(3.15")
  • Centers Distance: 300mm(11.81")
  • Spindle Bore: 21mm(0.83")
  • Inch Thread: 12-52 T.P.I
  • Metric Thread: 0.4-2mm
  • Tail Stock Taper: MT2
  • Spindle Taper: MT3
  • Gear Material: Plastic Nylon
  • Power Source: Electric
  • Control: Manual
  • Machine Type: Metal Lathe
  • Treated Material: Metal
  • Net Weight: 50kg(110.23 lb)
  • Package size:81*31*34CM

Package

  • 1 x Mini Metal Lathe
  • 1 x Lamp
  • Some Related Accessories
  • 1 x Manual


Photos


Attention:

1.Read the manual carefully before open the package
2.Make sure the machine is leveled before Power on the machine.
3.Make sure that the gap between the middle plate or guide is moderate, not too small.Moving the plate by swiving the wheel to make sure the plate can move smoothly
4. .Before starting up, make sure that the voltage is within the working voltage range(230V +/- 10% or 120V+/- 10% base on the products you bought ).
5. The cutting amount should be controlled within 1.5 mm for steel or iron , 3 mm for Alumium or copper to prevent damage of the motor or the motor circuit board due to overload.

Company Information
Company NameShanghai VEVOR Machinery Equipment Co., Ltd.
Business ModelManufacture
Place of OriginShanghai,China(Mainland)
Delivery Time5~10days
Minimun Order Quantity1 set
Payment

T/T ; L/C; PayPal.

Trade Assurance on alibaba: By Visa, Credit card, PayPal.

Warranty2 Years
