Greenpedel 36v 500w Cassette Geared Hub Motor Wheel 28 Inch Waterproof Electric cycle Conversion Kit
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.
Share on (62510683714):
Product Overview
Description
Product Paramenters
Motor | 36v 500w cassette geared hub motor wheel with 9 pin waterproof cable |
Rim | Aluminium double wall rim 1.5-1.95 |
Spokes | 12G/13G |
controller | waterproof 36V48V 22A controller |
PAS | BZ(4) 1:1 8 magnets PAS |

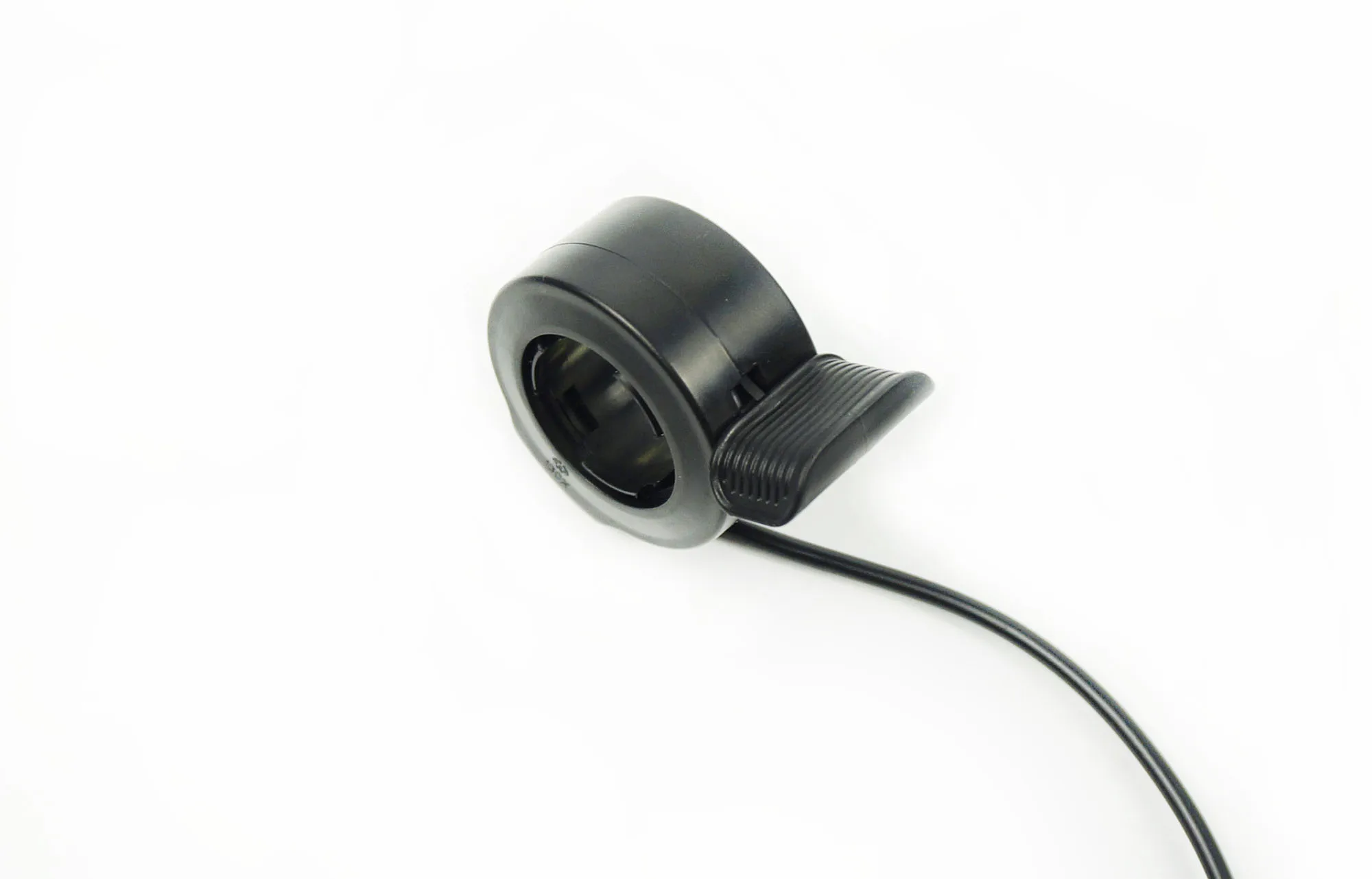

throttle | 130X thumb throttle |
Brake | Ebrake(hydraulic brake) |
Hall sensor | Yes |
Brake type | V brake or Disc brake |
Integrated Speed Sensor | Yes |
Wiring | Waterproof cable |
Details Images

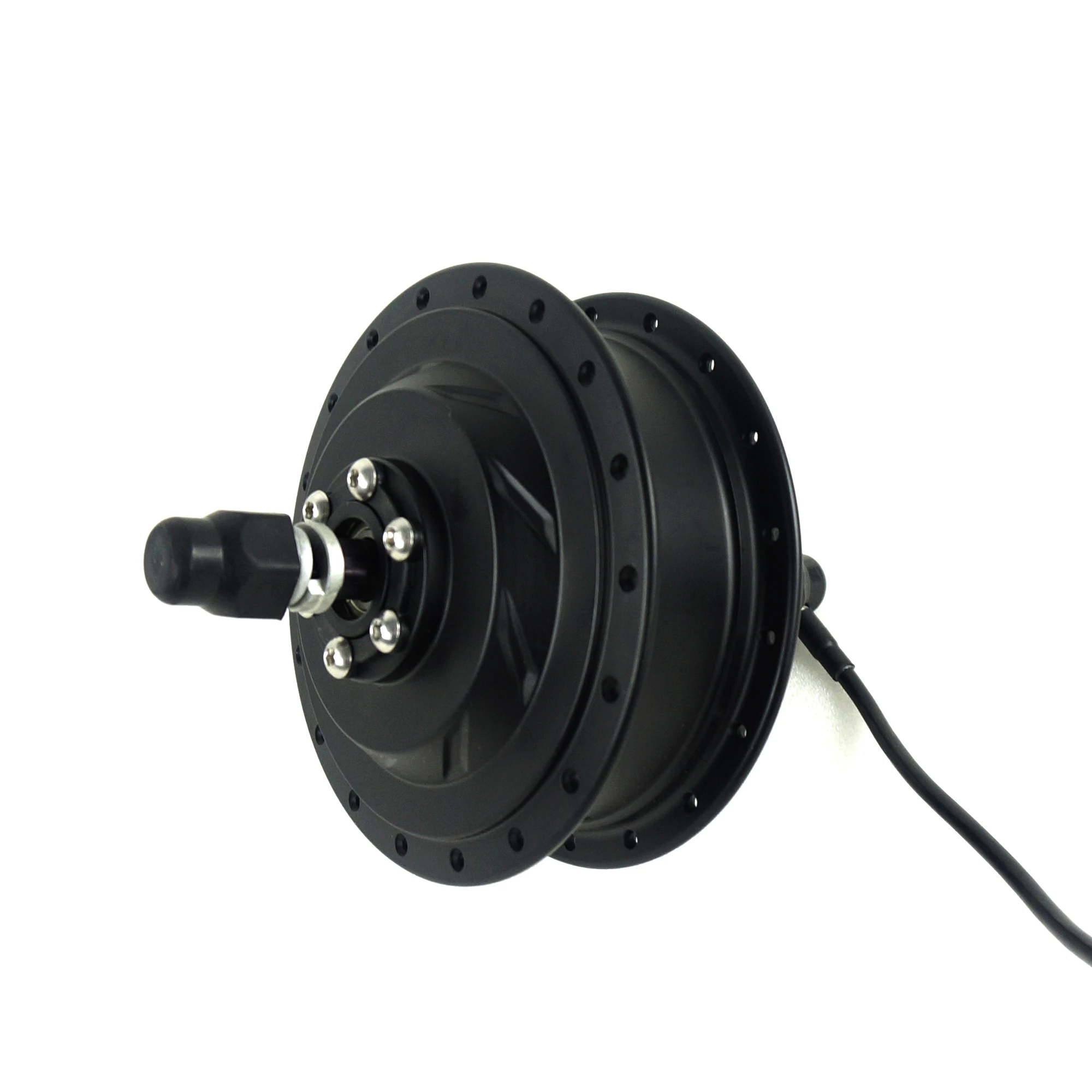

Type : 36V 500W cassette geared hub motor wheel
RPM : 310
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:5

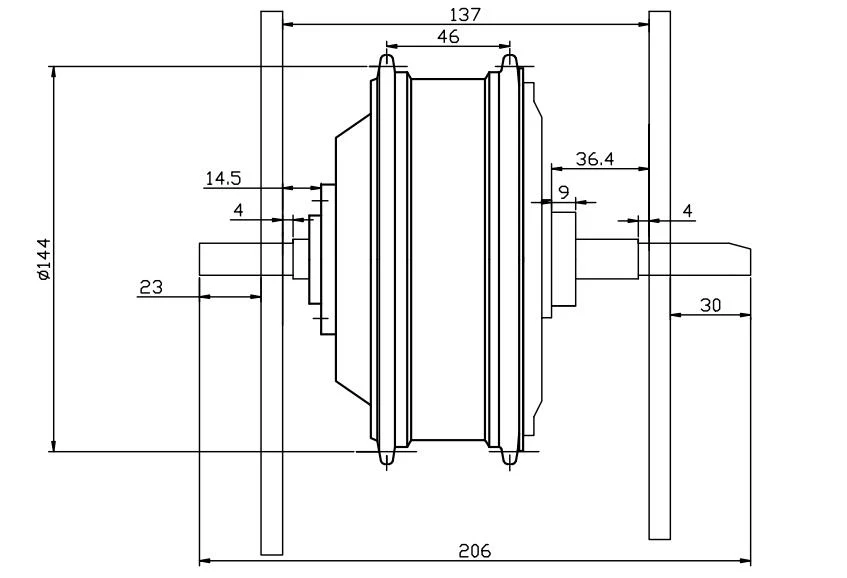

Open Size : Rear Gear 142 mm
Color : Black
Noise : ＜62db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug
RPM : 310
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:5
Open Size : Rear Gear 142 mm
Color : Black
Noise : ＜62db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug

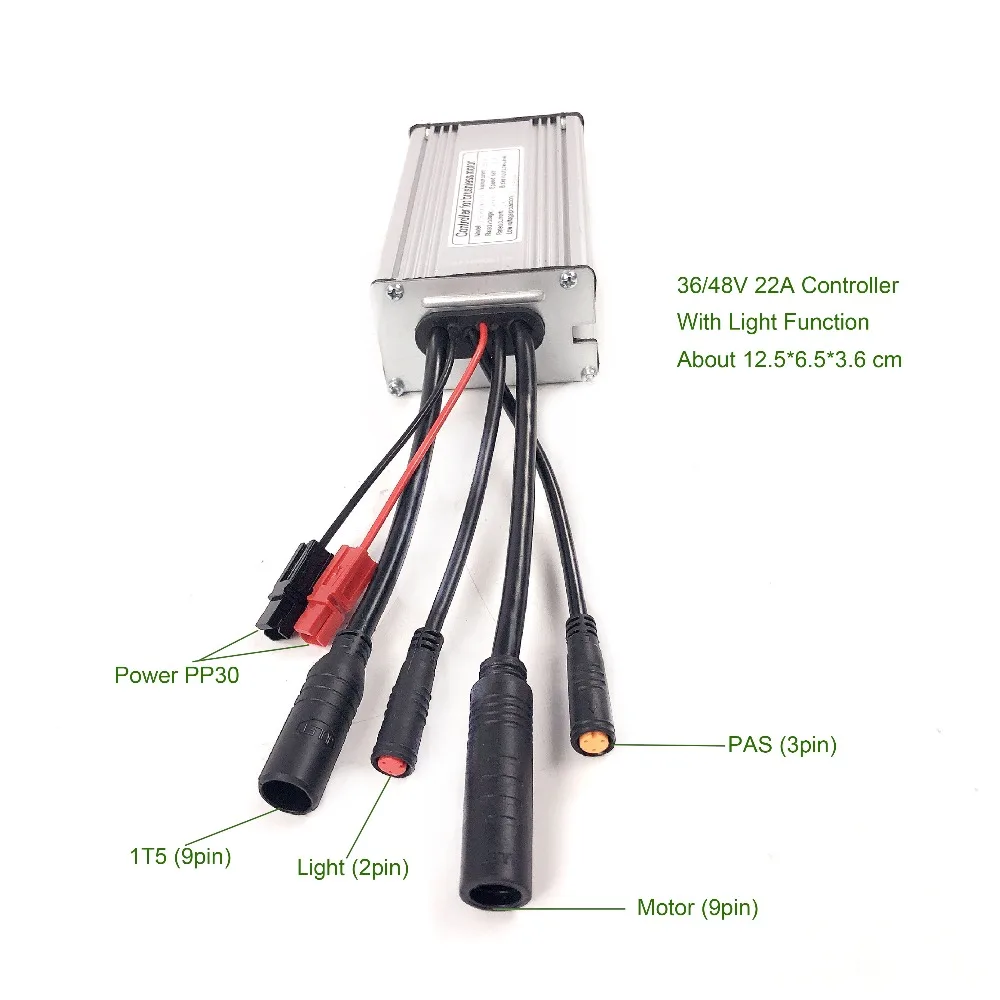

Color : Silver
Dimension : 80.5*52*30.5mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 22A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 10-13cm
Material : Aluminum Alloy
Installation : Left/Right
Size : L 156mm W 105mm H 34mm
Voltage : 12V 24V 36V 48V 60V 72V
Color : Black
Cable Length : Waterproof(3pin 25cm including the connector)
Waterproof : IP76

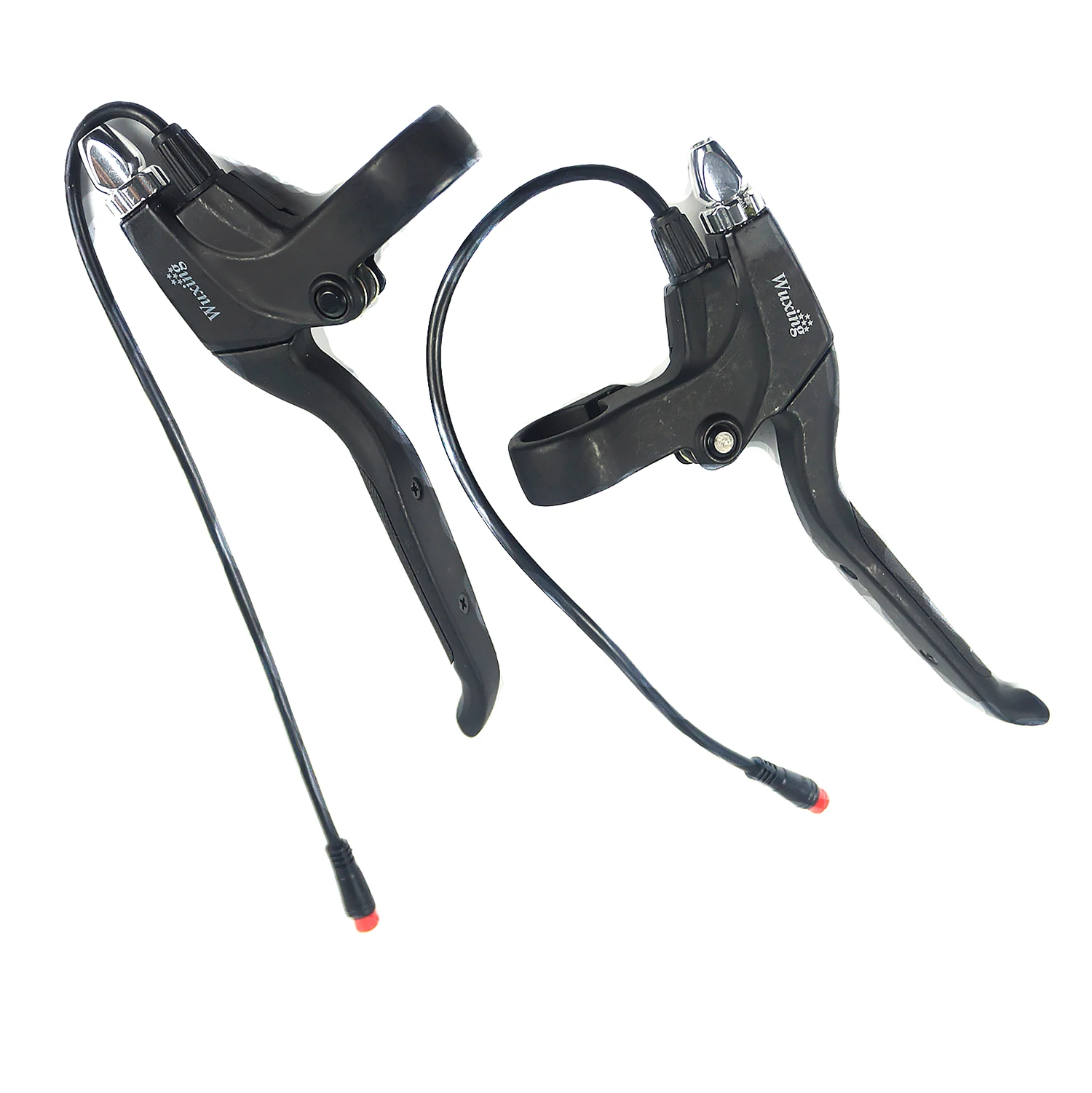

You can freely ask for a brake sensor instead if you need.
Voltage:36V,48V
Wire length:25cm(Waterproof)
Plug:3 Pin Connector
Installation:Left/Right

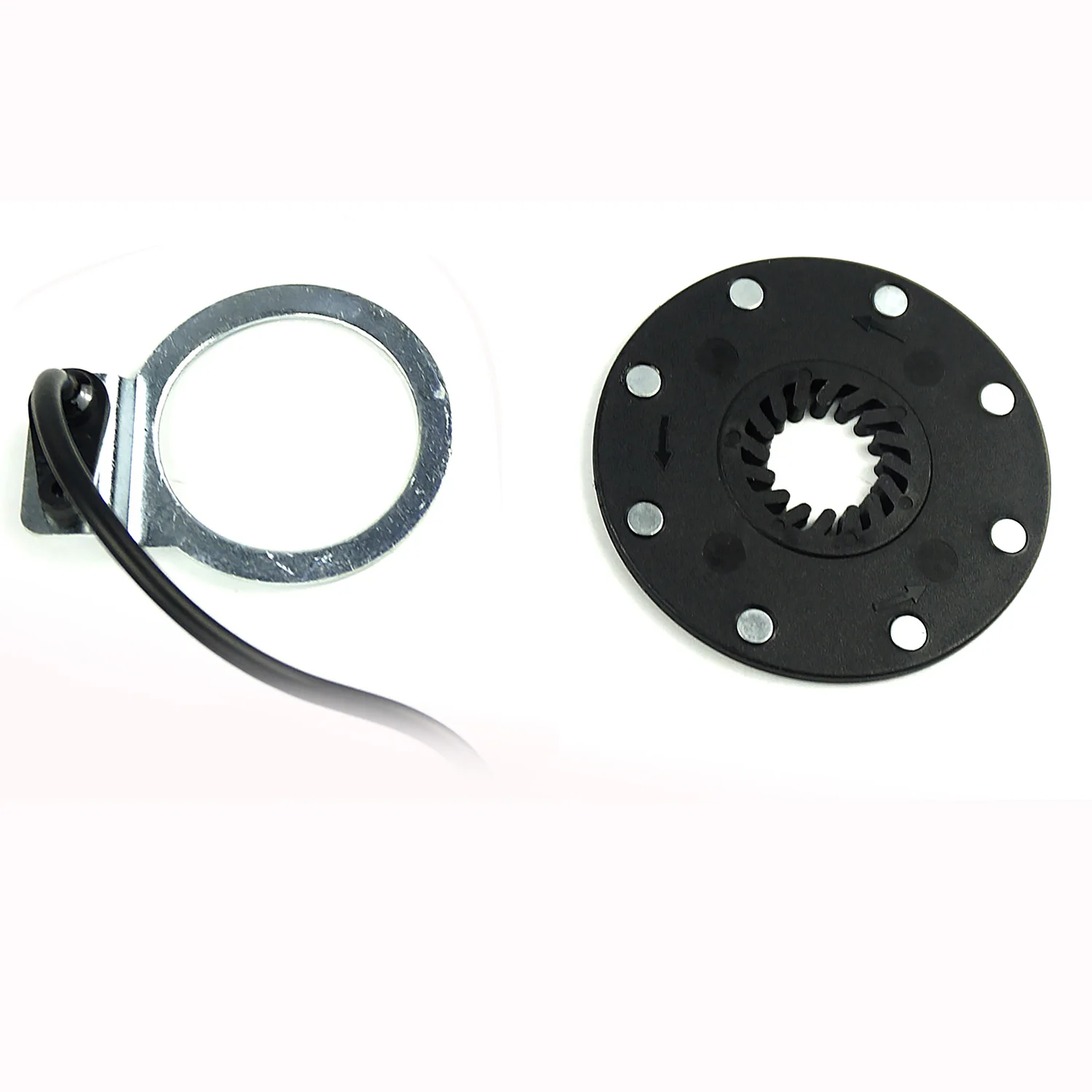

Installation : Left
Voltage : 36V,48V
Color : Black
Magnet : 8 Magnets
Cable Length : 80cm including the connector
Plug : 3 Pin Connector
