DIP 5 мм зеленая светодиодная лампа диод рассеянный круглый 5 мм светоизлучающий диод
- Category: Lamp LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (62510698390):
Product Overview
Description
Product Description
Title goes here.
5mm Round LED Color Diffused Ultra Bright LED Diode.
* Ultra Bright Color

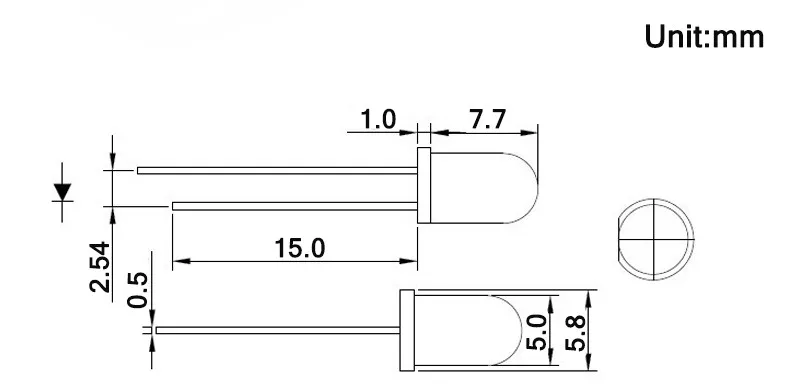

* Size: 5mm Round Top
* Color: White, Yellow, Red, Yellow, Green, Blue, etc.
* Forward Voltage: 1.8-3.2V, Current: 20mA, Power: 0.06W
* Viewing Angle: 20 Degrees, Mount Style: Through Hole (DIP), Lens Color: Color Diffused
* Size: 5mm Round Top
* Color: White, Yellow, Red, Yellow, Green, Blue, etc.
* Forward Voltage: 1.8-3.2V, Current: 20mA, Power: 0.06W
* Viewing Angle: 20 Degrees, Mount Style: Through Hole (DIP), Lens Color: Color Diffused
Part No. | Emitted Color | Lens Color | Wavelength (nm) | IV(mcd)@IF=20mA | Voltage(V) | Angle (deg) |

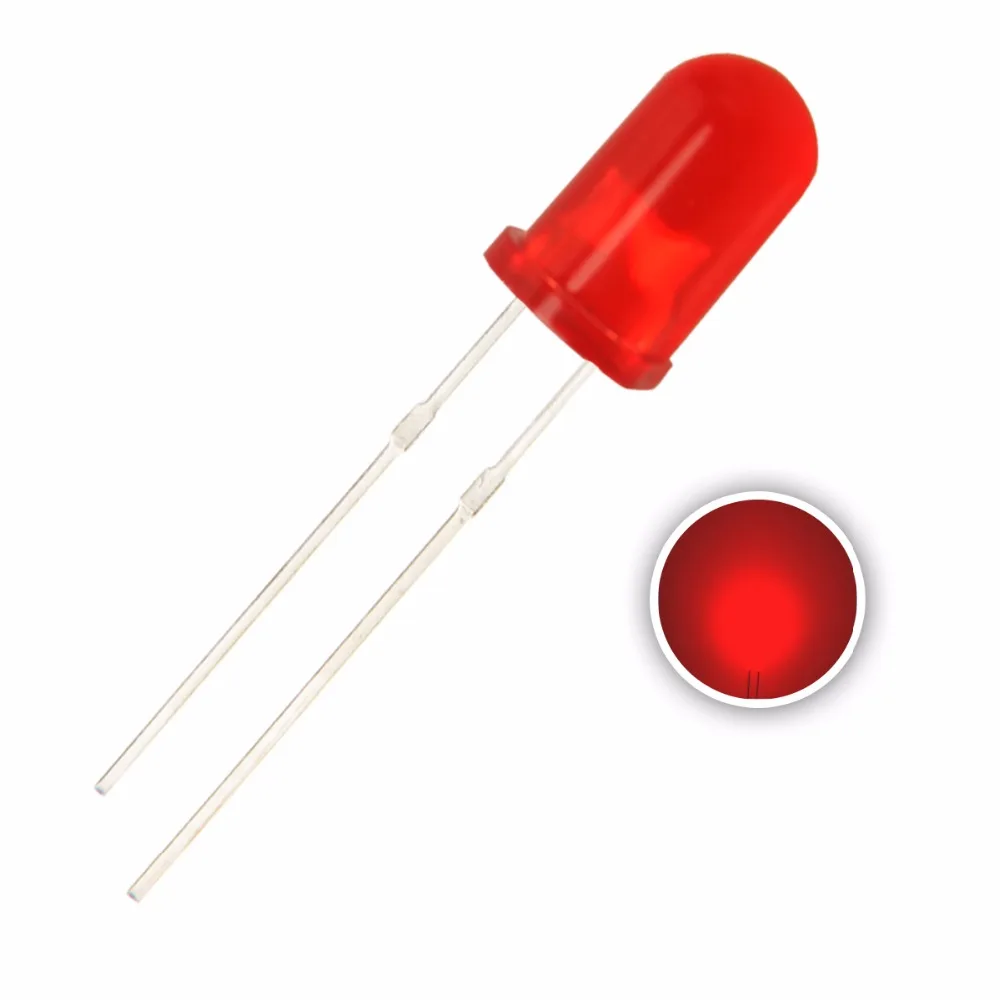

JSL-502URD | Red | Red Diffued | 620-625 | 400-800 | 1.8-2.2 | 45 |

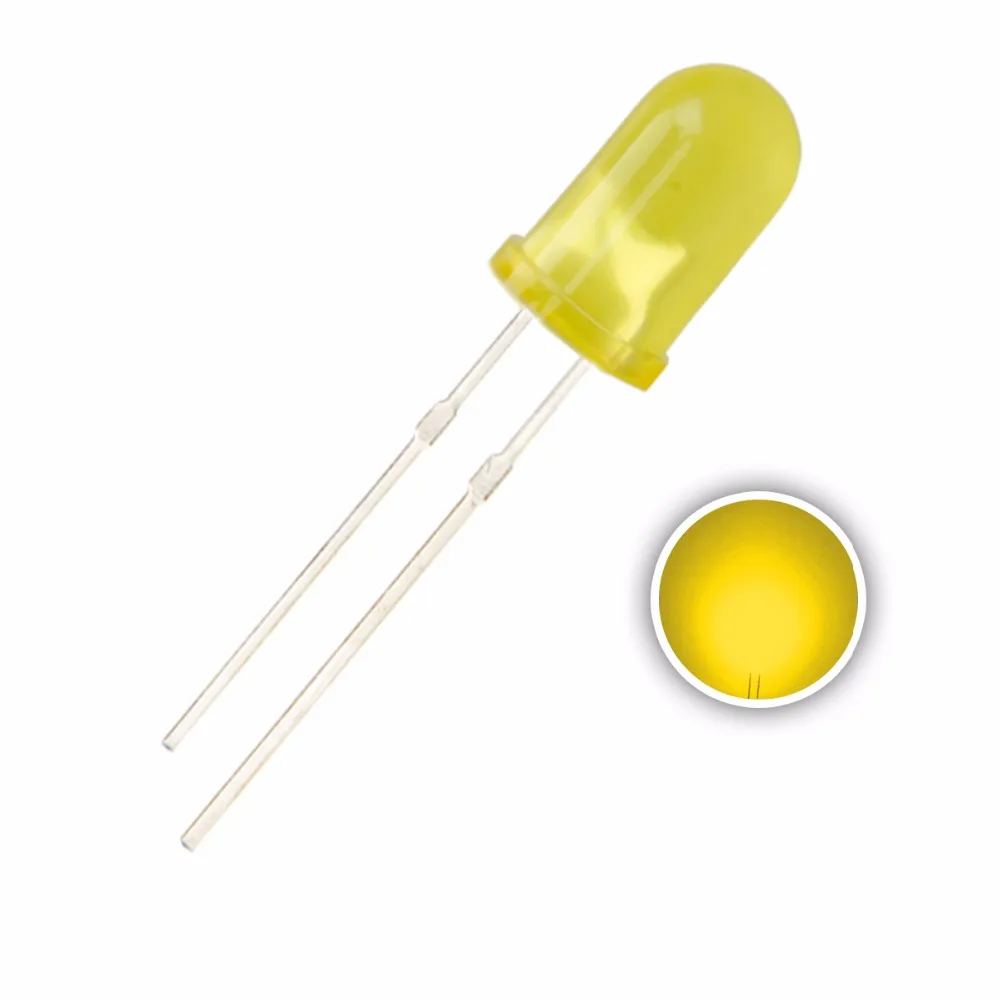

JSL-502UYD | Yellow | Yellow Diffused | 588-593 | 400-800 | 1.8-2.2 | 45 |

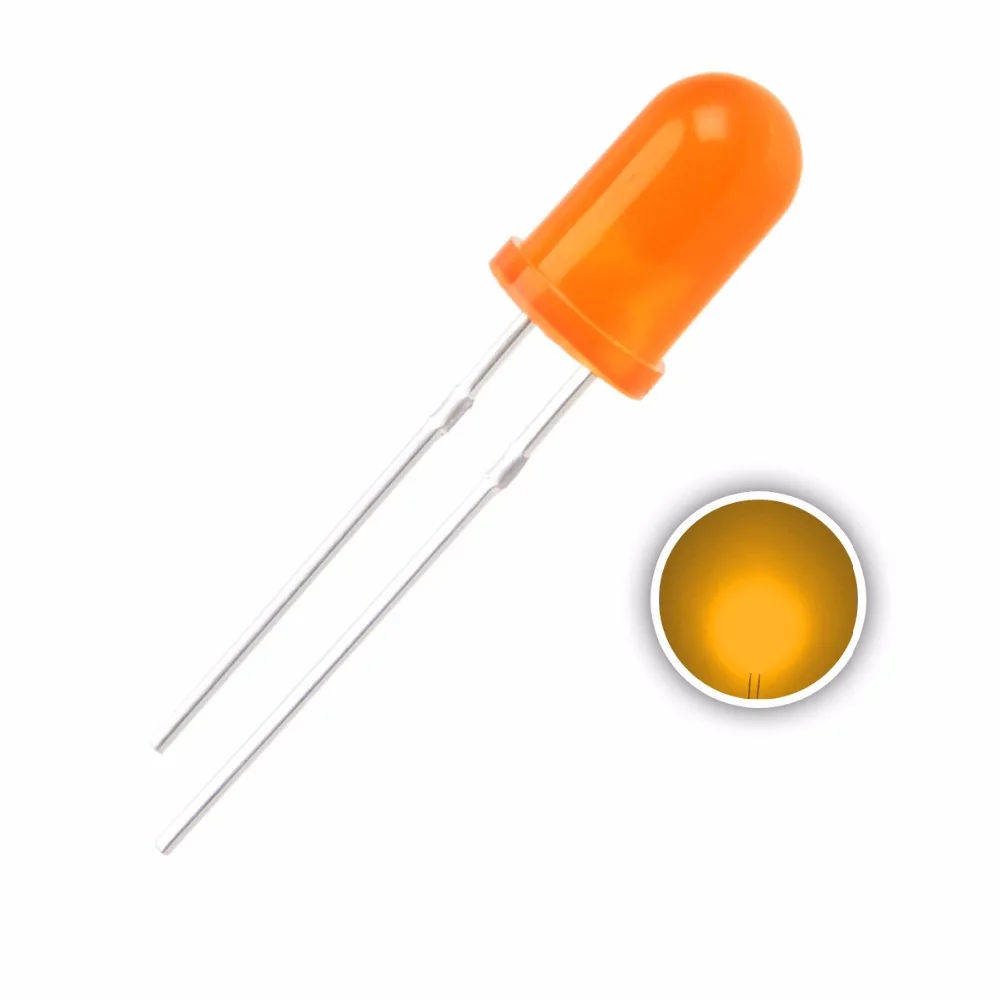

JSL-502UAD | Orange | Orange Diffused | 600-610 | 300-500 | 1.8-2.2 | 45 |
JSL-502UGD | Yellow Green | Green Diffused | 570-575 | 50-100 | 1.8-2.2 | 45 |

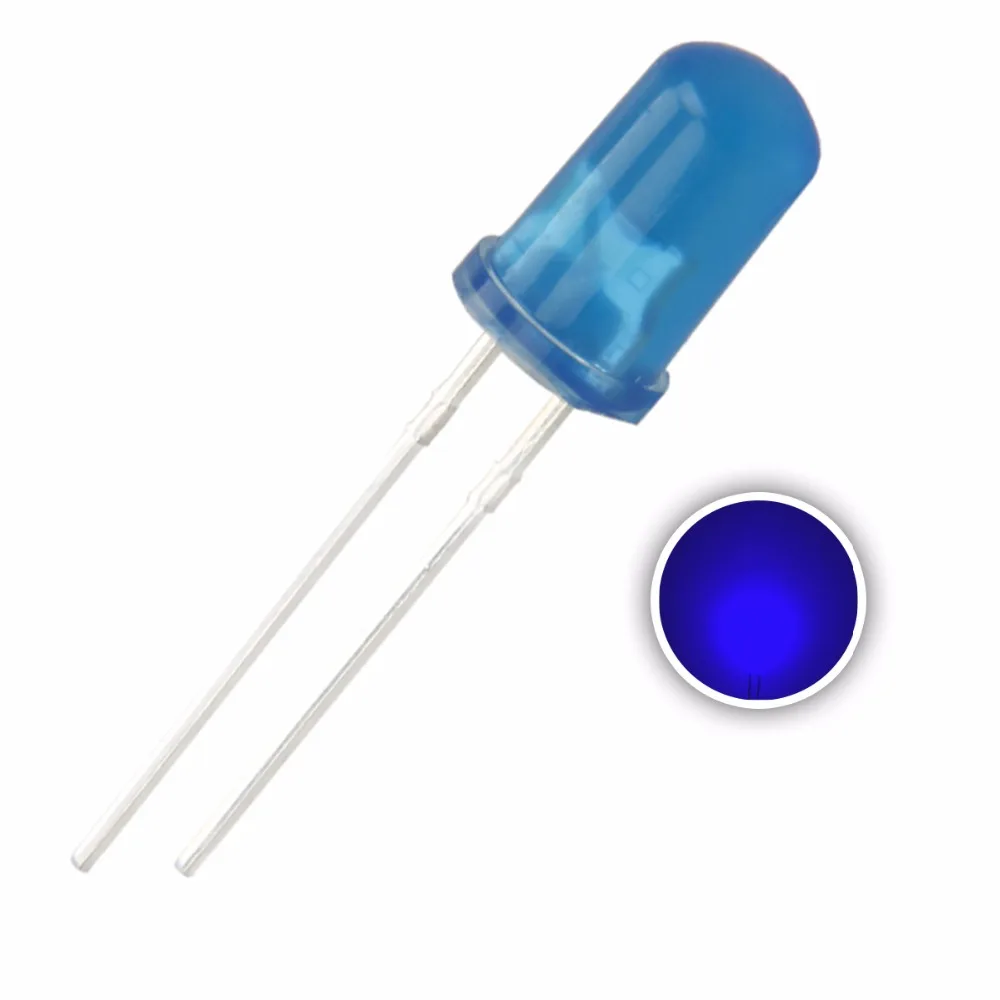

JSL-502UBD | Blue | Blue Diffused | 460-470 | 1000-1500 | 2.8-3.2 | 20 |
JSL-502PGD | Green | Green Diffused | 520-525 | 2500-4000 | 2.8-3.2 | 20 |
JSL-502WWD | Warm white | Whited Diffused | 2800-3300K | 4000-7000 | 2.8-3.2 | 20 |

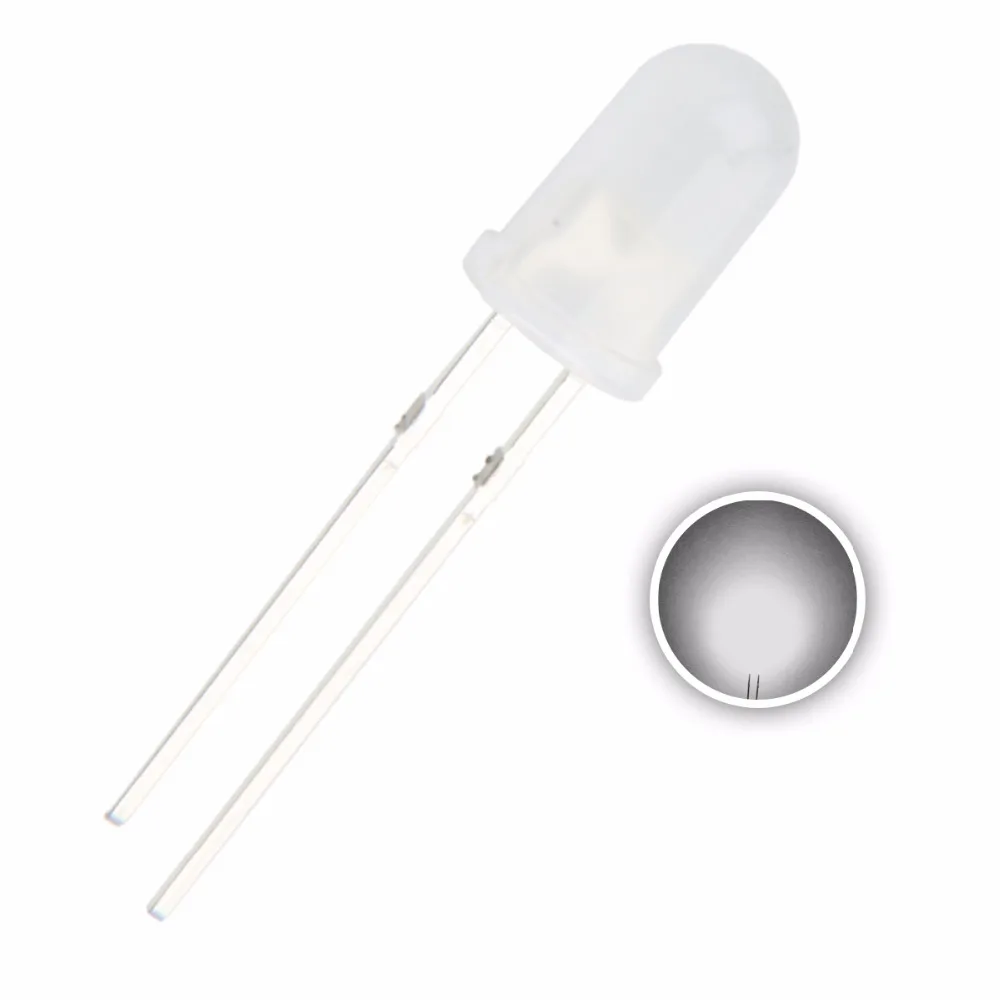

JSL-502UWD | White | White Diffused | 6000-8000K | 4000-7000 | 2.8-3.2 | 120 |
LED DIODES
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
Packing & Delivery
Delivery Way & How to Check
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
Company Profile
Ningbo Junsheng Electronics Co., Ltd. was founded in 2008. We are specialized in
high quality LED Light source and LED components including research, development, production and marketing. We also provide LED
Lighting Solution and OEM service to help customer making high cost perfomance products.
Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.
Jstronic will work with you to fullfill your requirements strive to meet your targets.
high quality LED Light source and LED components including research, development, production and marketing. We also provide LED
Lighting Solution and OEM service to help customer making high cost perfomance products.
Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.
Jstronic will work with you to fullfill your requirements strive to meet your targets.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely
welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now
Or contact:
Ningbo Junsheng Electronics co.,ltd.
Jason lou/sales manager
Email:info @ jstronic.com
Skype:jason8012
Mob:+8613454729173
welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now
Or contact:
Ningbo Junsheng Electronics co.,ltd.
Jason lou/sales manager
Email:info @ jstronic.com
Skype:jason8012
Mob:+8613454729173
