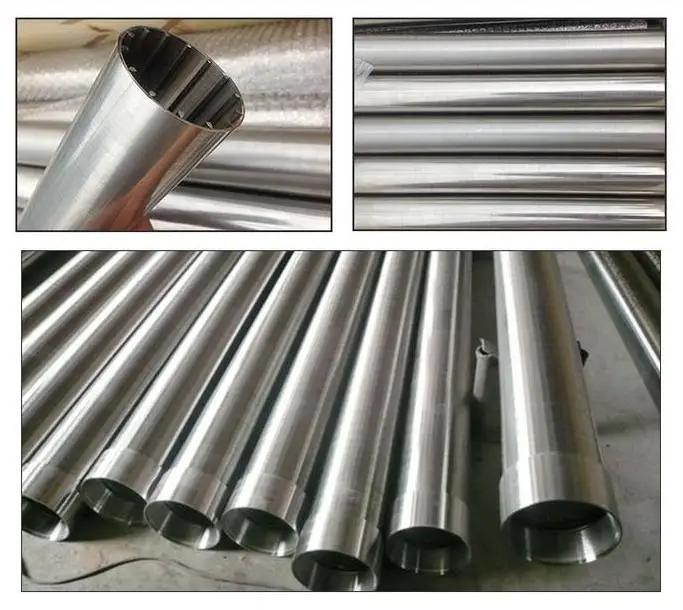

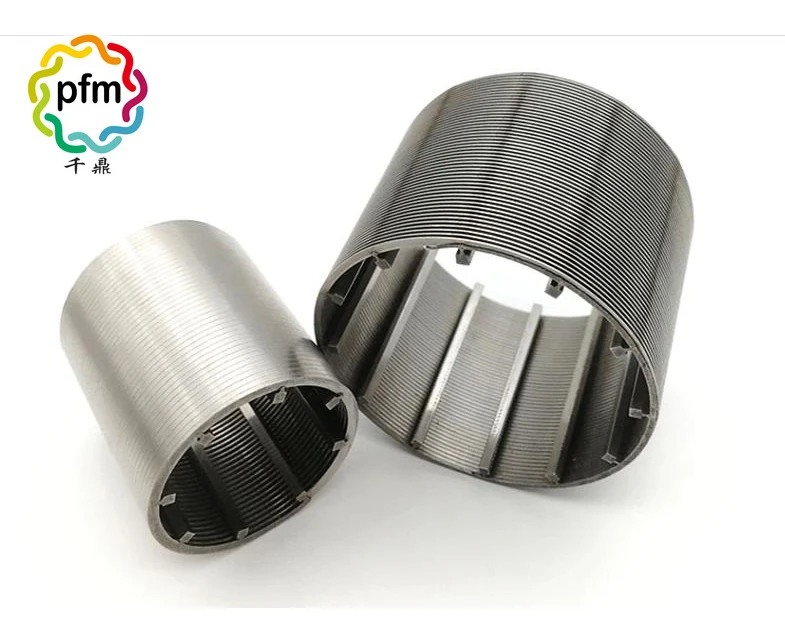

Stainless Steel Johnson Wedge Wire Water Well Screen Filter
- Category: >>>
- Supplier: Anping County PFM Screen Co. Ltd.
Share on (62510765579):
Product Overview
Description
Product Description

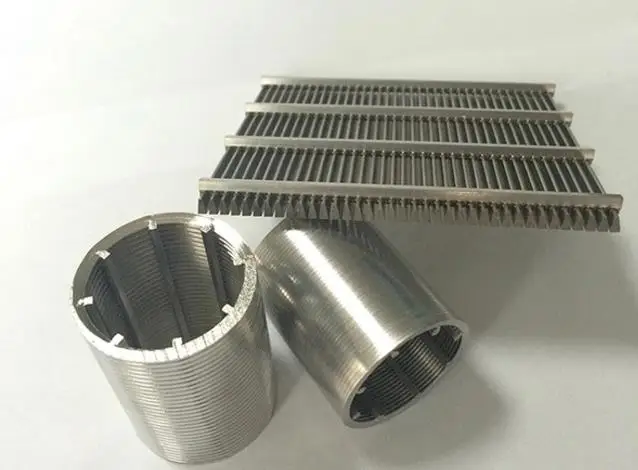

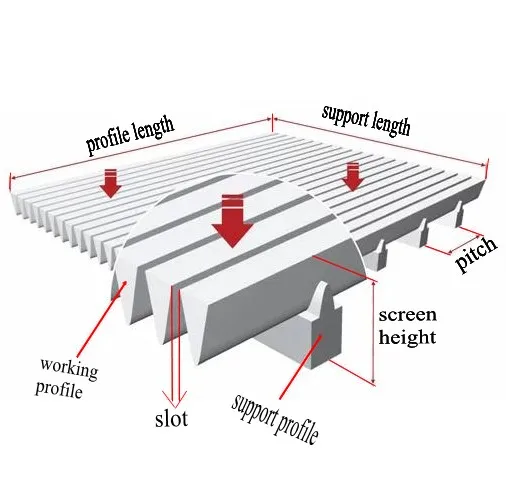

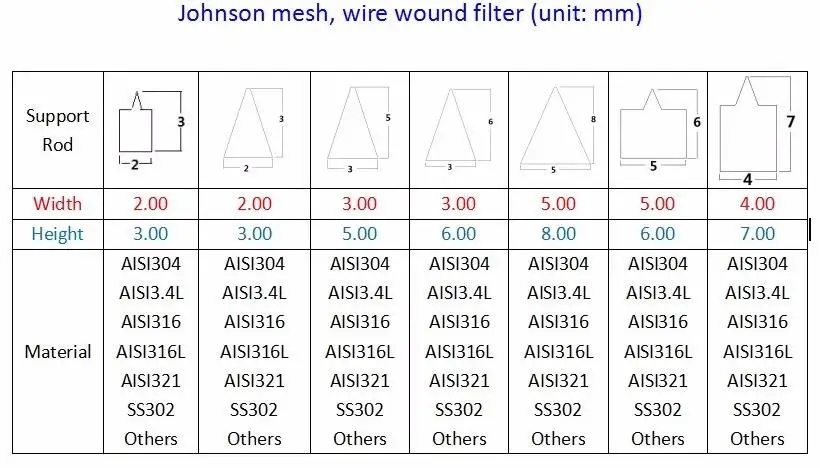

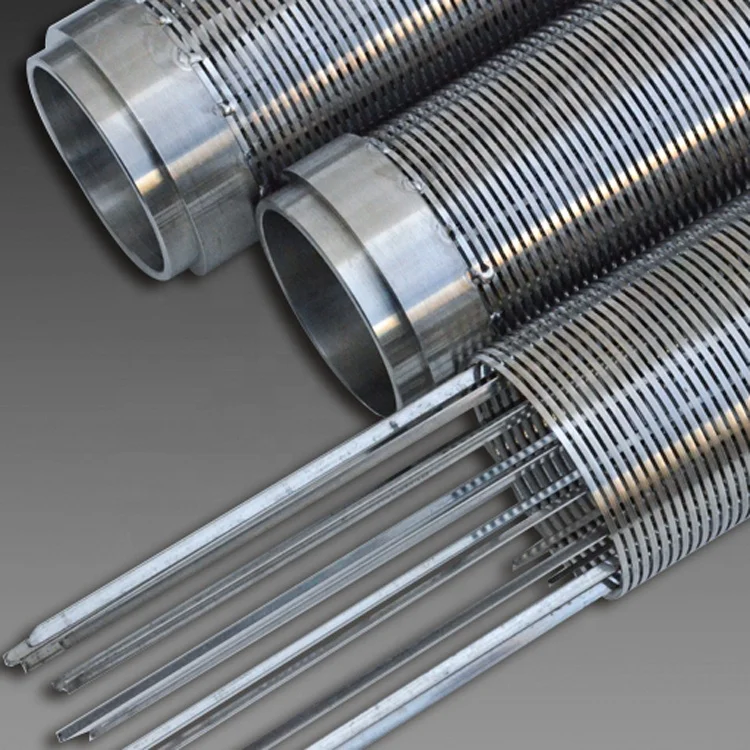

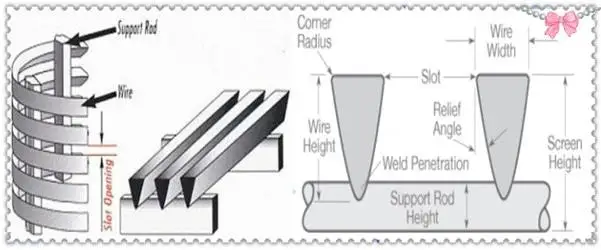

Johnson screen is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded. The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Specification
Product name | Stainless Steel Johnson Wedge Wire Water Well Screen Filter |
Slot size | 0.2-6 mm |
Length | 6 meters |
Please tell me the specification you need.
Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ,ect,our factory can make the diameter of 28-600mm.

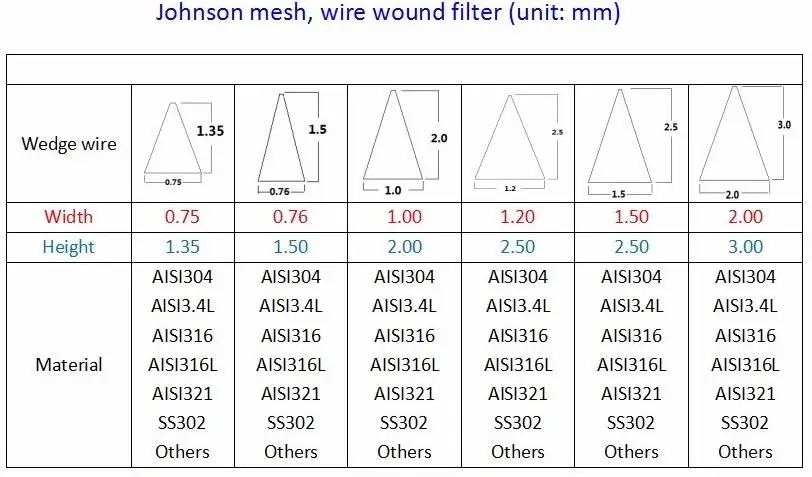

2.Would you like to tell me the specification of V wire?
Engineer recommend:1.5*2mm 2*3mm 2.2*3.5mm 3*5mm 3.2*6mm, It's up to you at last.
3.Pls tell me the slot size.
The size usually is 0.1-6.0mm.
4.Please tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need? The more you want, the price will be cheaper.
Our engineer will recommend you the most suitable specification according our 20 years experience.
To calculate the open area of a certain screen, use the simple formula provided:
Open Area (%)= Slot Size *100/(Slot Size +Wire Width)
Packing & Delivery

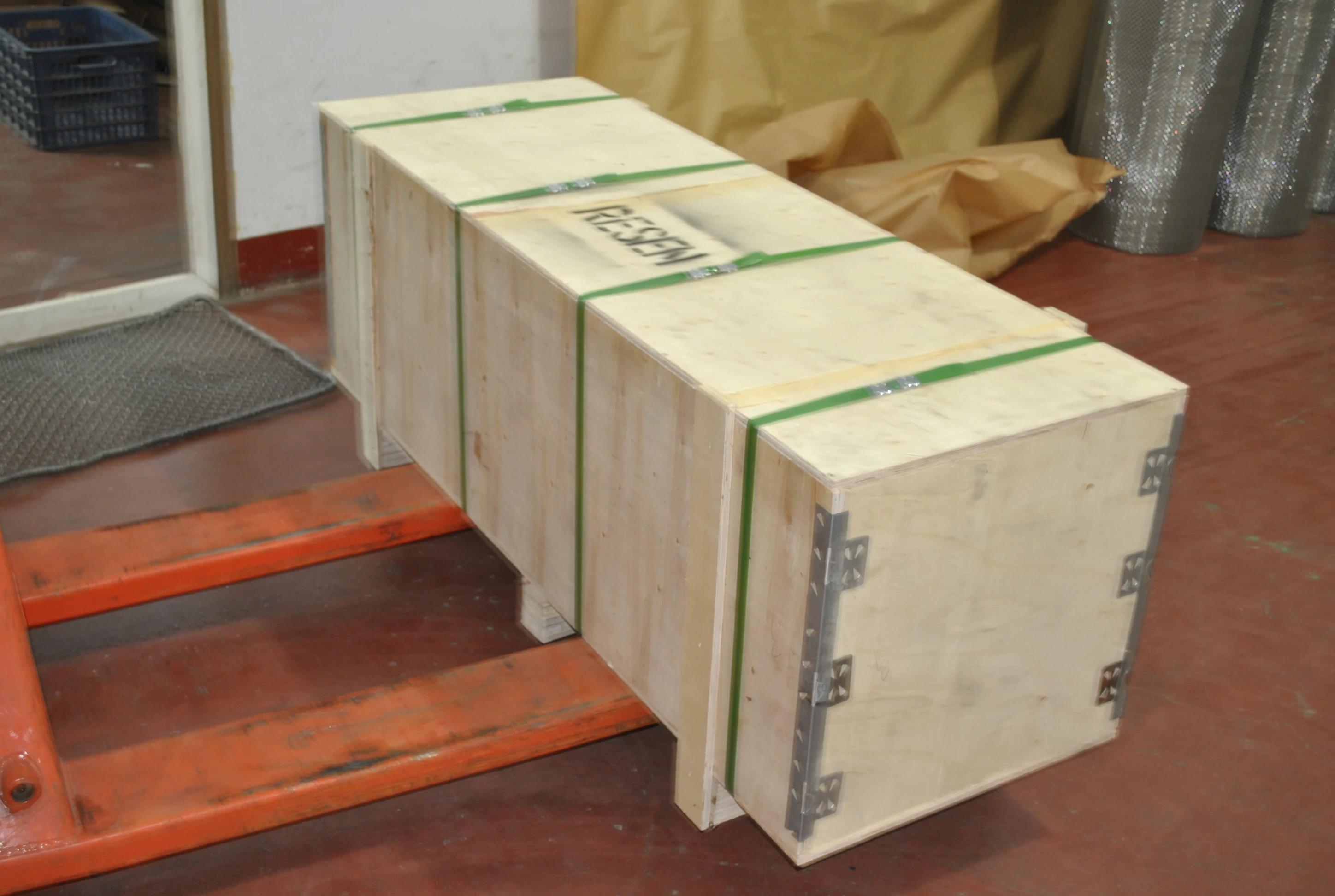

plywood case
FAQ
Q:How to get a sample of Stainless Steel perforated tube / filter tube?
A:Sample order is acceptable. Please contact with us and make sure the specification you need.
Q:What about the leading time?
A:In general, the leading time is about 25 to 35 days. But please confirm the exact delivery time
with us as different products and different quantity will have different leading time.
Q:How about the packing and shipping?
A:Normaly, we have carton packaging. If you have any other special requirements,
please feel free to contact with us.
Q:Can I have our own logo on the products?
A:That's ok to have your own logo on the products. Please contact with us to make sure the
detailed things before placing order.
A:Sample order is acceptable. Please contact with us and make sure the specification you need.
Q:What about the leading time?
A:In general, the leading time is about 25 to 35 days. But please confirm the exact delivery time
with us as different products and different quantity will have different leading time.
Q:How about the packing and shipping?
A:Normaly, we have carton packaging. If you have any other special requirements,
please feel free to contact with us.
Q:Can I have our own logo on the products?
A:That's ok to have your own logo on the products. Please contact with us to make sure the
detailed things before placing order.
