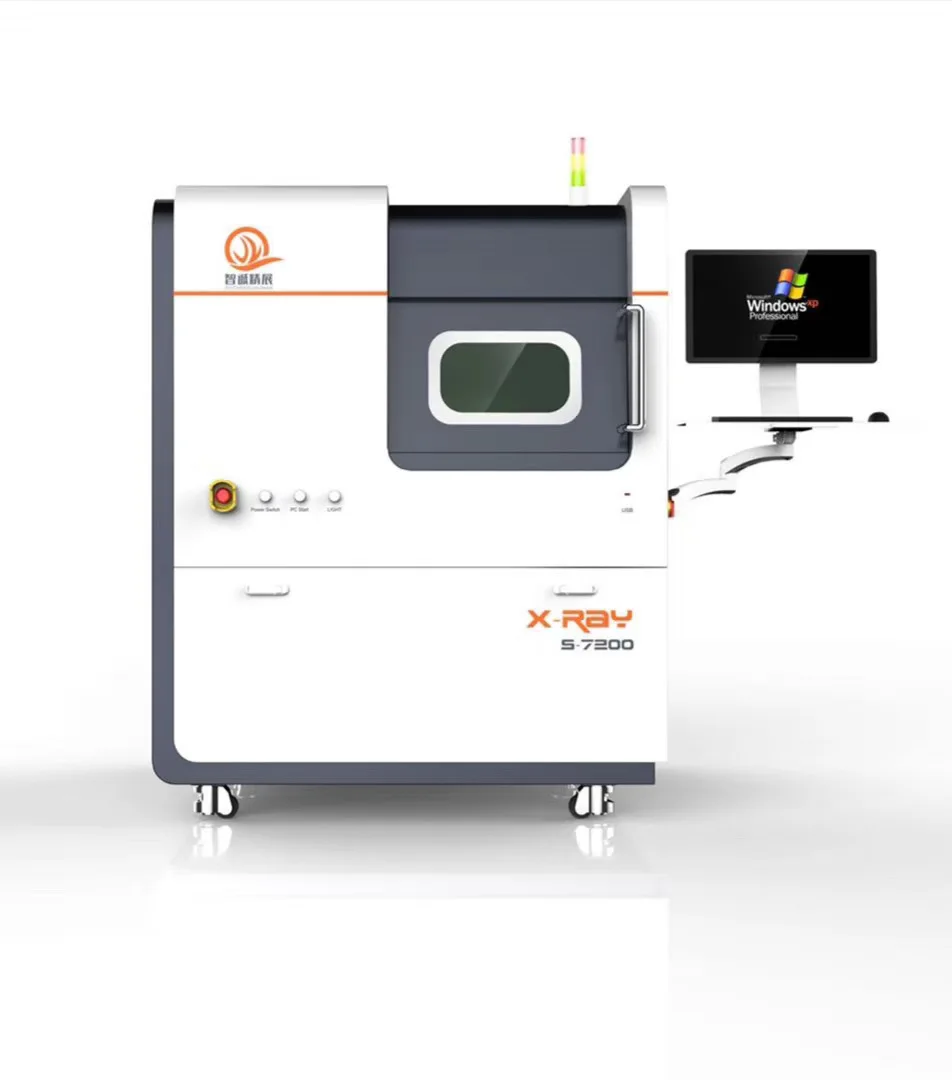

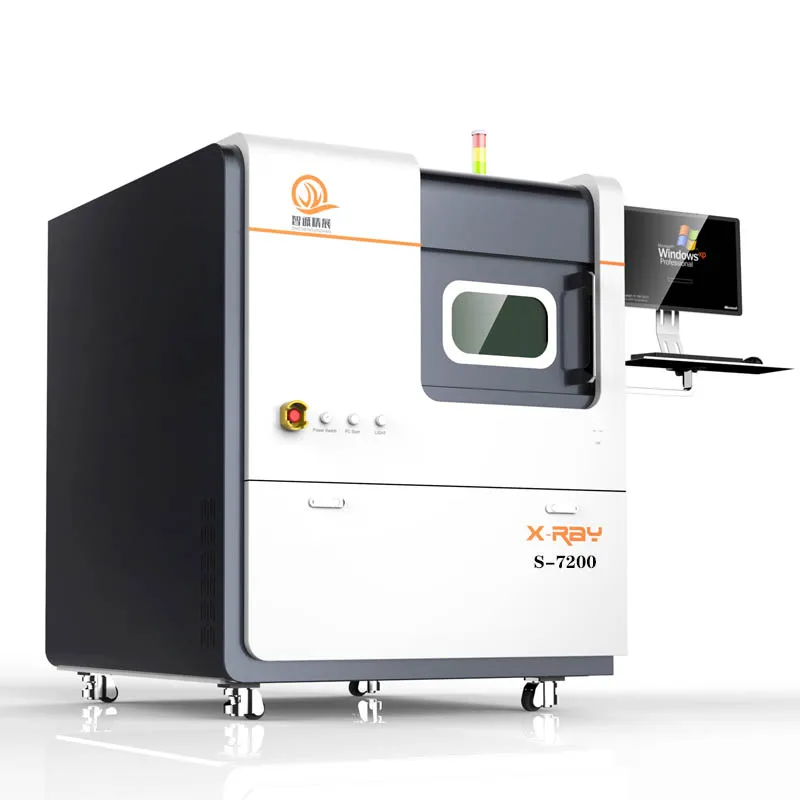

S7200 SMT BGA x ray inspection machine for CSP BGA QFN LED voids inspecting machine
Item
S-7200
Panel Detector
Pixel Pitch
85um
Inspection area
600mmx600mm
Detector Tile Angle
70 Degree
X-Ray Optical Tube
Optical Tube Style
Sealed tube
Optical Tube voltage
90KV,100KV,130KV (optional)
Optical Tube current
250UA
Optical Tube focus size
5um
Optical Tube Power
8W
System Magnification
1200X
Geometric Magnification
125X
Sample Table
X-axis
520mm
Y-axis
520mm
Z1-axis
380mm
Z2-axis
380mm
Platform Deadweight
10KG
Software Function
Size Detection
Point to point&Line to line angle measure
Bubble Detection

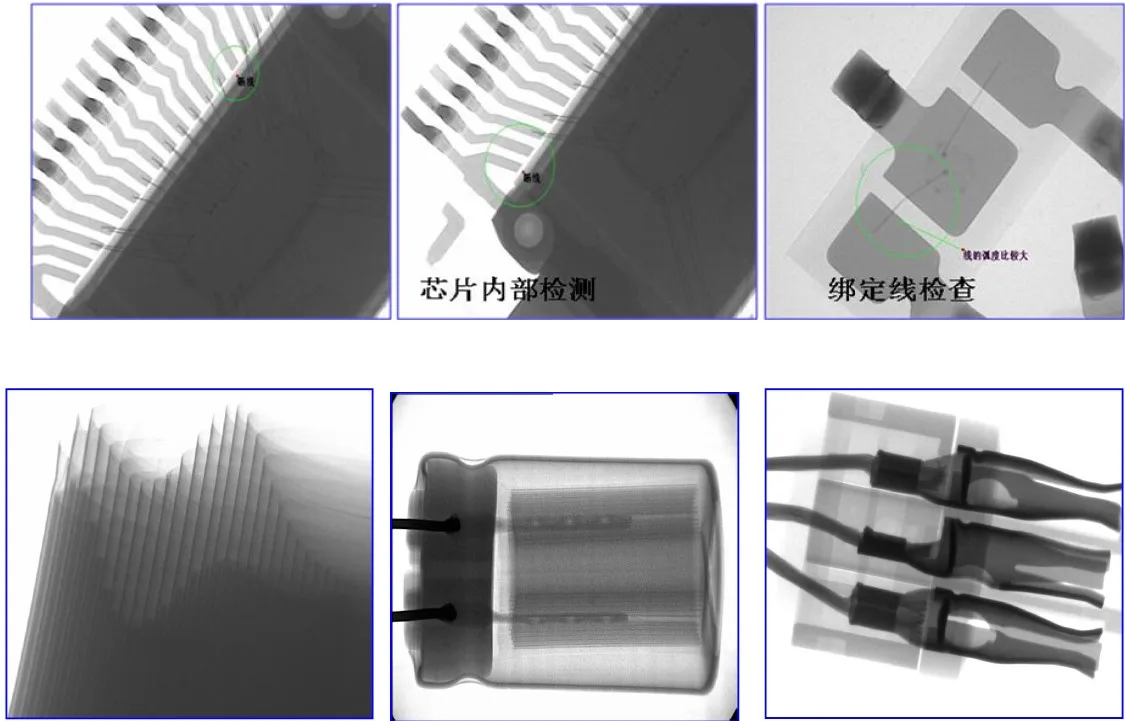

BGA, semiconductor irregular area, casting solder joint bubble can be measured and inspected for cracks
Power
Power supply mode
AC110-230VAC, 50/60Hz
Computer
Brand
Dell
Operation System
Windows10
Display
24”LCD
CPU
Intel i5 6500
RadiationSafetyStandard
< 1uSv/hr(International standard)
Radiation leakage dose<1µSv/h.(GB15208.1~2005)
X-Ray
Dimensions
Dimension
1500mmX1300mmX1800mm
Weight
1500KG
Warranty
Two years
Two years warranty
X-Ray Description
1. Closed Tube from HAMAMATSU Japan. 2. Imported Detector from Korea. 3. Micro-focus 4. Spot size down to 5µ 5. 5″ x 5″ or 4″ x 3″ high resolution and ultra-resolution CMOS digital panel detectors 6. 70° camera tilt for oblique angle viewing 7. 22″ x 18″ Inspection Stage with 350° Rotation 8. Color mapping camera with zoom window provides easy location and identification of faults 9. Z axis movement of the x-ray tube and detector 10. Computer controlled kV and mA settings 11. Computer controlled variable speed X-Y stage (and rotate) 12. Simple point and click, intuitive GUI provides access to create advanced inspection routines 13. All s/w tools standard including (but not limited to) 14. BGA Void detection and automatic calculations 15. Mobile Flex Cable FPC x-ray inspection 16. SMT Mounting and PCB X-ray inspection 17. Easy macro recording for intuitive step and repeat programming 18. Various measuring tools for TH, radius, area, perimeter, etc. 19. Industrial PC with Windows 7, 24″ LCD flat panel display
Standard configuration
1. Adjust the speed of the stage through the space bar: slow, constant, fast
2.Keyboard control x, y, Z1 Z2 four axis movement
3.The user can control the speed of the stage by programming
Fully automatic BGA detection program
1.Simple mouse click programming to automatically detect each BGA on the component without operator intervention

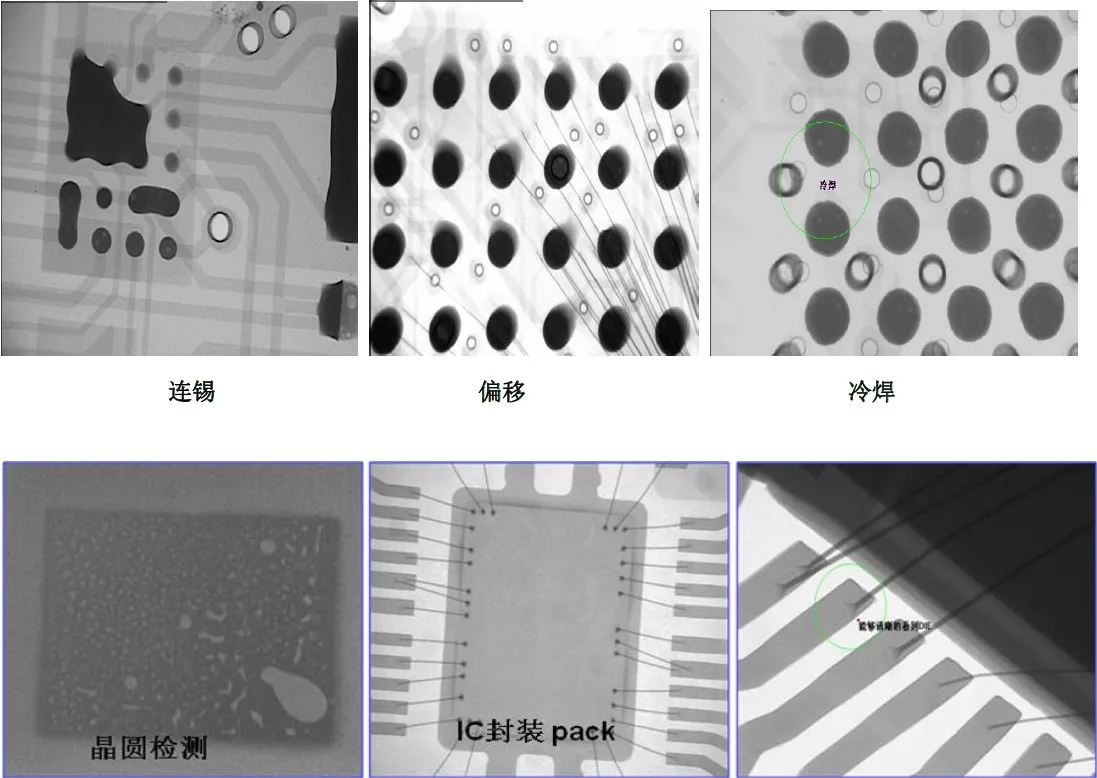

2.Automatic BGA detection program can accurately check BGA diameter, cavity proportion area and roundness
3.Automatic BGA detection program has high repeatability of detection results for process control
4.The test results will be displayed on the screen and can be output to excel for review and archiving
CNC programming
1. Simple mouse click operation to operate detection program
2. Sample table can be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.
3. Software set voltage and current.
4. Image settings: brightness, contrast, auto adjustment and exposure.
5. Users can set the pause time for program switching.
6. Anti-collision system can meet the maximum tilt and observation.
