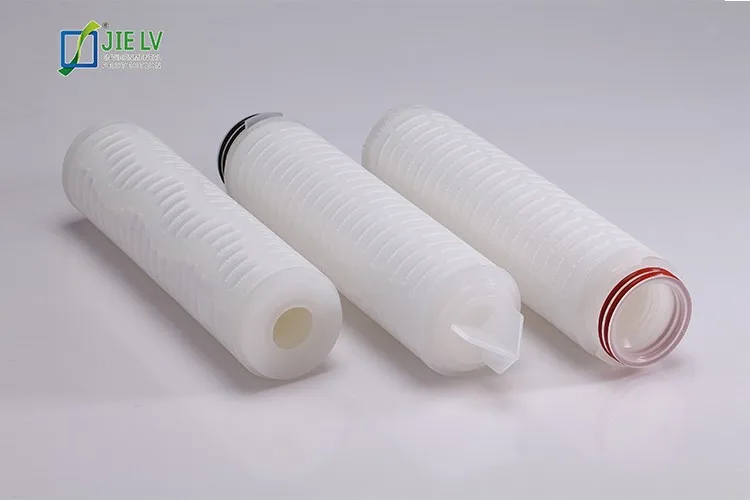

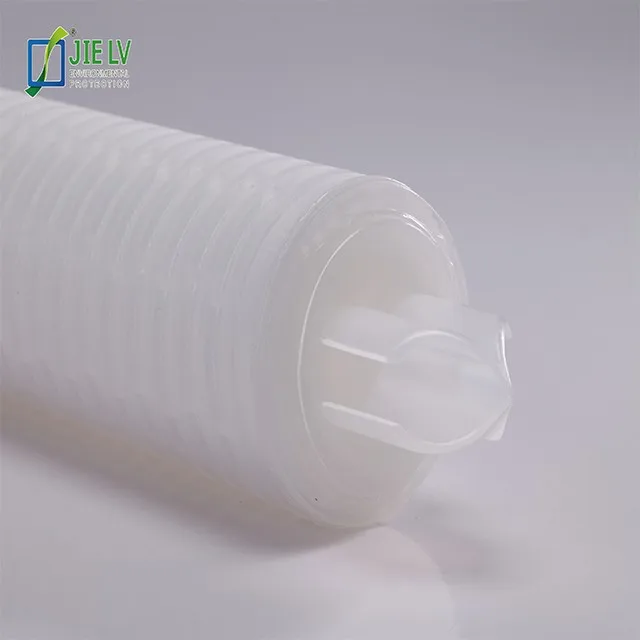

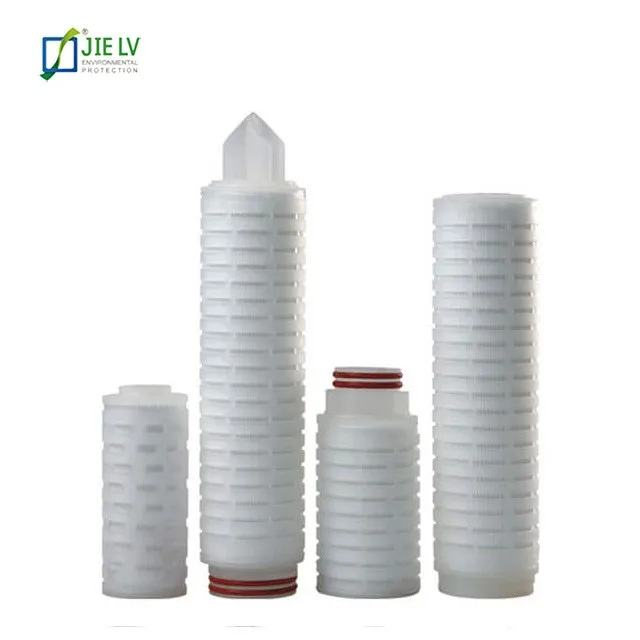

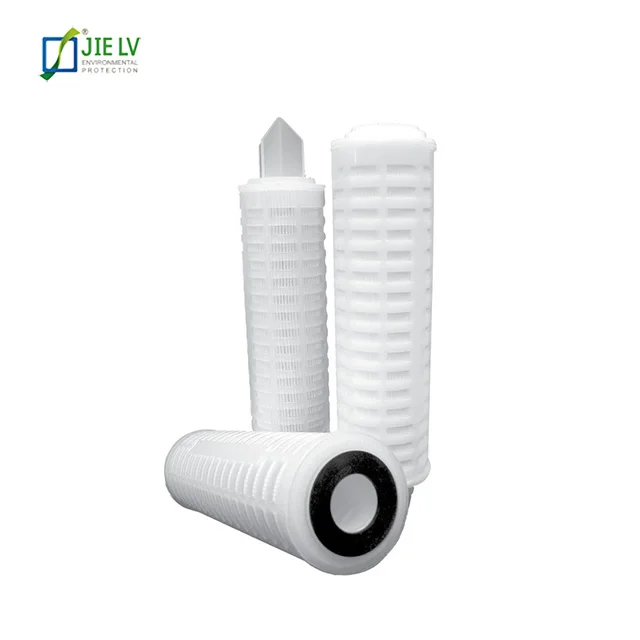

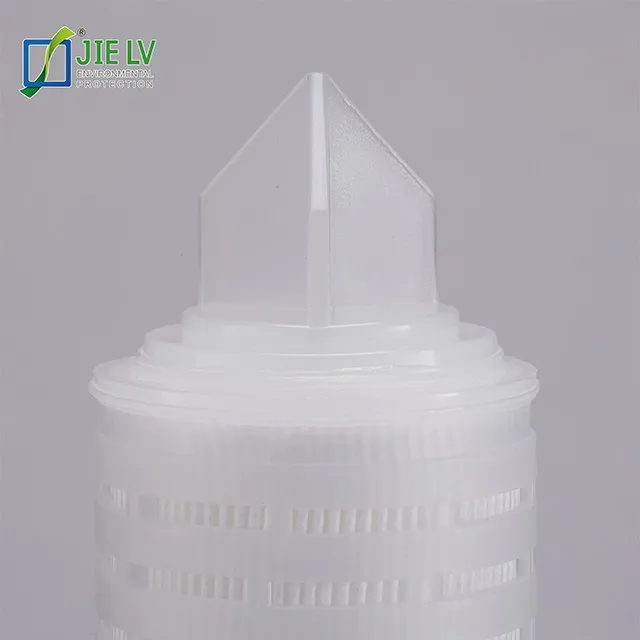

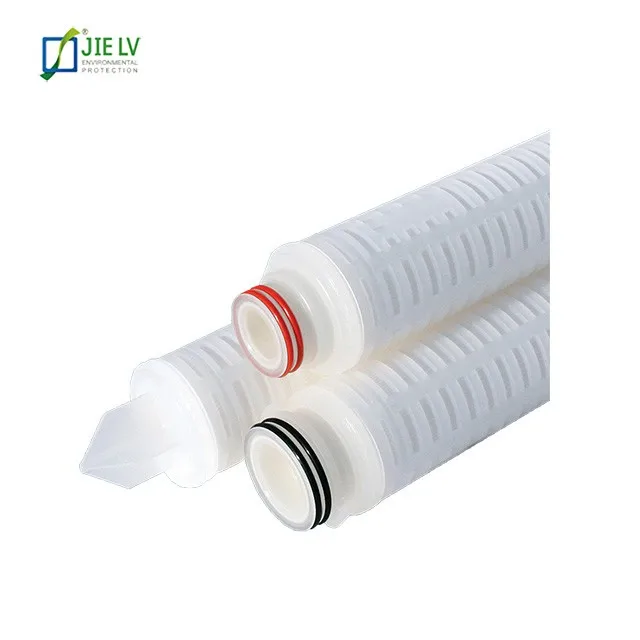

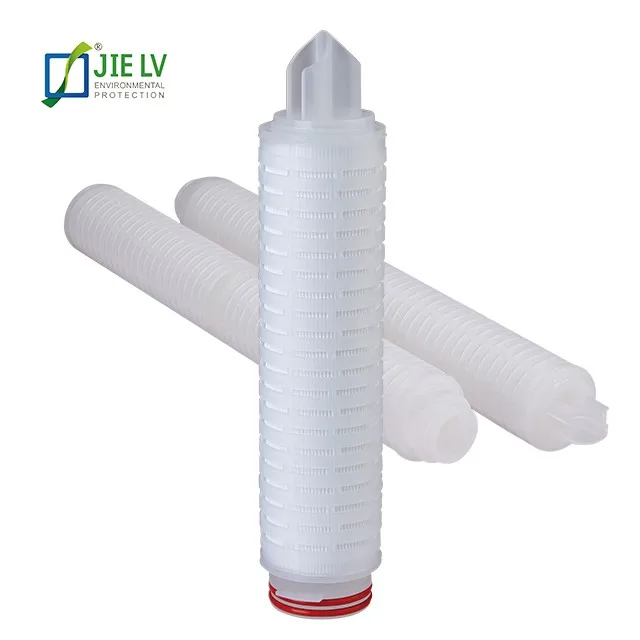

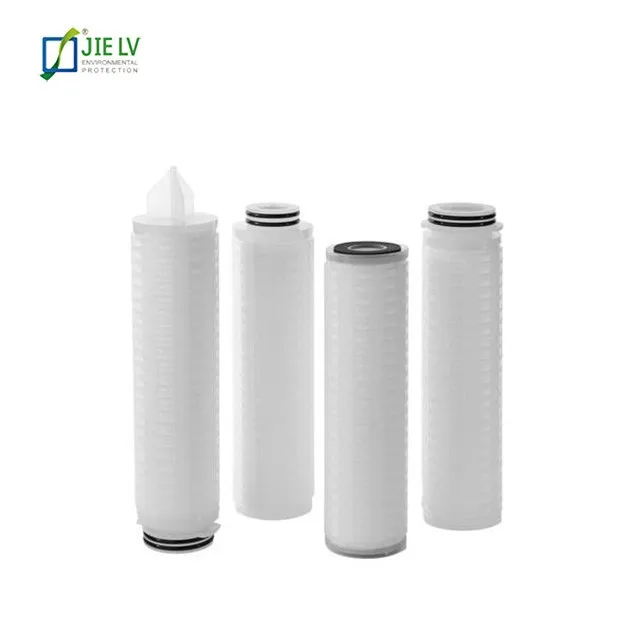

Nylon/PTFE/PVDF/ PES/PP pleated filter cartridges
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (62510877933):
Product Overview
Description
Product Description
Product name | PES Pleated Filter Cartridge | ||||
Material | PES | ||||
End cap | 222 | 226 | Flat | ||
Size | 10'', 20'', 30'', 40'' | ||||
Diameter | OD: 58-69mm | ID: 28-30mm | |||
Rated | 0.01, 0.1, 0.22, 0.45, 1, 5, 10, 20, 30, 50μm | ||||
Operating Temperature | ≤60℃ | ||||
PP pleated cartridge filter is constructed by 100% polyether sulfone media providing a wide range of chemical compatibility. The polyether sulfone cartridge flters include 3 to 4 layers of membrane. The multi layers membrane structure enables a graded fltration pore sizes and increases the dirt-holding capacity of the PES pleated cartridge filters. With rigid outer cage and strengthened inner core, the PES pleated filter cartridge can hold higher operation pressure than before.
JIELV polyether sulfone pleated water flters adapt continuous pleating technology. It will help the PES water flter cartridges have longer service life and lower differential pressure drop during industrial fltration operation. Economic or imported advanced Polypropylene membranes are at your options. All types of end caps or custom services available.
JIELV polyether sulfone pleated water flters adapt continuous pleating technology. It will help the PES water flter cartridges have longer service life and lower differential pressure drop during industrial fltration operation. Economic or imported advanced Polypropylene membranes are at your options. All types of end caps or custom services available.
If you are looking for realize some big ideas on the PES pleated cartridge flter, please feel free to contact us for engineering solutions.
Filter membrane | PES membrane | ||||
Diversion layer | pp non-woven | ||||
External support cage | pp material | ||||
Internal support | pp material or pp stainless liner | ||||
OD | 58-69mm | ||||
ID | 28-30mm | ||||
length | 10-40" | ||||
Seal Ring | Silicone,EPDM ,Nitrile ,Fluorous ,Fluorous and PTFE | ||||
Precision(μm) | 0.1, 0.2, 0.45, 1, 3, 5, 10, 20, 40, 50µm | ||||
Effective Filtering | Dimension≥0.60m² | ||||
PH value | 1~14 | ||||
Normal working temperature | ≤55℃ | ||||
Max. working temperature | 80℃, pressure differential ≤0.10Mpa | ||||
Max. differential pressure | 25℃,forward direction 0.42Mpa, reverse direction 0.21MPa | ||||
Esotoxin | <0.25EU/ml | ||||
Extractive | <0.03g/10" filter cartridge | ||||
Features and Benefits:
1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration.
2. Pleated depth media for high flow rate and maximum dirt holding capacity.
3. 100% polypropylene construction offers broad chemical compatibility.
4. High retention efficiency provide excellent protection of downstream filters.
5. No fiber migration into the process fluid.
More information of pleated cartridge filter:
1) Port of shipment of pleated cartridge filter: Guangzhou.
2) The payment of pleated cartridge filter: We prefer T/T and L/C.
3) The sample of pleated cartridge filter: We can provide the sample of pleated filter cartridge for free, but customer have to pay for the freight.
4) We provide the high quality pleated cartridge filter at the competitive price. Thepleated cartridge filter could be customized made.
5) For more information about pleated cartridge filter, pls kindly let us know anytime!
Applications
1) Wet cleaning process in Thin Film Transistor Liquid Crystal Display (TFT LCD) manufacturing.
2) Semiconductor or other electronic industrial processes water purification.
3) Large volume of clarification and sterile filtration in Food&beverage industry.
4) High pressure and flow rate water filtration in pharmaceutical and chemical industry.
2) Semiconductor or other electronic industrial processes water purification.
3) Large volume of clarification and sterile filtration in Food&beverage industry.
4) High pressure and flow rate water filtration in pharmaceutical and chemical industry.
5) Paints & lacquer, Wastewater treatment, Pharmaceutical, Food, Chemical, Wine & Spirit, Electronics industry, etc.
About Jielv Filter
Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.
Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....
Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..
Our Service
1) 24-hour Response: We responds any request from our clients within 24 hours, saving your time and labor.
2) Supporting System: The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
3) After-Sales Service: We have professional sales team and after-service team to solve the problem.
4) OEM Service: We provide OEM service and submit various styles, latest designs to our clients.
Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.
2) Supporting System: The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
3) After-Sales Service: We have professional sales team and after-service team to solve the problem.
4) OEM Service: We provide OEM service and submit various styles, latest designs to our clients.
Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.
Office
Team
Meeting room
Workshop
Our Certifications
Contact information
Name: Becky Zhi
Tel: +86 3788 9099
Fax: +86 3788 9066
Phone/Wechat/Whatsapp/Skype:
+86 199 2082 1482
ADD: Room 406, D Block, Kehui Park, Daguan Middle Road 95, Tianhe District Guangzhou City, China.
Tel: +86 3788 9099
Fax: +86 3788 9066
Phone/Wechat/Whatsapp/Skype:
+86 199 2082 1482
ADD: Room 406, D Block, Kehui Park, Daguan Middle Road 95, Tianhe District Guangzhou City, China.

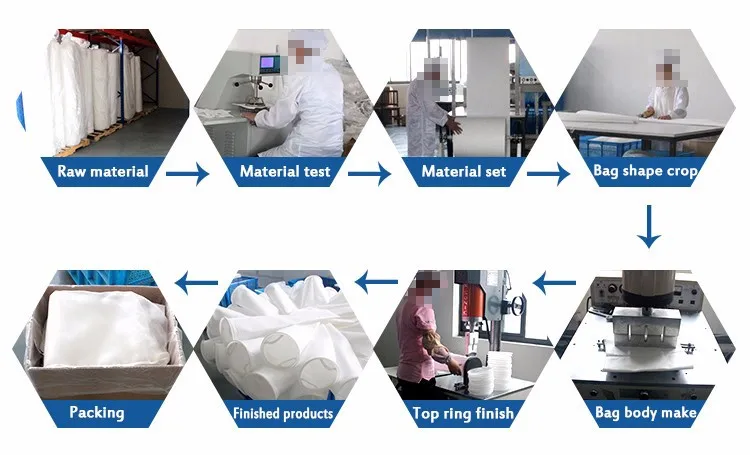

Production Process
Packing & Delivery
Related Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
