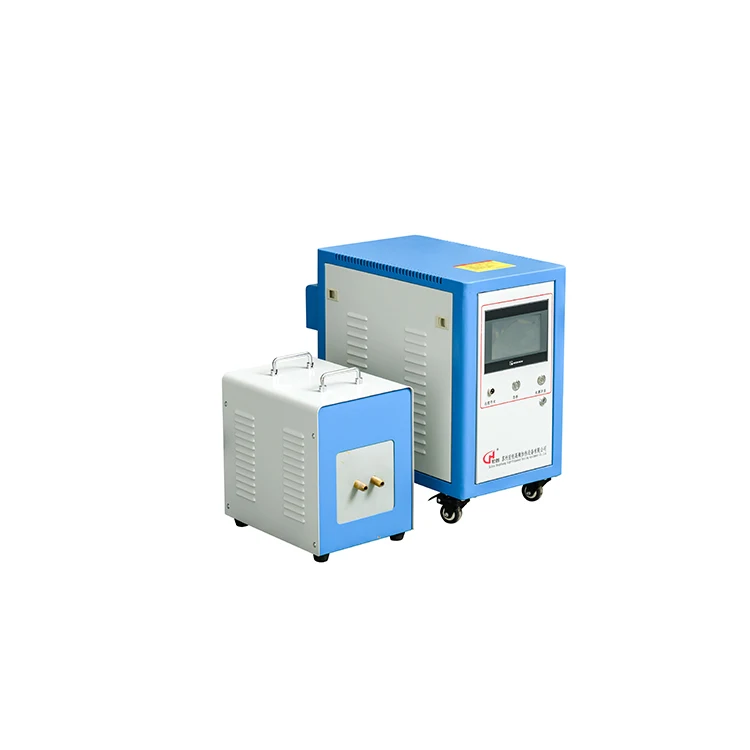

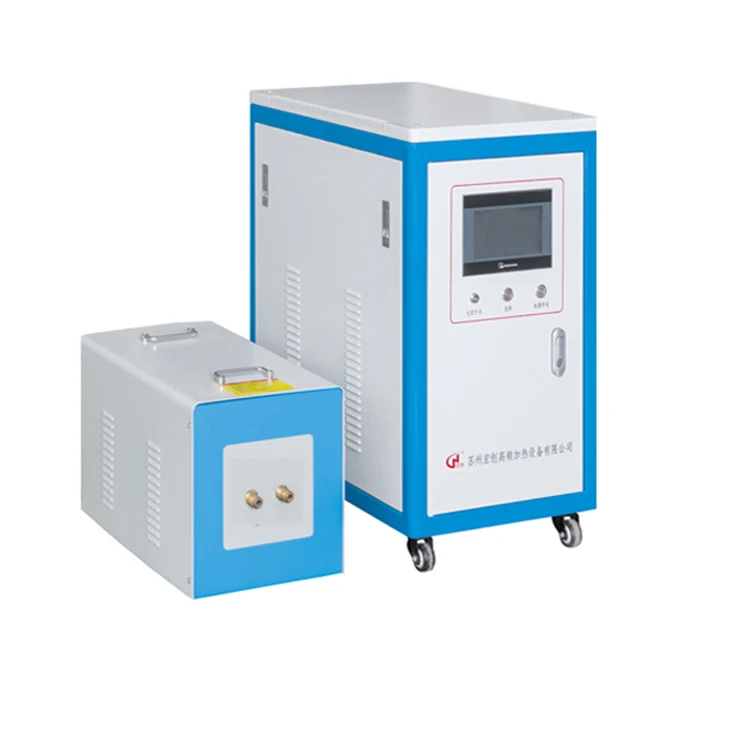

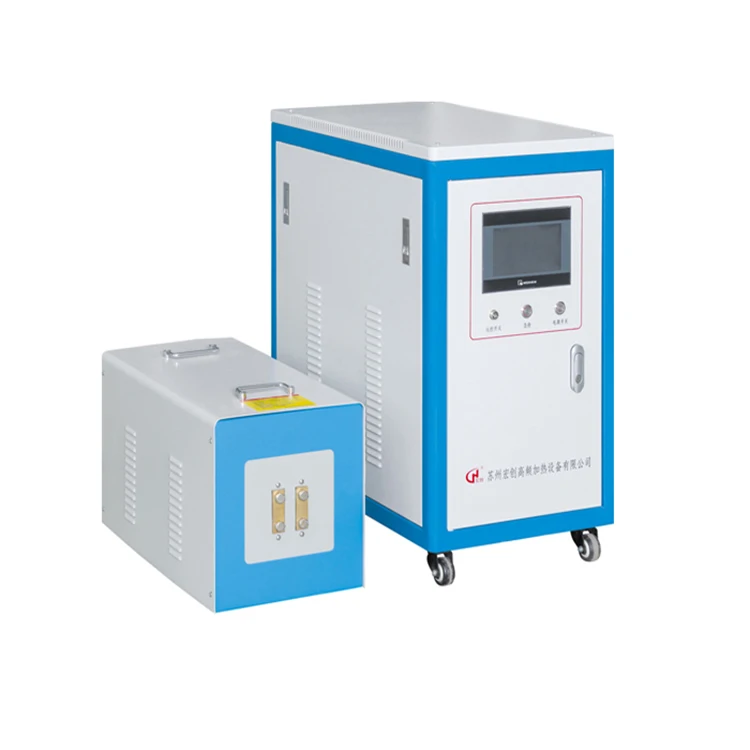

2021 50KW China supply Bottom price induction heating machine for bearings heating,metal heat treatment
- Category: >>>
- Supplier: Wuxi Kenuo Environmental Protection Equipement Co. Ltd.
Share on (62510894869):
Product Overview
Description

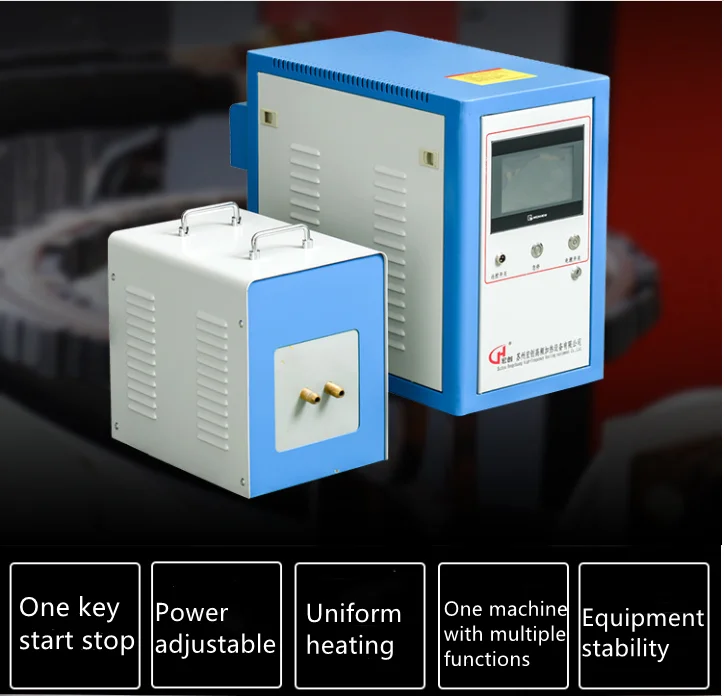

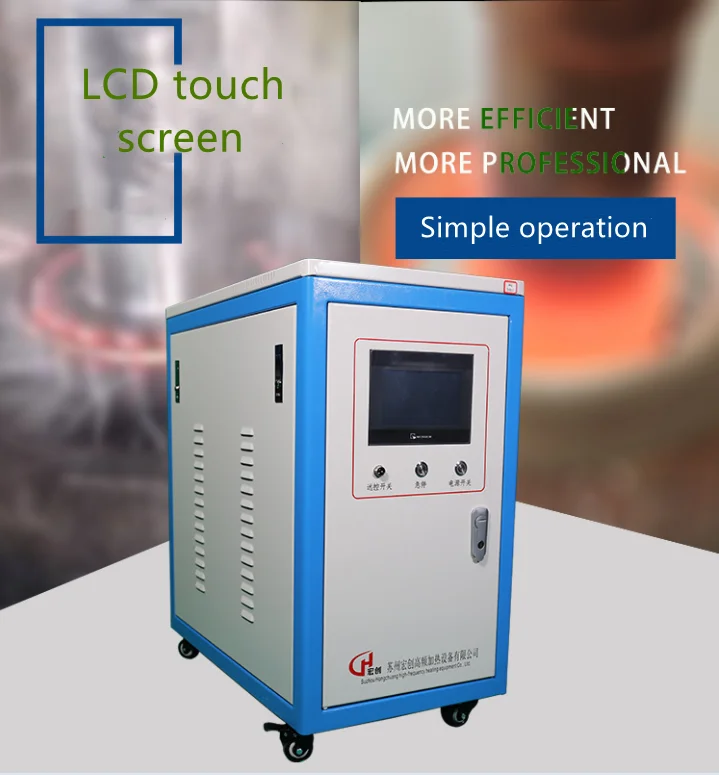

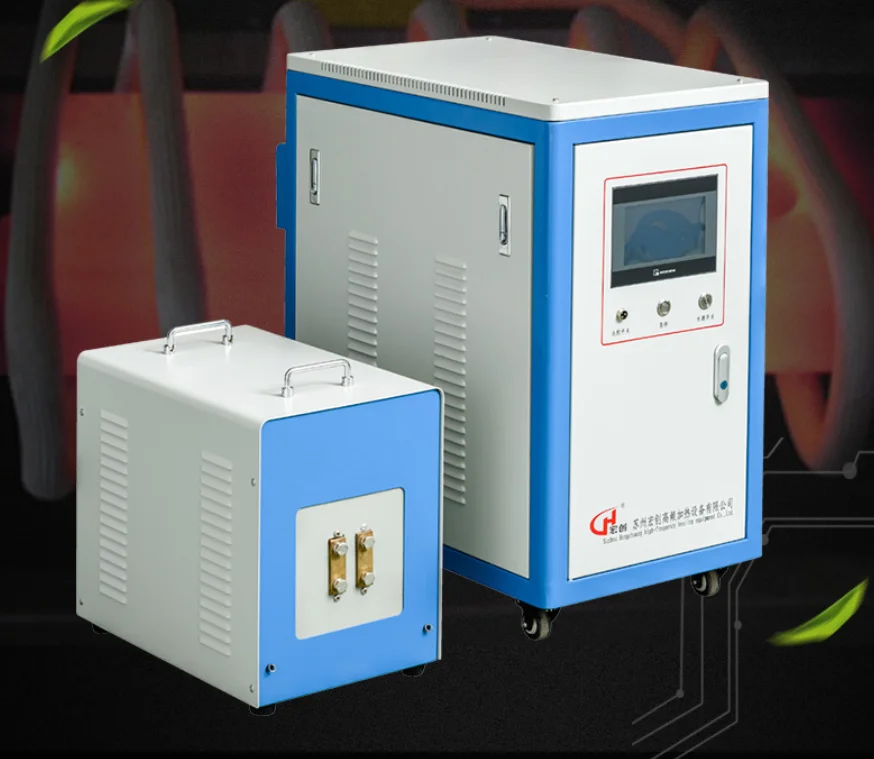

2021 50KW digital high frequency induction heating furnace
TECHNICAL PARAMETERS | |||||||||
Item | Model | DIH-30 | DIH-40 | DIH-50 | DIH-60 | ||||
Out Put | Rated output power | 18 | 25 | 35 | 45 | ||||
Max output power | 30 | 40 | 50 | 60 | |||||
Duty Cycle | 100% | 100% | 100% | 100% | |||||
Out Put | Output Power Adjust Range | 5-100% | 5-100% | 5-100% | 5-100% | ||||
Frequency Range | 10~55 | 10~55 | 10~55 | 10~55 | |||||
In Put | Input Voltage | 3*380 | 3*380 | 3*380 | 3*380 | ||||
Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |||||
Cooling | Min Flow of Cooling Water | 10L/Min | 10L/Min | 15L/Min | 15L/Min | ||||
The Maxi Temp of Cooling Water Inlet | Max.35℃ | Max.35℃ | Max.35℃ | Max.35℃ | |||||
Min/max Cooling Water pressure | 0.1-0.3 MPa | 0.1-0.3 MPa | 0.1-0.3 MPa | 0.1-0.3 MPa | |||||
pH of Cooling Water Quality | 7.0~9.0 | 7.0~9.0 | 7.0~9.0 | 7.0~9.0 | |||||
Other | Environment Temp | +5℃~+40℃ | +5℃~+40℃ | +5℃~+40℃ | +5℃~+40℃ | ||||

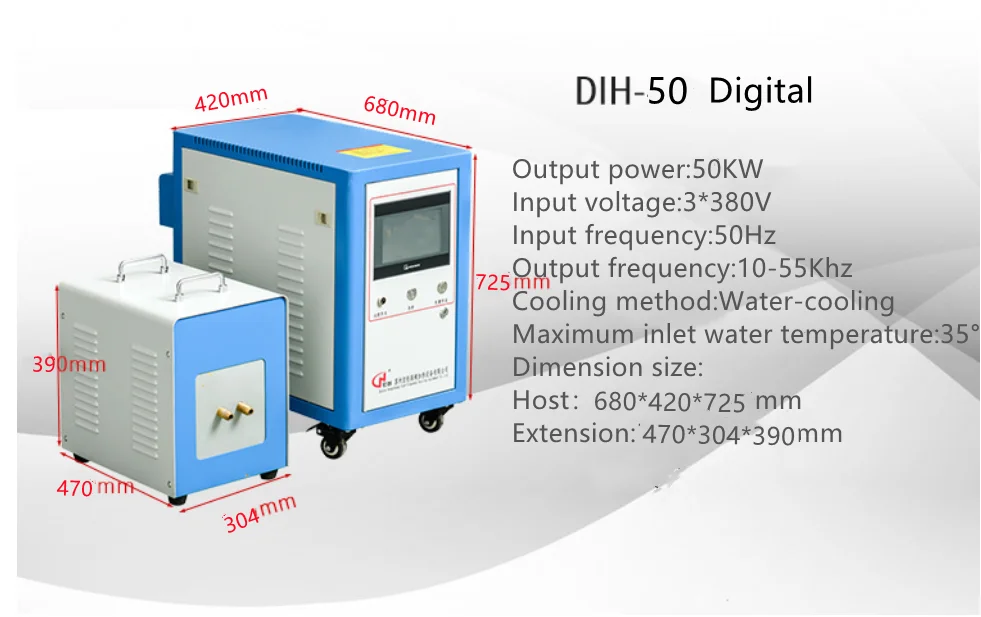

OD(L*W*H) | Main body size(mm) | 550*320*500 | 600*400*620 | 680*420*725 | 600*420*700 | ||||
Extension Size(mm) | 360*262*330 | 410*285*380 | 470*304*390 | 470*304*390 | |||||

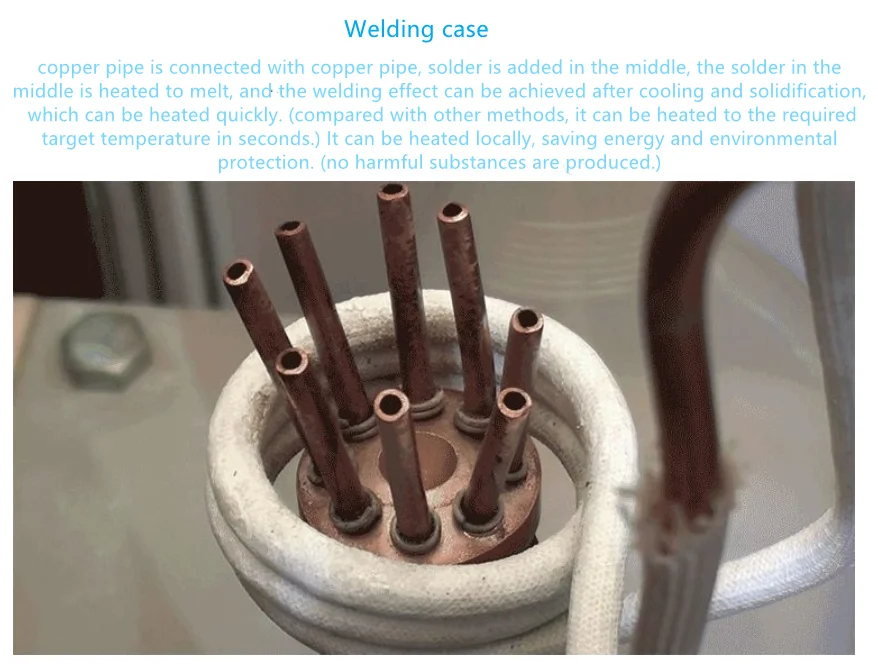

Application field: high-precision heat treatment process(hardening, tempering, annealing, hardening &tempering),hot forging,preheating, welding,brazing,casting and so on.
