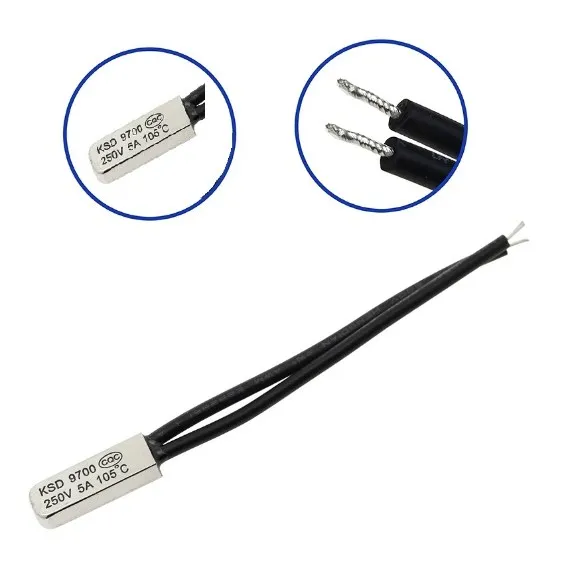

DuoPu Customized 250V 5A KSD9700 Temperature Control Switch Normally Opened Thermal Switch Thermostat Thermal Protector
- Category: >>>
- Supplier: Yancheng DUOPU Import & Export Co. Ltd.
Share on (62510959620):
Product Overview
Description
Product Description

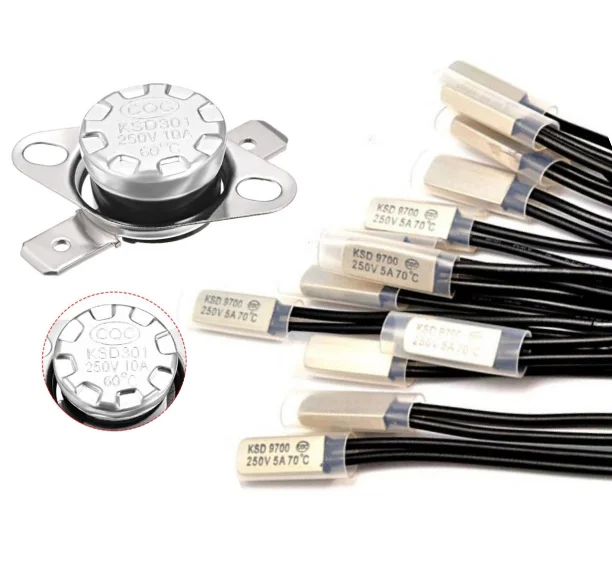

KSD301 KSD9700 Temperature Switch Thermostat Thermal Protector
The KSD-9700 series heat protector is composed of high sensitive bimetallic disc, moving contact, static contact, fixed base, shell and temperature resistant wire. When working, the bimetallic plate is in free state, the moving contact is closed with the static contact, and the circuit is on. When the temperature of the electric appliance rises to the operating temperature of the thermal protector due to the fault heating, the bimetallic plate will be heated and produce internal stress and move quickly, push the moving contact away from the static contact and disconnect the circuit, thus cutting off the power supply of the fault electric appliance and playing the role of protecting the electric appliance. When the temperature of the protected appliance drops to the rated reset temperature value of the thermal protector, the bimetallic strip returns to the initial state and the contact closes, and the appliance returns to normal operation.
Product Feature
KSD-9700 Thermal Protector Thermostat
1.Accuracy Class: 1%
2.Measuring range: -200~+450 degrees
3.Output: Digital sensor
4.Resistance: 1K ohm-470K ohms
5.Structure: NTC+Cable+Terminal
6.Function: Temperature Protection
7.Insulating resistance(MΩ): more than 100MΩ
8.Working temperature range(Celsius): -40 to +100
9.Dissipation factor(mw/Celsius): 5-15(in still air)
10.Thermal time constant(s): 20-50(in air)
11.Material details: Epoxy resin+shriking tube +PTFE wire
2.Measuring range: -200~+450 degrees
3.Output: Digital sensor
4.Resistance: 1K ohm-470K ohms
5.Structure: NTC+Cable+Terminal
6.Function: Temperature Protection
7.Insulating resistance(MΩ): more than 100MΩ
8.Working temperature range(Celsius): -40 to +100
9.Dissipation factor(mw/Celsius): 5-15(in still air)
10.Thermal time constant(s): 20-50(in air)
11.Material details: Epoxy resin+shriking tube +PTFE wire
Normally Closed & Open: The original state of temperature control switch contact is closed, and open when the temperature sensing
exceeds the rated temperature.
exceeds the rated temperature.
Advantage: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long
service life, no arc phenomenon.
service life, no arc phenomenon.

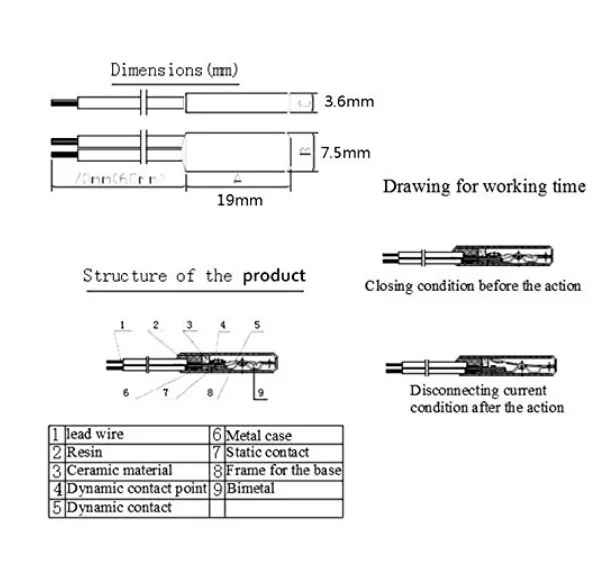

Product Structure
SKD9700 temperature protector's Principle and structure
KSD9700 series product is a kind of thermostat which adopt the bimetal disc as the temperature sensing element. The bimetal disc is in free state and the contacts are closed when the electrical appliance is working in normal condition. When the ambient temperature raises to the preset operating temperature, the contacts open as the bimetal disc deforms to jump when being heated, then the circuit is cut off to control the temperature.

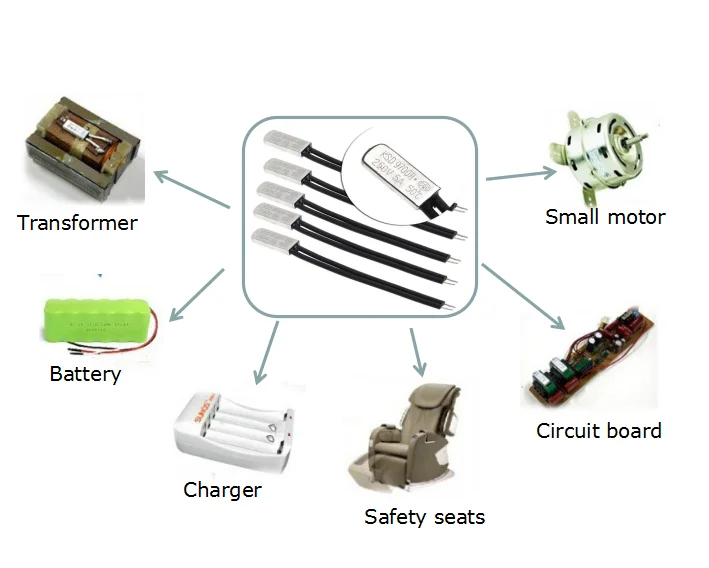

Product Application
KSD-9700 Serie
